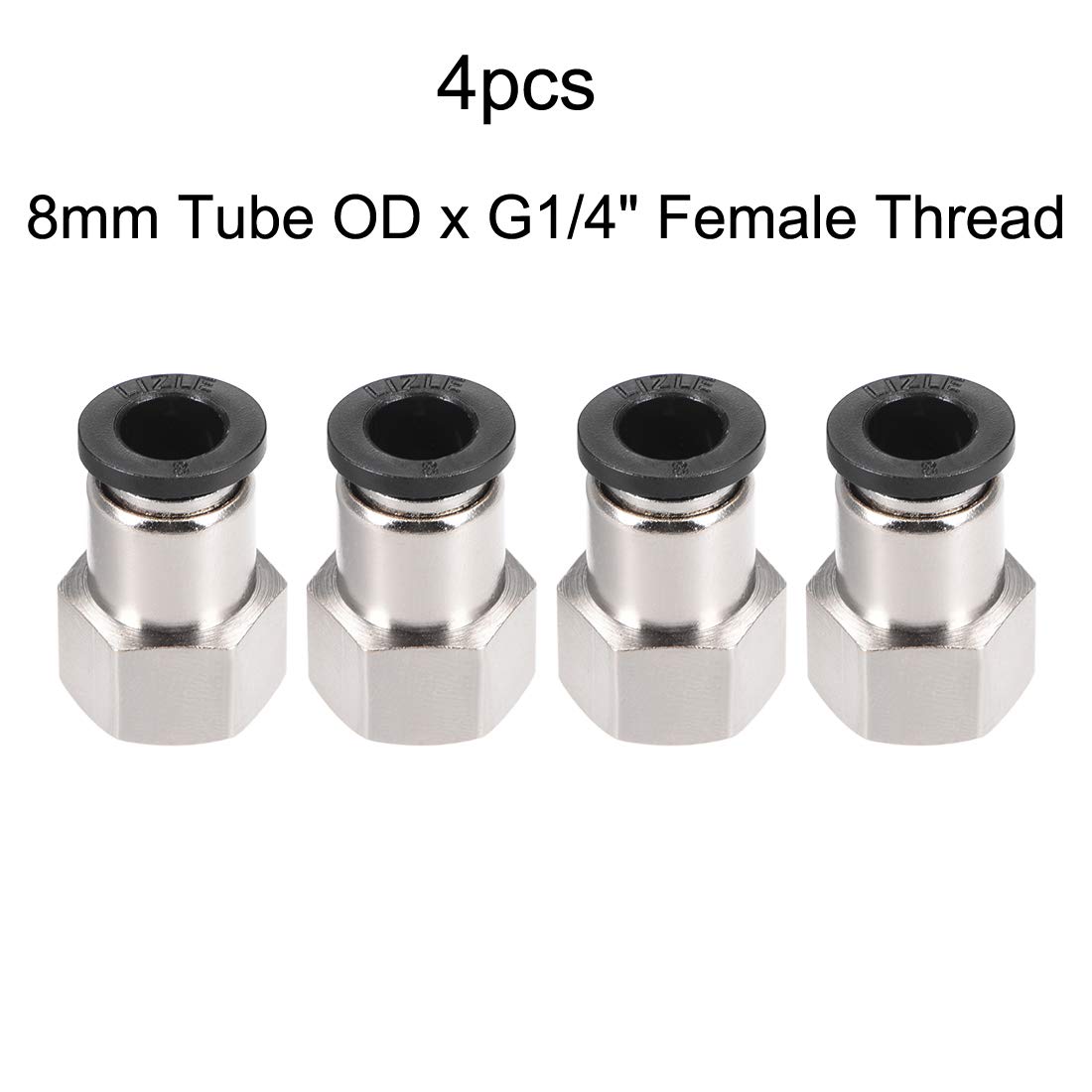

sourcing map Push to Connect Tube Fitting Adapter 8mm Tube OD x 1/4" PT Female Straight Pneumatic Connecter Connect Pipe Fitting Silver Tone 4pcs

• 【UNIVERSAL DESIGN】- Product Name : push to connect fittings ; Tube and Thread Size : 8mm Tube OD x 1/4" PT Female Thread
• Operating Pressure : 0-1MPa ; Operating temperature：0 - 60 Degree Celsius;
• 【GOOD DESIGN】- Push-to-connect tube connection on one end and female PT threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• 【ADVANTAGE】- Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 【APPLICATION】-Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.

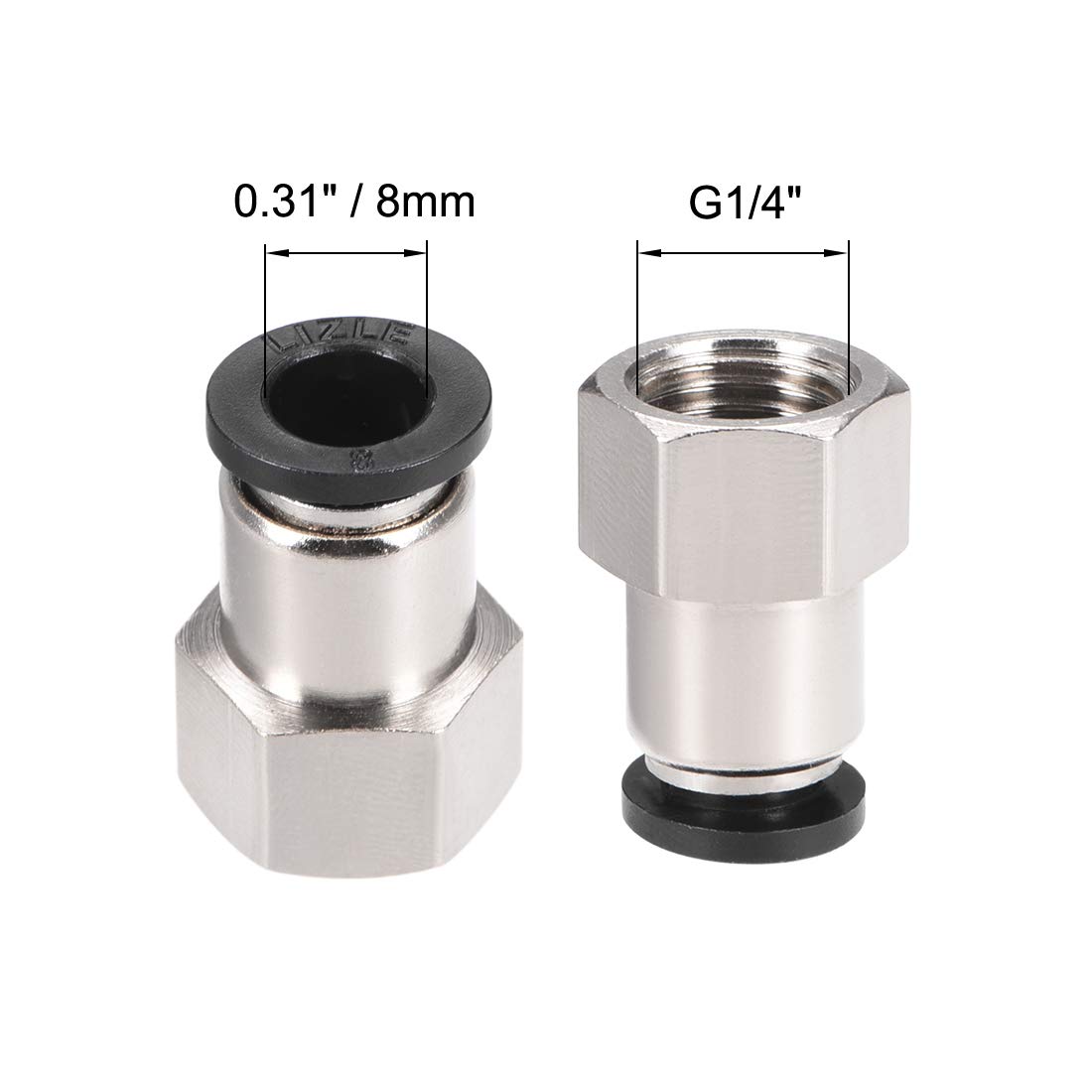

Product Features: Product Name : push to connect fittings Model : PCF8-02 Net Weight : 81g Color : Silver Tone,Black Material : Plastic,Brass Operating Pressure : 0-1MPa Operating temperature：0 - 60 Degree Celsius; Female Thread Type : PT Type Type: Female Straight Thread Connector Thread Tube Inner Hole Type : Round Thread Size : 1/4" PT Tube Size (OD): 0.31" / 8mm Dimension : 27mm x19mm / 1.06-inch x 0.75-inch (L x W） Package Content: 4pcs x Quick Fittings Description: 1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely. 2.Push-to-connect tube connection on one end and Female PT threads on the other end. 3.A good release cap can withstand greater and stronger pressure without tripping. 4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. 5.Elliptical release ring help to connect tube easily by manual, no special tools required. Mounted: 1.Cut the pipe flat, no slope 2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak. 3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected. 4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
