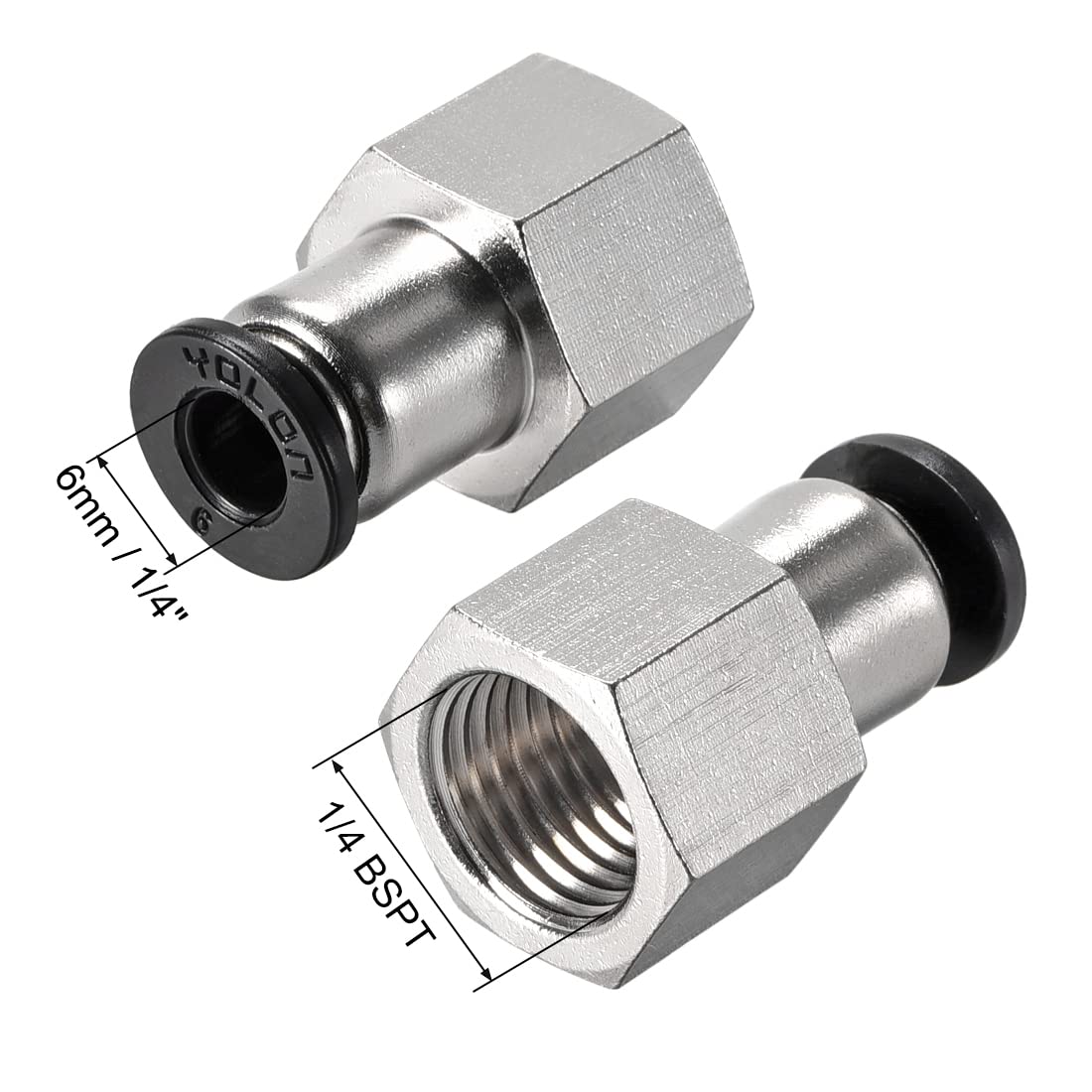

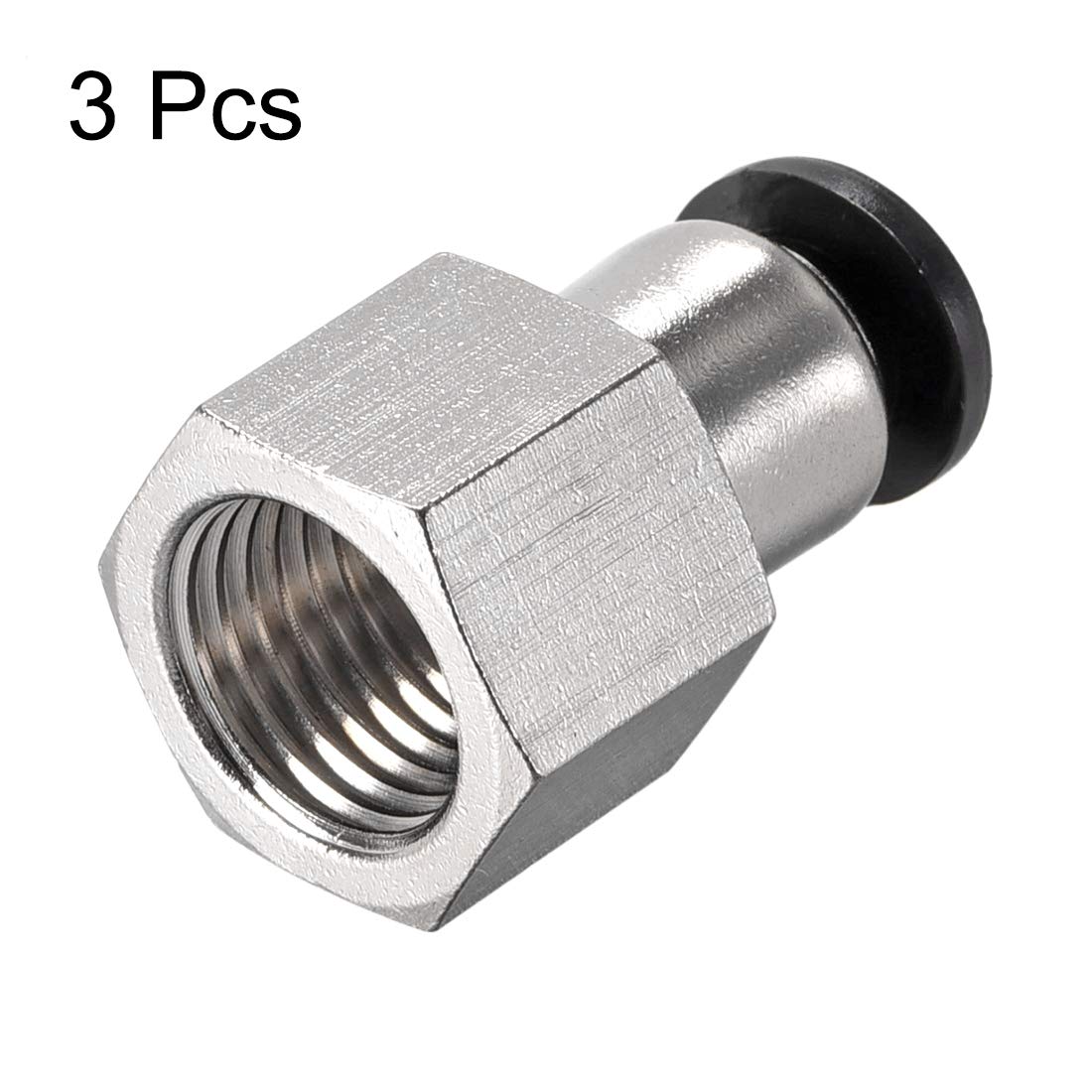

sourcing map Push to Connect Tube Fitting Adapter 6mm Tube OD x 1/4BSPT Female Straight Pneumatic Connecter Pipe Fitting 3pcs

• 【UNIVERSAL DESIGN】- Product Name : push to connect fittings ; Tube and Thread Size : 6mm Tube OD x 1/4 PT Female Thread
• Operating Pressure : 0-0.9MPa ; Operating temperature：0 - 60 Degree Celsius
• 【GOOD DESIGN】- Push-to-connect tube connection on one end and female threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
• 【ADVANTAGE】- Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 【APPLICATION】-Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.

Product Features: Product Name : Push to Connect Fittings Model :MPCF6-02 Color : Silver Tone,Black Material : Plastic,Metal Thread Size : 1/4 BSPT Tube Size (OD) : 6mm / 1/4" Type: Female Straight Thread Connector Operating Pressure : 0-0.9MPa Operating temperature：0 - 60 Degree Celsius Dimension : 26.5mm x 17mm / 1.04-inch x 0.67-inch (L x W ) Package Content: 3pcs x Push to Connect Fittings Description: 1.The fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely. 2.Push-to-connect tube connection on one end and Female threads on the other end. 3.A good release cap can withstand greater and stronger pressure without tripping. 4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. 5.Elliptical release ring help to connect tube easily by manual, no special tools required. 6.Outside (and Inside where applicable) hexagonal wrench tightening. Mounted: 1.Cut the pipe flat, no slope 2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak. 3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected. 4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
