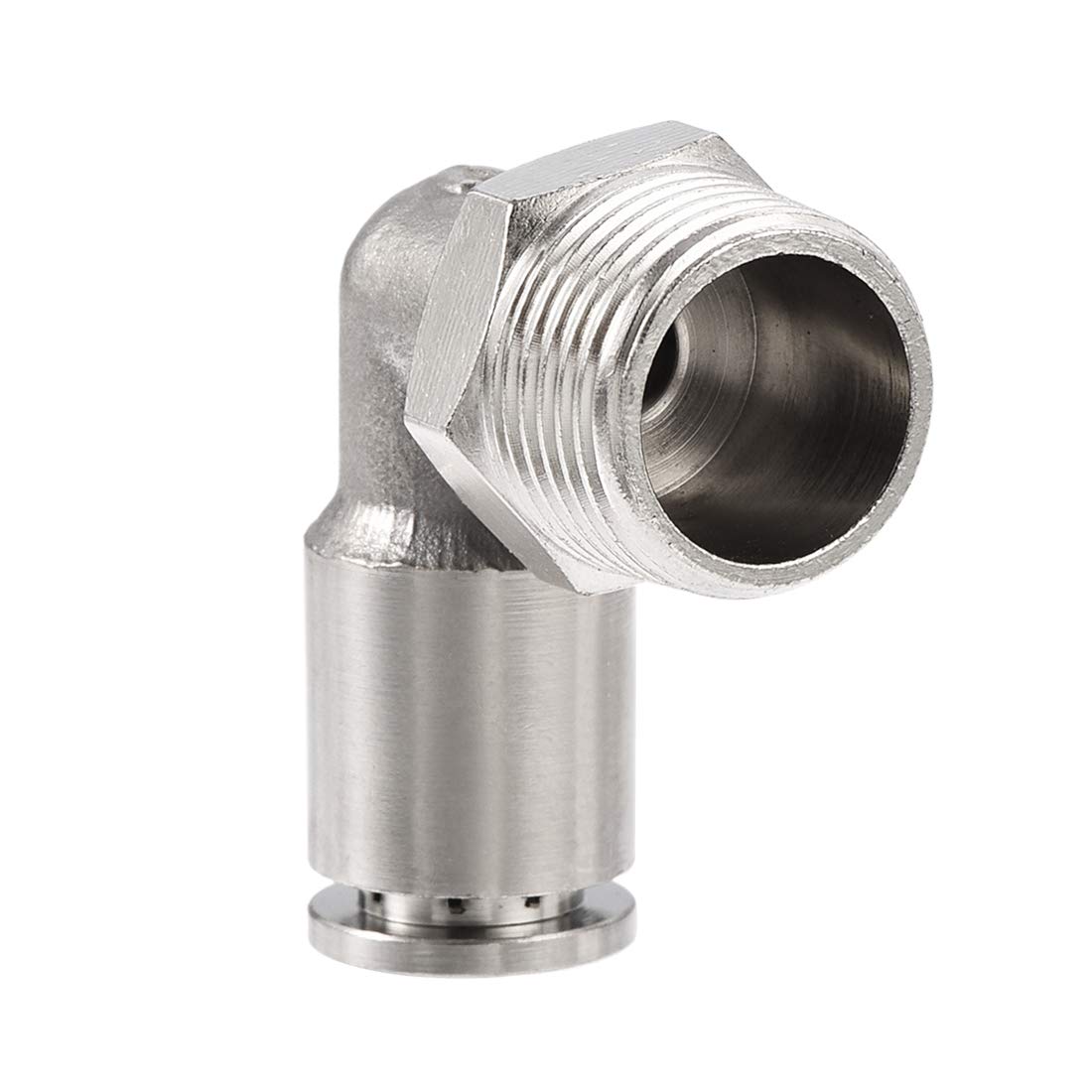

sourcing map Push to Connect Tube Fitting 8mm Tube to 3/8PT Male Elbow L Shape

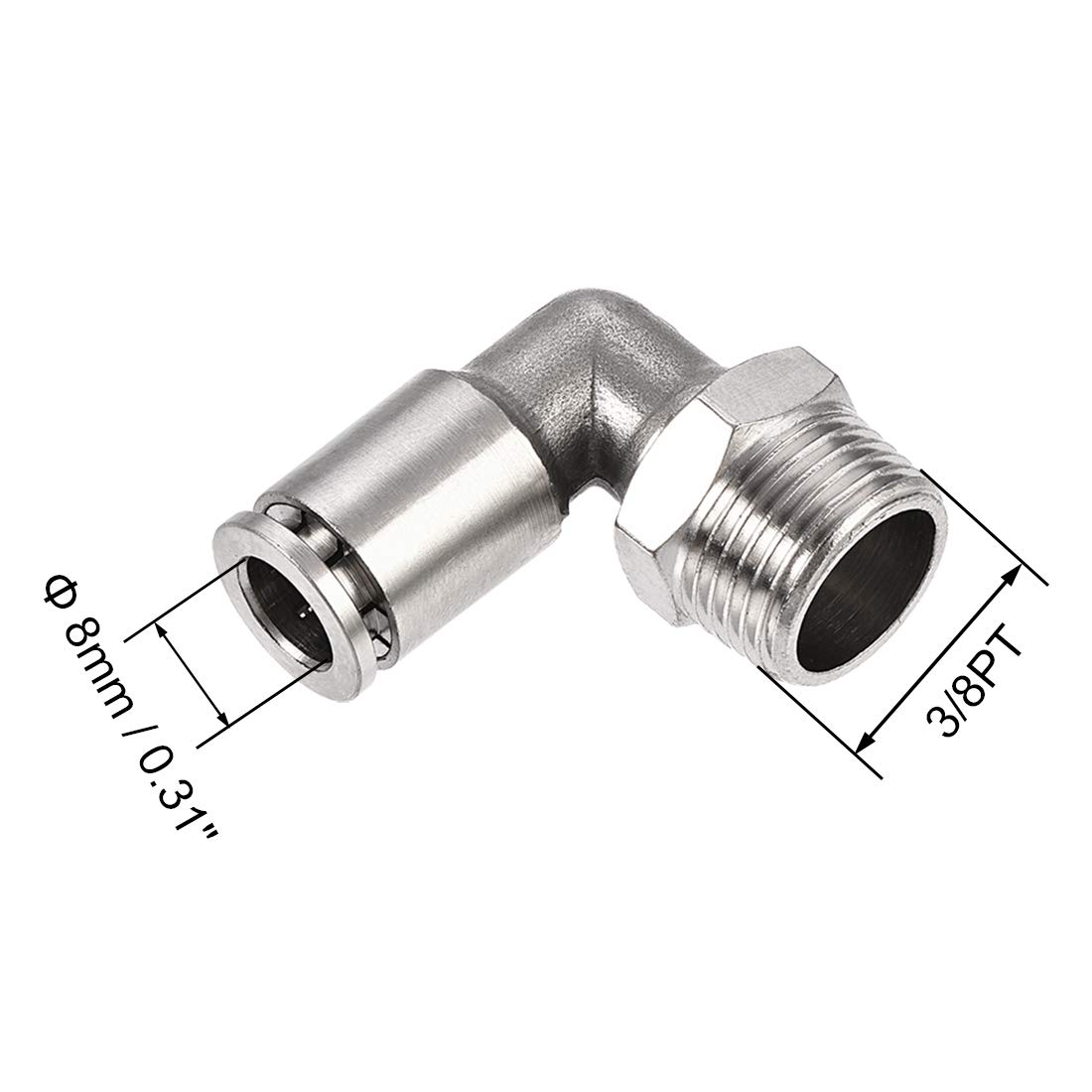

• Fit Tube OD: 8mm; Male Thread Size: 3/8PT(Approx OD 16.3mm).
• The male thread end is connected to a female tube, and sealing tape is added to ensure the sealing effect. Push-to-connect end is connected to a hose and can be rotated 360 degrees.
• This fitting is made of nickel-plated copper, and has resistance to high temperature and pressure, good sealing performance and long service life.
• Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.
• Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Specification: Material: Copper Surface Treatment: Nickel Plating Overall Size: 36x31x13.7mm / 1.42x1.22x0.54 Inch Fit Tube Size(OD): 8 mm / 0.31 Inch Thread: 3/8PT Feature: Designed for Polyurethane or Nylon tubing. Outside (and Inside where applicable) hexagonal wrench tightening. Even after installation, the direction of the tube can be changed freely. Round release ring help to connect tube easily by manual, no special tools required. Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems. Package Content: 1 x Quick Fitting
