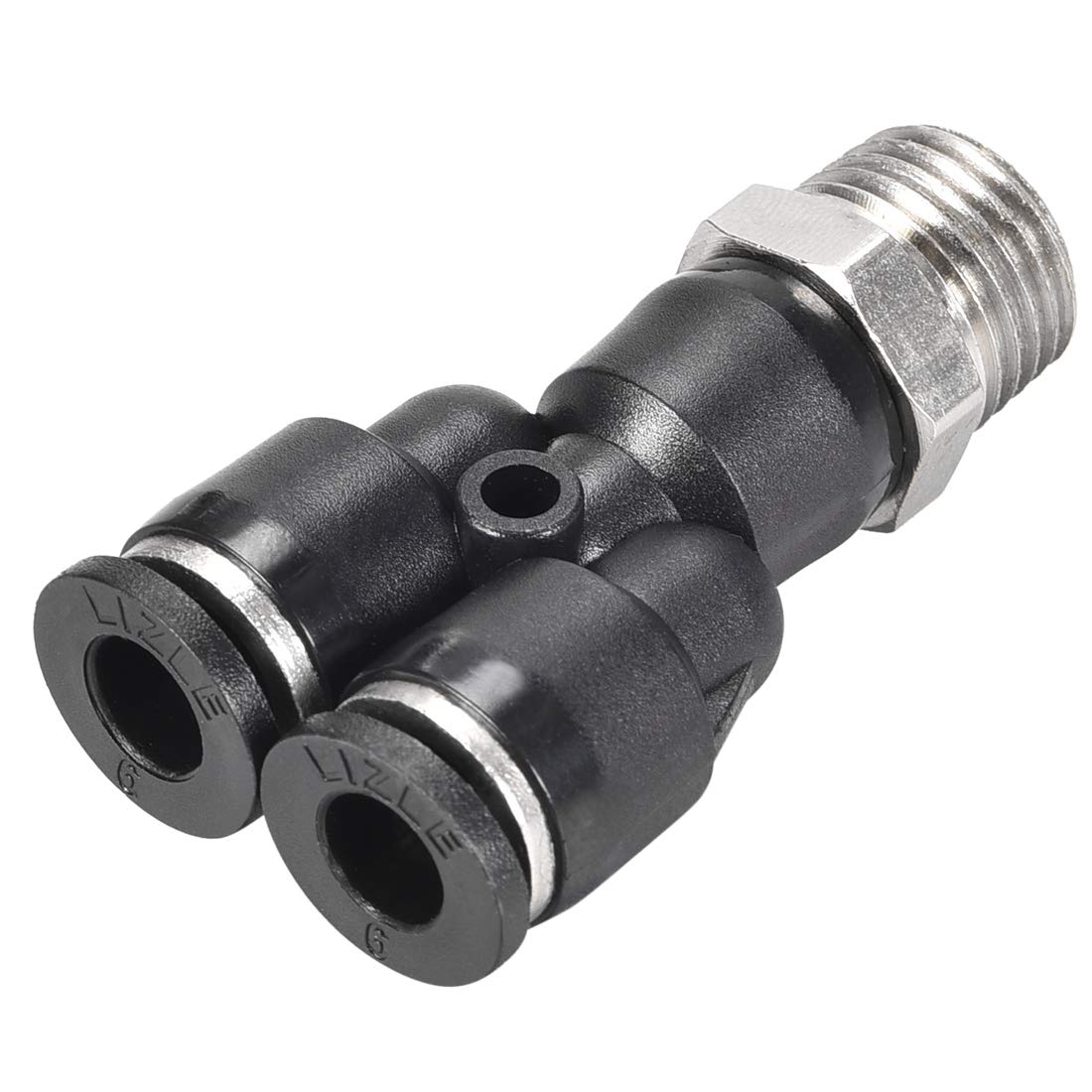

sourcing map Push to Connect Air Fittings Y Type Tube Connect 6mm OD x 1/4PT Male Thread Tube Fittings Push Lock Black 2Pcs

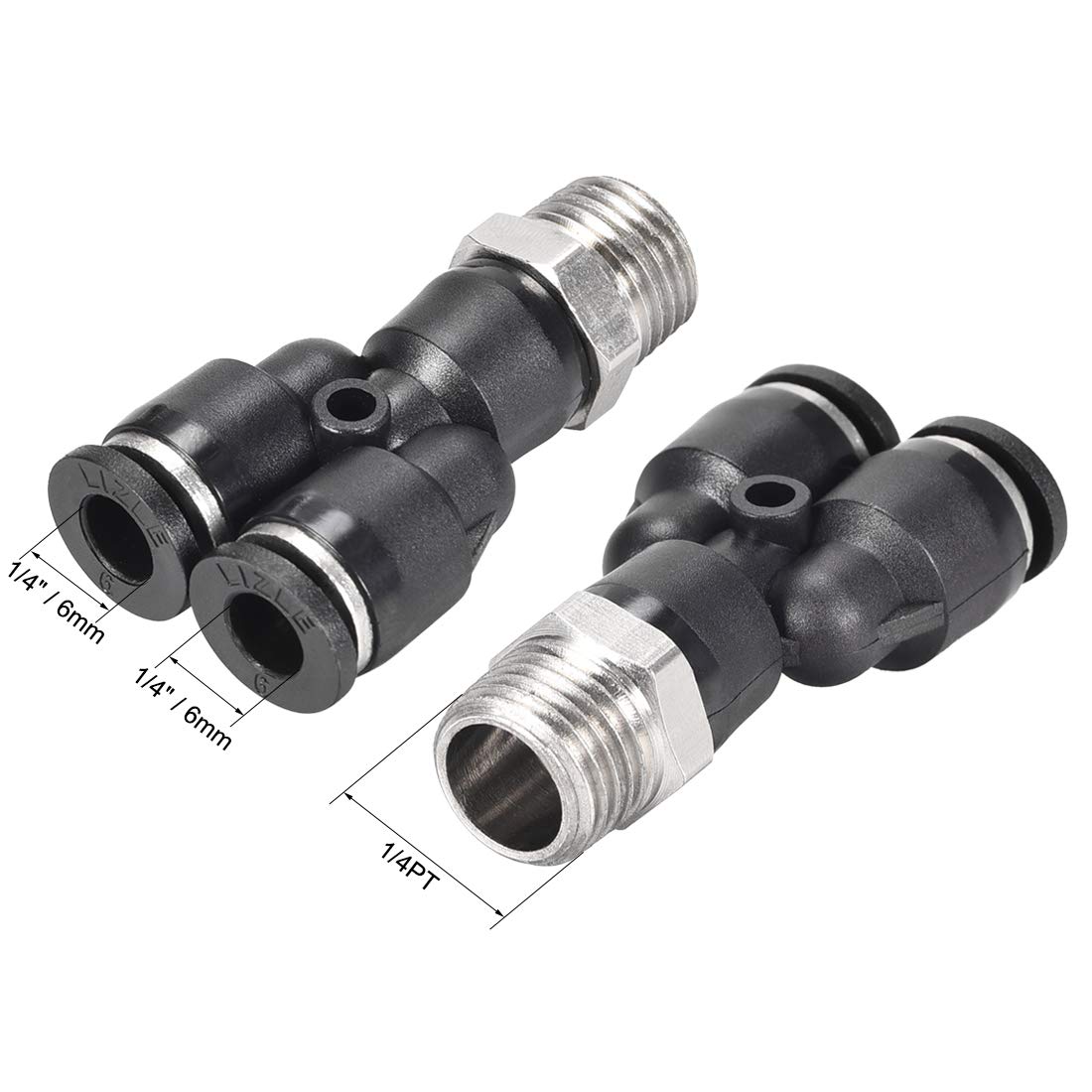

• Type: Y Type Thread Tee Connector ; Dual Tube and Thread Size : 6mm Tube OD x 1/4PT Male Thread
• Operating Pressure : 0-1MPa ; Operating temperature：0 - 60 Degree Celsius
• TUBE FITTINGS. Push-to-connect tube connection on one end and male PT threads on the other end. .A good release cap can withstand greater and stronger pressure without tripping.
• ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life
• MATERIAL. Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Features: Color: Black, Silver Tone Material: Plastic, Nickel-plated Brass Type: Y Type Thread Tee Connector Operating Pressure: 0-1MPa Operating temperature: 0 - 60 Degree Celsius Thread Size:1/4PT Dual Tube Size (OD): 1/4" / 6mm Dimension: 46mm x 26mm x 12mm / 1.81-inch x 1.02-inch x 0.47-inch(L x W x H ) Package Content: 2pcs x Fitting Description: 1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing. 2.Push-to-connect tube connection on two end and male PT threads on the other end. 3.A good release cap can withstand greater and stronger pressure without tripping. 4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. 5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed. 6.The small tube in the center is use for fixed. Mounted: 1.Cut the pipe flat, no slope 2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak. 3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected. 4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
