sourcing map Push Button Switch Station Momentary 1NC 1NO Mushroom Green Switch, 600V 10A

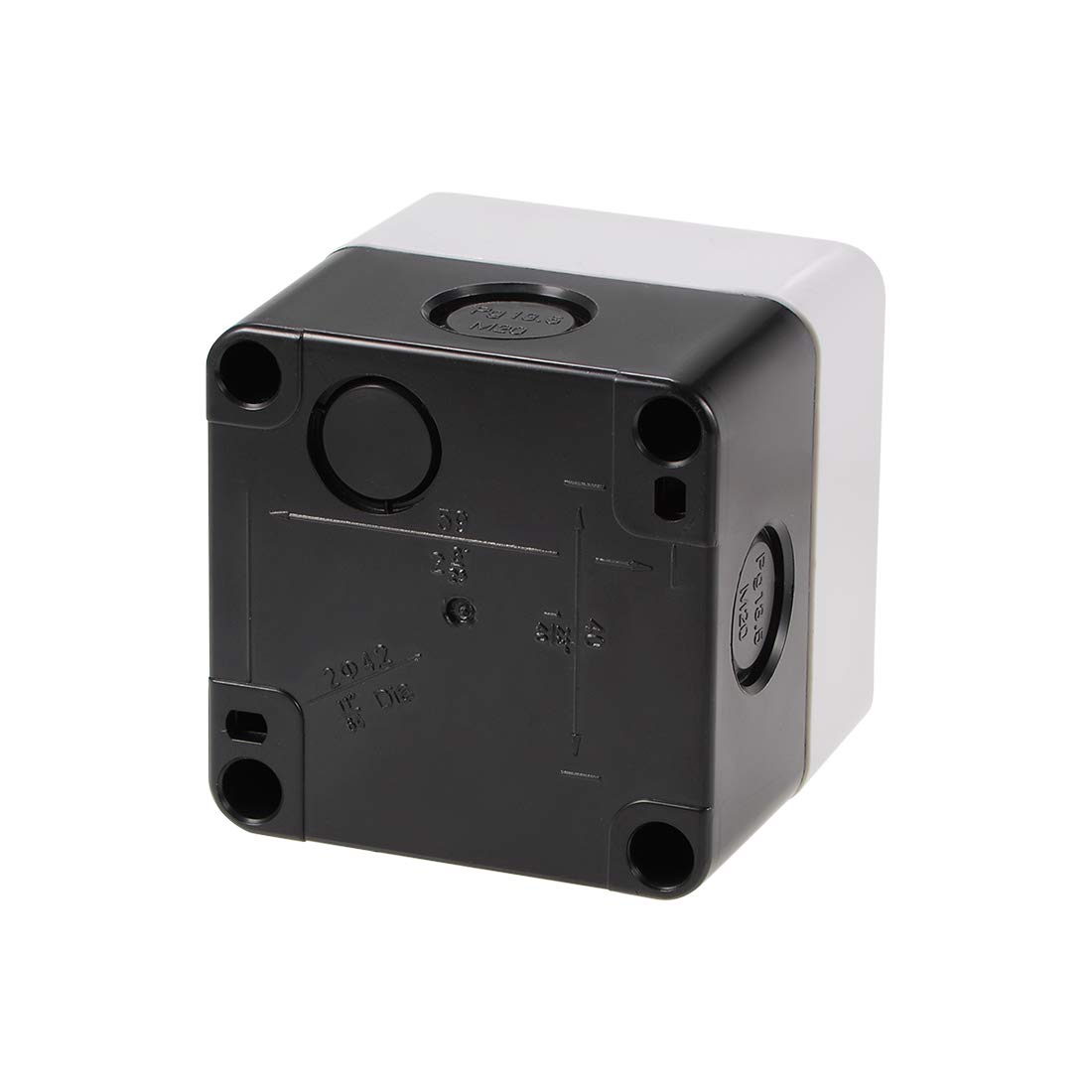

• Operation Type: Momentary; Ui: 600V; Ith: 10A; Screw Hole Dia: 4mm / 0.16"

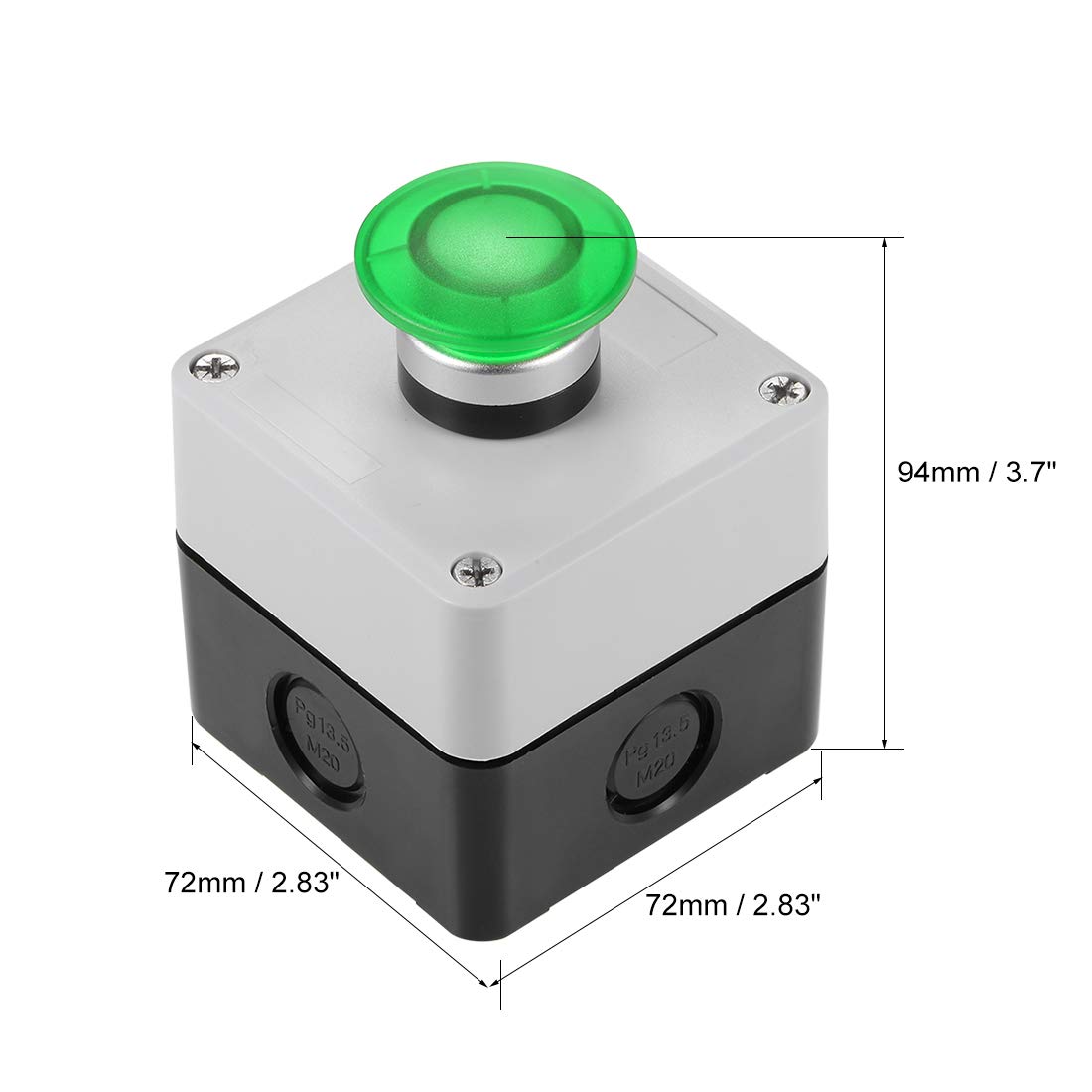

• Hole Distance(center to center): 59 x 40mm/ 2.32" x 1.57" (L*W); Total Size (Approx.): 72 x 72 x 94m / 2.83 x 2.83 x 3.7" (L*W*T)
• Comes with quick connect terminals to allow for fast connections.

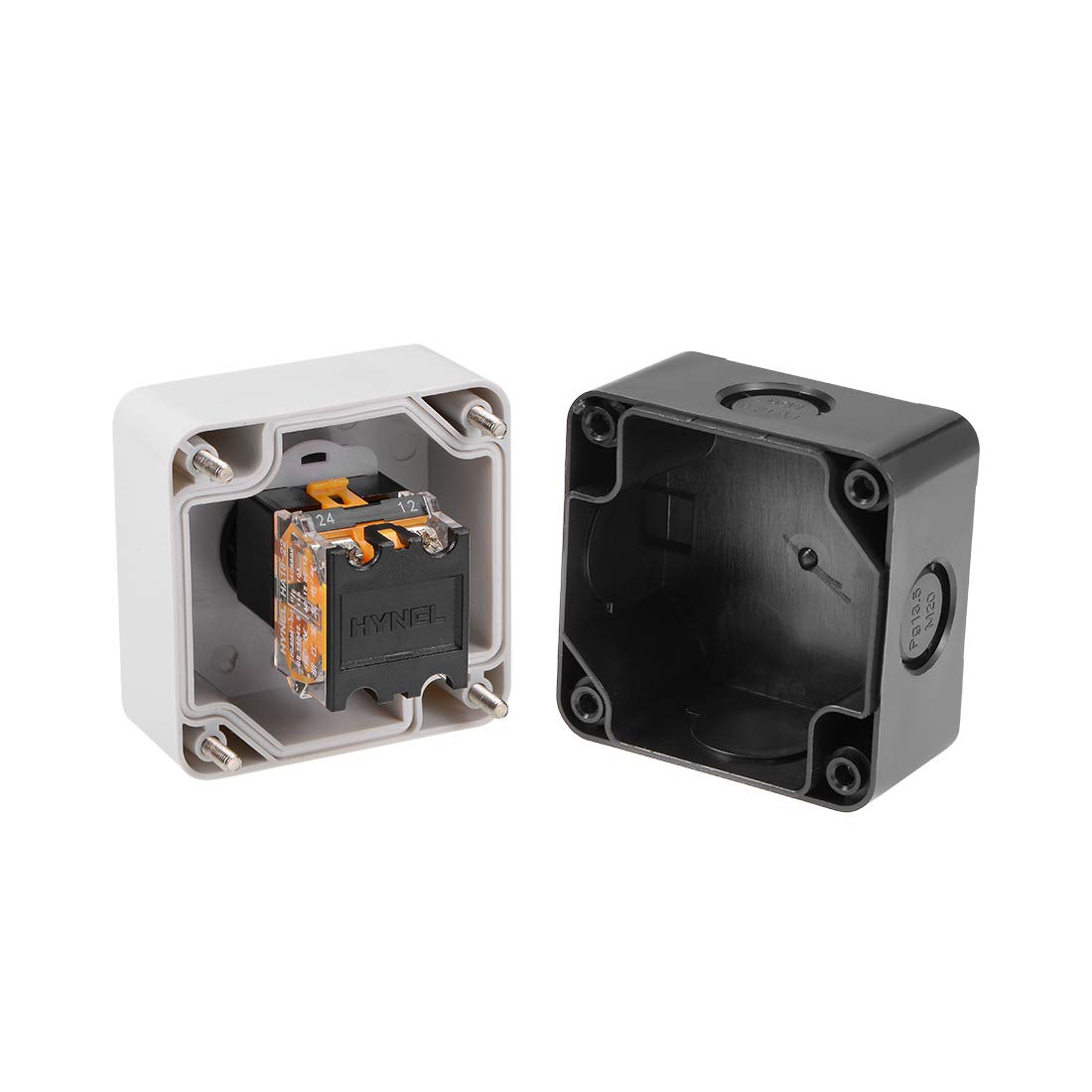

• The push button switch station have one switch, a 1NO 1NC momentary mushroom green push button switch, gray and black case.
• Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Description: The push button switch station have one switch, a 1NO 1NC momentary mushroom green push button switch, gray and black case. Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits. Comes with quick connect terminals to allow for fast connections. Specification: Material: PC Action Type: Momentary Contact Type: 1NO 1NC Button Color: Green Ith: 10A; Ui: 600V Screw Hole Dia: 4mm / 0.16" Hole Distance(center to center): 59 x 40mm/ 2.32" x 1.57" (L*W) Total Size (Approx.): 72 x 72 x 94m / 2.83 x 2.83 x 3.7" (L*W*T) Package Content: 1 x Push Button Switch Station
