sourcing map Push Button Switch Station Latching NC NO Mushroom Emergency Stop Switch with Protective Cover

• Operation Type: Latching; Ui: 415V; Ith: 10A; Screw Hole Dia: 4mm / 0.16"

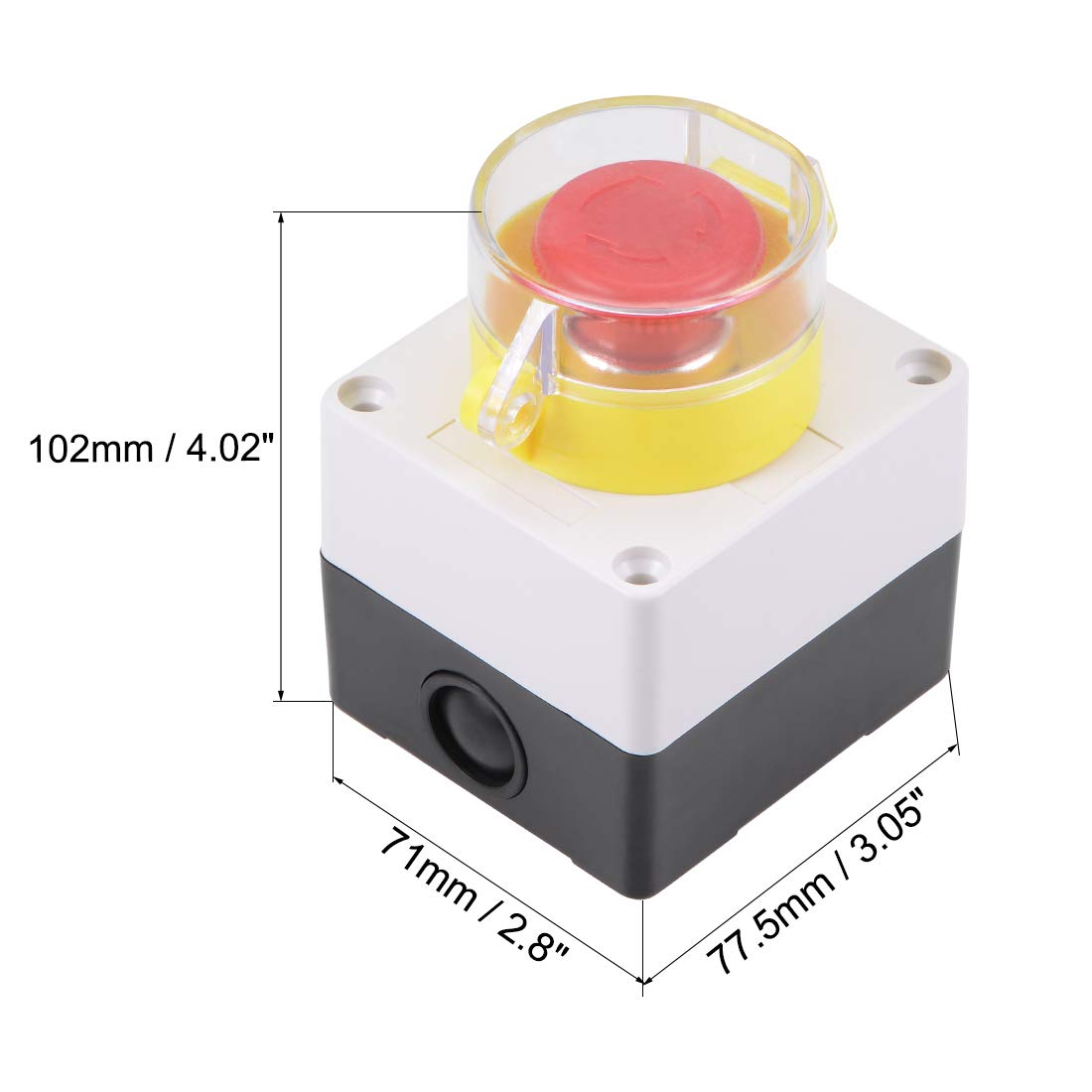

• Hole Distance(center to center): 54 x 49mm/ 2.13" x 1.93" (L*W); Total Size (Approx.): 77.5 x 71 x 102mm / 3.05 x 2.8 x 4.02" (L*W*T)
• Comes with quick connect terminals to allow for fast connections.

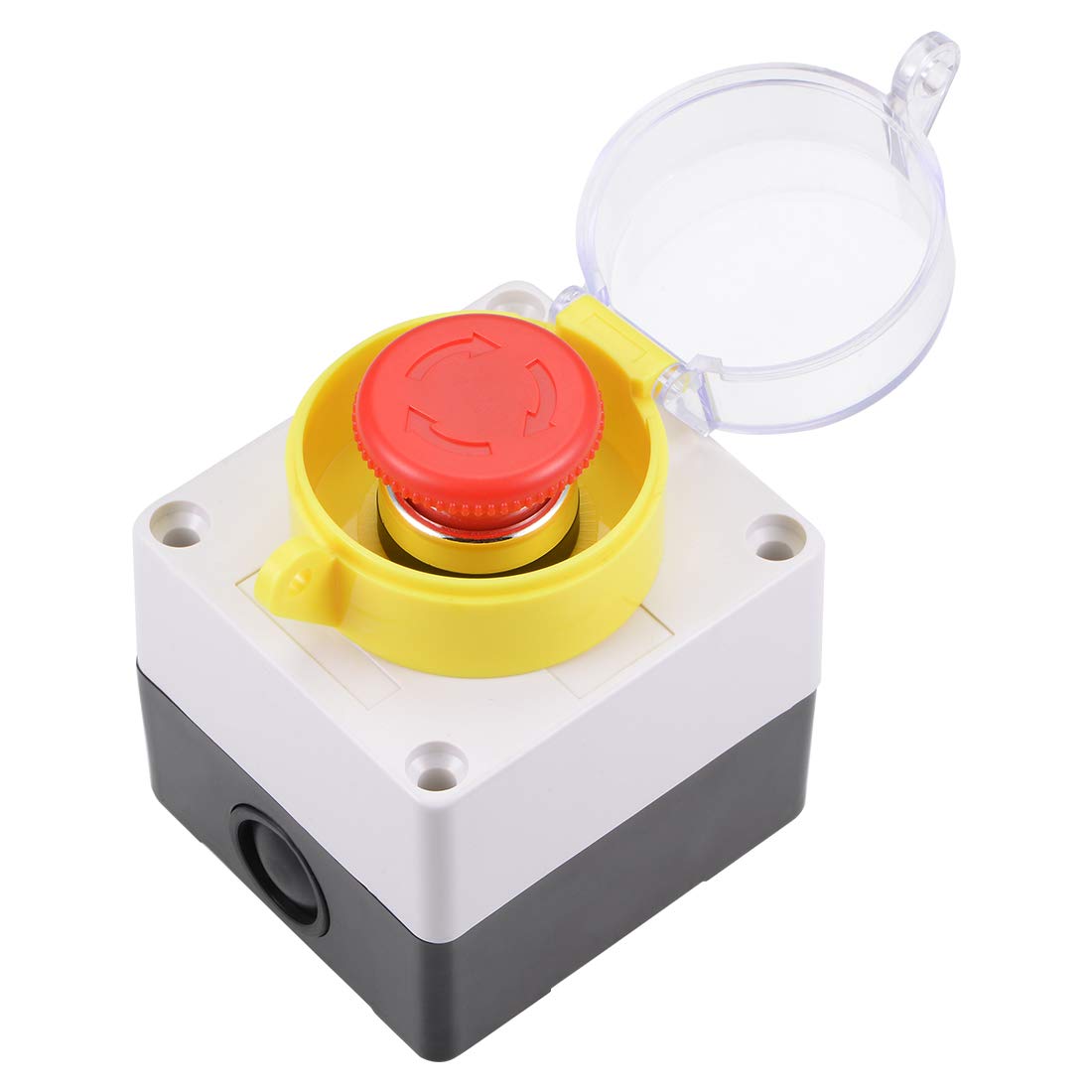

• The push button switch station have one switch, a NO NC momentary mushroom emergency stop switch, with protective cover, white and black case.
• Can be widely used to control the electromagnetic start, contactor, relay and other automatic control electric circuits.

Description: The push button switch station have one switch, a NO NC momentary mushroom emergency stop switch, with protective cover, white and black case. Can be widely used to control the electromagnetic start, contactor, relay and other automatic control electric circuits. Comes with quick connect terminals to allow for fast connections. Specification: Material: PC Action Type: Latching Contact Type: NO NC Button Color: Red Ith: 10A; Ui: 415V Screw Hole Dia: 4mm / 0.16" Button Hole Size: 22mm/ 0.86" Outlet Hole Diameter: 20mm/ 0.79" Protective Cover Dia: 54.5mm / 2.15" Hole Distance(center to center): 54 x 49mm/ 2.13" x 1.93" (L*W) Total Size (Approx.): 77.5 x 71 x 102mm / 3.05 x 2.8 x 4.02" (L*W*T) Package Content: 1 x Push Button Switch Station
