sourcing map Push Button Switch Box Momentary Green Switches and Emergency Stop 415V 10A

• Green Button: Momentary; Rotary Switch: Self-Locking(Rotate button to reset); Contact Type: NO NC; Ith: 10A; Ui: 415V

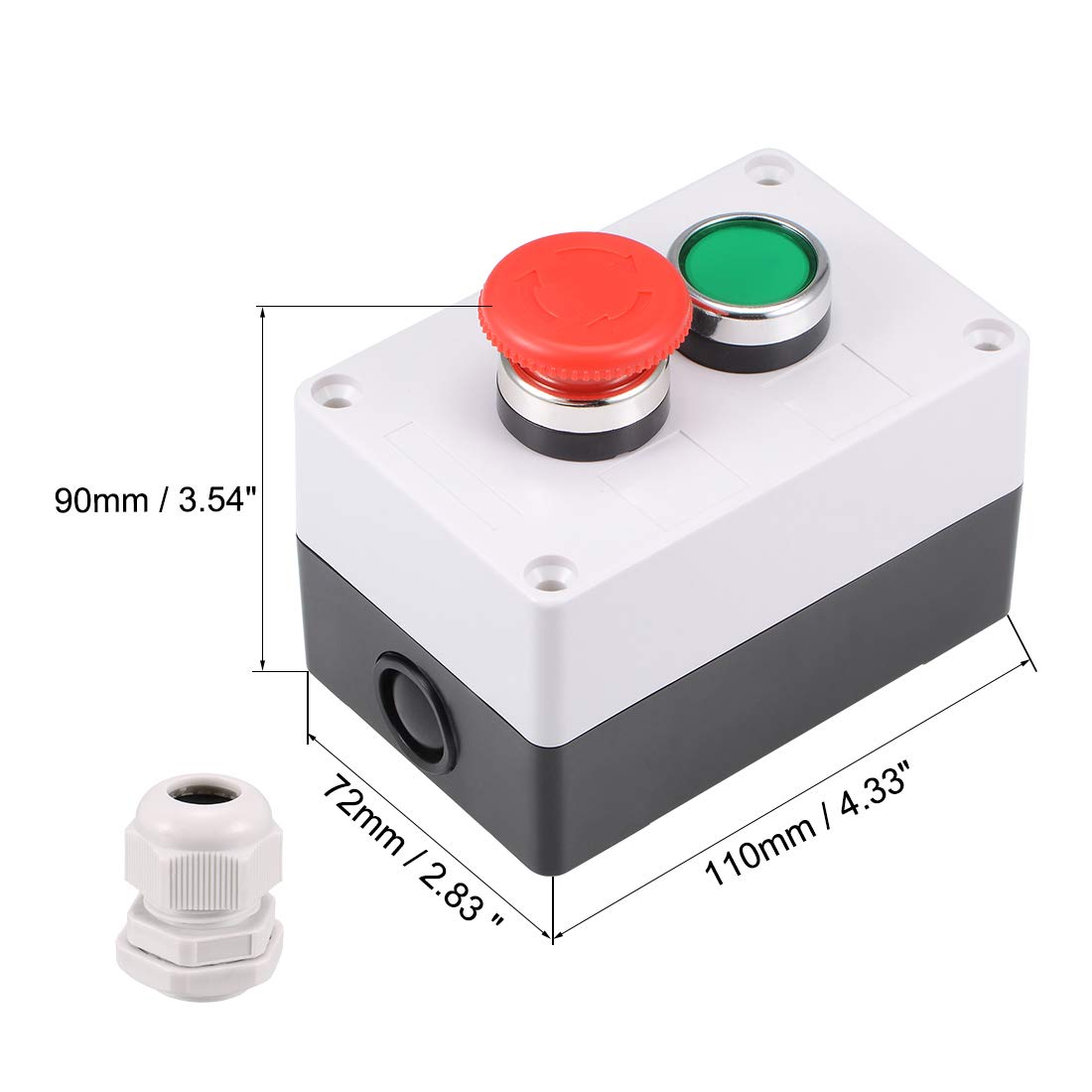

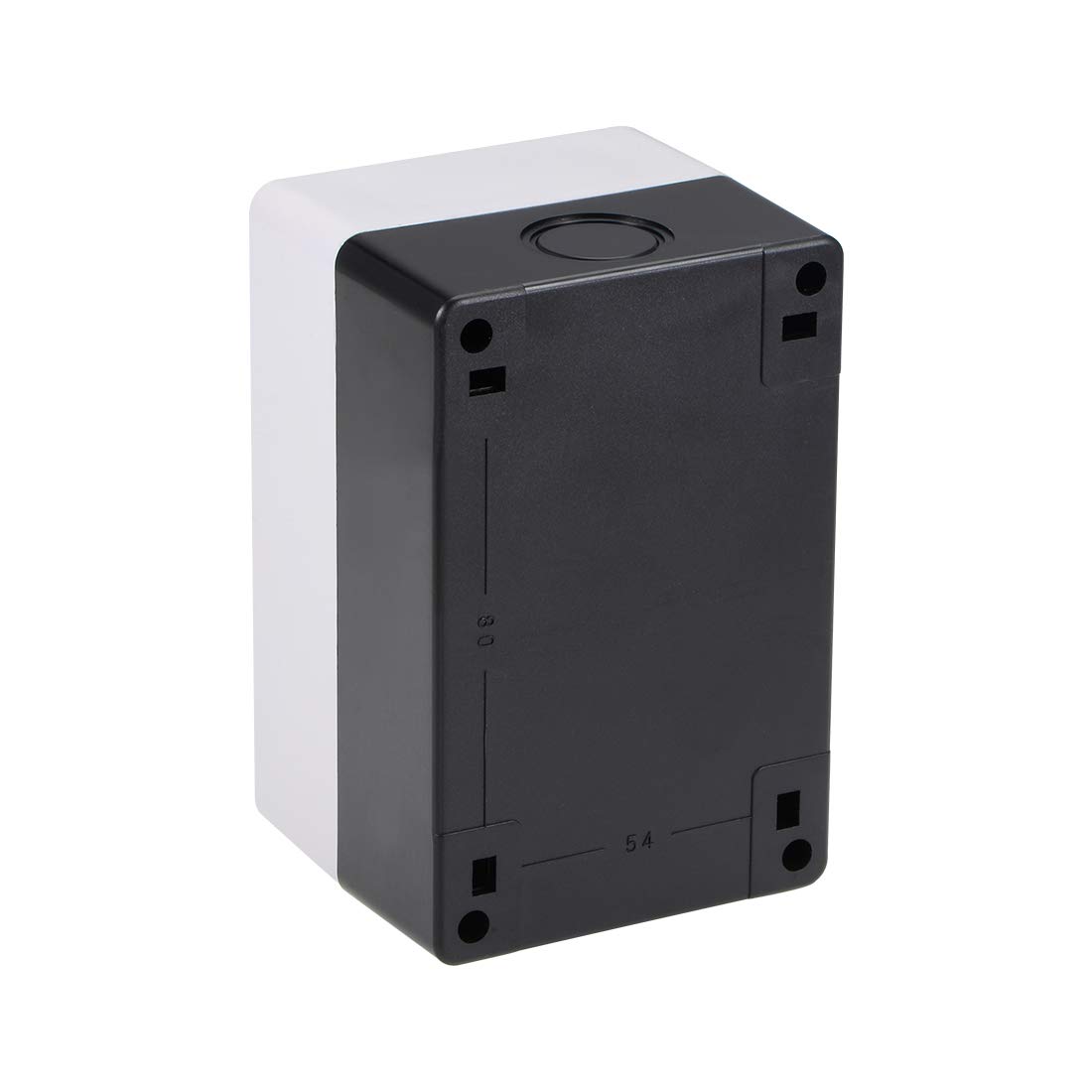

• Hole Distance(center to center): 80 x 54mm/ 3.15" x 2.13" (L*W); Total Size (Approx.): 110 x 72 x 90mm / 4.33 x 2.83 x 3.54" (L*W*T)

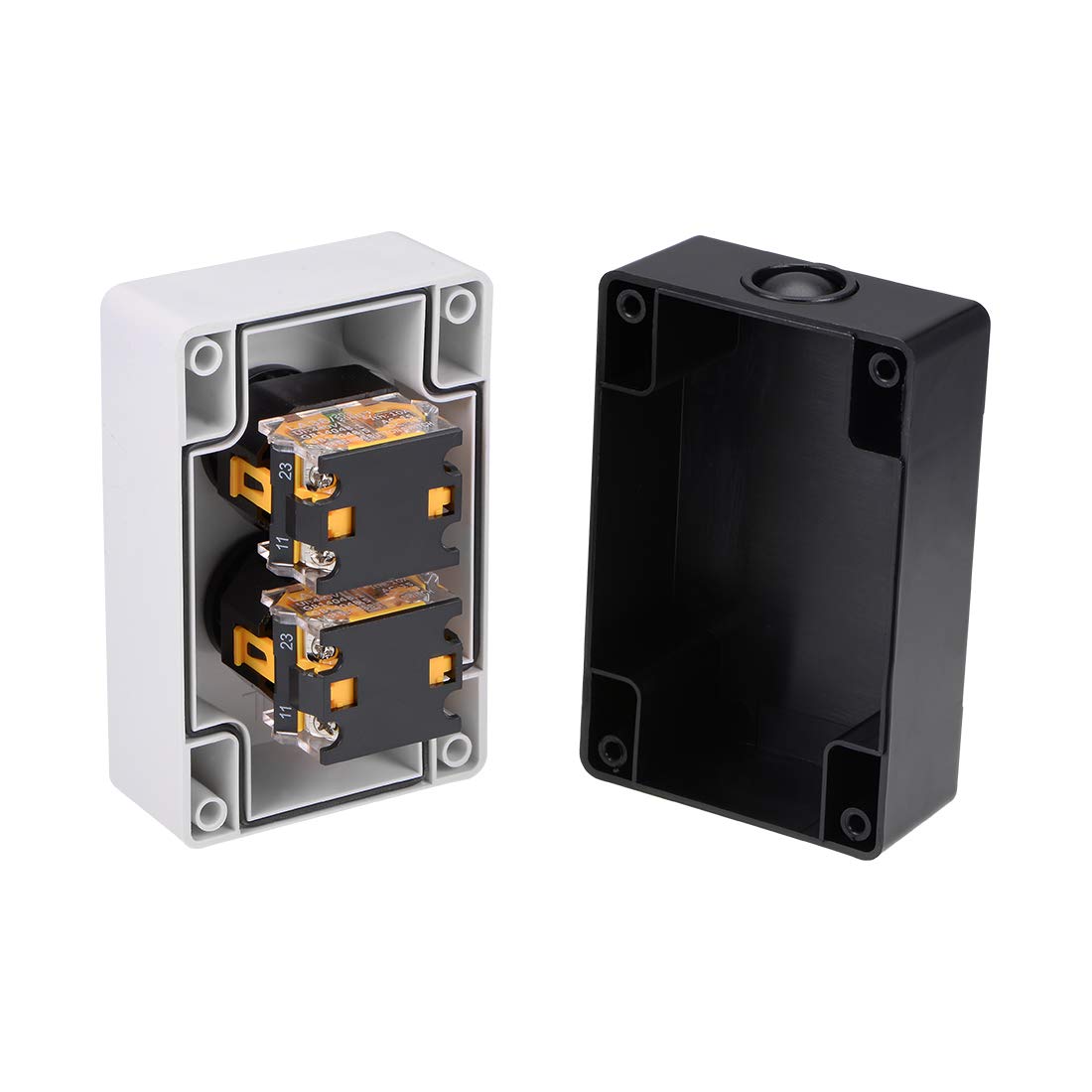

• Comes with quick-connect terminals to allow for fast connections.Tighten the red button instantaneous needle before use.
• The push button switch station consists of two switches, one is a momentary green push button switch and a emergency stop switch.
• Can be widely used to control electromagnetic, relay and other automatic control electric circuits.

Description: The push button switch station consists of two switches, one is a momentary green push button switch and a emergency stop switch. Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits. Comes with quick connect terminals to allow for fast connections. Tighten the red button instantaneous needle before use. Specification: Material: PC Action Type: Green Button: Momentary Emergency Stop Switch: Self-Locking Contact Type: NO NC Button Color: Red, Green Ith: 10A; Ui: 415V Screw Hole Dia: 4mm / 0.16" Hole Distance(center to center): 80 x 54mm/ 3.15" x 2.13" (L*W) Total Size (Approx.): 110 x 72 x 90mm / 4.33 x 2.83 x 3.54" (L*W*T) Package Content: 1 x Push Button Switch Station, 1 x PG13.5 Cable Gland
