sourcing map Pneumatic Tubing, 6mm(0.23") OD x 4mm(0.16") ID x 1m(3.28ft) Air Brake Tubing Nylon PA12 Air Line Hose Blue

• Advantage: Nylon PA12 is strong, lightweight and has a very low moisture absorption rate compared to other nylons,it will remain more flexible, which in turn extends its service life.
• Material: Nylon Tubing made in Nylon PA12. It always can maintain good resistance to penetration and impact resistance at low temperatures of -40 Celsius Degrees.20 bar working pressure

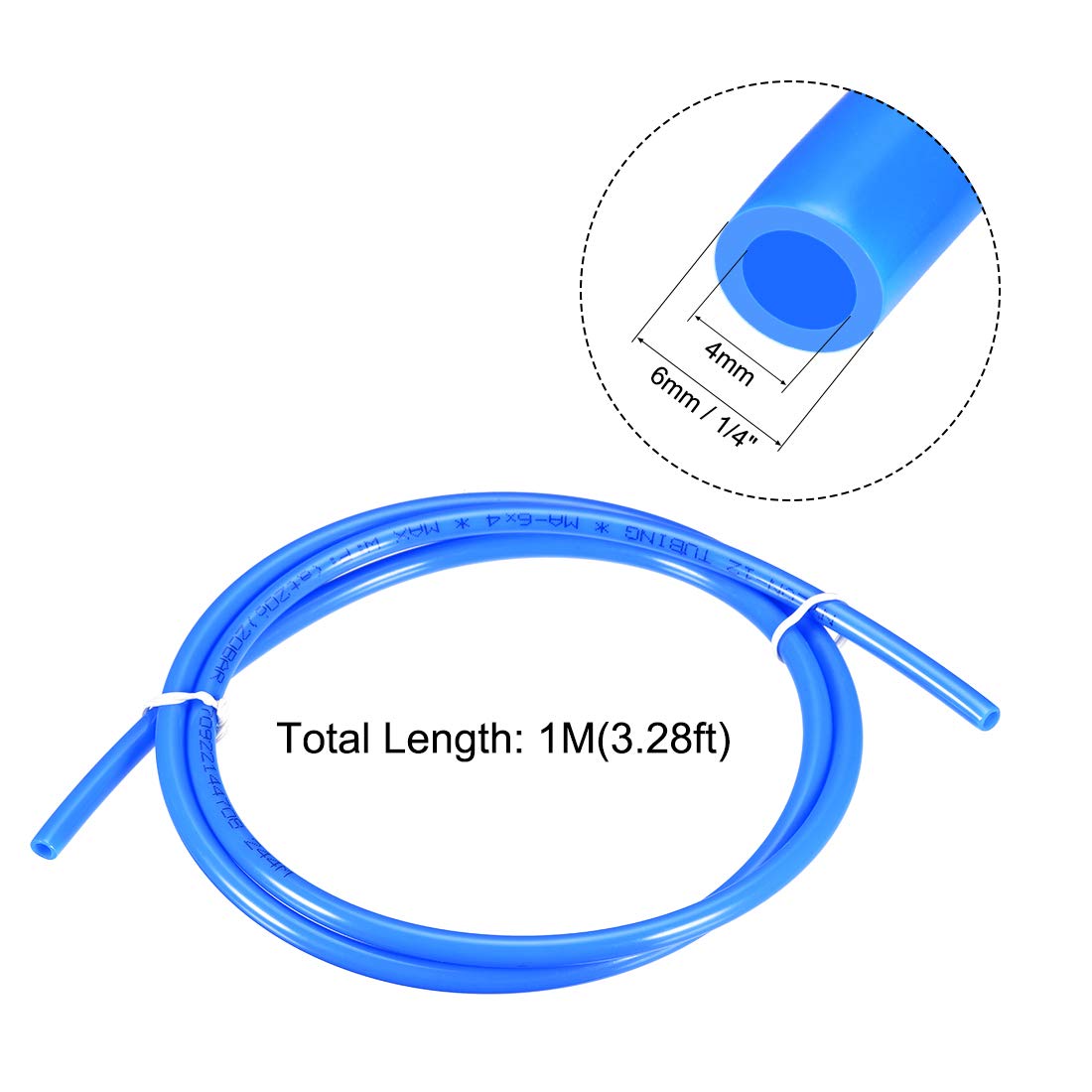

• Feature: Pneumatic Hose Tube Measures 0.16-inches inside diameter by 0.23-inches outside diameter by 3.28-feet total length. thin tube wall providing higher flow rates and working pressure
• Easy Use: Nylon tubing can be used with standard fittings for simple installation
• Application: Nylon Hose widly use in: air, water, chemicals, lubricants, instrument lines, irrigation control systems,textile mills, vacuum systems,oscillation insulator and other industries.

<b>Specifications:</b><br />Material: Nylon PA12<br />Color: Blue<br />Length: 1M(3.28ft)<br />Size: 4mm x 6mm(IDxOD)<br />Elongation: >30%<br />Density: 1.14-1.15g/cm3<br />Tensile strength: >60.0Mpa<br />Bending strength: 90.0 MPa<br />Notched impact strength: (KJ/m2) > 5<br />Melting point: 215-225 Celsius Degree<br />Operating temperature: -40 to 105 Celsius Degree<br /> <br /><b>Package Content:</b><br />1 X Nylon Tubing<br /> <br /><b>Features:</b><br />1.Nylon PA12 is strong, lightweight and has a very low moisture absorption rate compared to other nylons. <br />2.By not absorbing moisture, nylon PA12 will remain more flexible, which in turn extends it's service life. <br />3.Nylon tubing can be used with standard push-to-connect fittings and compression fittings for simple installation. <br />4.Because of it's semi-rigid properties, nylon tubing offers a thinner tube wall providing higher flow rates and working pressure. <br />5.can be use in the -40 ℃ ~ +60 ℃ temperature environment, so nylon tube can be used to transport compressed air,water, fuel oil, chemical solvents, liquid food. <br />6. safe and reliable application in: air, water, lubricants, instrument lines, irrigation control systems,textile mills, fuel delivery pipe, vacuum systems, air conditioning systems, And hydraulic brake system, oscillation insulator and other industries.<br /> <br /><b>Tips:</b><br />It must be under the rated working pressure and temperature, if you want to keep this Nylon Tube in a long term service life.<br />As temperature rise, working pressure shall be reduced correspondingly, if go beyond the limiting, the tube can rupture.<br />
