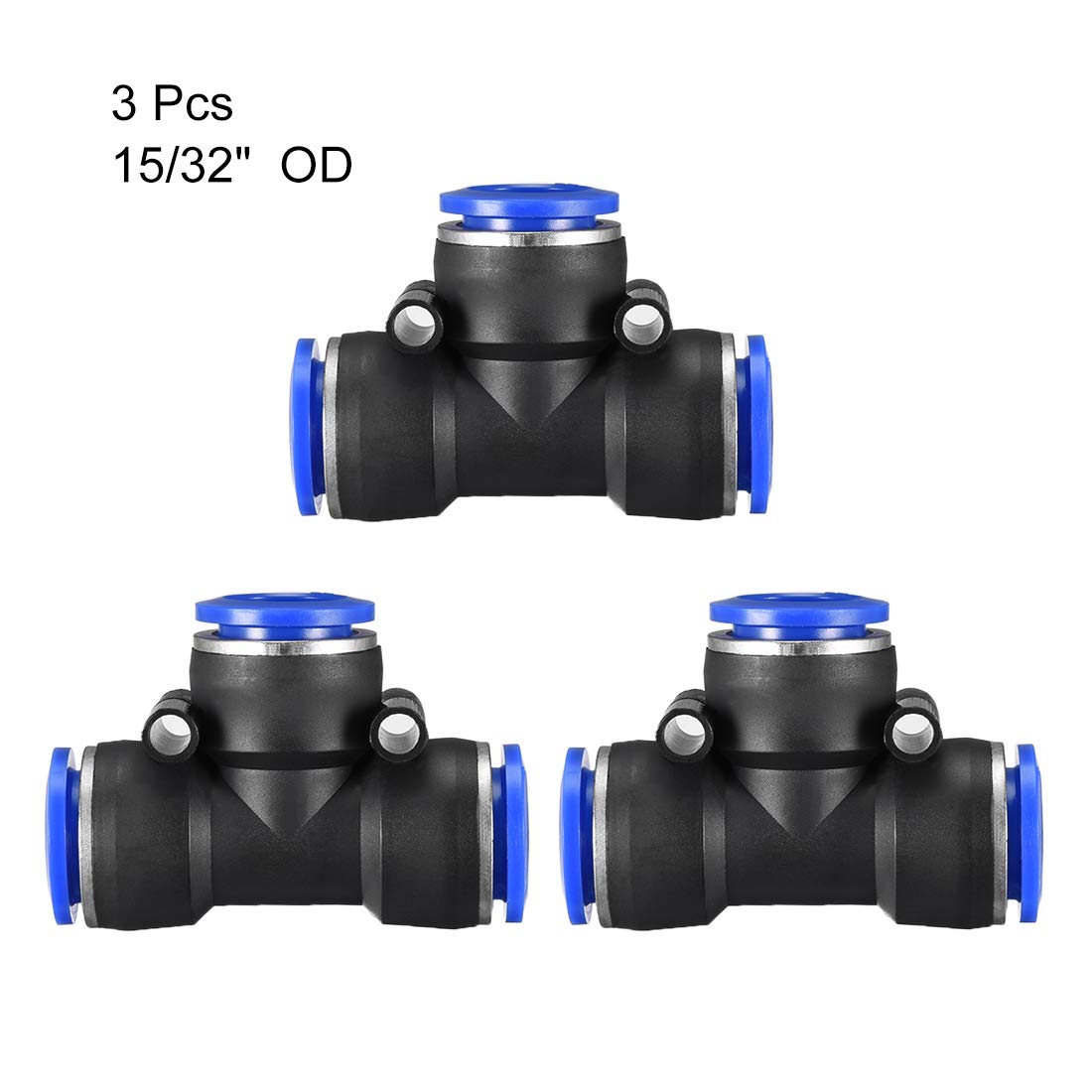

sourcing map Plastic Tee Push to Connect Tube Fittings 12mm or 15/32" od Push Lock Blue 3pcs

• Product Name : Plastic Tee Connect Fitting ;Three Tube Size (OD) : 12mm = 15/32"
• Operating Pressure : 0-1MPa Operating temperature：-10 - 60 Degree Celsius
• TUBE FITTINGS. Push-to-connect tube connection on Three end .A good release cap can withstand greater and stronger pressure without tripping.
• ADVANTAGE. Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• MATERIAL. Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Features: Product Name : Connect Fitting Model : PE12; Net Weight : 46g Color : Black,Blue Material : Plastic Type: T Type Tee Connector; Three Tube Size (OD) : 12mm = 15/32" Operating Pressure : 0-1MPa; Operating temperature：-10 - 60 Degree Celsius; Dimension : 54mm x 36mm x 20mm / 2.1-inch x 1.4-inch x 0.79-inch(L x W x H ); Package Content: 3pcs x Fitting Description: 1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing. 2.A good release cap can withstand greater and stronger pressure without tripping. 3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life. 4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed. 5.Two small tube in the side are use for fixed. Mounted: 1.Cut the pipe flat, no slope 2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak. 3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected. 4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
