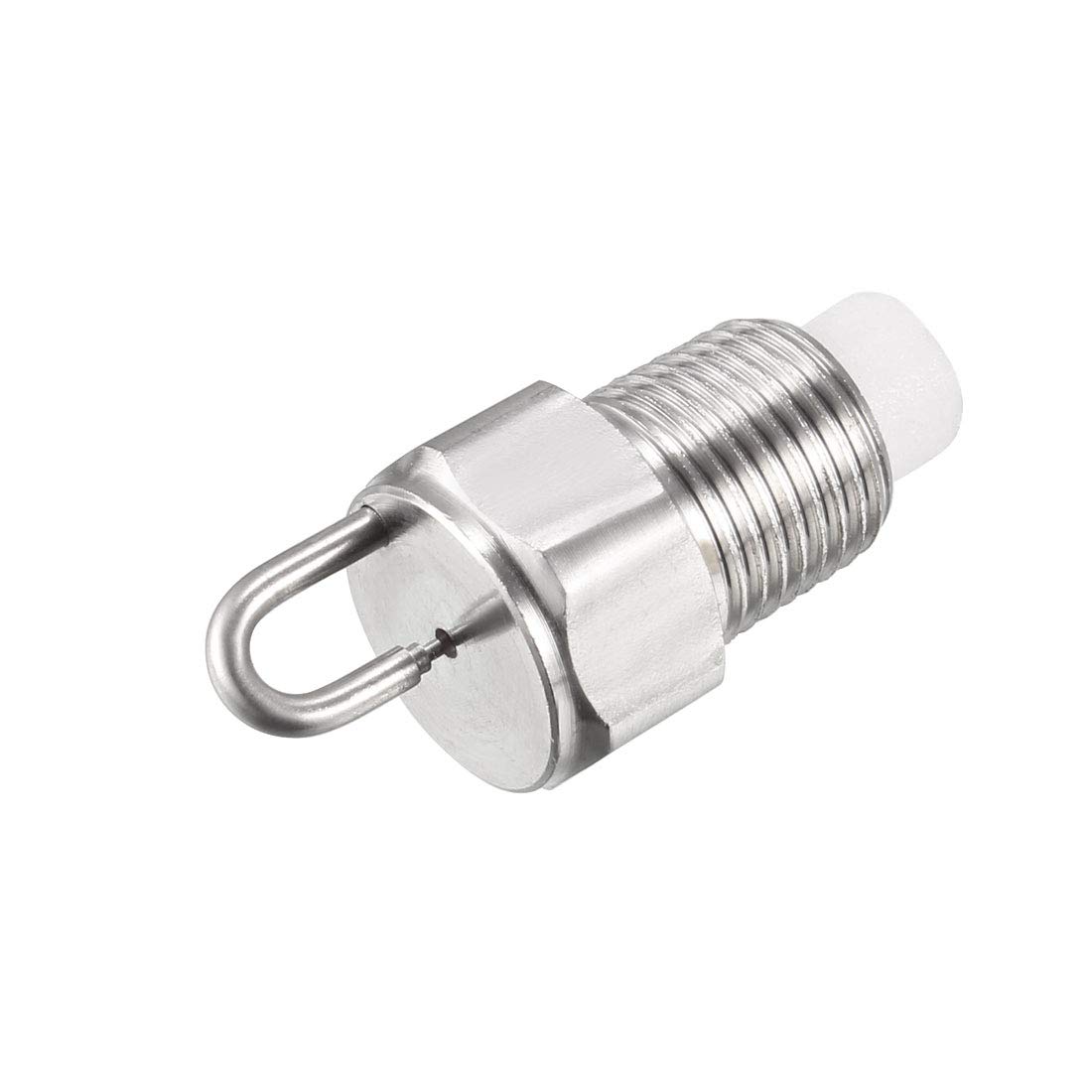

sourcing map Pin Misting Jet Nozzle, 0.15mm Orifice Spray Dia 304 Stainless Steel with Screen Cotton,1/8BSPT Thread

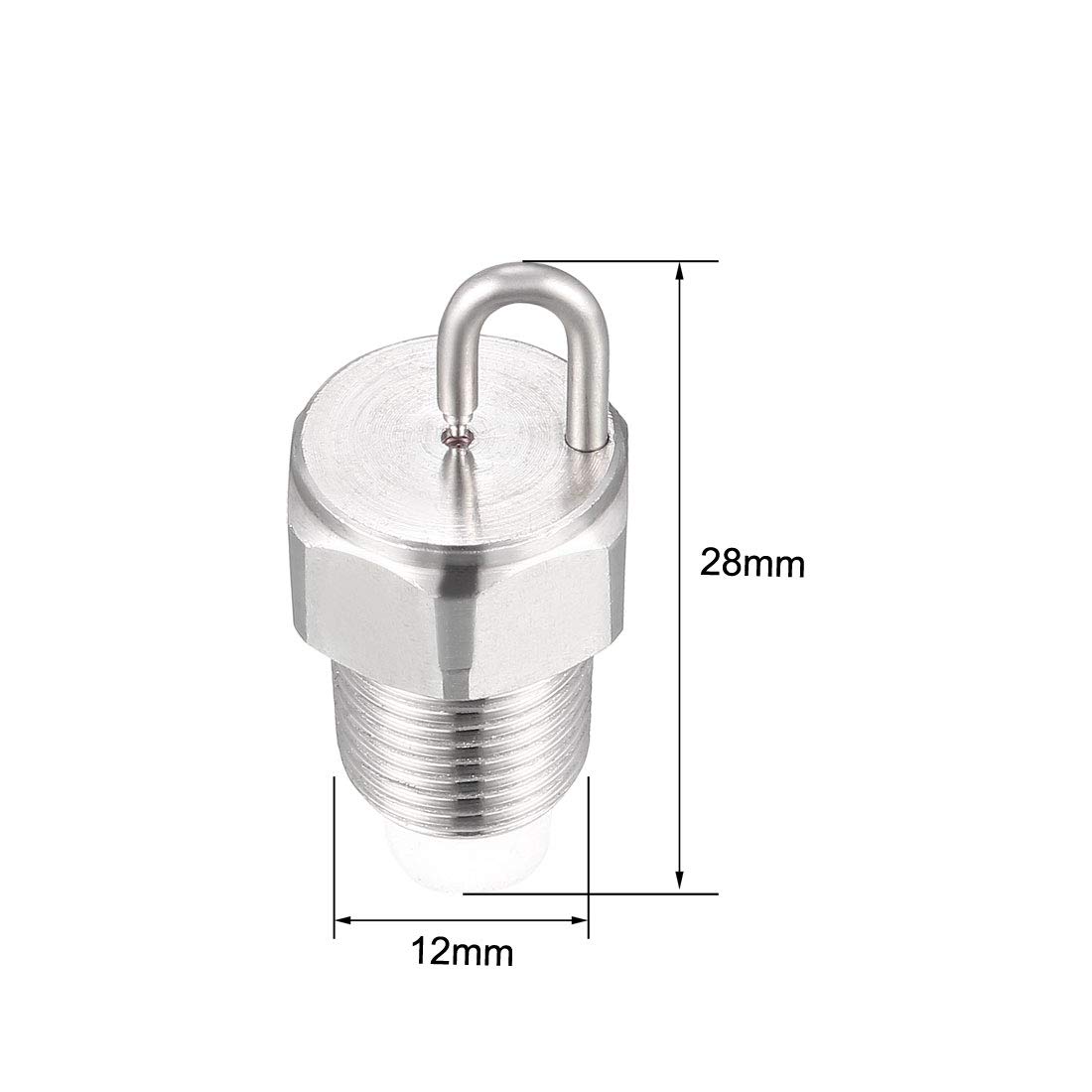

• [SIZE] - 1/8 BSPT thread diameter, 0.006" (0.15mm) orifice spray diameter.
• [MATERIAL] - Made of stainless steel 304, is superior to regular steel and provides excellent rust resistance.
• [COVERAGE AREA] - Under the condition of no wind or breeze, the spray cover about 1-2 square feet.
• [Screen] - Nozzle inlet is equipped with PP Screen, which size is about 6.5mmx8.8mm.
• [USE] - In dry or hot season（such as summer or autumn), you can humidiate your courtyard to prevent plants from drying and self igniting by using this nozzles.

- Spray pattern: cone shaped fog. - Made of 304 stainless steel, strong and corrosion resistant. - Under the condition of no wind or breeze, the spray cover about 1-2 square feet. - Nozzle inlet is equipped with PP Screen, which size is about 6.5mmx8.8mm. - The greater the pressure, the better atomization effect, the maximum pressure 2-10Mpa. - Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on. Specification: Material: 304 stainless steel Thread Size: 1/8BSPF Orifice Diameter: 0.15mm / 0.006" Working pressure: 0.2-0.9 Mpa Flow Range: 20-60ML/Min Total Size: 12mm x 28mm / 0.47" x 1.10" (Hex.Width*L) Package Content: 1 x Pin Misting Jet Nozzle
