sourcing map NTC Thermistor Resistors 8D-20 6A 8 Ohm Inrush Current Limiter Temperature Sensors Pack of 5

• The NTC thermistors are reliable and stable, with wide range of over-current control.
• With small size and large power, they have strong capacity to inhibit surge current.
• Large material constant, large B value, with small residual resistance.
• Thermal shock resistance, with wide range of operating temperature.
• Used for controlling the inrush current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, etc.

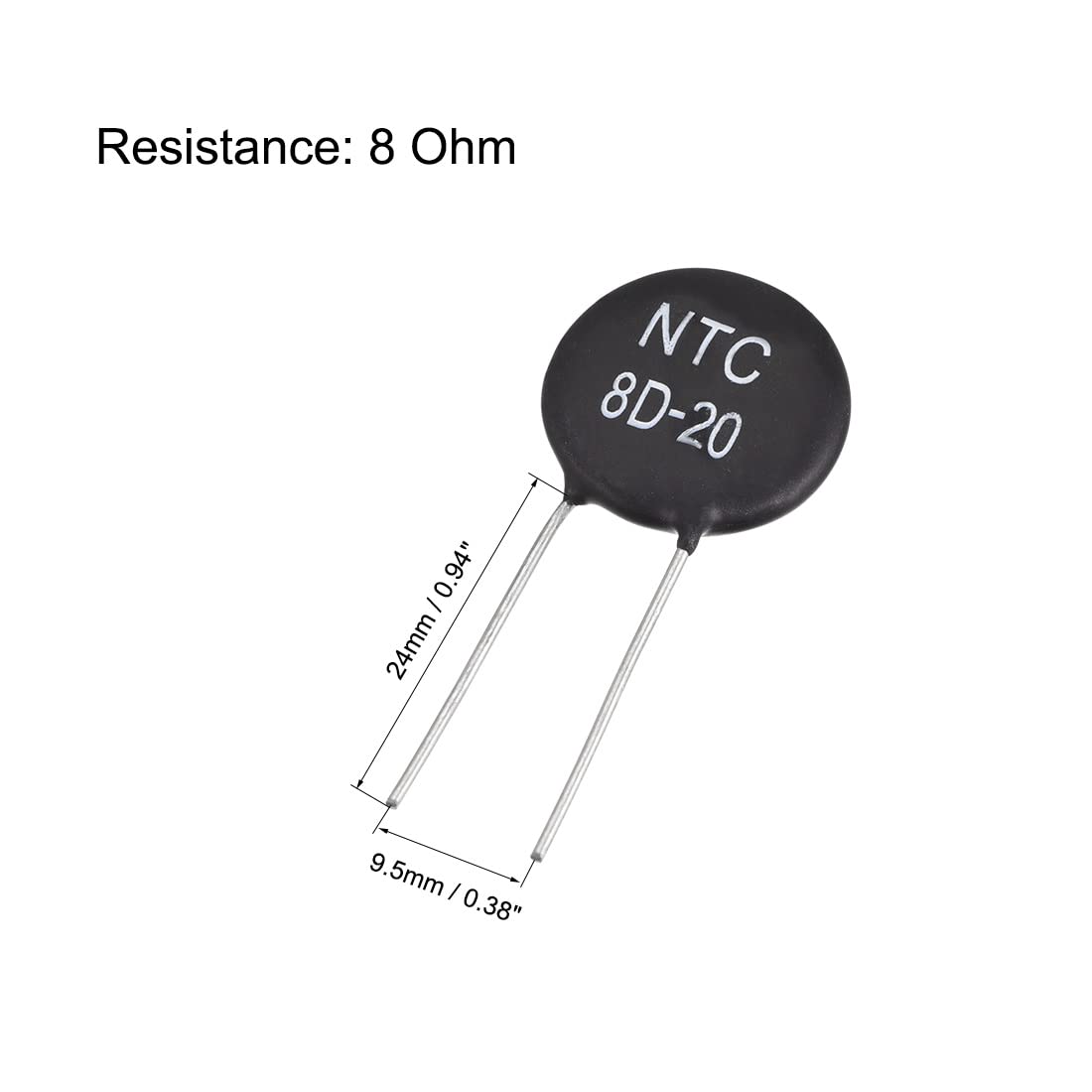

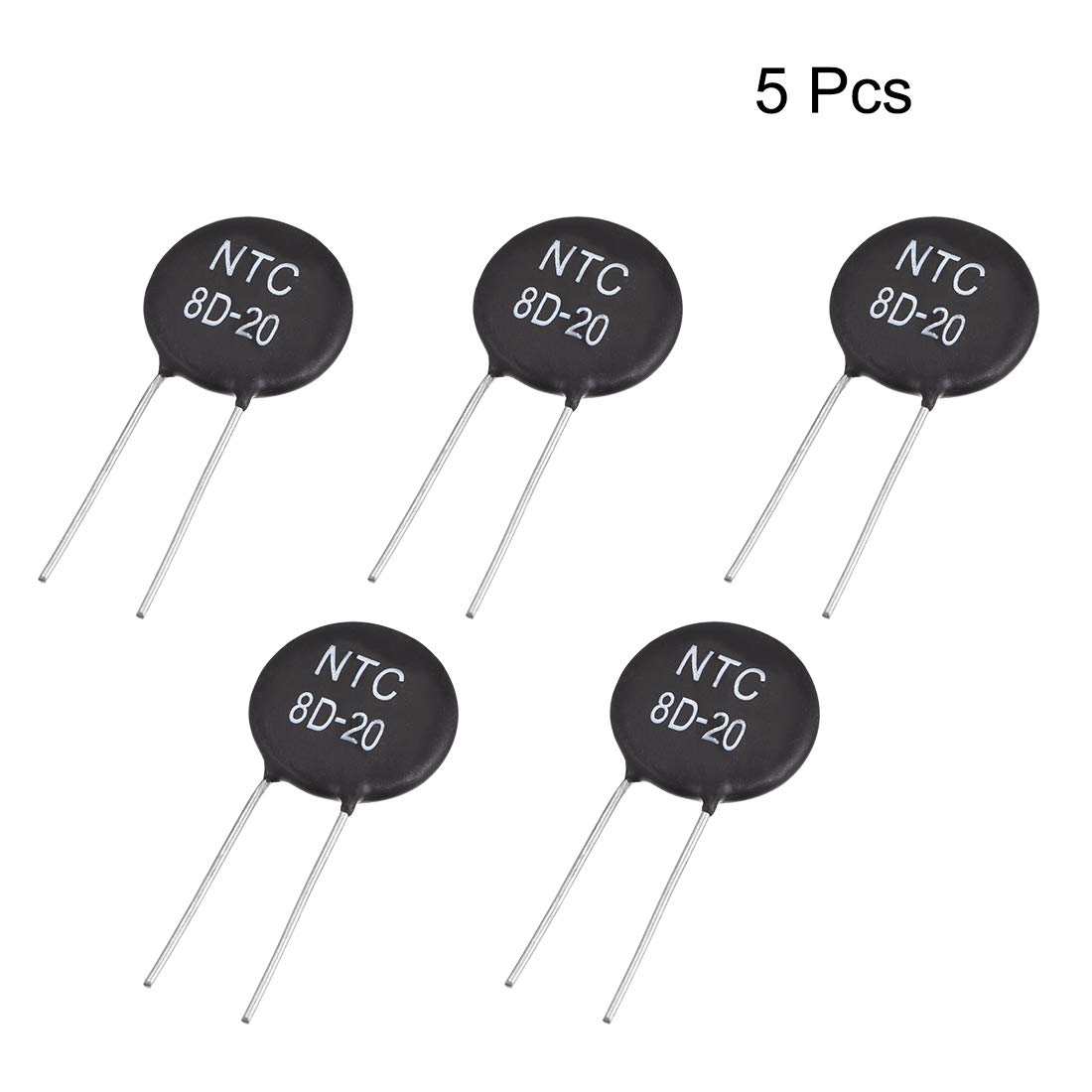

Description: * The NTC thermistors are reliable and stable, with wide range of over-current control. * With small size and large power, they have strong capacity to inhibit surge current. * Large material constant (B value), with small residual resistance. * Thermal shock resistance, with wide range of operating temperature. * Used for controlling the current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, electronic rectifier and other electronic installations. Note: The thermistor cannot be used in parallel in the circuit. Specification: * Product Name: NTC Thermistor * Color: Black, Silver Tone * Material: Ceramic, Metal * Zero Power Resistance at25C: 8 Ohm(+/-20%) * B Value: >/=2900 * Thermal Recovery Time Coefficient: 105s * Thermal Dissipation Constant: 25mw/C *Operating Temperature: -40-200C * Max Steady State Current: 6A * 25C Insulation Max Resistance: 0.142 Ohm * Lead Type: Radial Direction * Lead Shape: S * Pin Pitch: 9.5mm / 0.38inch * Lead Size(Approx.): 1 x 24mm / 0.04 x 0.94inch (D*L) * Body Size(Approx.): 21 x 4.5mm (D*T) Package Content: * 5 x NTC Thermistors
