sourcing map NTC Thermistor Resistors 10D-11 3A 10 Ohm Inrush Current Limiter Temperature Sensors Pack of 40

• The NTC thermistors are reliable and stable, with wide range of over-current control.
• With small size and large power, they have strong capacity to inhibit surge current.
• Large material constant, large B value, with small residual resistance.
• Thermal shock resistance, with wide range of operating temperature.
• Used for controlling the inrush current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, etc.

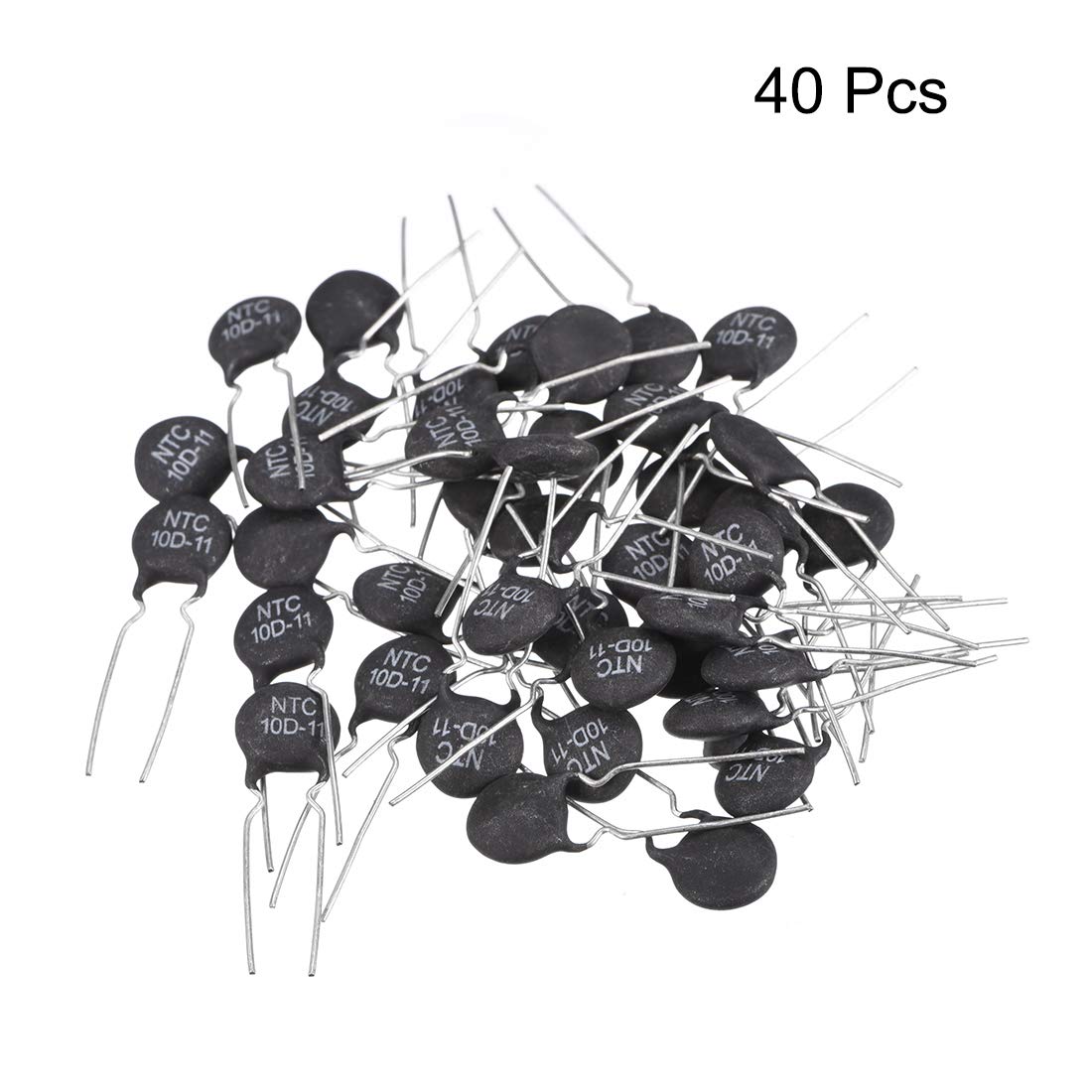

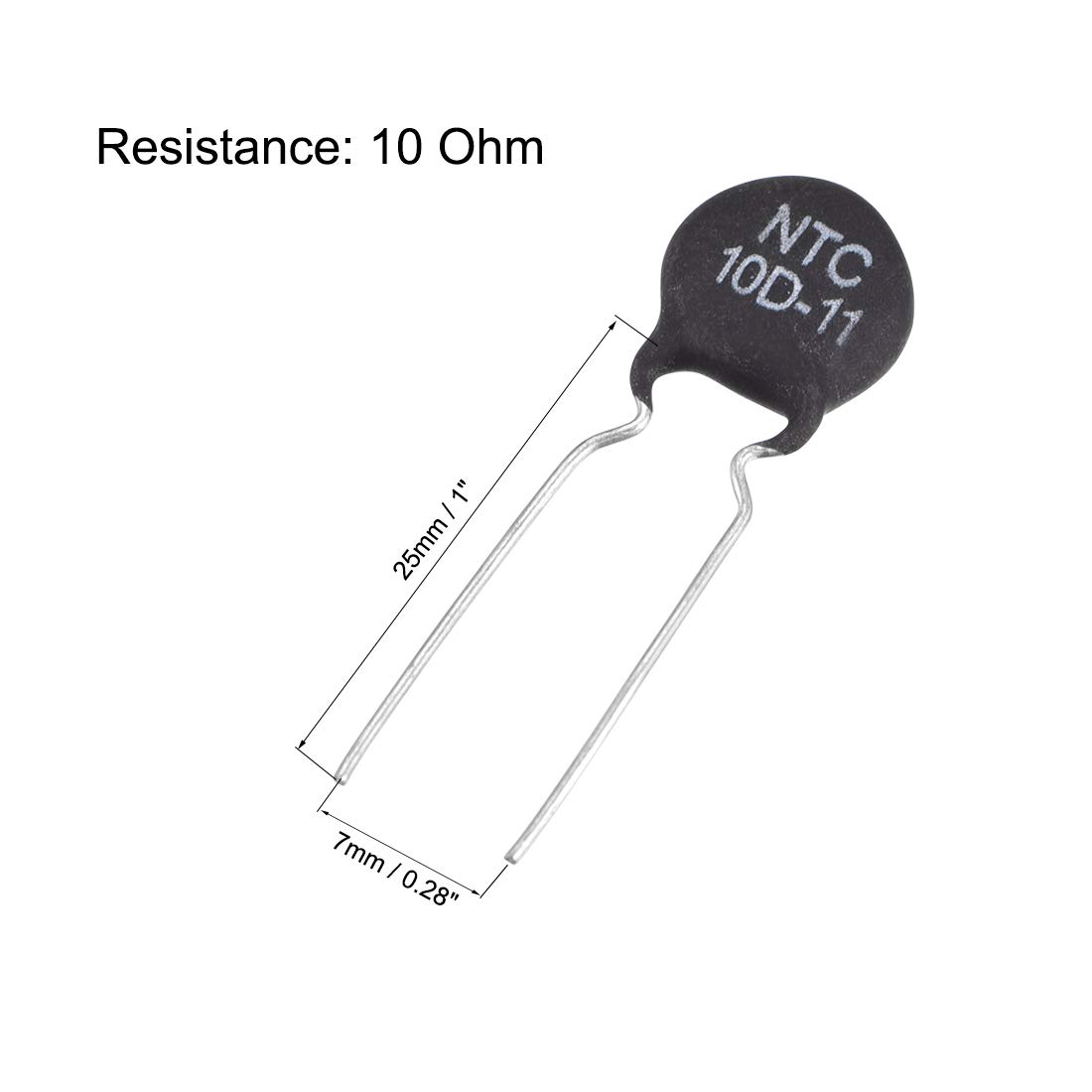

Description: * The NTC thermistors are reliable and stable, with wide range of over-current control. * With small size and large power, they have strong capacity to inhibit surge current. * Large material constant (B value), with small residual resistance. * Thermal shock resistance, with wide range of operating temperature. * Used for controlling the inrush current of motor, heaters, bulb voltage Stabilizer, electronic energy-saving lamp, electronic Rectifier and other electronic installations. Note: The thermistor cannot be used in parallel in the circuit. Specification: * Product Name: NTC Thermistor * Color: Black, Silver Tone * Material: Ceramic, Metal * Model: 10D-11 * Zero Power Resistance at 25C: 10 Ohm * B Value: >/=2800 * Thermal Recovery Time Coefficient: 50s * Thermal Dissipation Constant: 14mw/C * Operating Temperature: -50-200C * Max Steady State Current: 3A * 25C Insulation Max Resistance: 0.251 Ohm * Lead Type: Radial Direction * Lead Shape: I * Pin Pitch: 7mm / 0.28inch * Lead Size(Approx.): 0.7 x 25mm / 0.03 x 1inch (D*L) * Body Size(Approx.): 11 x 4.8mm / 0.43 x 0.19inch (D*T) Package Content: * 40 x NTC Thermistors
