Sourcing Map BIG-Size Voltage Converter Regulator DC 12V Step-up to DC 48V 8A 384W Boost Transformer Waterproof

• Waterproof DC 12V to 48V 8A Step-up DC-DC Converter Booster
• Efficiency 97% (half load) ; 96% (full load)

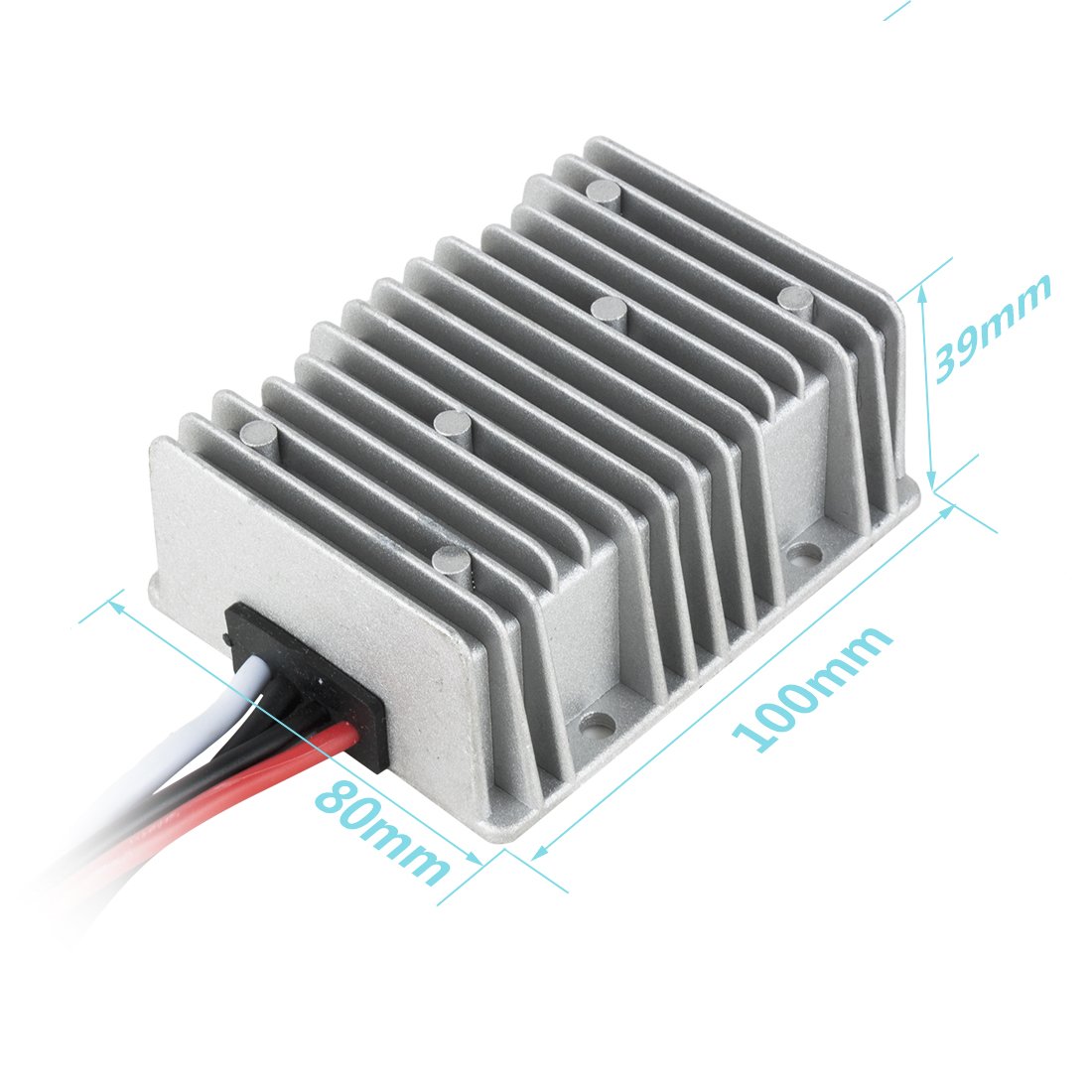

• Large Size: 100*80*39mm for High Power Use; Good heat dissipation
• Protections Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage. Certifications CE, RoHS
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Product Name: Waterproof Voltage Converter Regulator DC 12V to DC 48V 8A 384W Features: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, ultra compact size, light weight. 3. Industry grade D12V to DC 48V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 6. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours. Specifications: * Input Rated Voltage: DC 12V * Input Voltage Range: 10-25V DC * Output voltage: DC48V 8A * Output Rated Power: 384W * Efficiency: 97% (half load); 95% (full load) * Output Peak Power: 480W * Voltage Regulation: Less Than 1% * Load Regulation: Less Than 2% * Ripple(full load test): Less Than 180mV * No-load Current: 30mA * Total Size: 100*80*39mm(L*W*H) * Weight: 535g Package included: 1 x DC 12V to DC 48V 8A Voltage Converter
