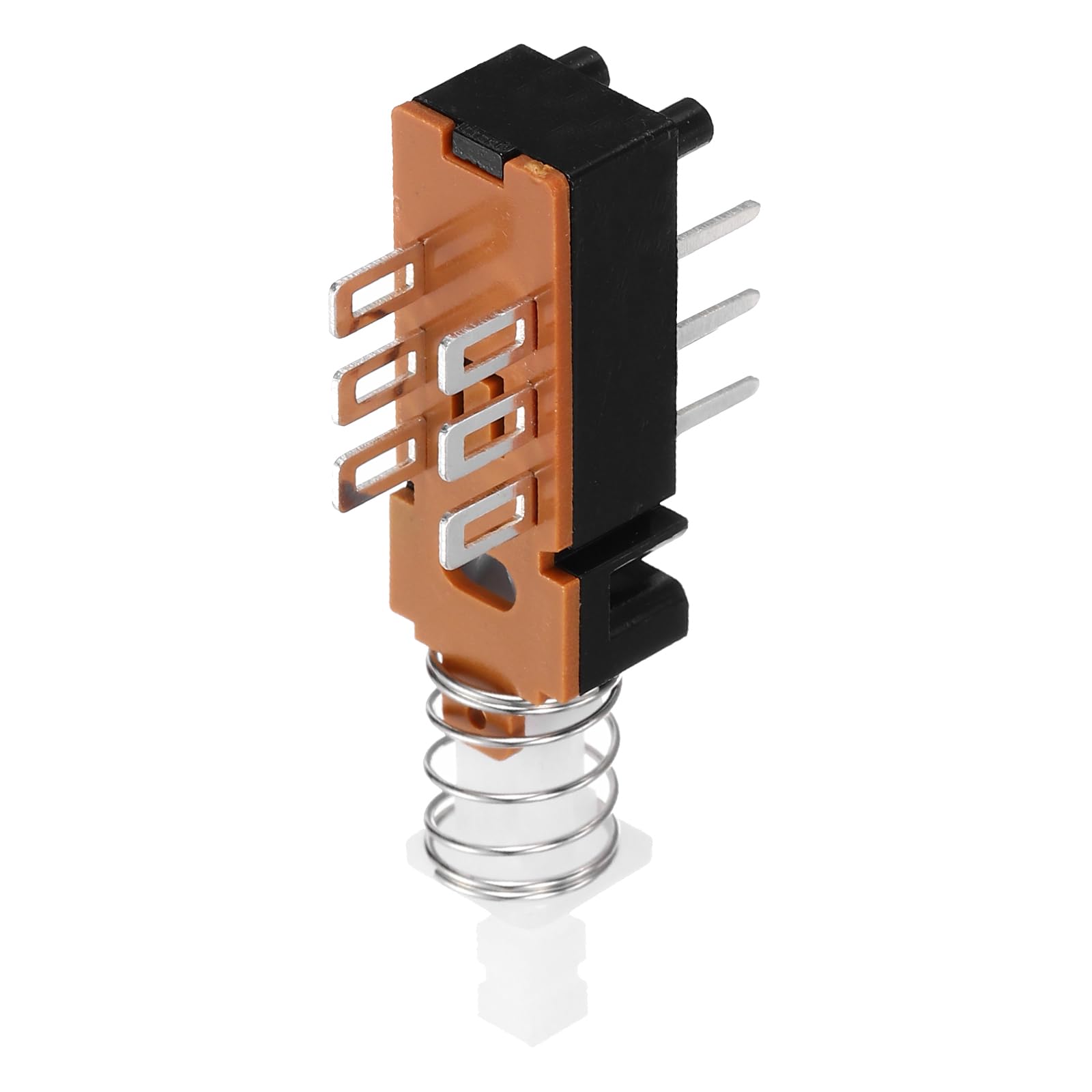

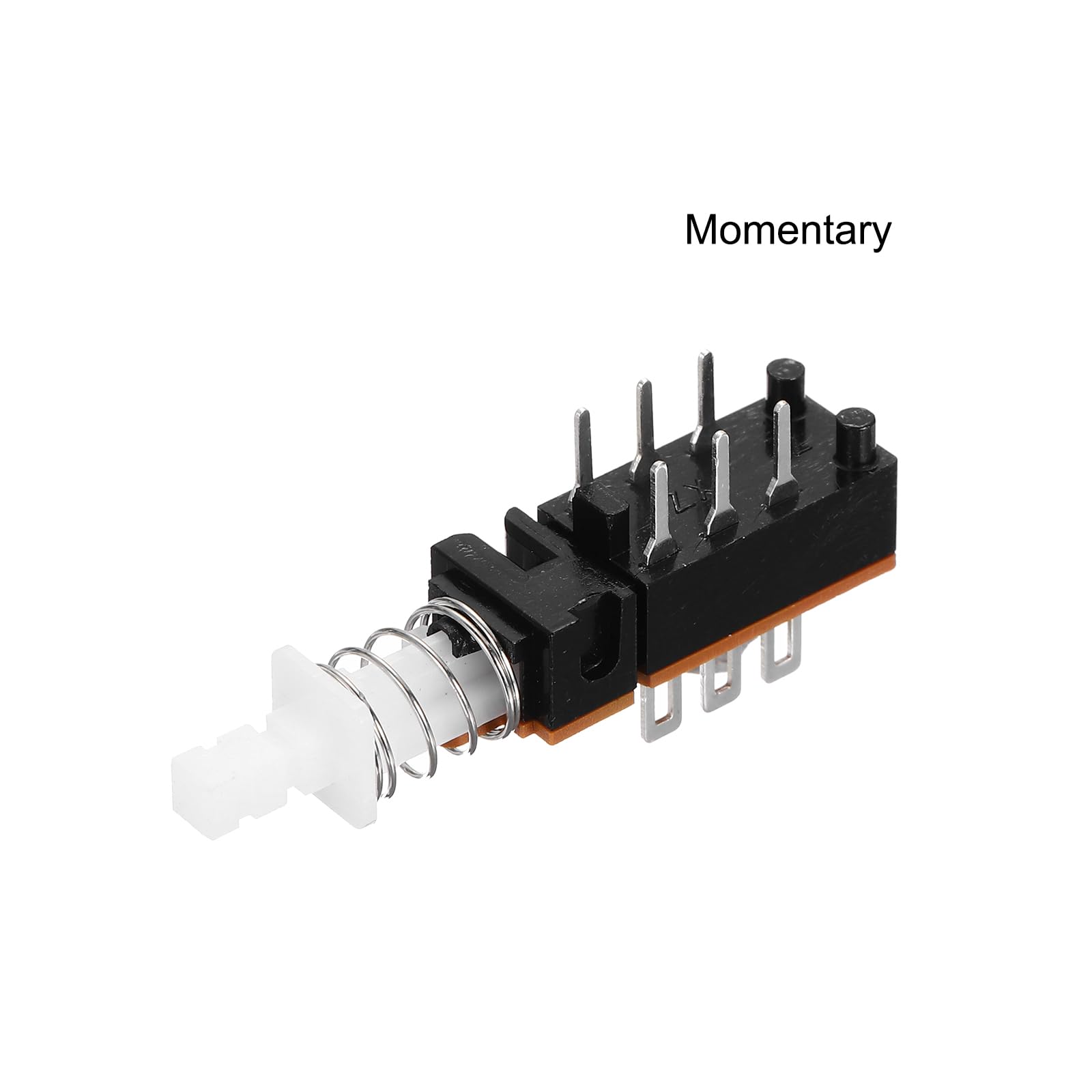

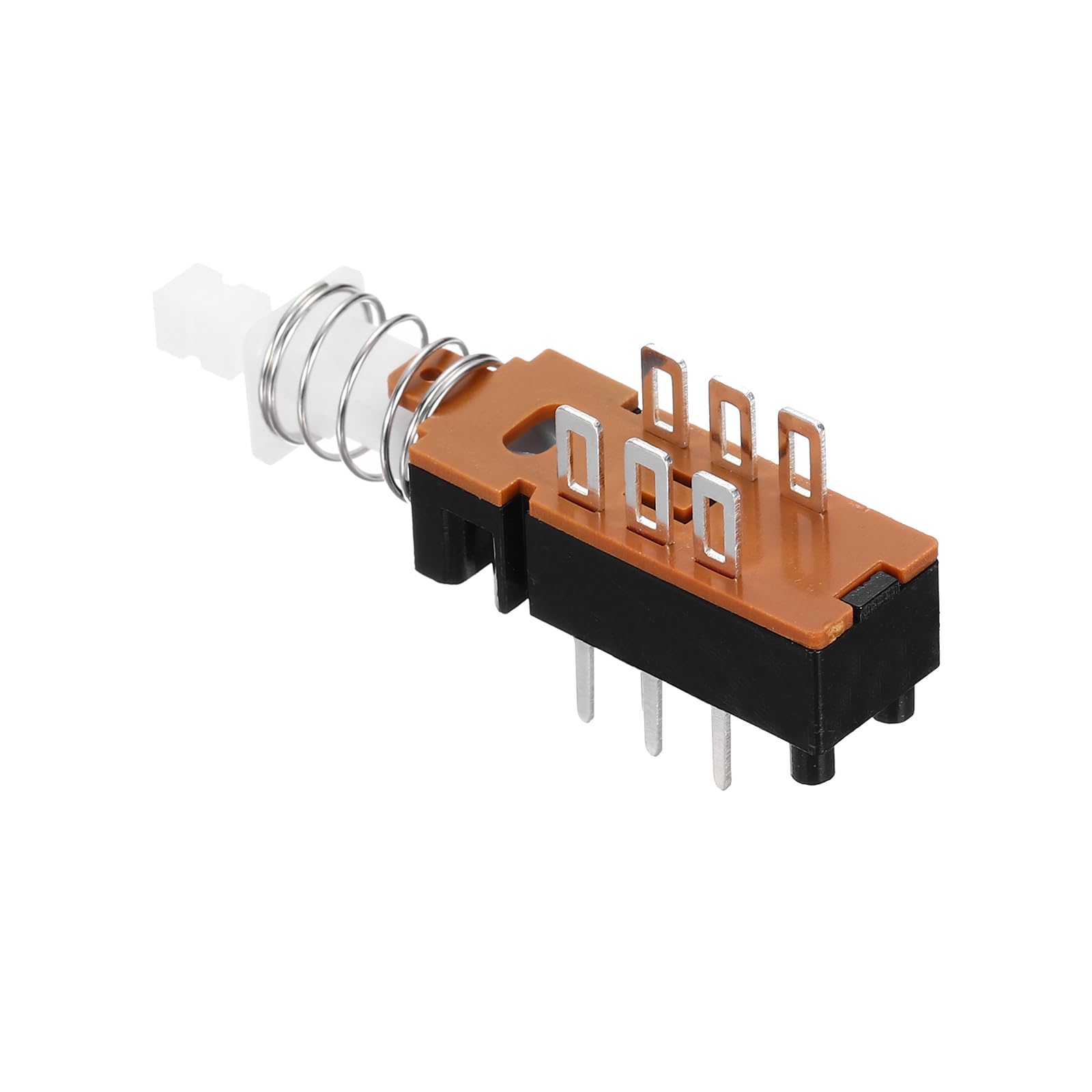

sourcing map Momentary Push Button Switch DPDT 2 Pole 6 Pin 1 Position 5pcs

• [Standard] - DPDT 6 Pins 4mm Pitch 1 Position
• [Momentary Switch] - Momentary straight through hole miniature switch
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 5pcs x Push Button Switch

Specifications: Material: Plastic, Metal Switch Operation: Momentary Contact Configuration: DPDT Terminal Type: Straight Through Hole Pin Quantity: 6 Each Pin Pitch: 4mm Position Quantity: 1 End Width: 9mm / 0.35-inch Mounting Pillar Distance: 5mm / 0.20-inch Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W) Overall Size: 42 x 9.6 x 18mm / 1.65-inch x 0.38-inch x 0.71-inch(L*W*H) Package Contents: 5pcs x Push Button Switch Description: Momentary contact, 6 pins, DIP through hole mounting. Used in the fields of electronic products, household appliances and more. High precision mechanism design offers acute operation and long service life.
