sourcing map Mist Nozzle - 1/4BSPT 1mm Orifice Diameter Brass Fine Atomizing Spray Tip

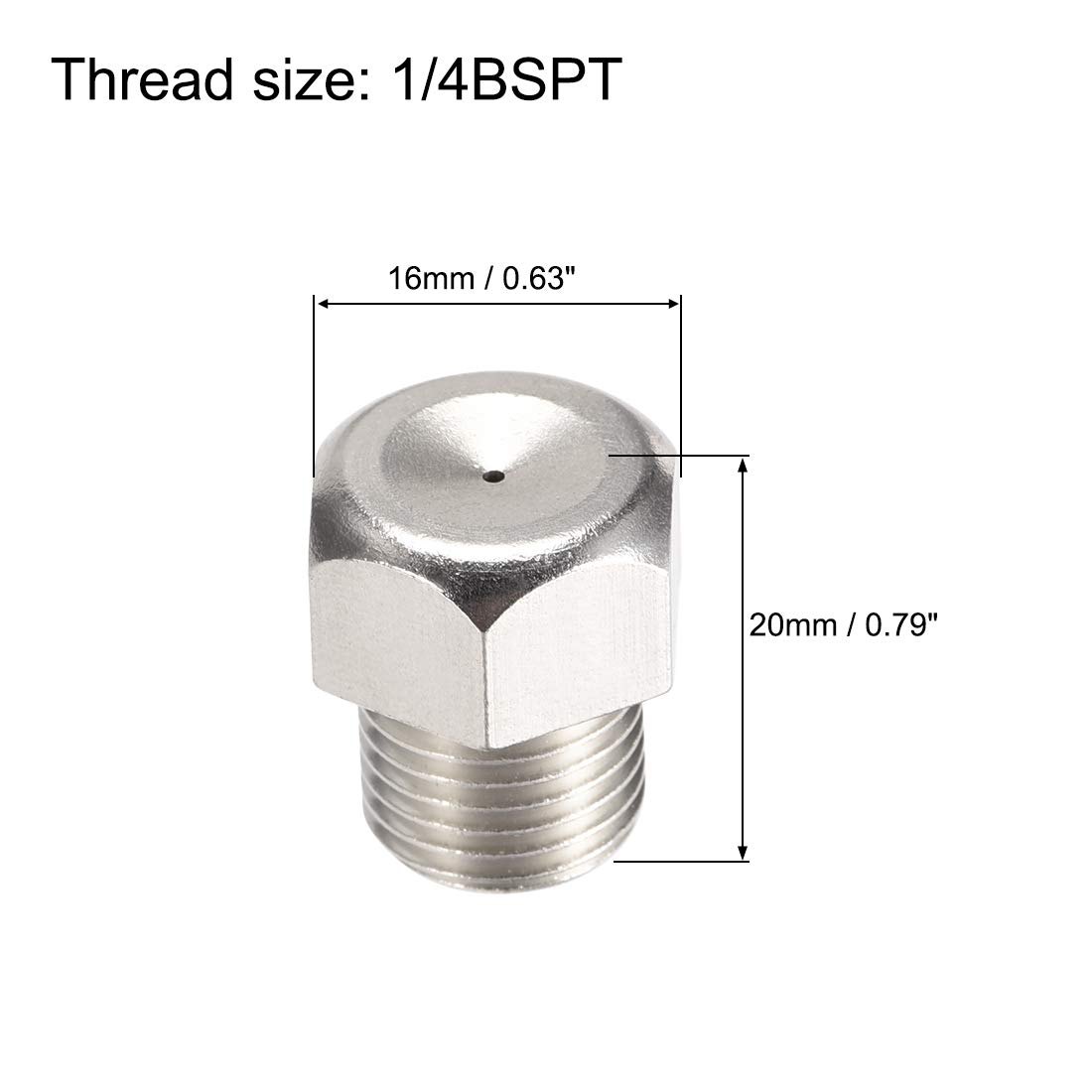

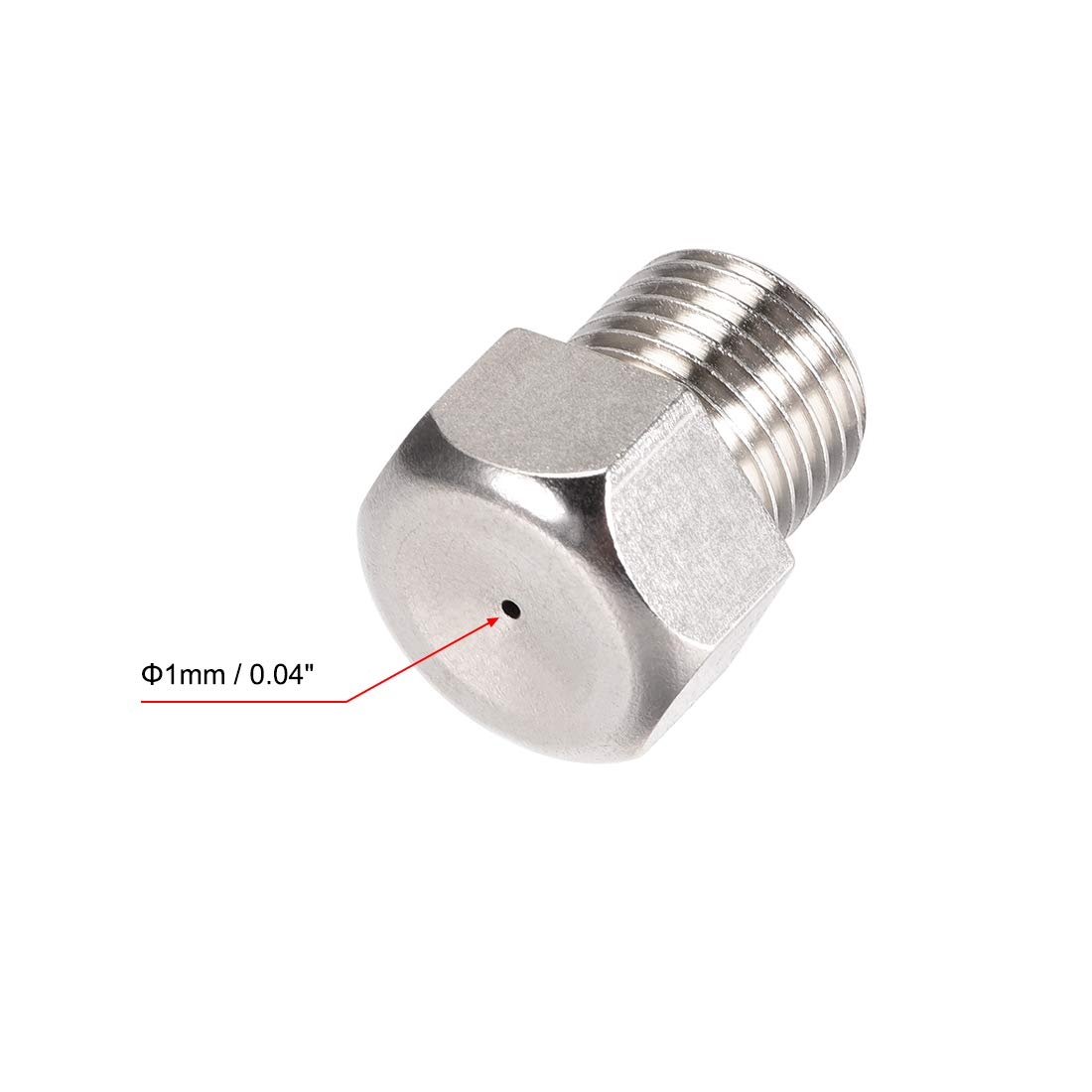

• [SIZE] - 1/4 BSPT thread diameter, 0.04" (1mm) Orifice Diameter.
• [Screen] - Nozzle inlet is equipped with stainless steel Screen.
• [MATERIAL] - Made of brass, anti-rust, durable and have a long lifetime.
• [Coverage Area] - No wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
• [WIDELY USED] - Widely apply for garden, patio, lawn misting system, outdoor cooling, greenhouse, humidification, small fountain, etc.

Made of brass, rust resistance, good thermal conductivity and heat resistance, can ensure long time using. Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet. Screen: nozzle inlet is equipped with stainless steel Screen. Pattern: solid cone / conical. When the liquid in the 2-10bar pressure is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar. The normal spray angle is 60-80 degrees. Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on. Specification: Material: Brass Thread size: 1/4BSPT Orifice Diameter: 1mm / 0.04" Total Size: 16mm x 20mm / 0.63" x 0.79" (Hex.Width*H) Package Content: 1 x Misting Nozzle
