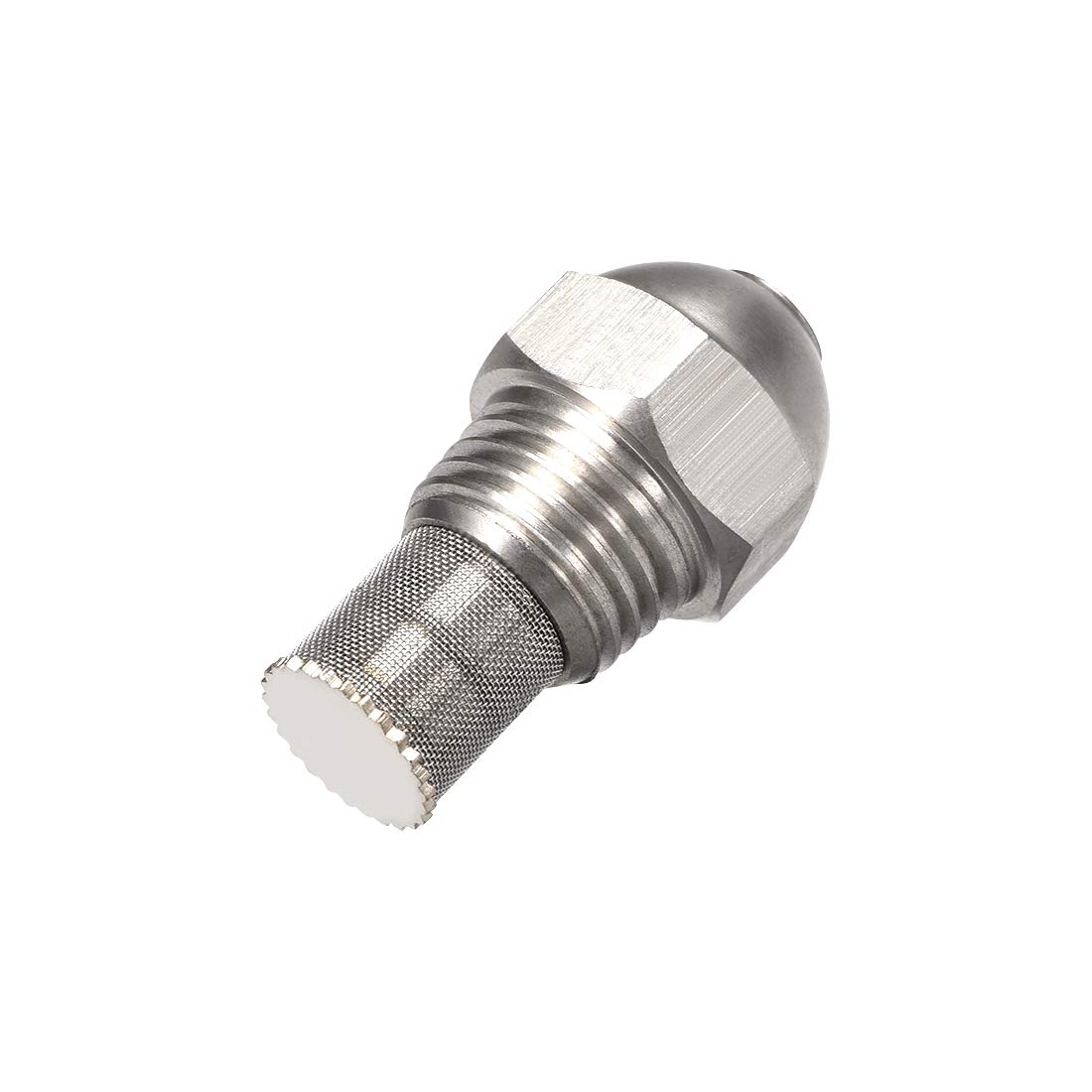

sourcing map Mist Nozzle - 1/4BSPT 0.2mm Orifice Dia 304 Stainless Steel Fine Atomizing Spray Tip

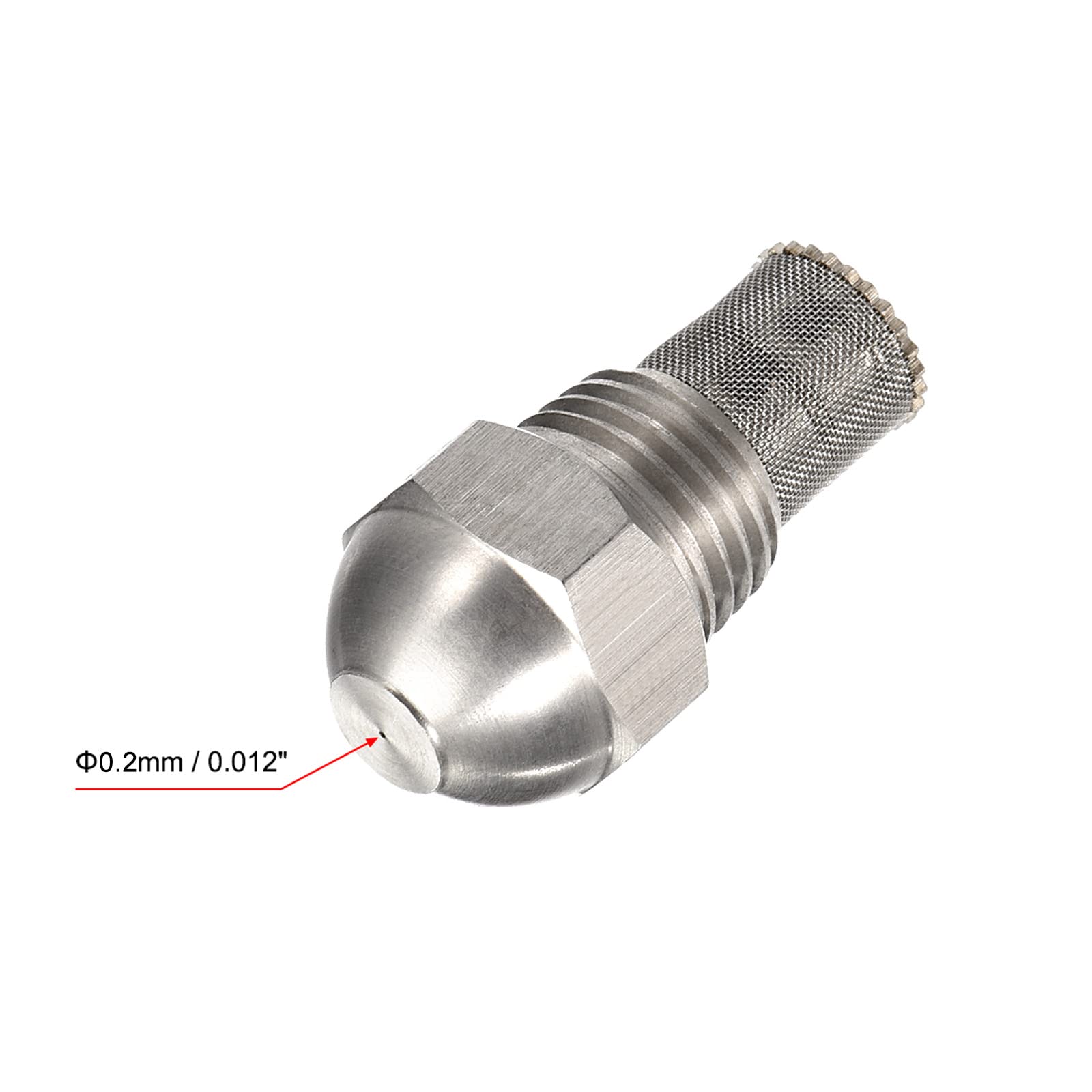

• [SIZE] - 1/4 BSPT thread diameter, 0.008" (0.2mm) Orifice Diameter.
• [Screen] - Nozzle inlet is equipped with stainless steel Screen.
• [MATERIAL] - Made of 304 stainless steel, rust resistance and durable to use.
• [Coverage Area] - No wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
• [WIDELY USED] - Widely apply for garden, patio, lawn misting system, outdoor cooling, greenhouse, humidification, small fountain, etc.

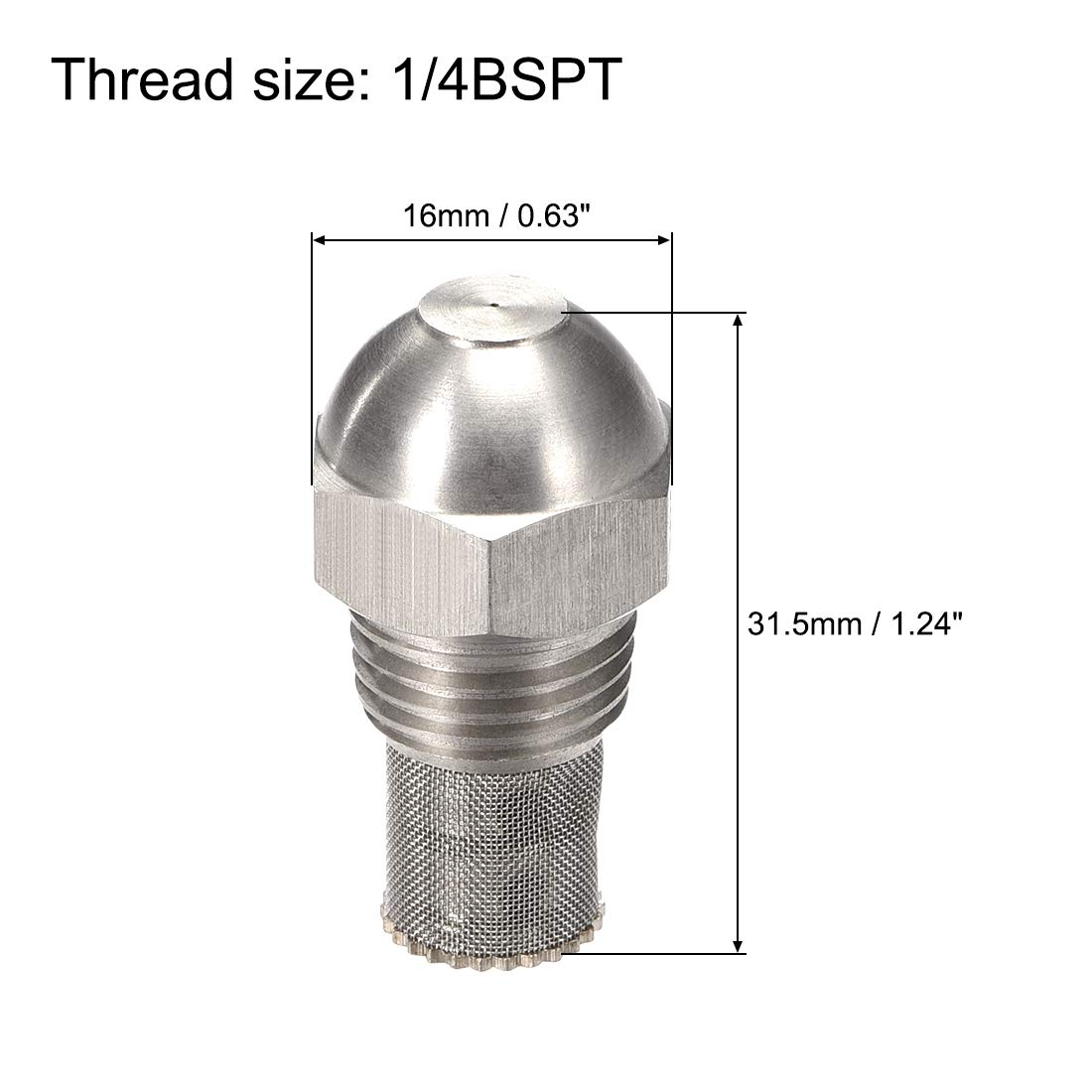

Made of stainless steel 304, strong and corrosion resistant. Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet. Screen: nozzle inlet is equipped with stainless steel Screen. Pattern: solid cone / conical. When the liquid in the 2-10bar pressure is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar. The normal spray angle is 60-80 degrees. Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on. Specification: Material: 304 Stainless Steel Thread size: 1/4BSPT Orifice Diameter: 0.2mm / 0.008" Total Size: 16mm x 31.5mm / 0.63" x 1.24" (Hex.Width*H) Package Content: 1 x Misting Nozzle
