sourcing map Mechanical Thermostat, KTS011 0-60°C Adjustable Compact Normally Open(N.O) Temperature Controller Switch

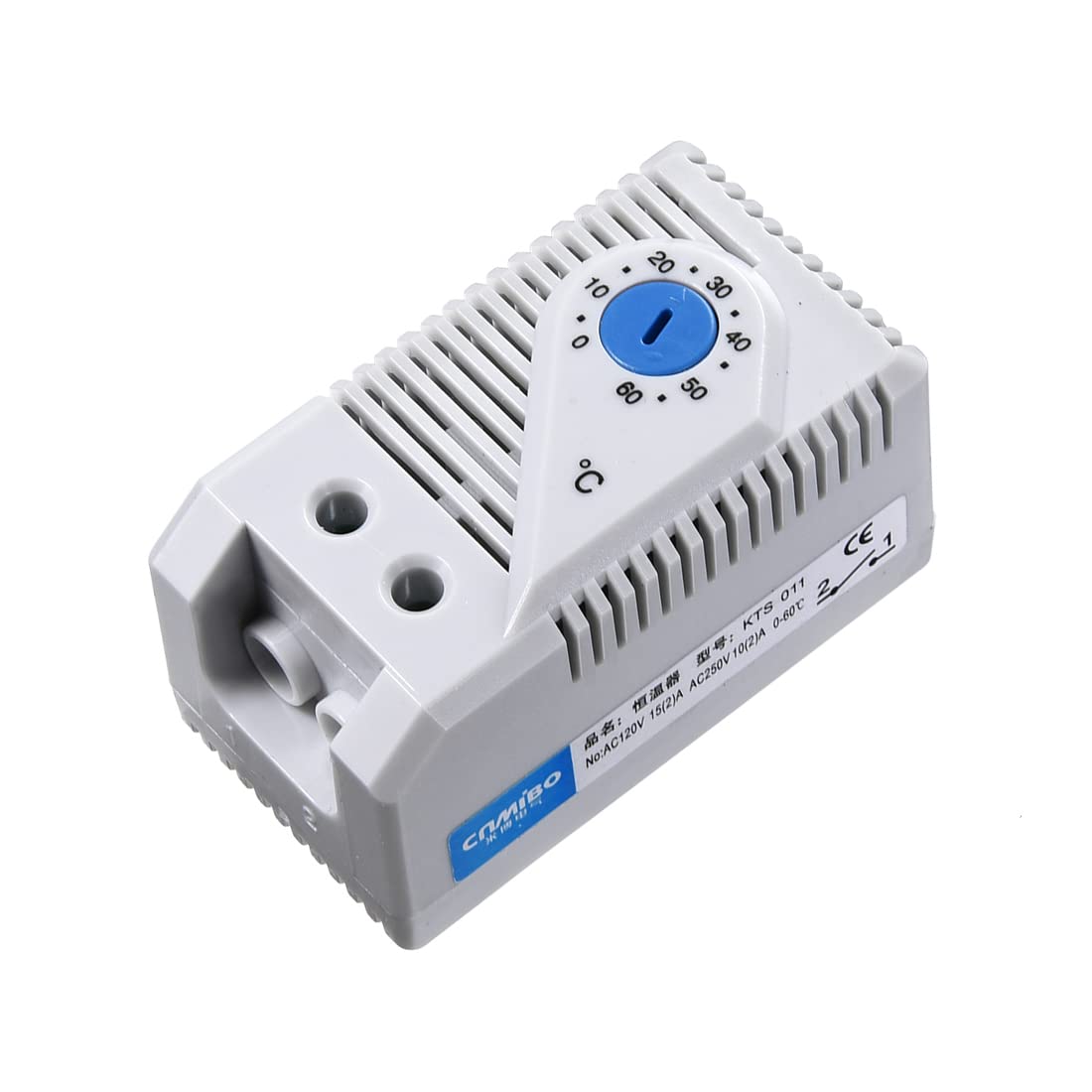

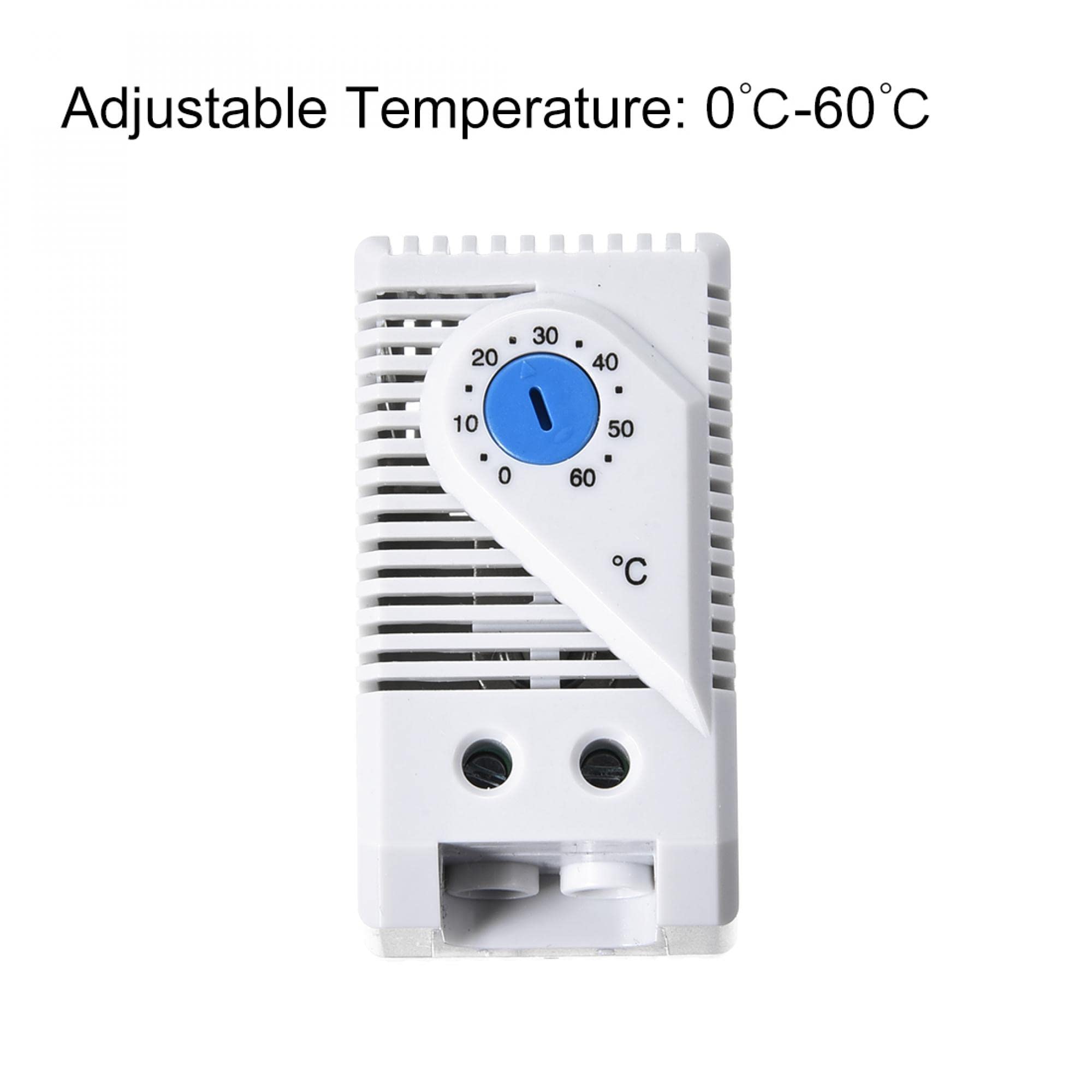

• 【0-60 DEGREE CELSIUS】The mechanical thermostat temperature controlling range is from 0℃ to 60℃, perfect for using to control filter fan and other signal device .The adjustable button is for easy and convenient to adjust the controlling temperature
• 【NORMAL OPEN】When the ambient temperature is lower than the temperature set by the thermostat, the circuit is open and the cooling equipment stops.When the ambient temperature is higher than the temperature set by the thermostat, the circuit closes and the cooling equipment starts.

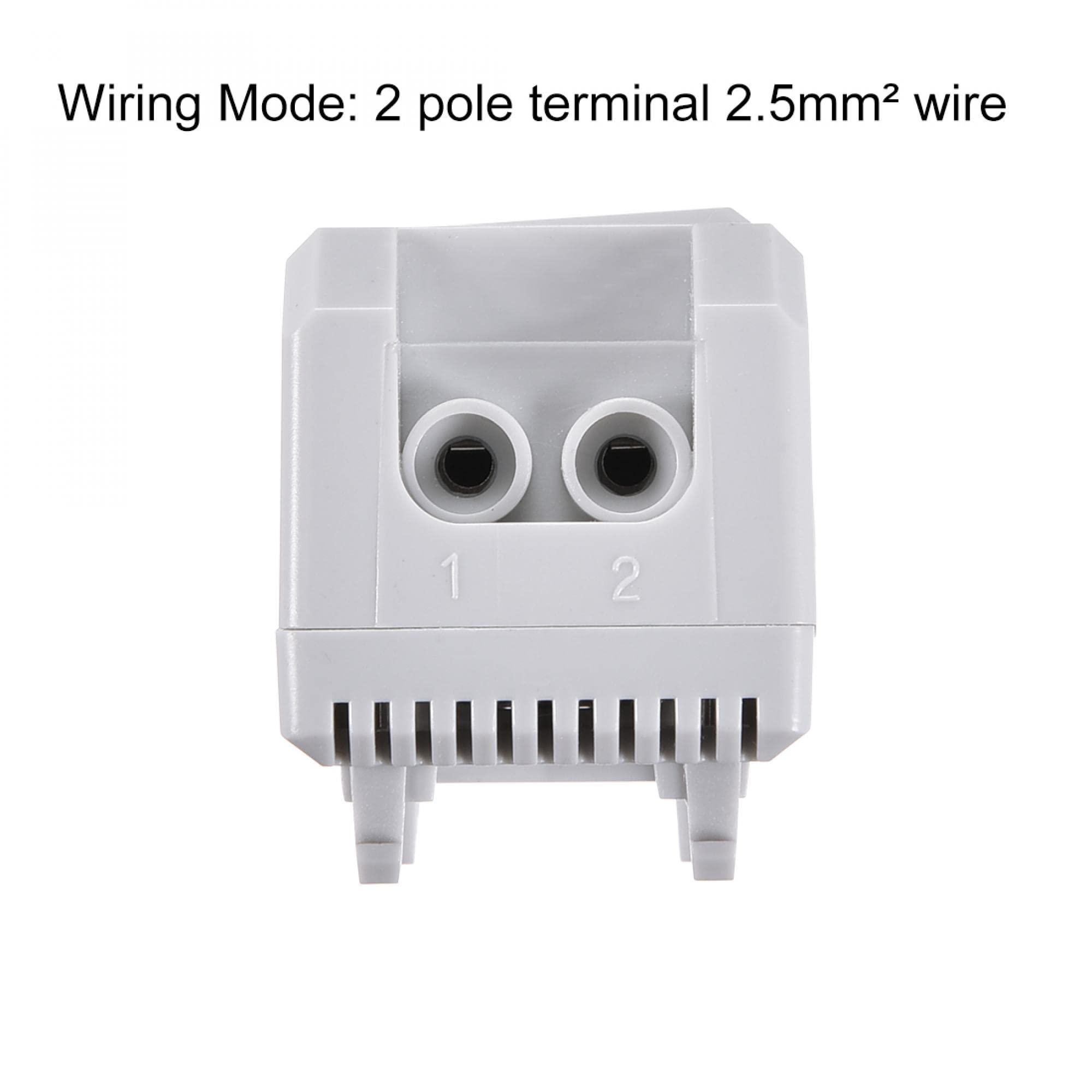

• 【2 WIRE CONNECTING HOLE】The bottom of KTS011 mechanical temperature controller switch is with 2 wire interfaces,which can make wire connection become more sturdy

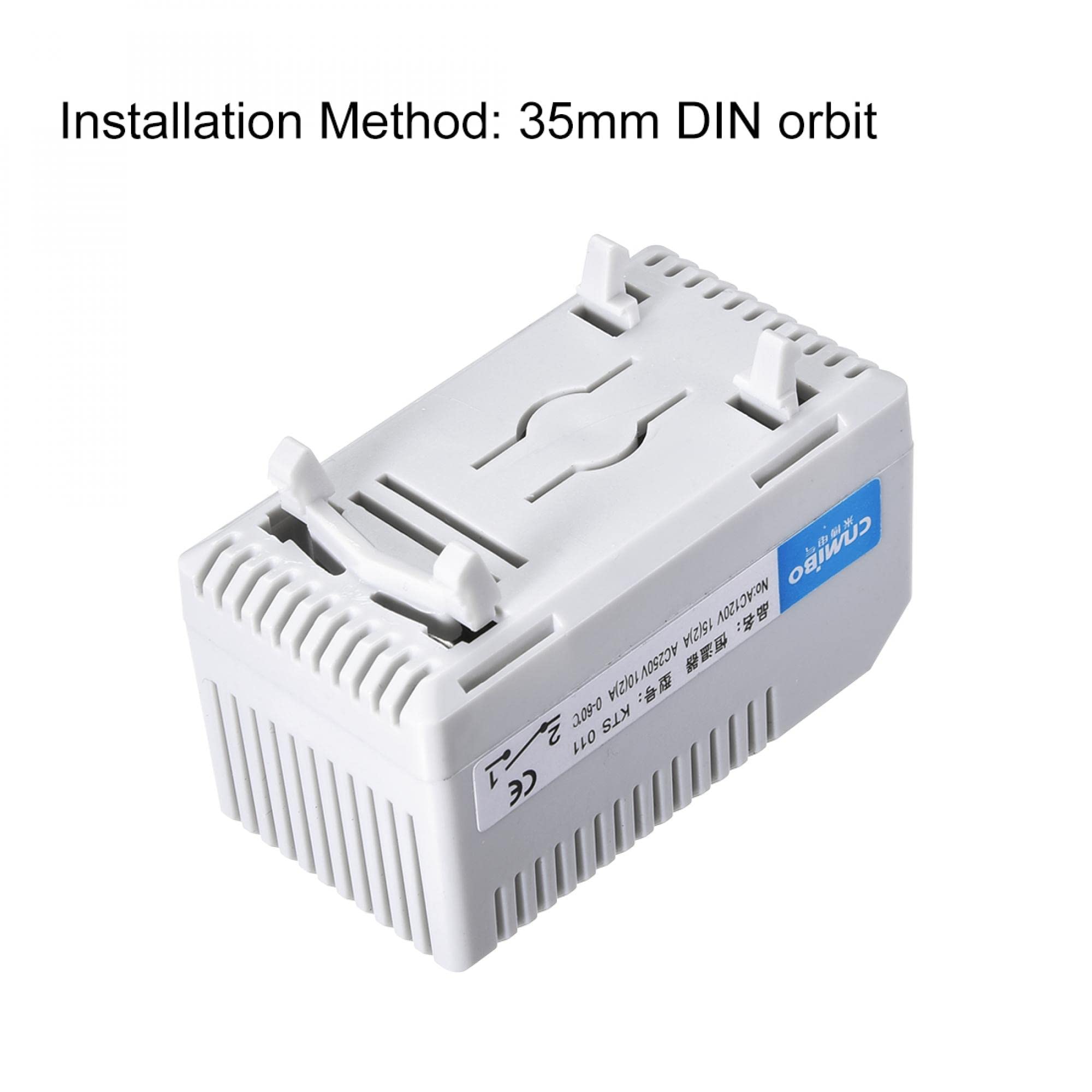

• 【BACK MOUNTING BRACKET】The back of heat control regulator is with fixed bracket,installation guide rail is easy to fix.Using standard guide rail clamp design,more convenient to disassemble
• 【WIDELY APPLICATION】The mechanical temperature control switch mainly use for controlling cooling applications ,like filter fan and other signal device

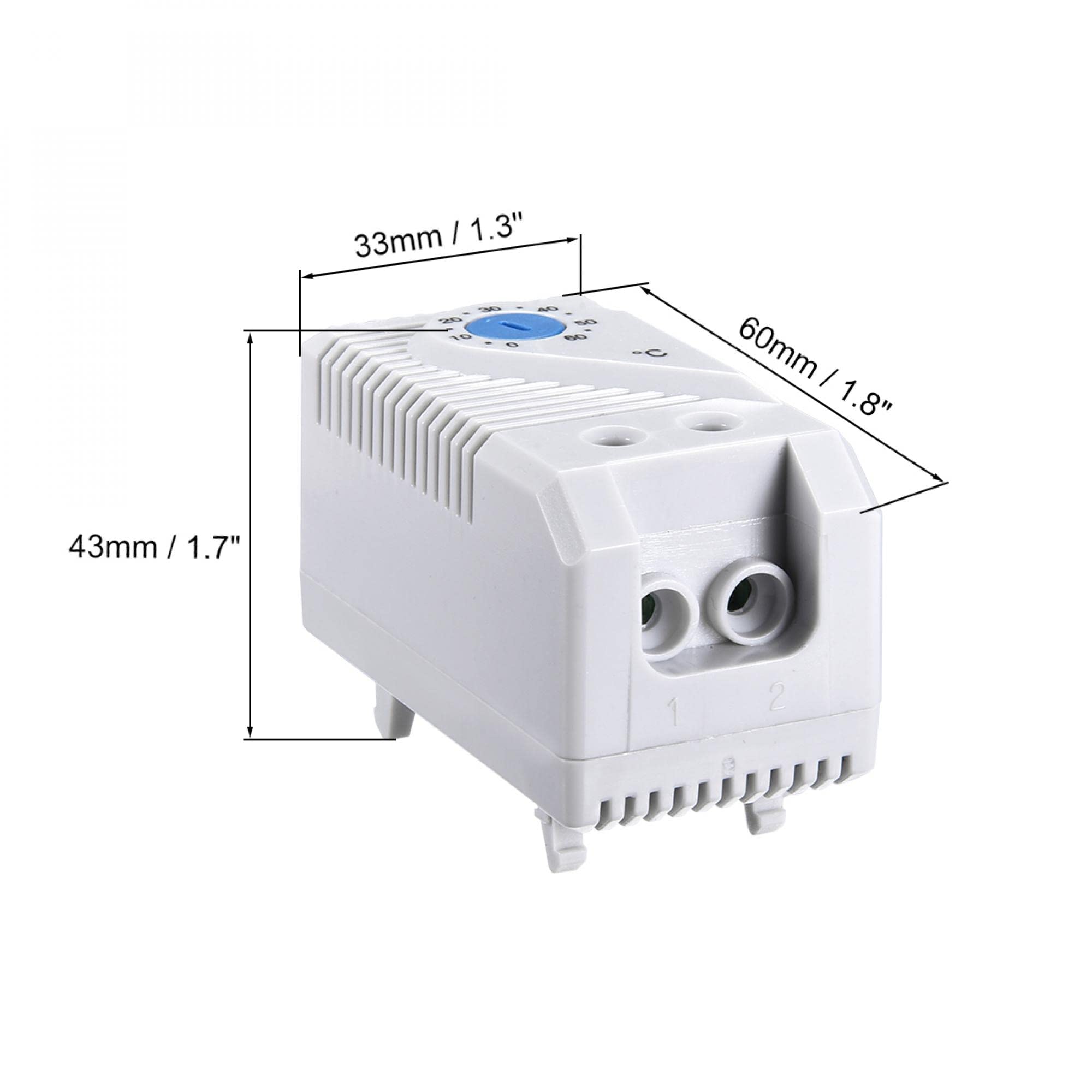

Specification : Adjustable Temperature: 0℃-60℃ Wiring Mode: 2 pole terminal 2.5mm² wire Installation Method: 35mm DIN orbit Service Life: ＞100,000 cycles Power: 250V 10A Size(L x W x H): Approx. 60 x 43 x 33mm / 1.8 x 1.7 x 1.3inch Package Content : 1 x Mechanical Thermostat Description : 1.The shell of our thermostat is made of plastic material with fine workmanship, durable to use 2.Its temperature controlling range is from 0℃ to 60℃, perfect for using to control filter fan, cooling equipment and other signal device in your home, market and so on 3.It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature 4.Adopting standard rail clip design, 4 feet holders, easy to install and disassemble 5.Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safe 6.Normally Open: The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.
