sourcing map Mechanical Thermostat, KTO011 0-60°C Adjustable Compact Normally Close(N.C) Temperature Controller Switch

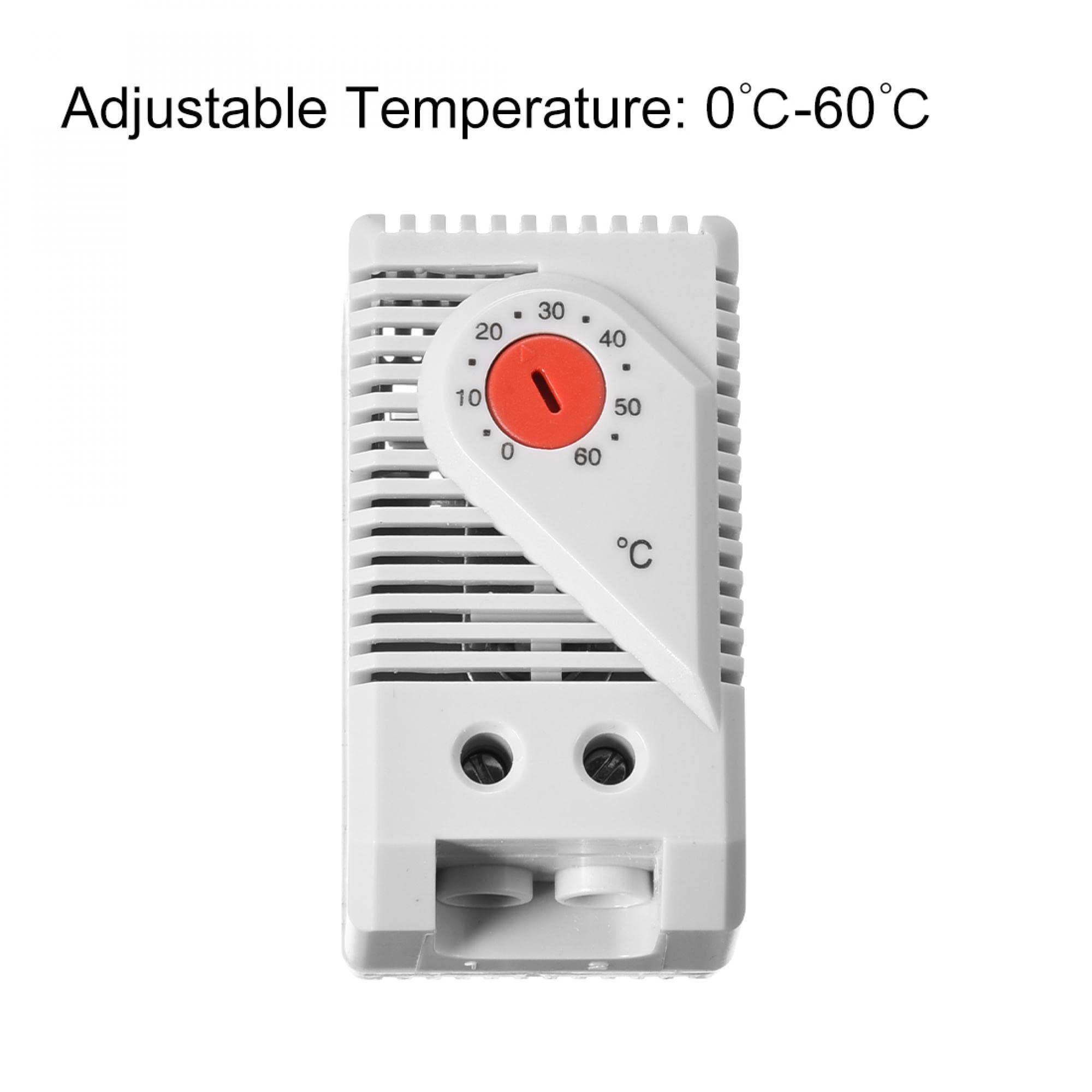

• 【0-60 DEGREE CELSIUS】The mechanical thermostat temperature controlling range is from 0°C to 60°C, perfect for using to control heater.The adjustable button is for easy and convenient to adjust the controlling temperature
• 【NORMAL CLOSE】When the ambient temperature is lower than the temperature set by the thermostat, the circuit close and the heater equipment starts. When the ambient temperature is higher than the temperature set by the thermostat, the circuit is disconnected and the heater equipment stops

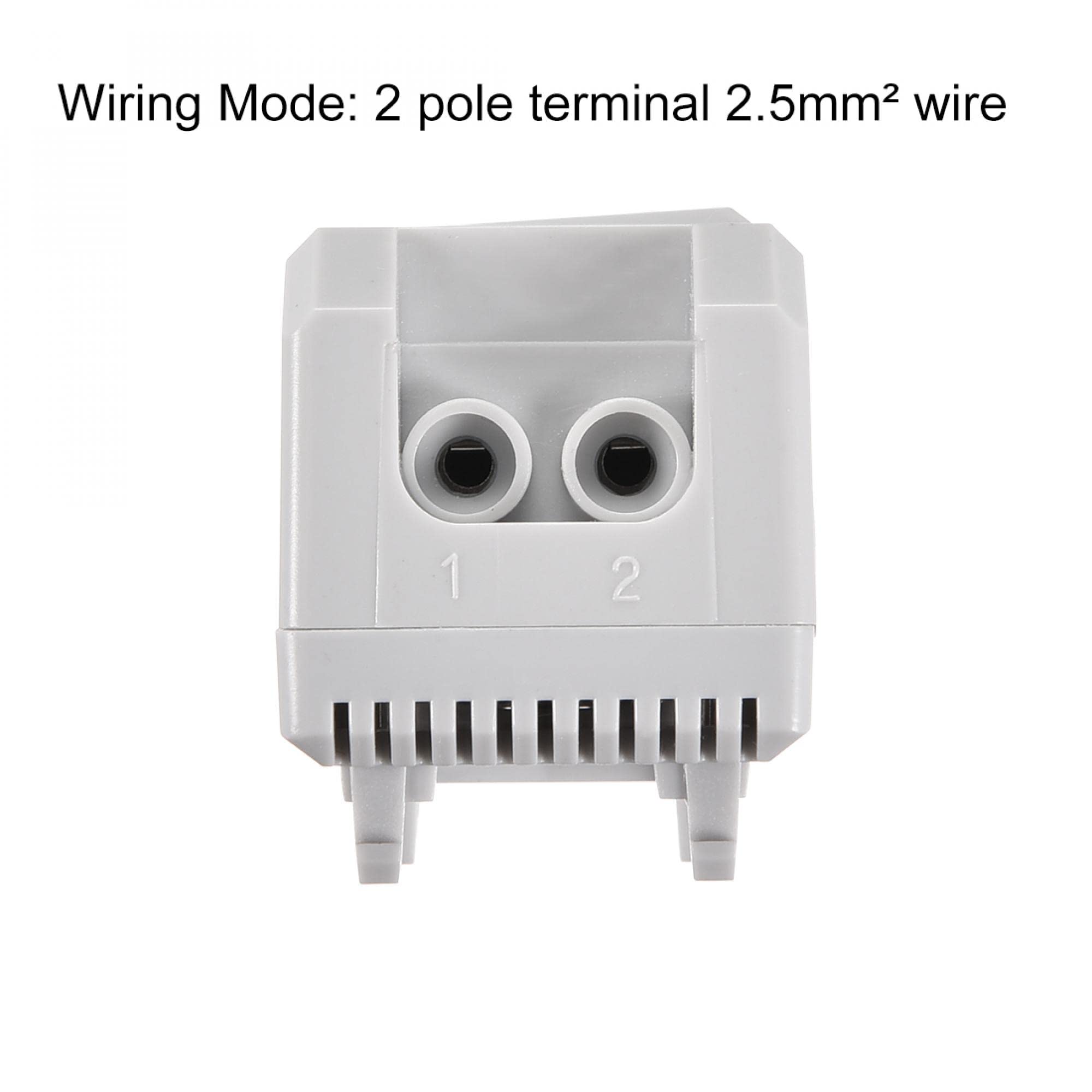

• 【2 WIRE CONNECTING HOLE】The bottom of KTS011 mechanical temperature controller switch is with 2 wire interfaces,which can make wire connection become more sturdy
• 【WIDELY APPLICATION】The mechanical temperature control switch mainly use for controlling heating applications
• 【PLEASE NOTE】About temperature : Temperature deviation about 10 degree Celsius

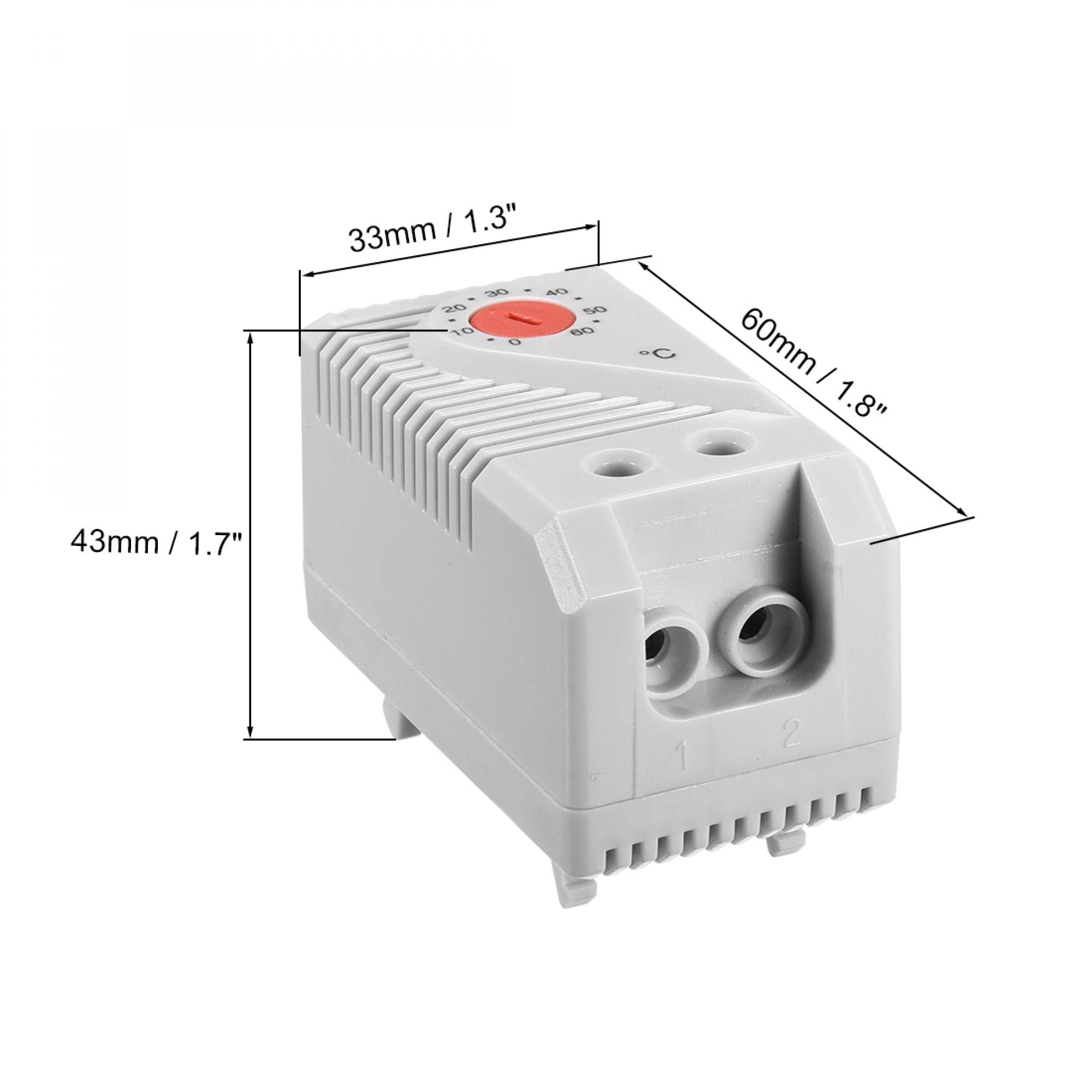

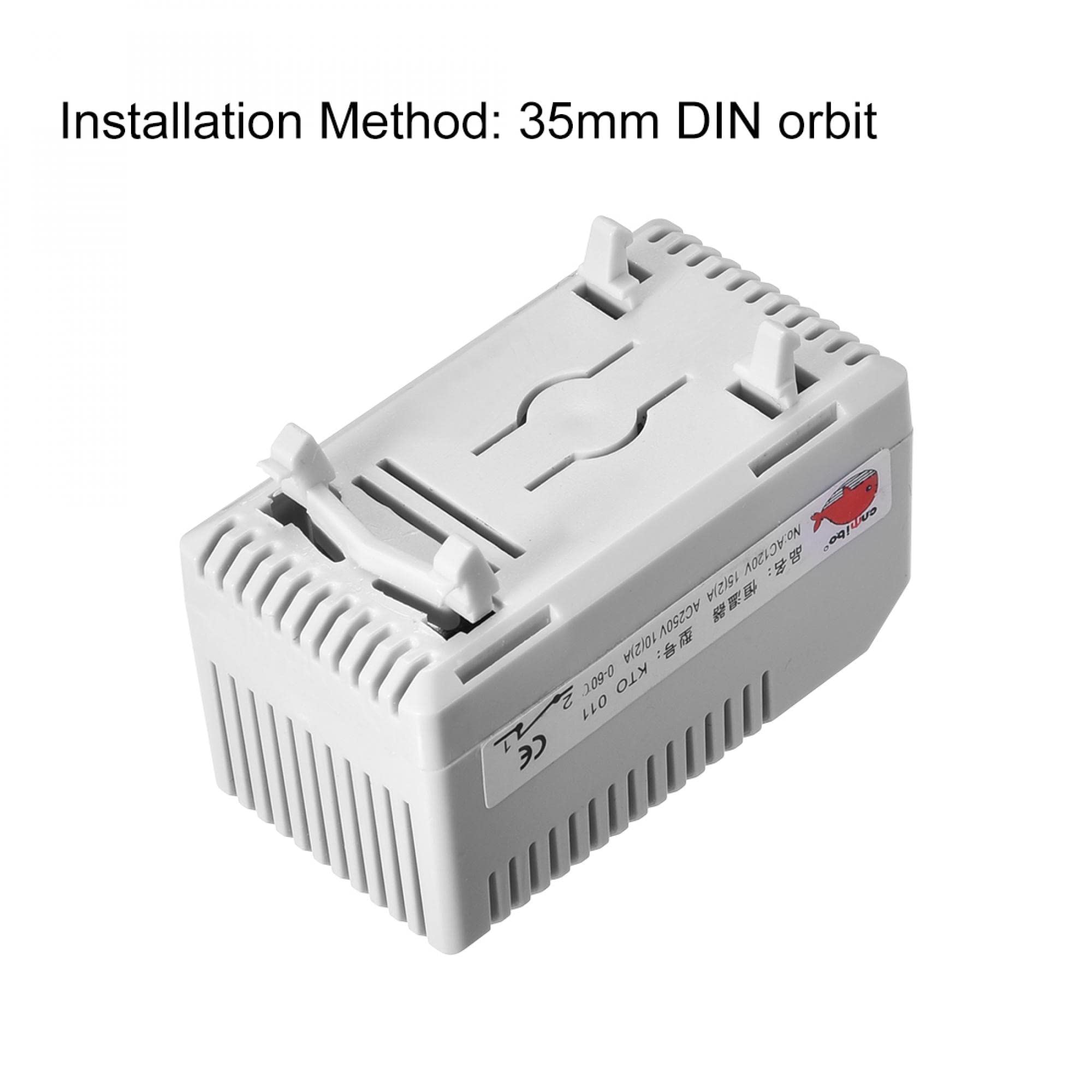

Specification : Adjustable Temperature: 0℃-60℃ Wiring Mode: 2 pole terminal 2.5mm² wire Installation Method: 35mm DIN orbit Service Life: ＞100,000 cycles Power: 250V 10A Size(L x W x H): Approx. 60 x 43 x 33mm / 1.8 x 1.7 x 1.3inch Package Content : 1 x Mechanical Thermostat Description : 1.The shell of our thermostat is made of plastic material with fine workmanship, durable to use 2.Its temperature controlling range is from 0℃ to 60℃, perfect for using to control heater 3.It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature 4.Adopting standard rail clip design, 4 feet holders, easy to install and disassemble 5.Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer 6.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
