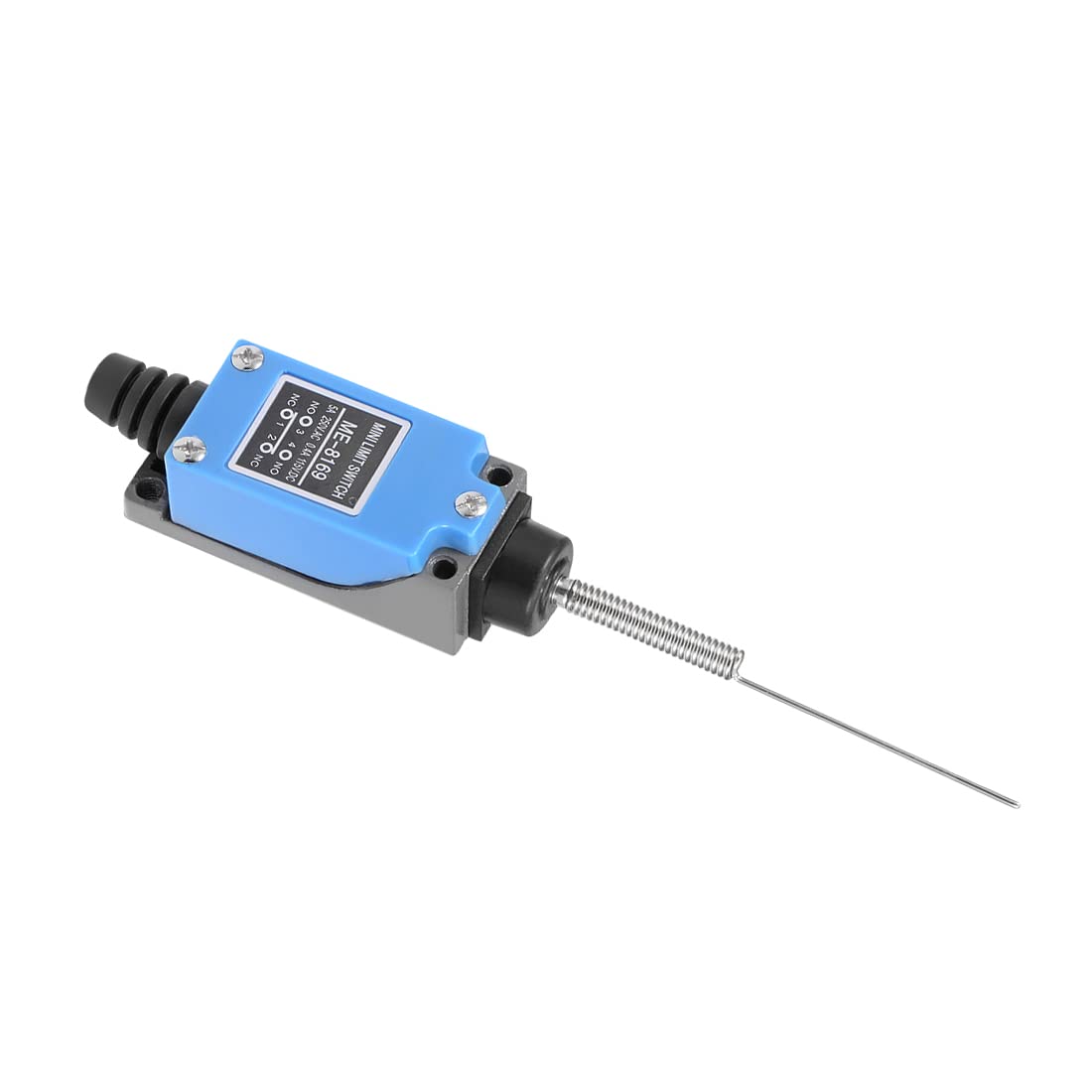

sourcing map ME-8169 Cat Whisker Flexible Coil Spring Momentary Limit Switch 1NC+1NO

• Model: ME-8169; Cat Whisker Flexible Coil Spring Type
• built-in basic switch with good electrical conductivity
• Able to withstand some washdowns, shock and vibration
• Easy-to-wire, smooth operation and reliable
• This Limit Switch can help for industrial automation equipment

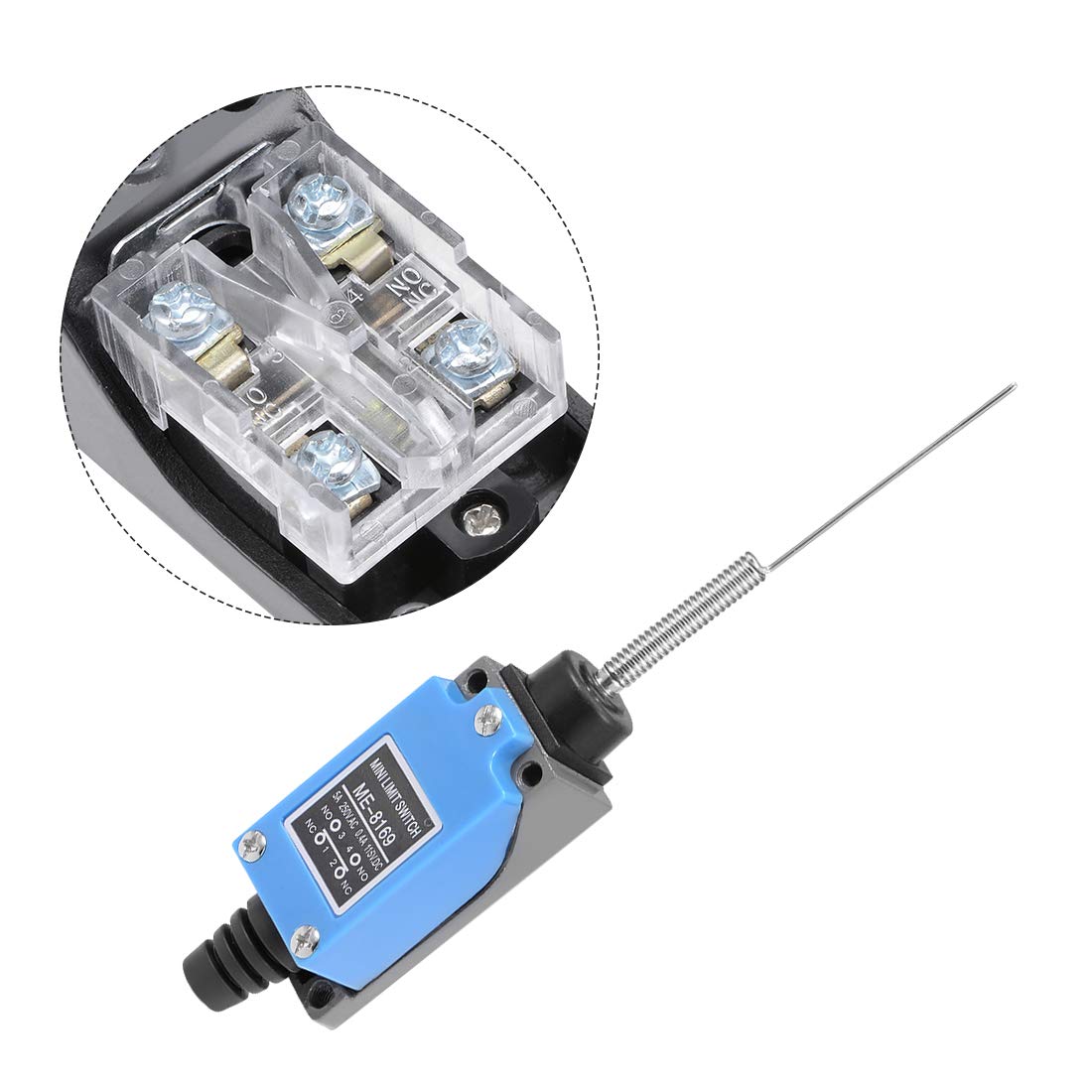

Specification: Product Name: Limit Switch Model: ME-8169 Actuator Type: Cat Whisker Type Rated Voltage: 5A 250V AC / 0.4A 115V DC Contact Configuration: 1NC+1NO Body Size: 64 x 28 x 25mm (L*W*T) Mounting Hole Size: M5 Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The coil spring can be operated in any direction except the axis direction. The use of the coil spring is ideal for that are not uniform in size or direction. Operating Characteristics: OF max.: 1000g (9.8N) PT max.: 30mm Description: Double circuit limit switch with build-in double reed mechanism. Zine alloy and intensive plastic shell, strong and hightly rigid construction. Smooth operation with highter OT. Brass contacts with 30% silver contained. Easy-to-wire design. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
