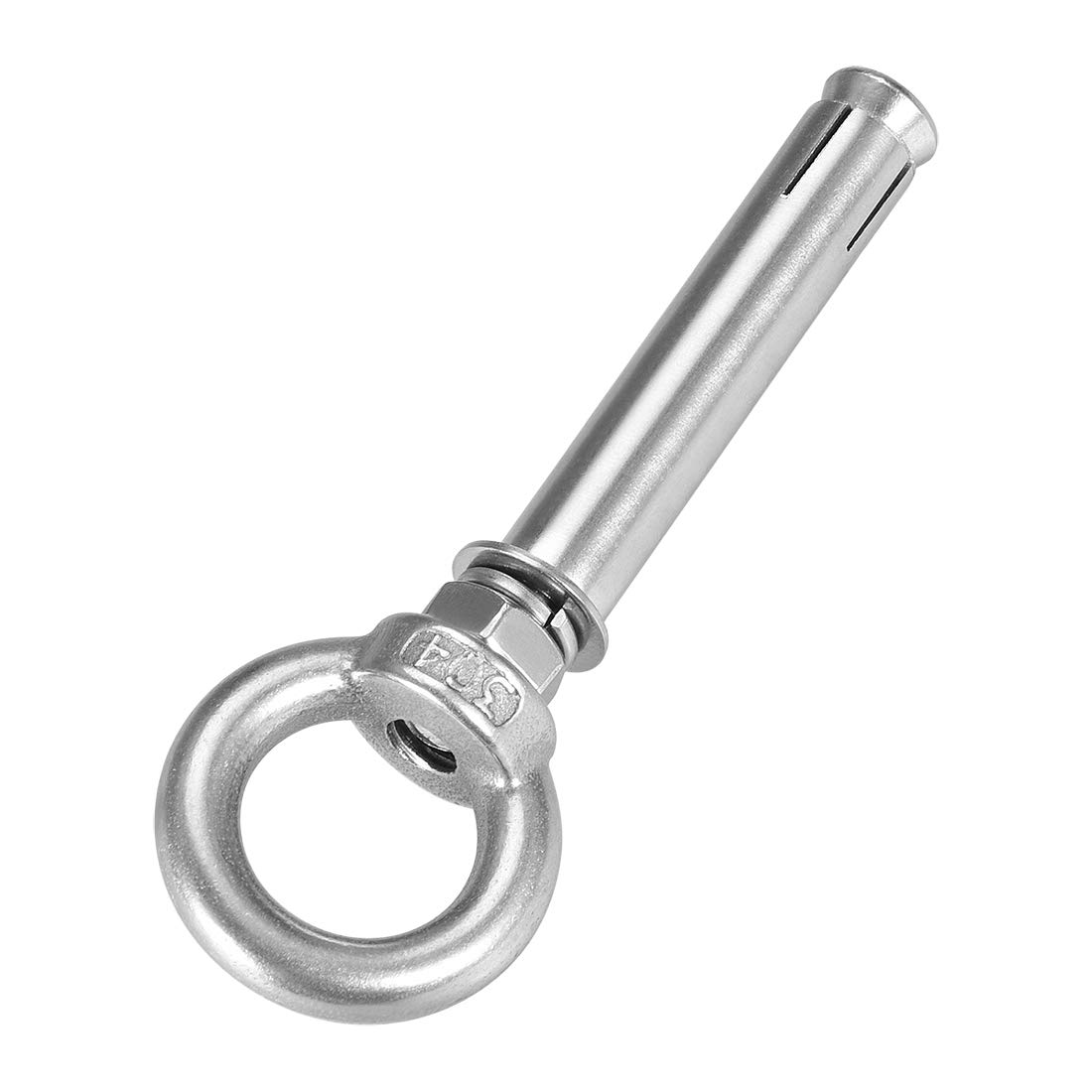

sourcing map M8 x 80 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 2 Pcs

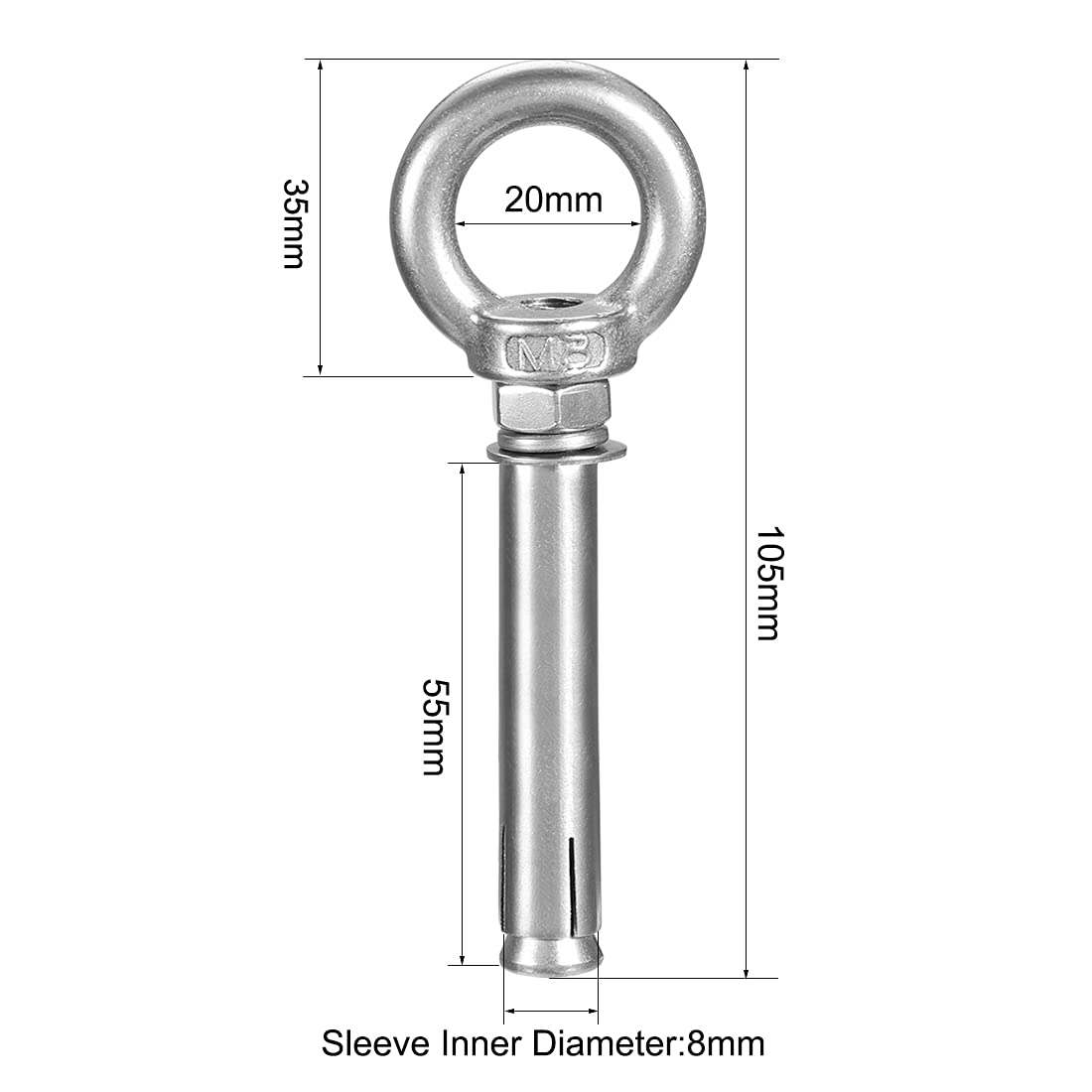

• Main Size. Standard M8 expansion bolts with 105mm length, and the ring Inner Diameter is 20mm.
• Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
• Installation. Suggested a 12mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
• Application. Fit the concrete wall or masonry, for hanging or lifting the super heavy things like a big shelf. It's durable and reliable.
• Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.

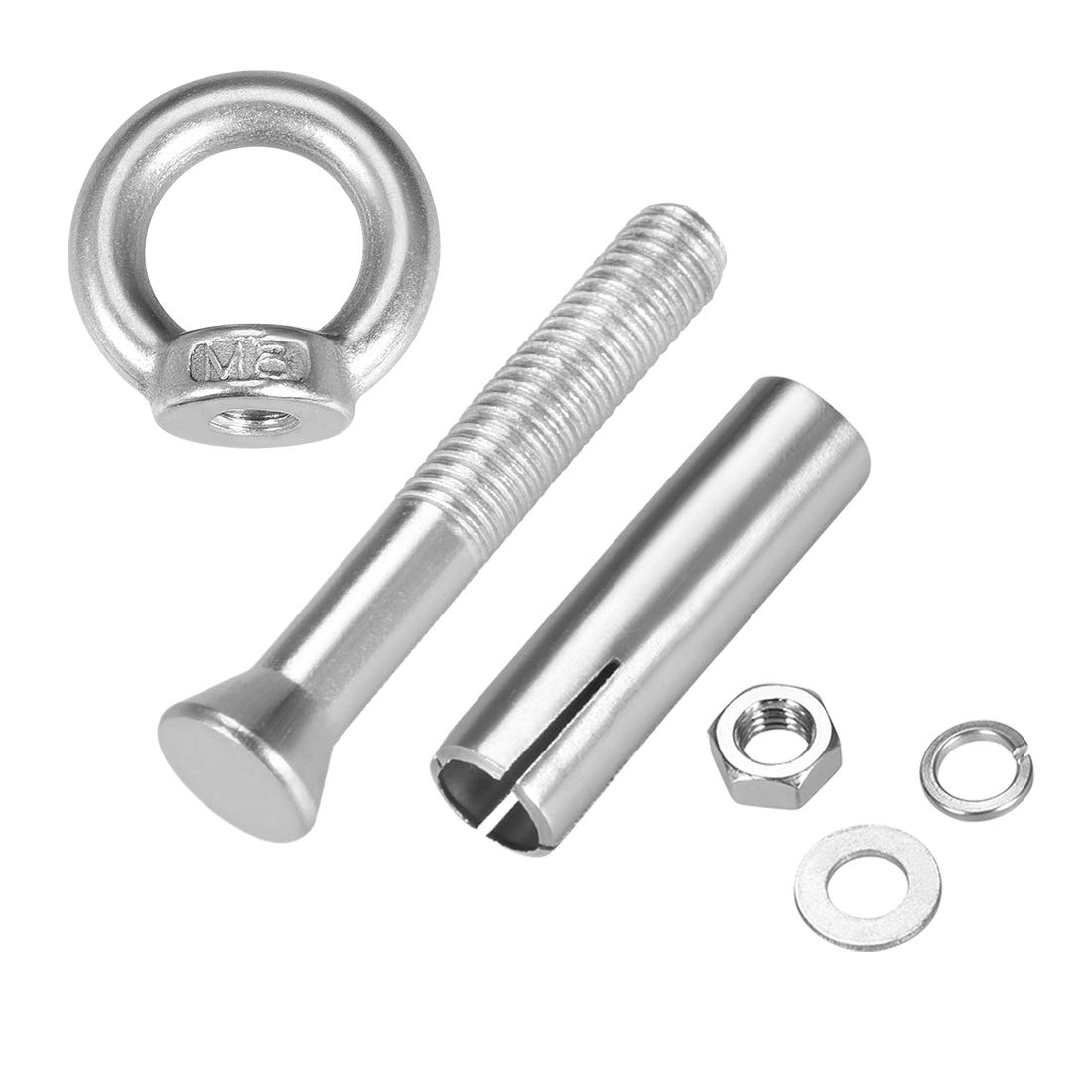

Screw Size: M8<br />Overall Length: 105mm<br />Eye Nut Height: 39mm<br />Inner diameter of the ring: 20mm<br />Sleeve Inner Diameter: 8mm<br />Sleeve Length: 55mm<br />Suggested Hole Size: 12mm Dia.<br />Total Weight: 158g<br />Materials: 304 Stainless Steel<br />Application: Concrete and masonry<br /><b>Package Content:<br />2 x pcs M8 x 80 Expansion Eye Bolt<br /></b>
