sourcing map M-22 Drive V-Belt Industrial Power Rubber Transmission Belt 22 inch Pitch Girth 10mm Width 5.5mm Height JIS Standard

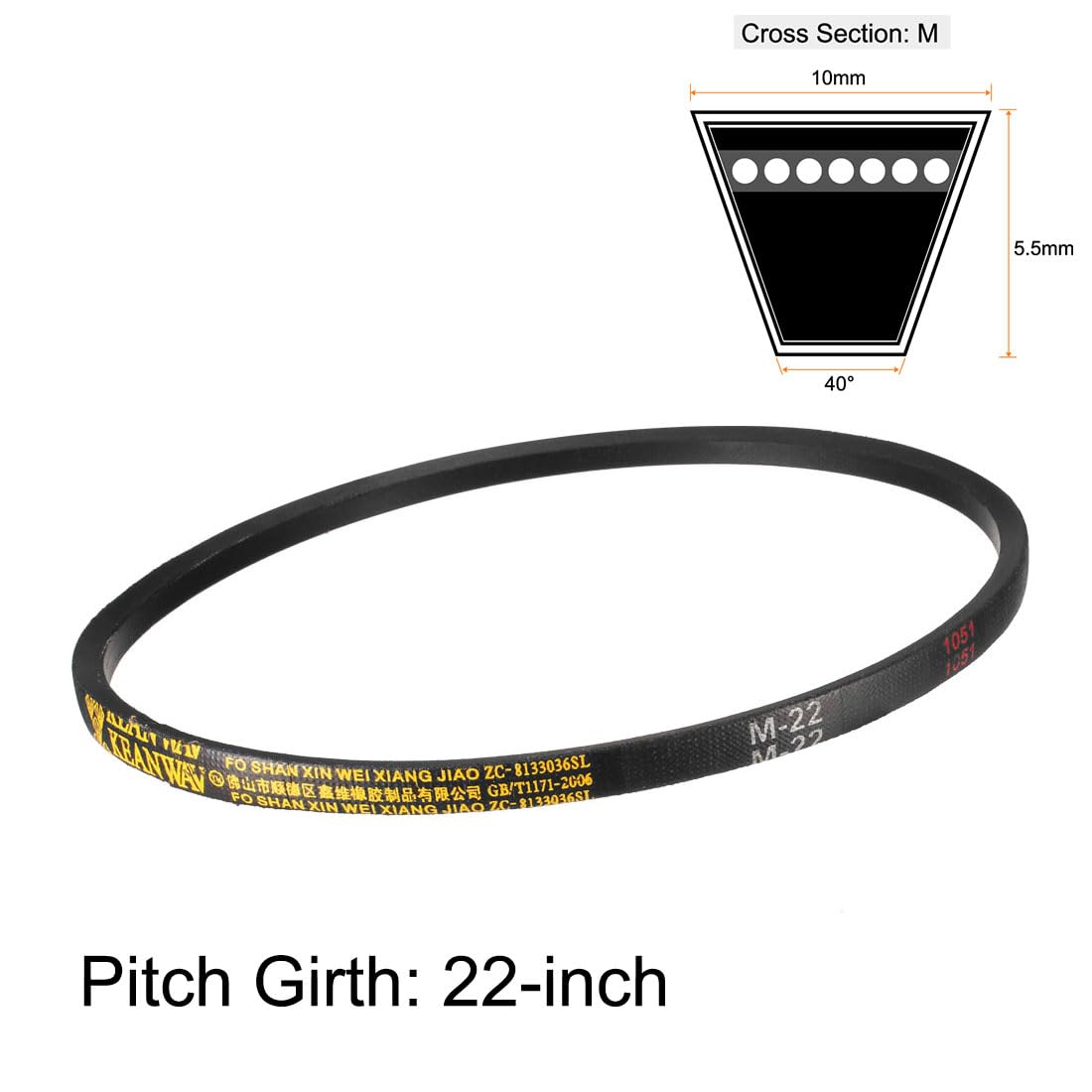

• Size: Model: M-22; Pitch Girth: 22 inch/560mm; Outer Girth: 580mm; Top Width: 10mm; Thickness: 5.5mm; Angle: 40 degree. Produced according to the Japanese standard JIS K 6323.
• Material: It is made of neoprene rubber for resistance to oils, water, and some solvents.
• Function: To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance.
• Feature: The trapezoidal shape of the belts cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment.
• Applications: Used for drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, ect.

Descriptions: The outside fabric wrap is treated with high oil and heat resistance. Specially engineered, twisted, heat and chemically set, neoprene rubber material. The body rubber compound is a highly engineered synthetic rubber compound. Specifications: Product Name: Drive Belt Material: Neoprene Rubber Type: M-22 Width: 10mm Thickness: 5mm Inner Girth: 21" Outer Girth: 580mm Pitch Length: 22"/560mm Color: Black Package Content: 1 x Drive Belt
