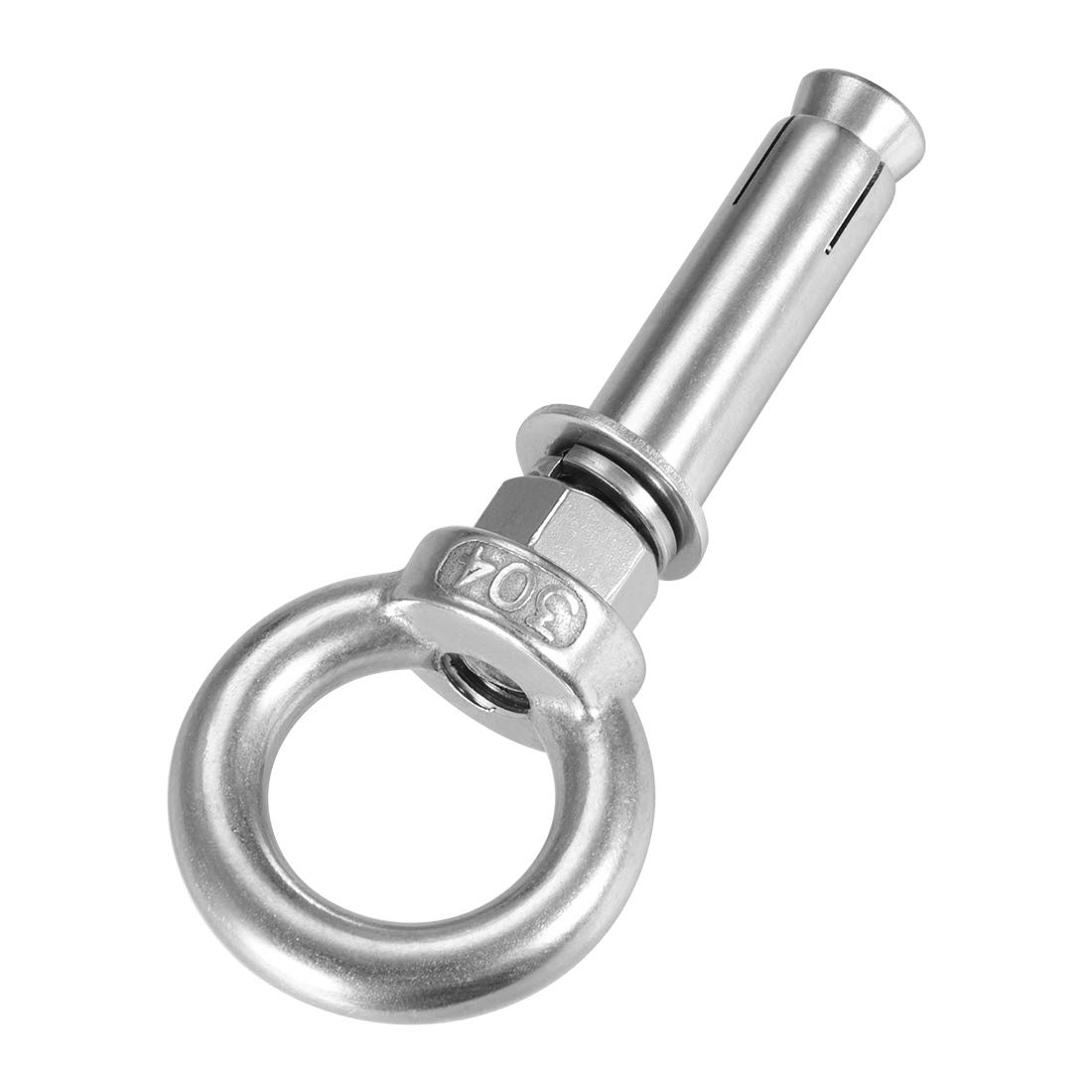

sourcing map M12 x 80 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 1 Pcs

• Main Size. Standard M12 expansion bolts with 120mm length, and the ring Inner Diameter is 29mm.
• Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
• Installation. Suggested a 16mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
• Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It's durable and reliable.
• Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.

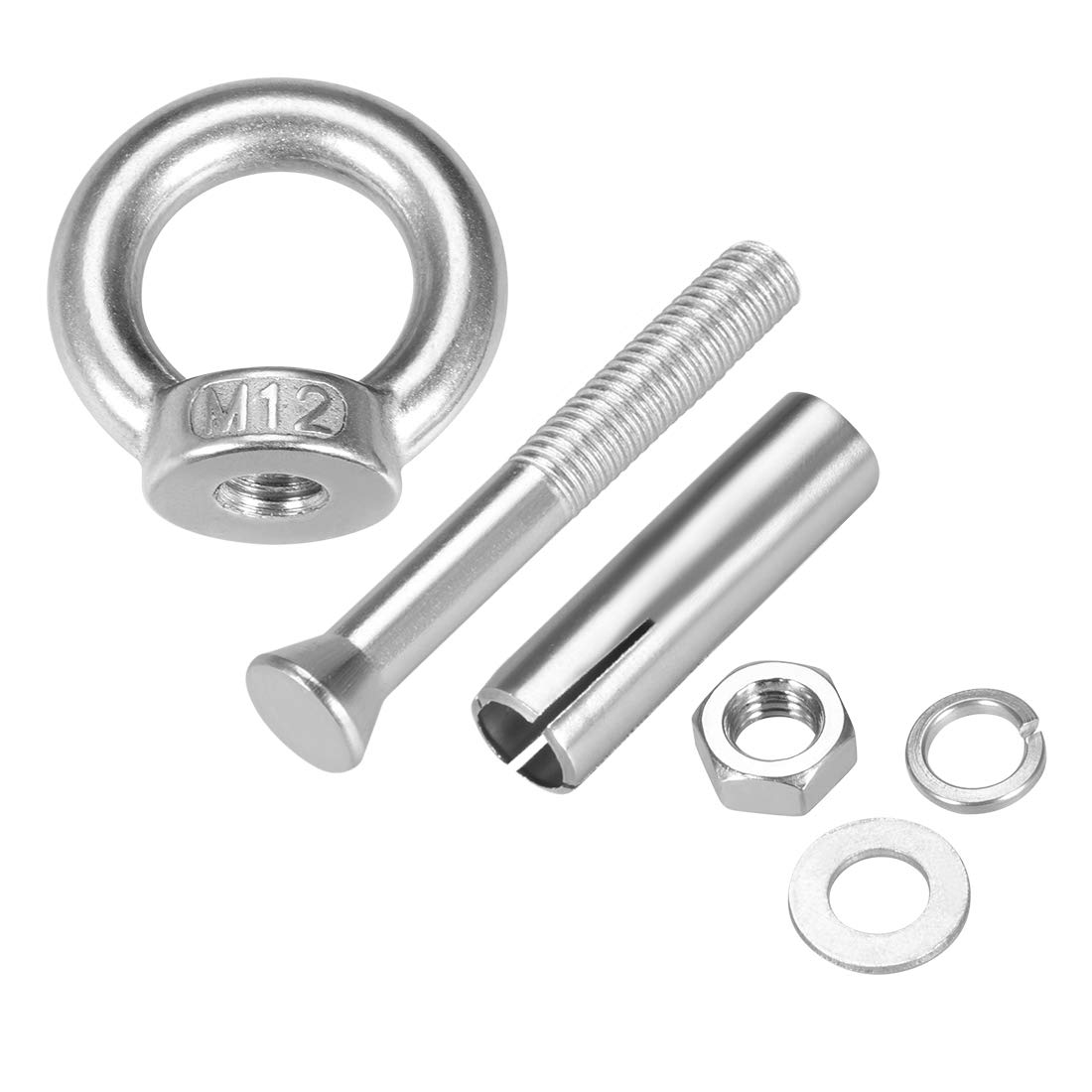

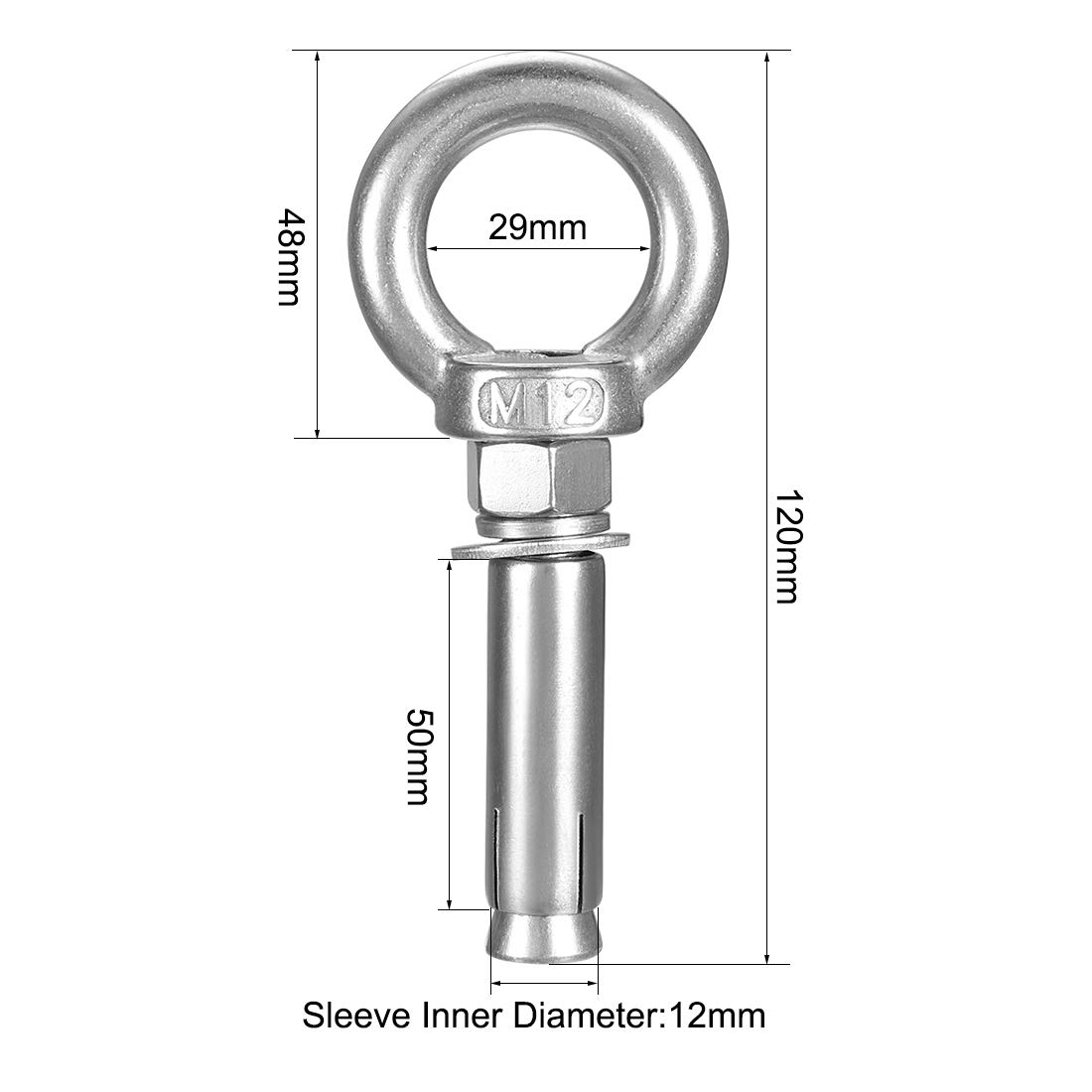

Screw Size: M12 Overall Length: 120mm Eye Nut Height: 48mm Inner diameter of the ring: 29mm Sleeve Inner Diameter: 12mm Sleeve Length: 50mm Suggested Hole Size: 16mm Dia. Total Weight: 196g Materials: 304 Stainless Steel Application: Concrete and masonry Package Content: 1 x pcs M12 x 80 Expansion Eye Bolt
