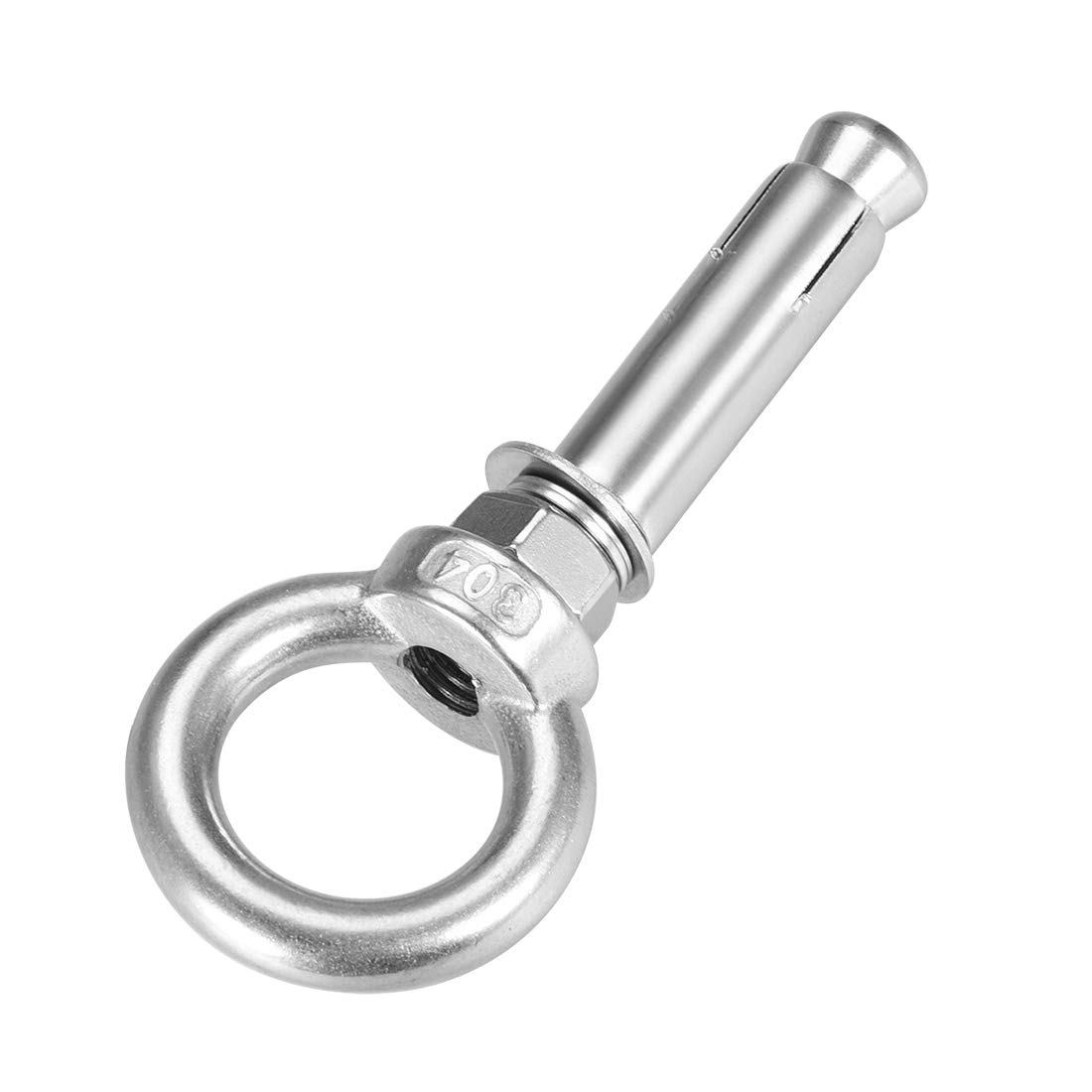

sourcing map M10 x 70 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 2 Pcs

• Main Size. Standard M10 expansion bolts with 100mm length, and the ring Inner Diameter is 25mm.
• Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
• Installation. Suggested a 14mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
• Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It's durable and reliable.
• Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.

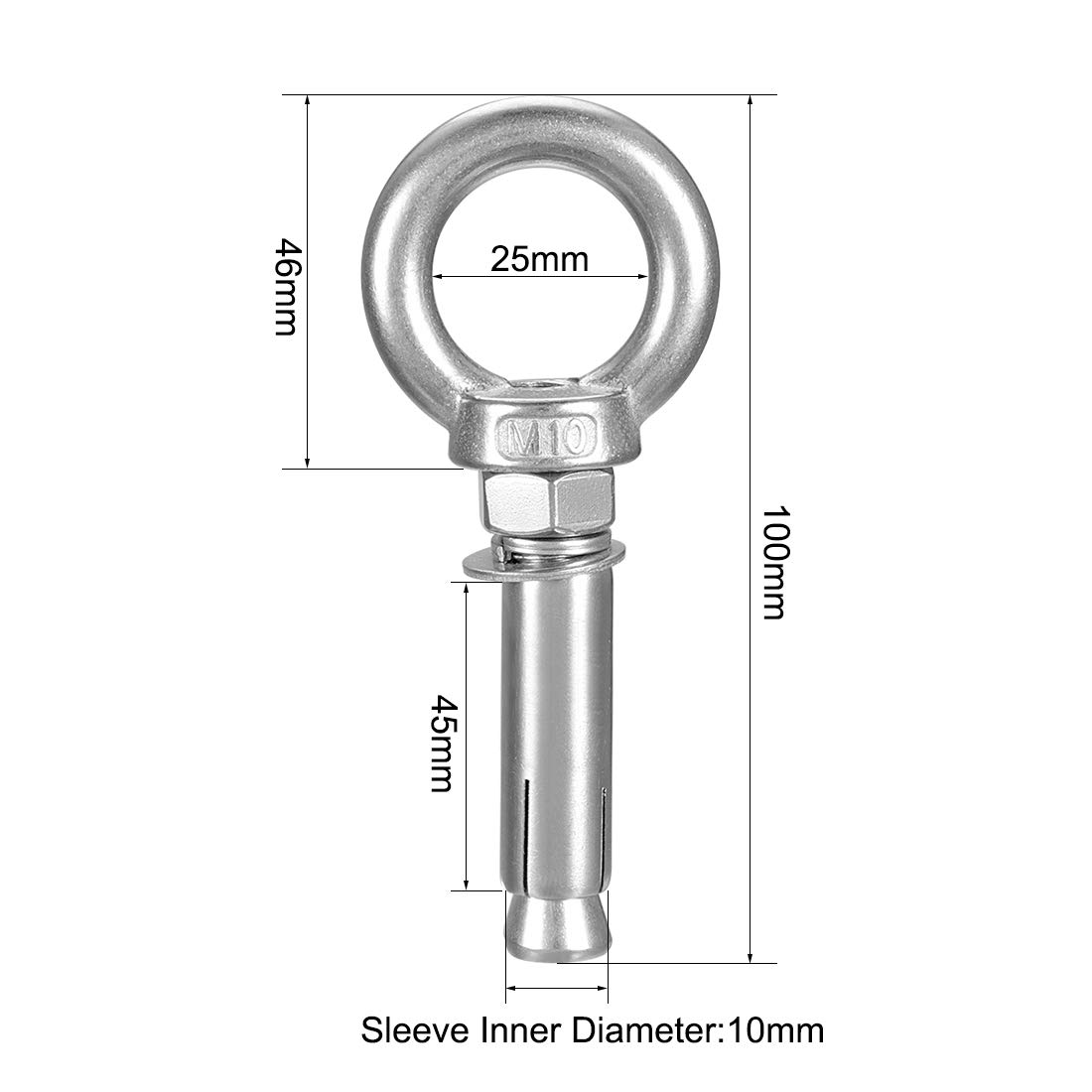

Screw Size: M10Overall Length: 100mmEye Nut Height: 46mmInner diameter of the ring: 25mmSleeve Inner Diameter: 10mmSleeve Length: 45mmSuggested Hole Size: 14mm Dia.Total Weight: 244gMaterials: 304 Stainless SteelApplication: Concrete and masonryPackage Content:2 x pcs M10 x 70 Expansion Eye Bolt
