sourcing map Latching Metal Push Button Switch 22mm Mounting Dia DPDT 2NO 2NC 24V Blue LED Light

• Latching Type: Push it - ON, push it again - OFF; Contact Type: DPDT(2NO 2NC 1COM)
• (Rated) Voltage & Current: 250V 5A; Light Voltage: 24V; Light Color: Blue
• Mounting Hole Dia: 22mm/0.87"; Terminals Quantity: 8; Package Content: 1 x Push Button Switch

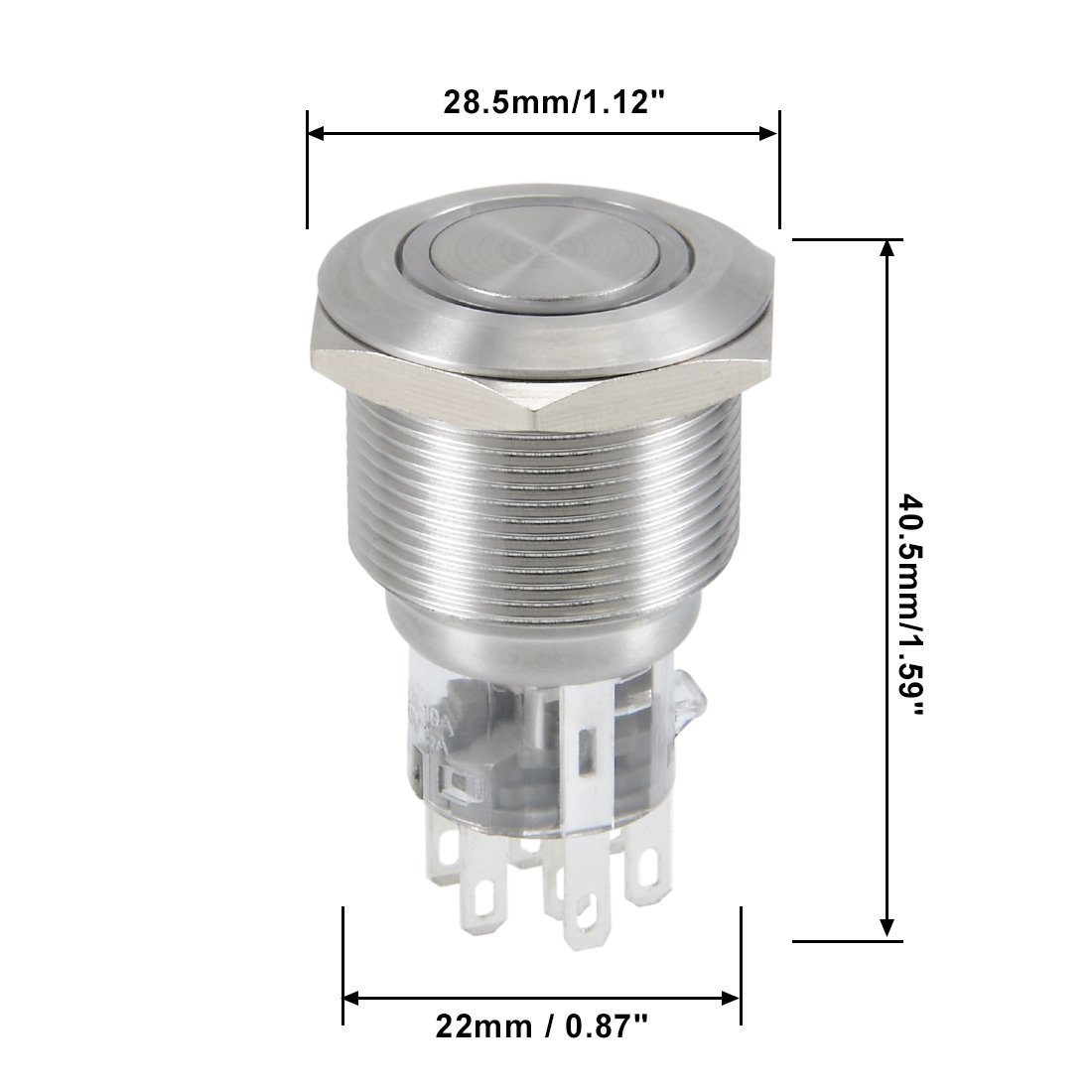

• Head Shape: Hex Flat Head; Total Size: 40.5 x 28.5mm/1.59 x 1.12"(L*Max.W)

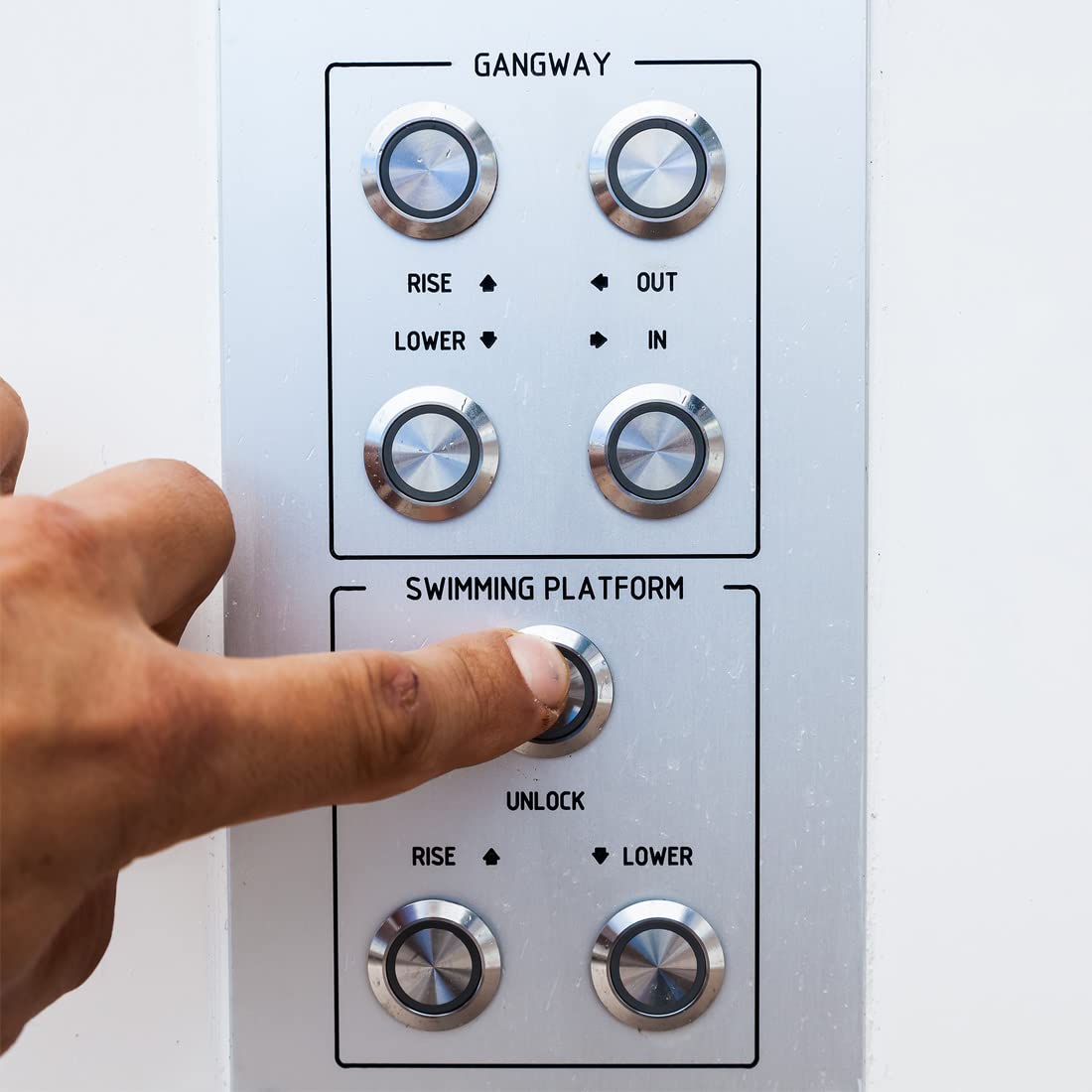

• Used widely for Power Button Switch, Led Switch, DIY projects or any circuit controls. The housing is waterproof and can be used in wet or dusty environments.

Specification: Item Name: Push Button Switch Action Type: Latching Type Head Shape: Hex Flat Head Contact: DPDT(2NO 2NC 1COM) Switch Rating: AC 250V 5A Switch Color: Silver Tone Lamp Voltage: 24V Light Color: Blue Pin Number: 8 Thread Diameter: 22mm/0.87in Total Size: 40.5 x 28.5mm/1.59 x 1.12in(L*Max.W) Material: Copper Nickel Plating Package Content: 1 x Push Button Switch Descriptions: Latching type, DPDT 2NO 2NC 2COM contact, 8 terminals. This metal push button switch is suitable for 22mm diameter mounting hole. Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls.
