sourcing map Iron Hex Socket Pipe Fitting, G1/8 Male Thread Hose Adapter Connector, for Garden Pipe Pneumatic Solenoid Valve, 20Pcs

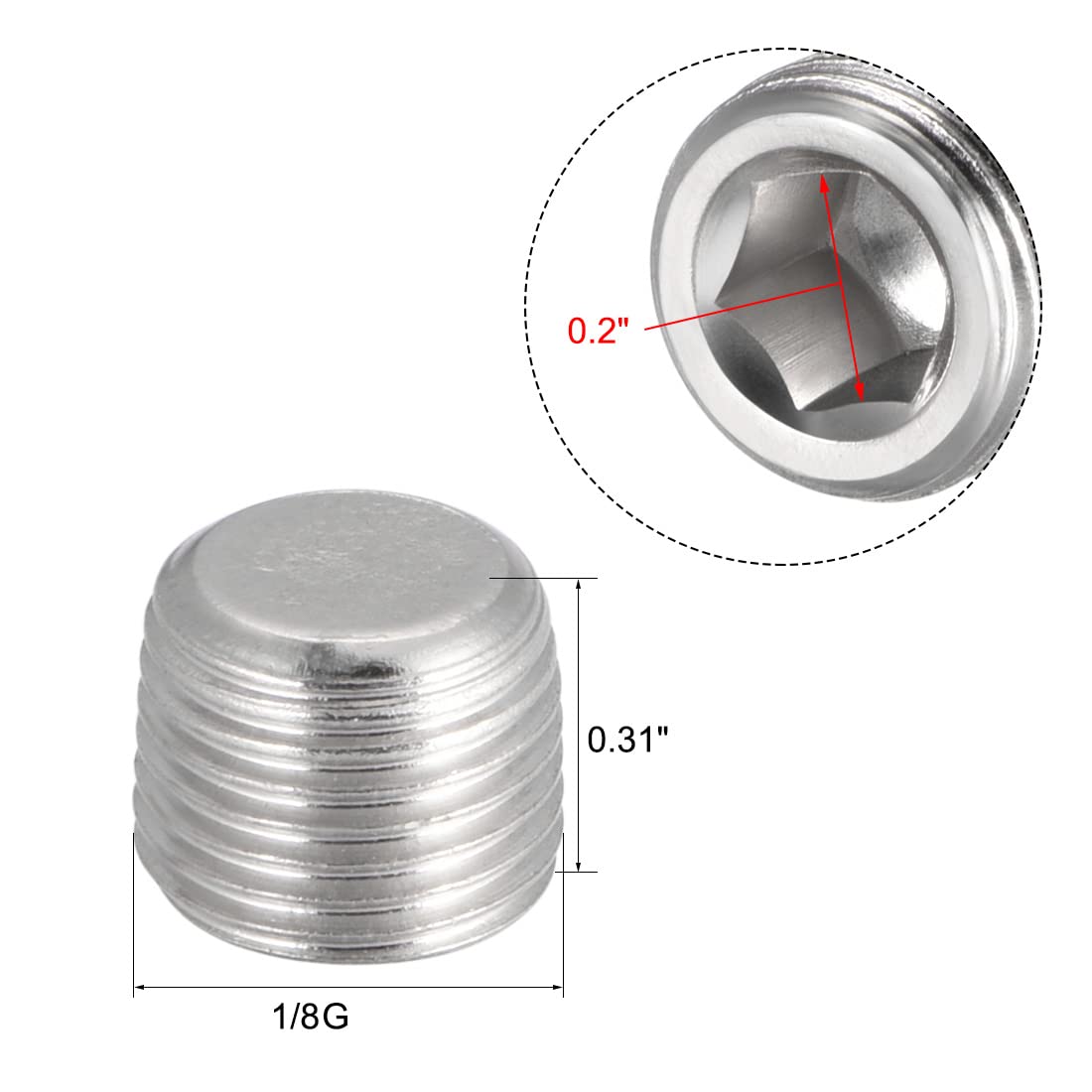

• Thread Size: G1/8(Approx OD 9.7mm); Thread Length: 7mm/0.28"; Internal Hex Width: 5mm/0.2".
• Material: Iron for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
• Installation: Wind approx 5-8 turns clockwise of sealing tape on the male thread, insert the pipe and tighten with a hex wrench.
• Applications: This is mainly used for sealing joints and pipes. Widely used in outdoor gardens, washing machines, air conditioners, water heaters, storage rooms, etc.
• Note: We suggest wearing gloves to prevent burrs or screws from hurting your fingers. Shut down the fluid source of the pipe or joint and fully release the pressure before installing the product to prevent liquid or gas jet.

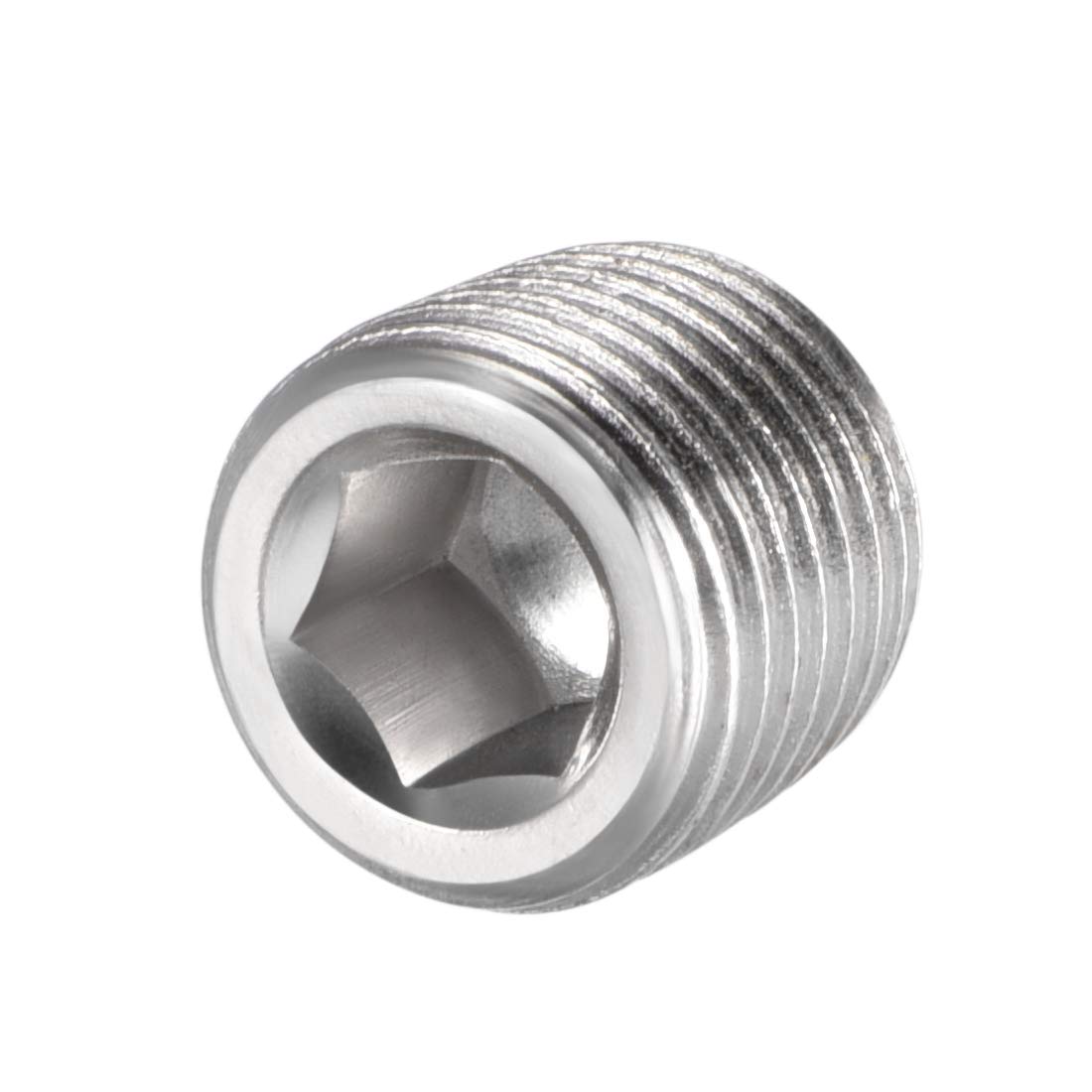

Specification:Product Name: Hex Counter Sunk PlugMaterial: IronColor: Silver ToneWeight: 62gSurface Treat : GalvanizedThread Size: 1/8" GThread Length : 0.31 -inch =8mmInternal Hex Width : 0.2-inch =5mmTotal Size: 9.5 x 8mm / 0.37-inch x 0.31-inch (Max.D*H)Operating temperature：-20 - 100 Degree Celsius Package Content :20pcs x Hex Counter Sunk Plug Description:1.This hex drive countersunk plug is a iron pipe fitting with 1/8" male G threads.2.The countersunk plug with a hex drive inserts into a pipe or fitting to close and terminate its end and has a recessed hex head for increased bearing load.3.It has male National Pipe Taper (G) threads for connecting to female threaded pipes, creating a tighter seal than straight threads.4.This fitting is made of iron for corrosion resistance, ductility at high temperatures, and low magnetic permeability. iron can be connected to copper, brass, plastic, aluminum, and welded steel.5.The hex drive countersunk plug has fair vibration resistance and is suitable in low to medium pressure applications.6.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
