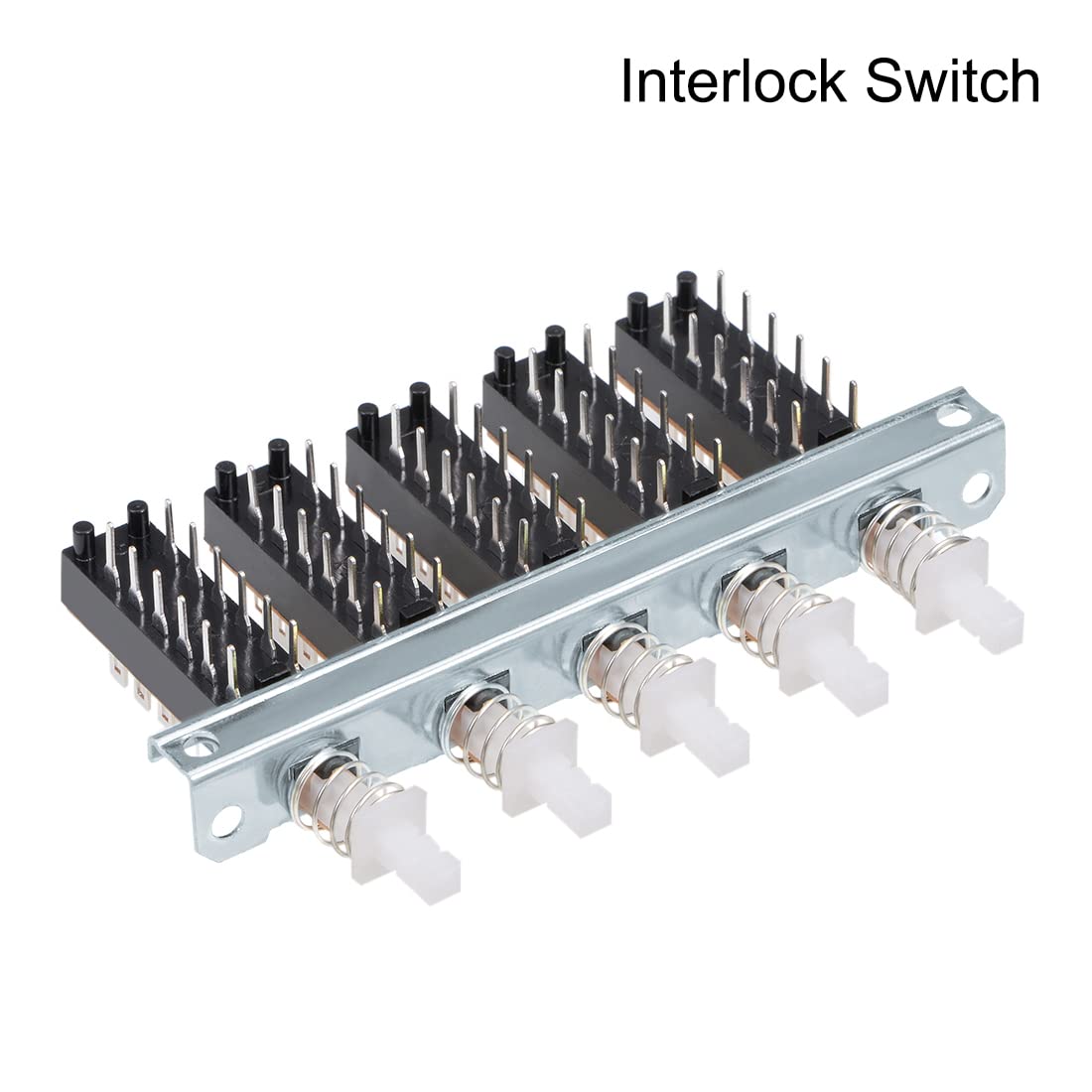

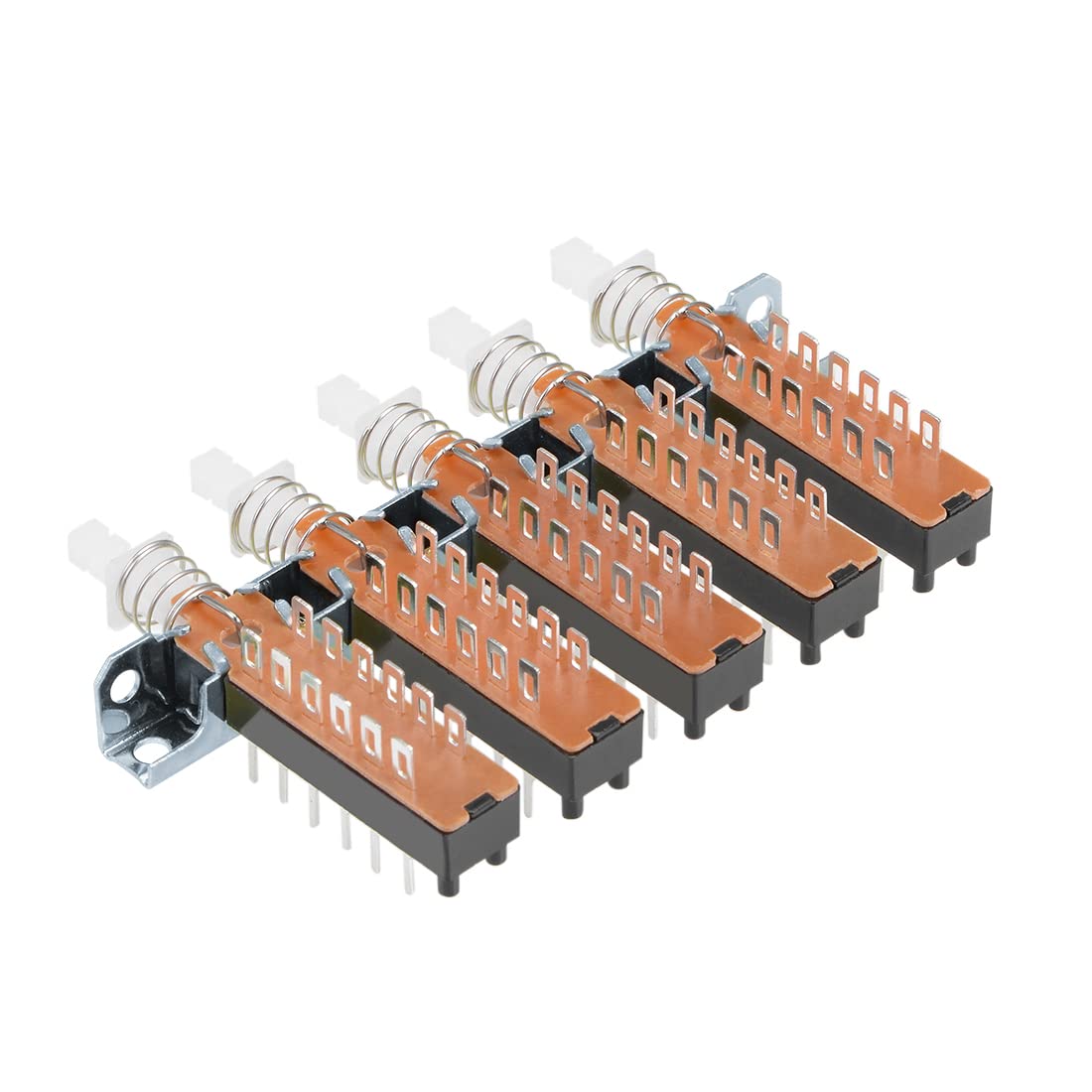

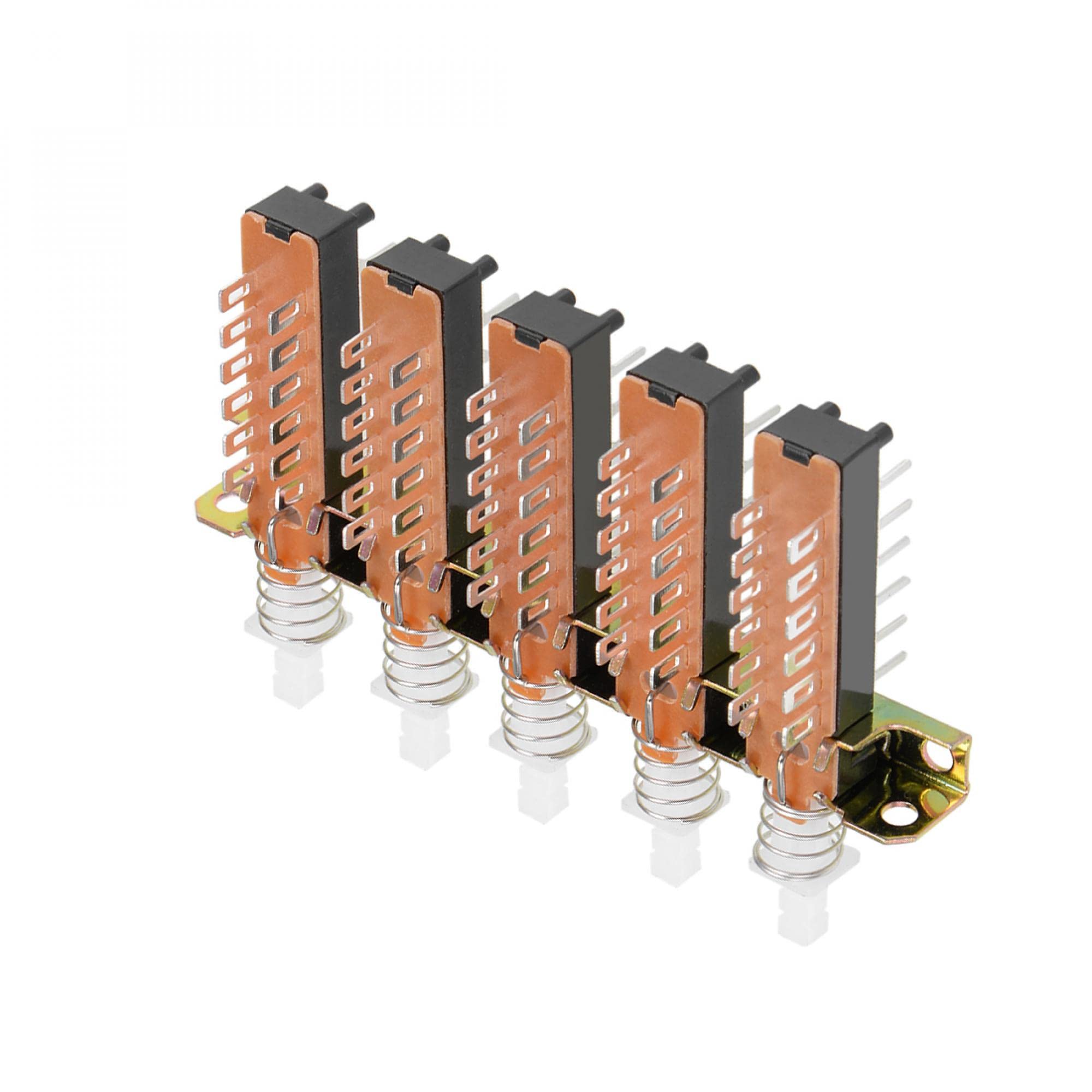

sourcing map Interlock Push Button Switch Piano Type 4PDT 12 Pin 5 Row

• [Standard] - 4PDT 12Pins 4mm Pitch 5 Position
• [Interlock Switch] - The switch operates one at a time (when one actuator is pressed and the other is released)
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 1 x Push Button Switch

Specifications: Material: Plastic, Metal Switch Operation: Interlock Contact Configuration: 4PDT Terminal Type: Straight Through Hole Pin Quantity: 12 Each Pin Pitch: 4mm Position Quantity: 5 End Width: 9mm / 0.35-inch Mounting Pillar Distance: 5mm / 0.20-inch Mounting Hole Distance: 79.5mm / 3.13-inch Each Cap Part Distance: 15mm / 0.59-inch Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W) Overall Size: 55 x 87 x 18mm / 2.17-inch x 3.43-inch x 0.71-inch(L*W*H) Package Contents: 1 x Push Button Switch Description: Interlock contact, 12 pins, DIP through hole mounting. Used in the fields of electronic products, household appliances and more. High precision mechanism design offers acute operation and long service life.
