sourcing map Home Gate Door Window Part Male to Female Steel Hinge Pin 32mmx8mm 4 Sets

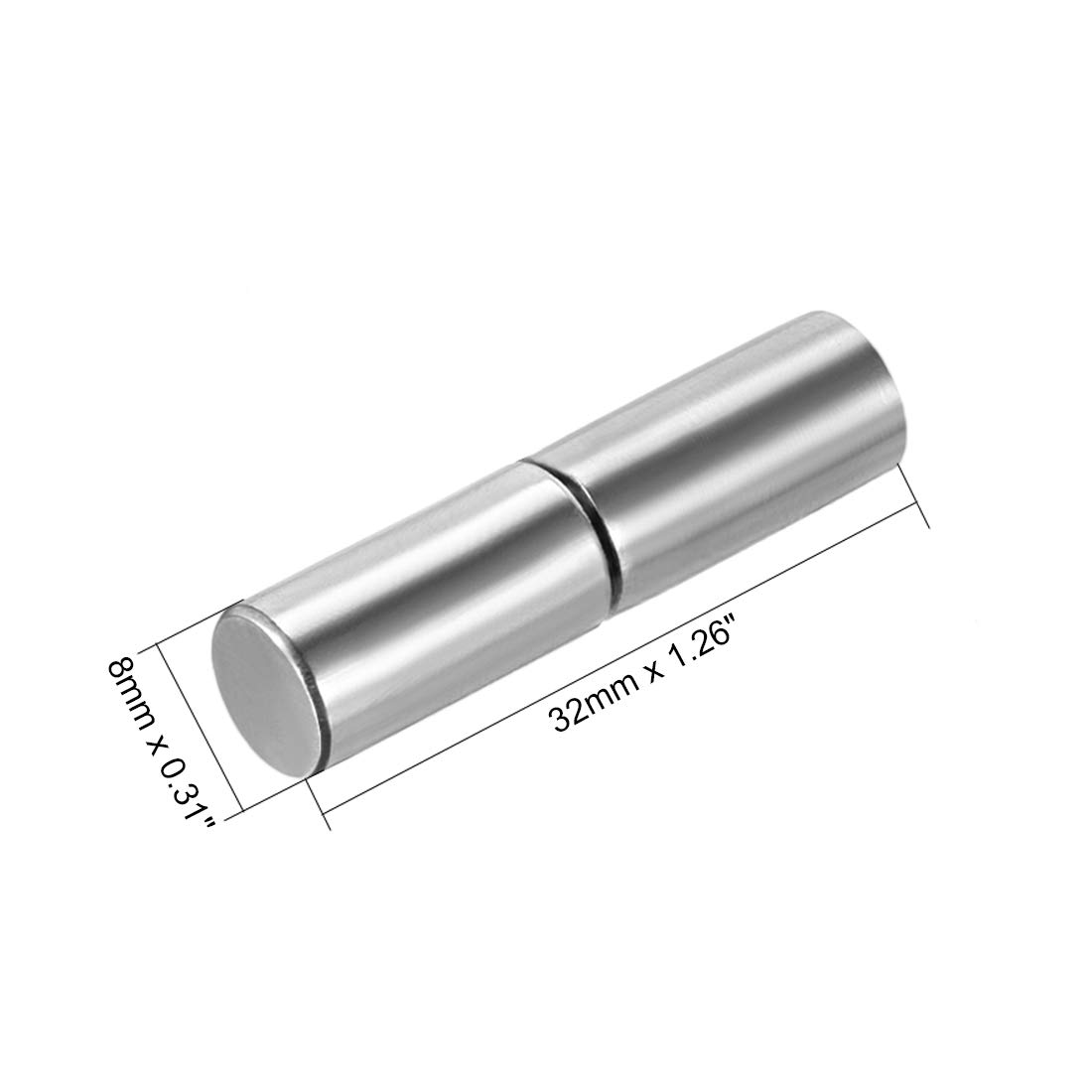

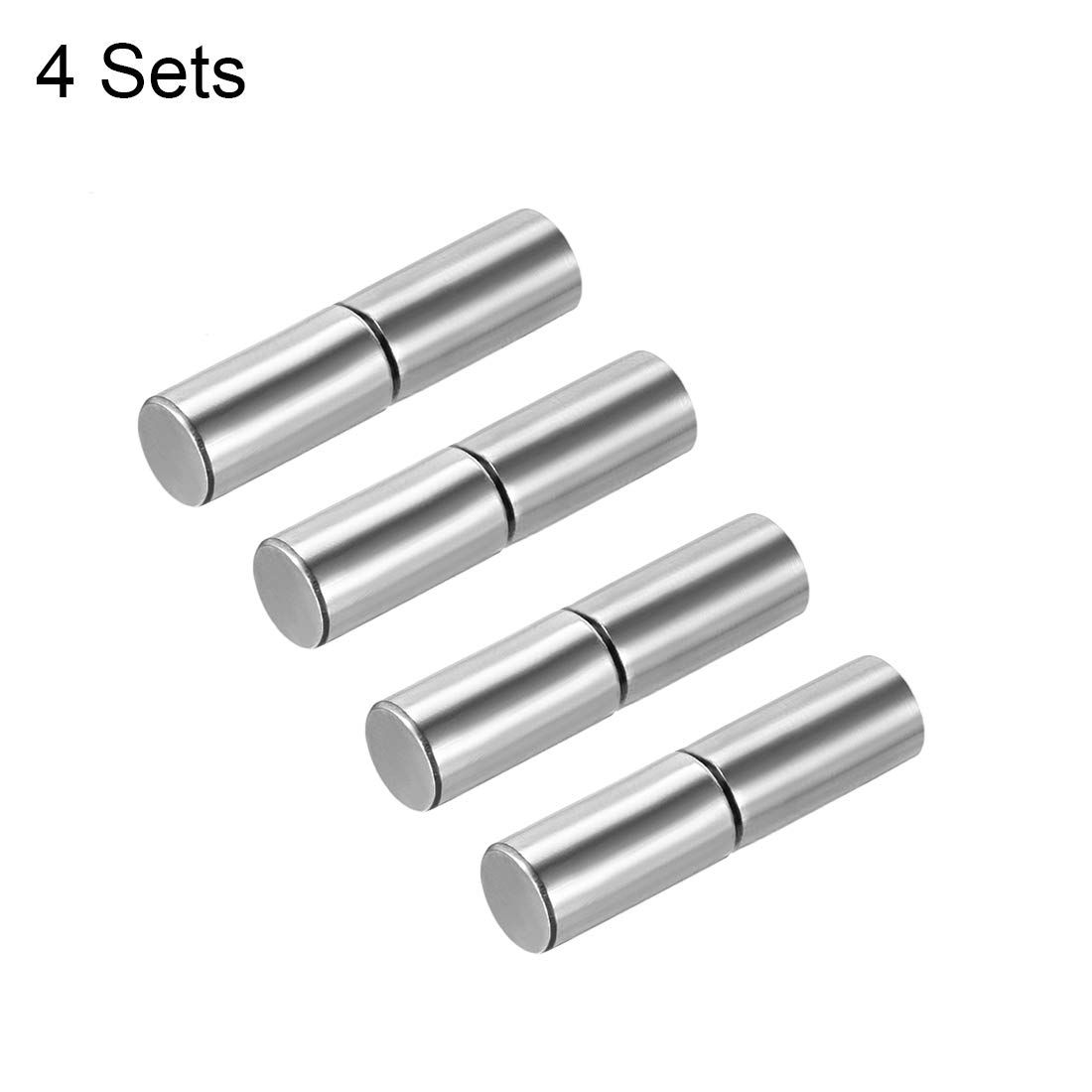

• Quantity: 4 Hinges. Material: Stainless Steel. Length: 32 MM (1.26 inch) Diameter: 8 MM (0.31 Inch)
• Easy installment, durable,
• Weld-On application.
• Used for sliding door and so on.
• Perfect for door hinges, ramp gates or anywhere you need a hinge.

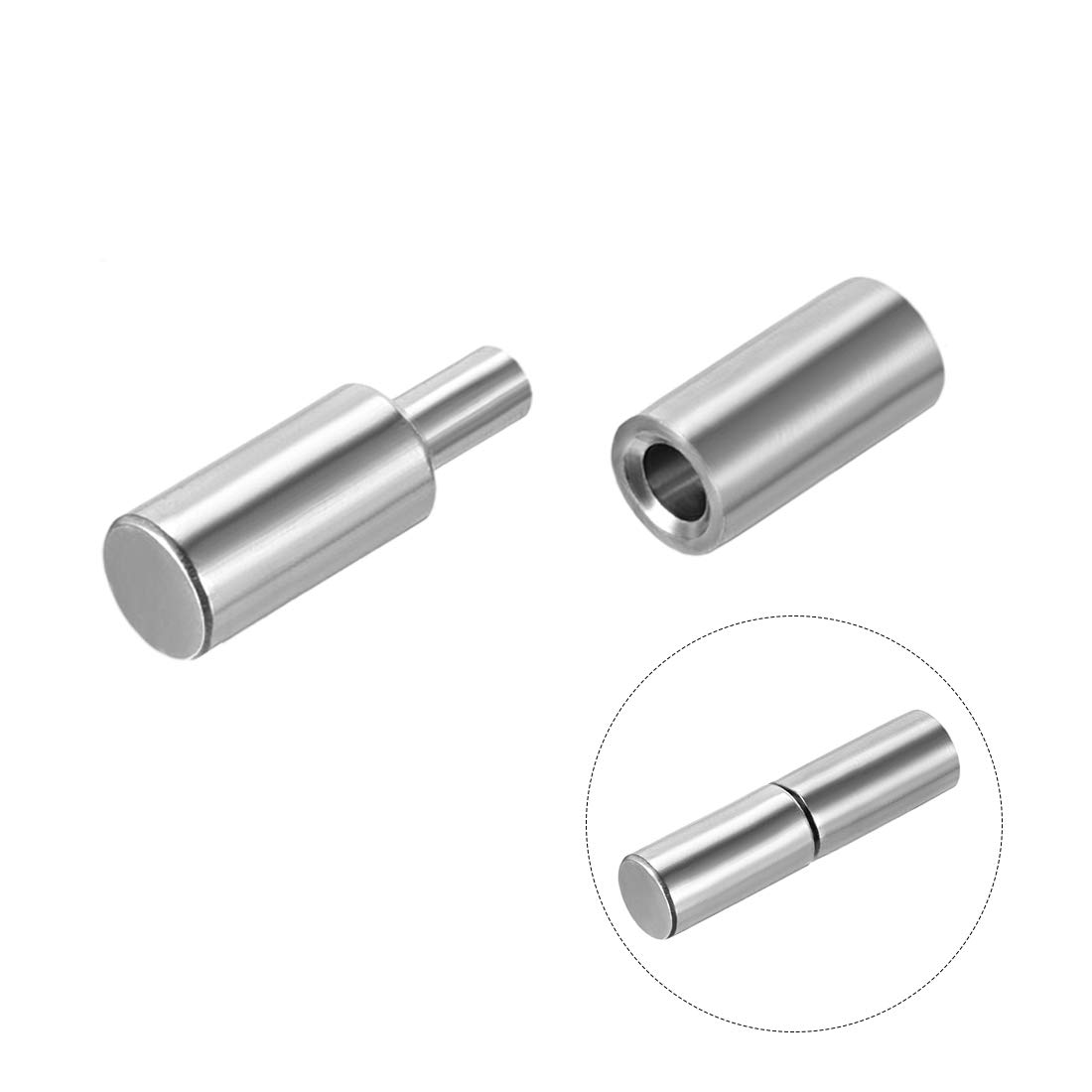

Description: Feature with steel material, cylinder shaped,male to female, and it is a good replacement for your door. Hinge pins are welded to either the outer frame or the gate/door and then inserted into the welded hinge pin nipples to create custom, heavy-duty hinges. Greasable pins feature a grease zerk for lubrication. Specification: Product Name: Weld-on Hinge Material: Stainless Steel Main Color: Silver Tone Female Pin Size: 16 x 8 x 4.3 mm / 0.63 x 0.31 x 0.17 inch(L*OD*Inner.D) Male Pin Size: 24 x 8 x 4.2 mm / 0.94 x 0.31 x 0.17 inch(L*Max.D*Tip Dia) Total Dimension: 32 x 8 mm / 1.26 x 0.31 inch(L*D) Package Content: 4 Sets x Weld-on Hinge
