sourcing map FR168ZZ Flange Ball Bearing 1/4"x3/8"x1/8" Double Shielded Chrome Steel Bearings 2-Pack

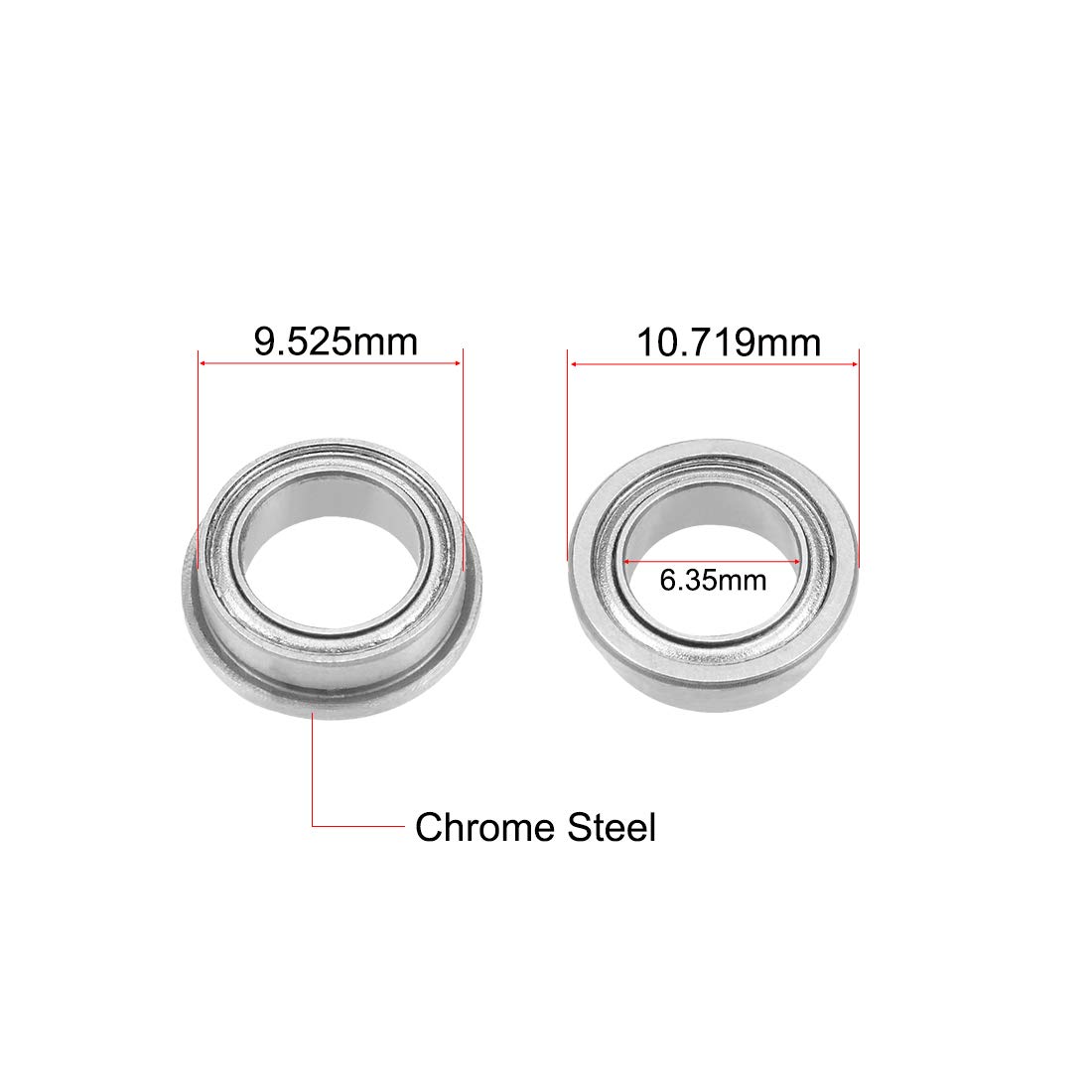

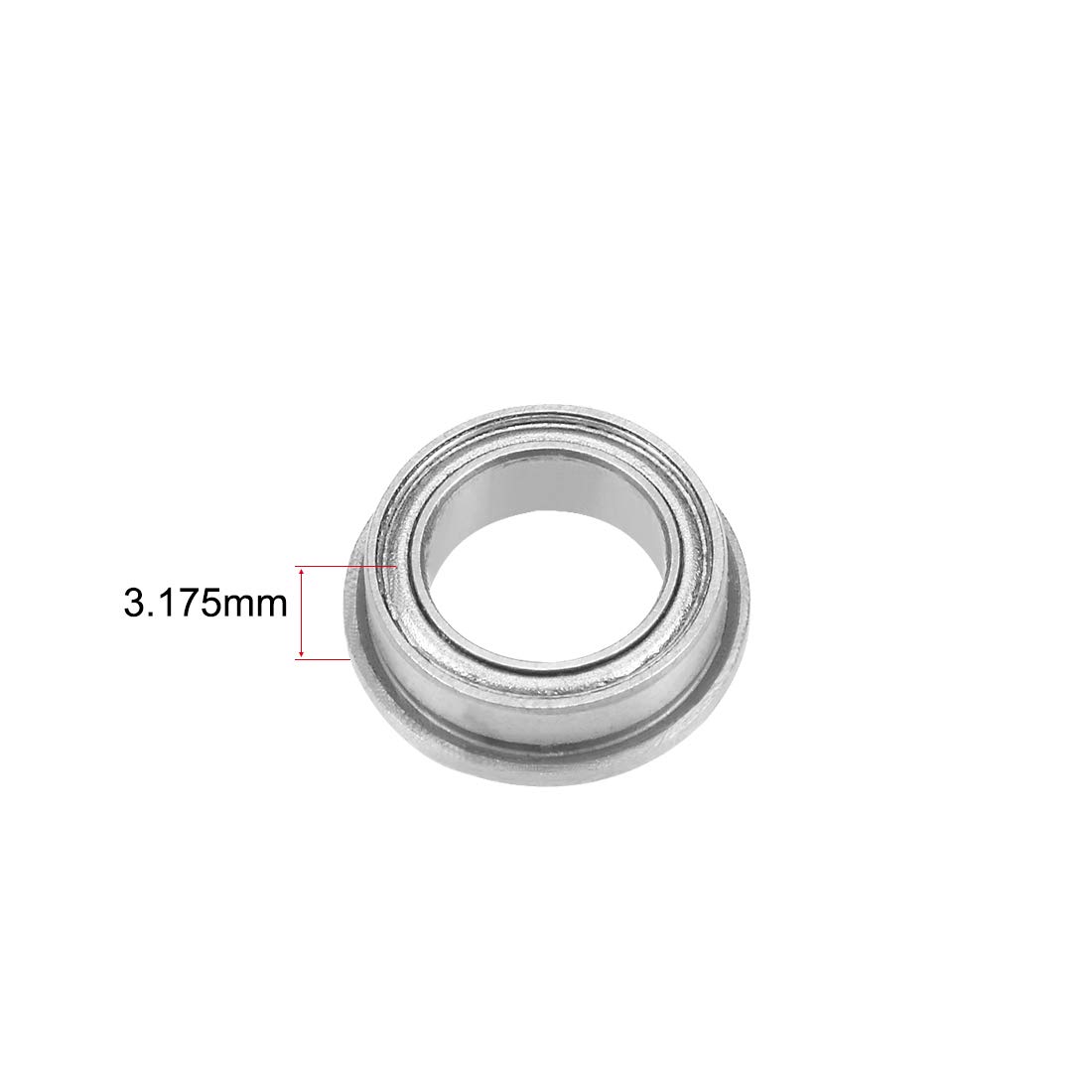

• FR168ZZ (I.D.=1/4", O.D.=3/8", Thickness=1/8", Flange Dia.: 27/64")
• fr168zz bearings are shielded on BOTH SIDES to keep lubricant in
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
• Static load rating of 31 newtons and dynamic load rating of 71 newtons

NOTE： Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Description: Single-row, pre-lubricated, normal accuracy. Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on. Selection Guide: Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris. Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings. Specification: Model: FR168ZZ Shield Type: Double Shielded Inner Race/Outer Race Meterial: Chrome Steel (GCr15) Cage Material: Stamping Steel Inner Diameter (d): 1/4" / 6.35mm Outer Diameter (D): 3/8" / 9.525mm Thickness (B): 1/8" / 3.175mm Flange Dia.: 27/64" / 10.719mm Flange Thickness: 0.036" / 0.914mm Dynamic Load Rating (Cr): 0.071kN Static Load Rating (Cor): 0.031kN Accuracy Class: P0 (ABEC-1) Noise Level: Z1 Number of Pack: 2 Pcs
