sourcing map Folding Bracket 14 inch 350mm for Shelves Table Desk Wall Mounted Support Collapsible Long Release Arm Space Saving Carbon Steel 2pcs

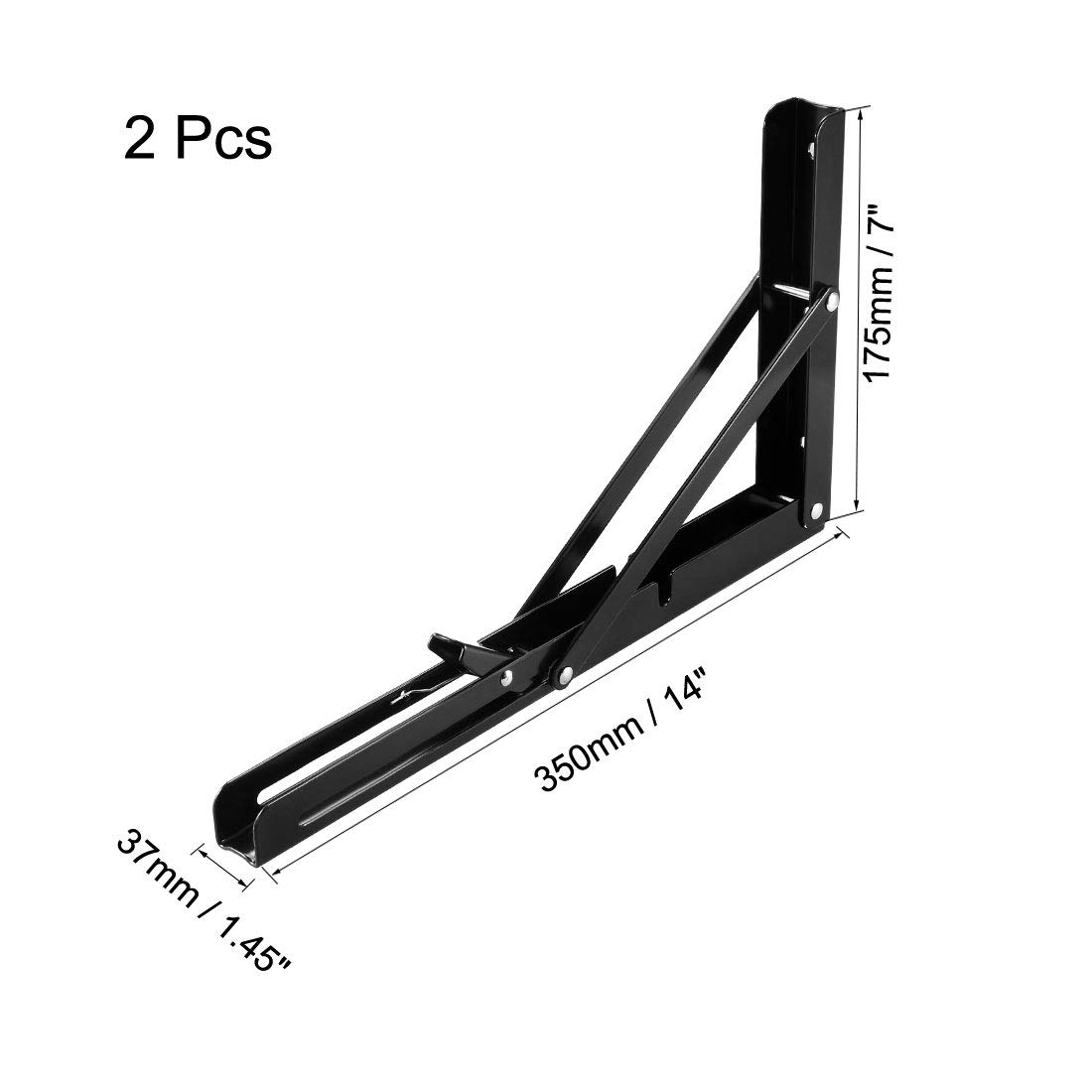

• Fold Size: 350x37x40mm / 14"x1.45"x1.6"; Open Size: 350x37x175mm / 14"x1.45"x7" (L*W*H)
• Hole Diameter: 5mm / 6.5mm; Max. Load: ~60kg/132lbs per Pair; Surface Treatment: Baking Finish
• [Sturdy Triangle Design]: Parallel bar struts, connected by thick rivets, tight and not loose, more durable.
• [Space Saving]: The hinges lock at 90 degrees. Simply press the release arm when you want to collapse the table. Suitable for limited spaces and keep your room organized.
• [Wide Application]: Suitable for Garage, Store, Workshop, Motorhome, Trailer, Kitchen, Bathroom, Boat, Washroom, Balcony, Office, Veranda and other limited room.

Folding Bracket can provide space saving solutions such as caravan, boat, motorhome, RV, apartment and small kitchens. It also provides a great solution for a lack of work surface in garage and workshop, you can create wall mounted folding workbench or fold down work table that can be folded away easily after using by its quick release. Specifications: Color: Black Material: Carbon Steel Surface Treatment: Baking Finish Max. Load: Approx. 60kg / 132 lbs per Pair Hole Diameter: 5mm / 6.5mm Fold Size: 350x37x40mm / 14x1.45x1.6 inch (L*W*H) Open Size: 350x37x175mm / 14x1.45x7 inch (L*W*H) Package Content: 2 x Collapsible Bracket NOTE: It is recommended to install in Pairs. If the load is greater than 60kg or the bearing plate is deformed and bent, better to add a fixed bracket in the middle to improve the stability of the installation. Installation Method: 1. Measure the position size on the board 2. The shelf protrudes 1mm from the board when aligned 3. Mark the position size 4. Fix the triangle bracket on the board 5. Mark the corresponding position on the wall 6. Drilling hole 7. Plugged with nylon expansion tube 8. Fix the triangle bracket with screws
