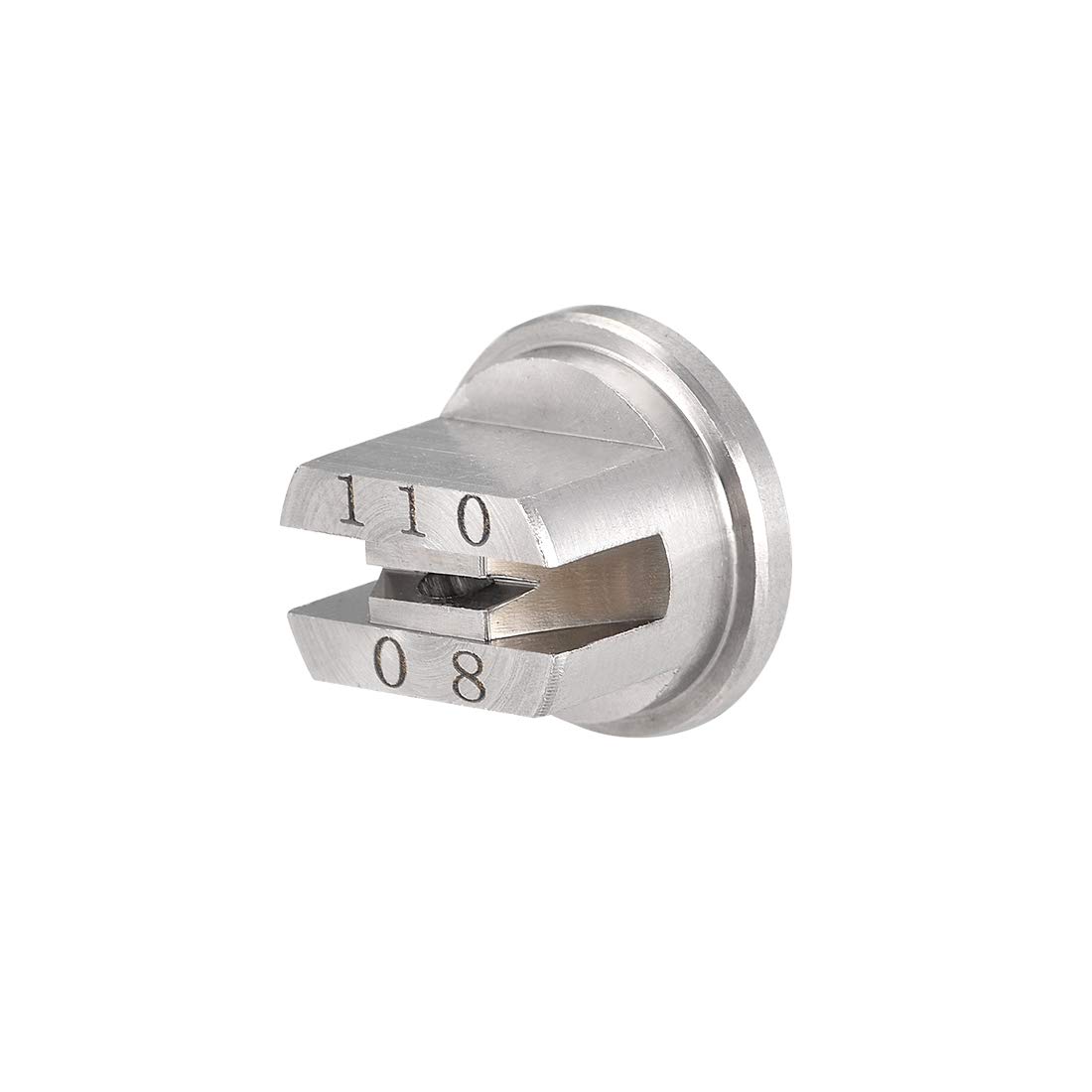

sourcing map Flat Fan Spray Tip, 110 Degree Stainless Steel Nozzle (1.8mm Orifice Diameter)

• [TECHNICAL PARAMETERS] - 0.28" (7mm) interface inner diameter , orifice diameter is 1.8mm, spray angle is 110 degree.

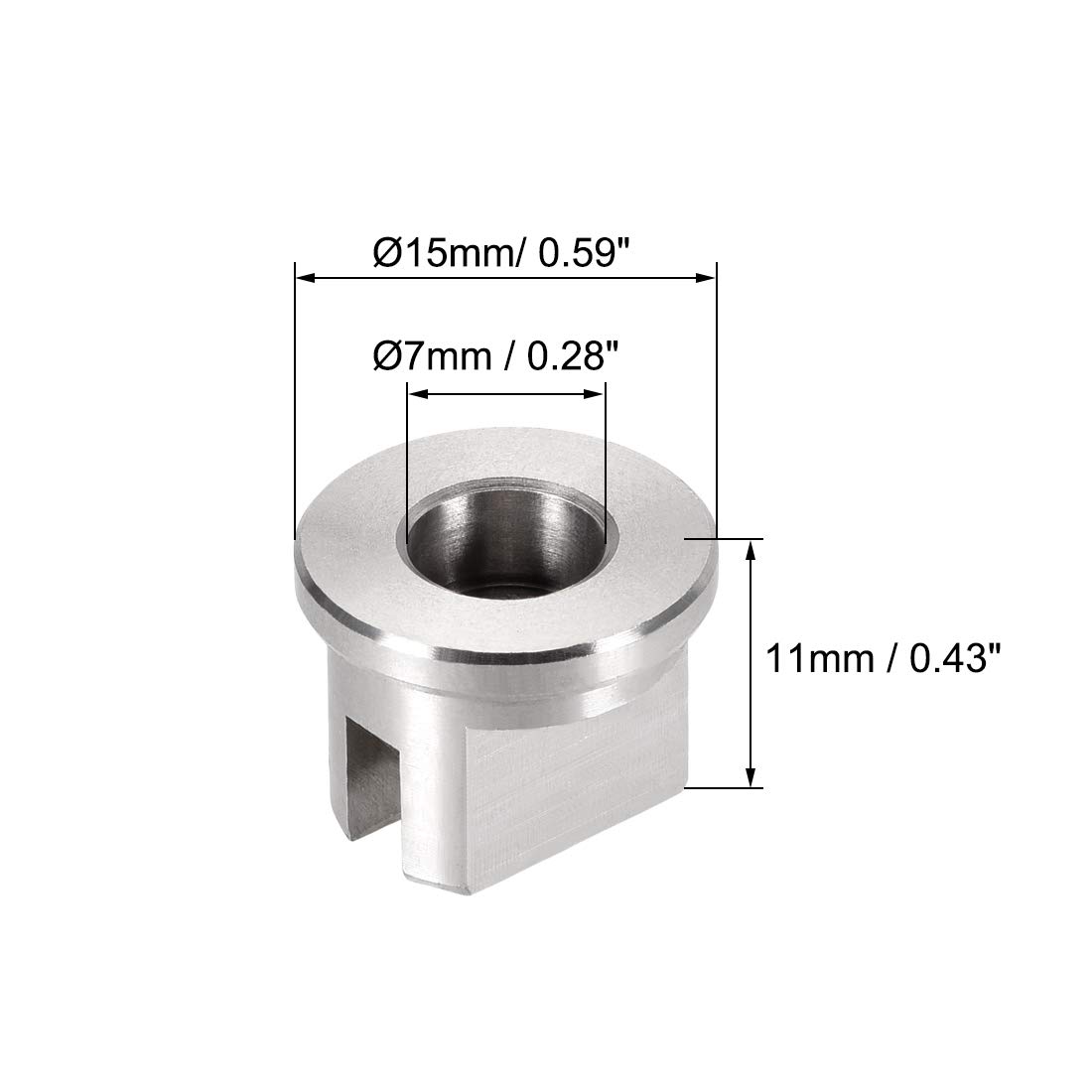

• [TOTAL SIZE] - 0.59" (15mm) max diameter, 0.43" (11mm) high.
• [MATERIAL] - Made of stainless steel, rust resistance and durable to use.
• [Features] - Flat fan spray pattern with even spray distribution and medium droplet size.
• [WIDELY USED] - Suitable for cleaning, cooling, dust removal, spraying, , etc.

- Made of stainless steel, strong and corrosion resistant. - These nozzles produce an even flat fan spray pattern and feature 110 degree spray angles. - The pre-orifice design of the Nozzles provide larger droplets that result in less drift, while providing a more precise flow and distribution pattern. - The Flat Fan Spray Tip is commonly found in agricultural and landscaping applications, but they can also be used for industrial and washing applications. Specification: Material: Stainless Steel Interface Inner Diameter: 7mm / 0.28" Spray angle: 110 Degree Orifice Diameter: 1.8mm / 0.07" Total Size: 15mm x 11mm / 0.59" x 0.43" (D*H) Package Content: 1 x Nozzle
