sourcing map Flat Fan Spray Tip - 1/4BSPT Male Thread 304 Stainless Steel Nozzle - 65 Degree 2mm Orifice Diameter

• [TECHNICAL PARAMETERS] - 1/4BSPT male thread fitting, orifice diameter is 2mm, spray angle is 65 degree.

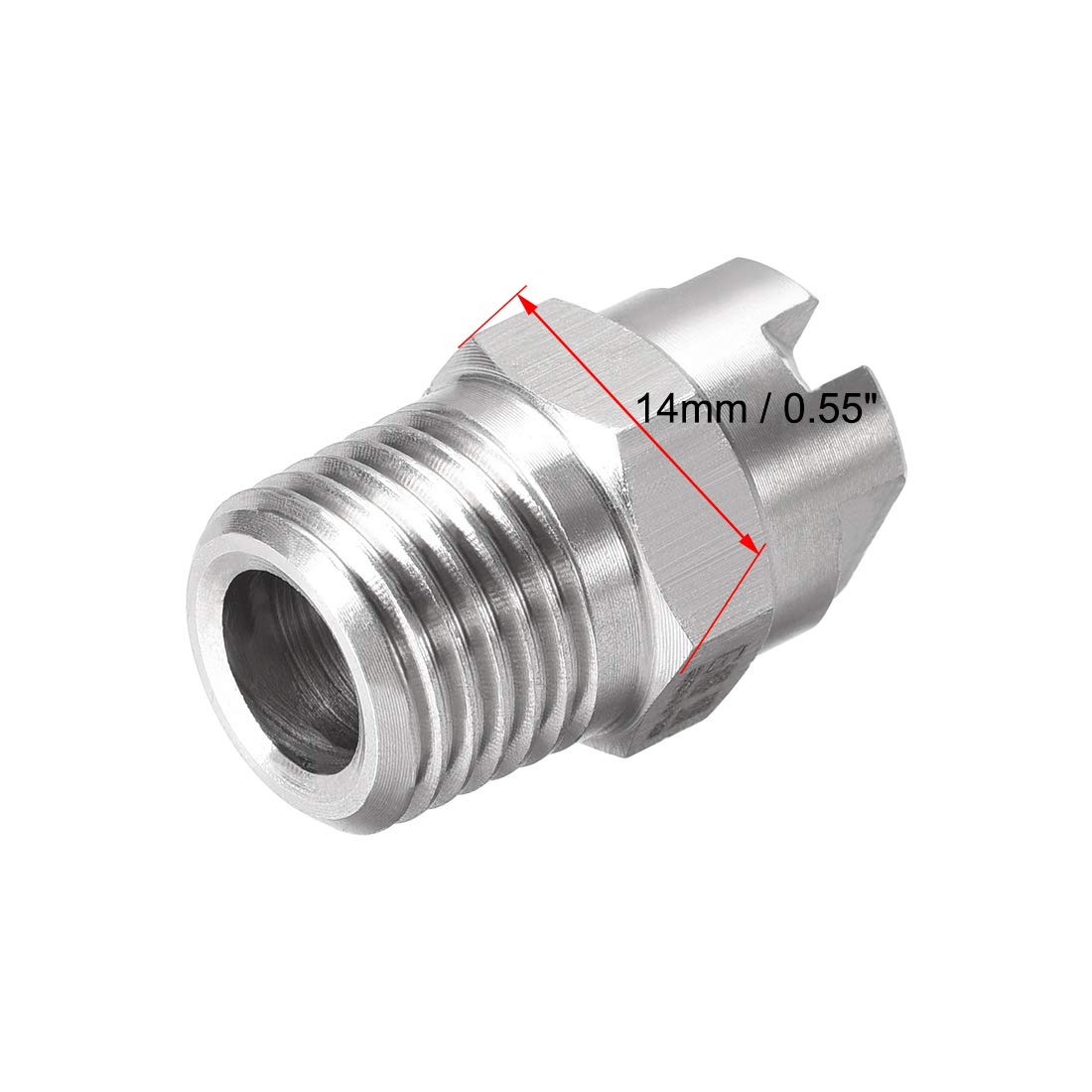

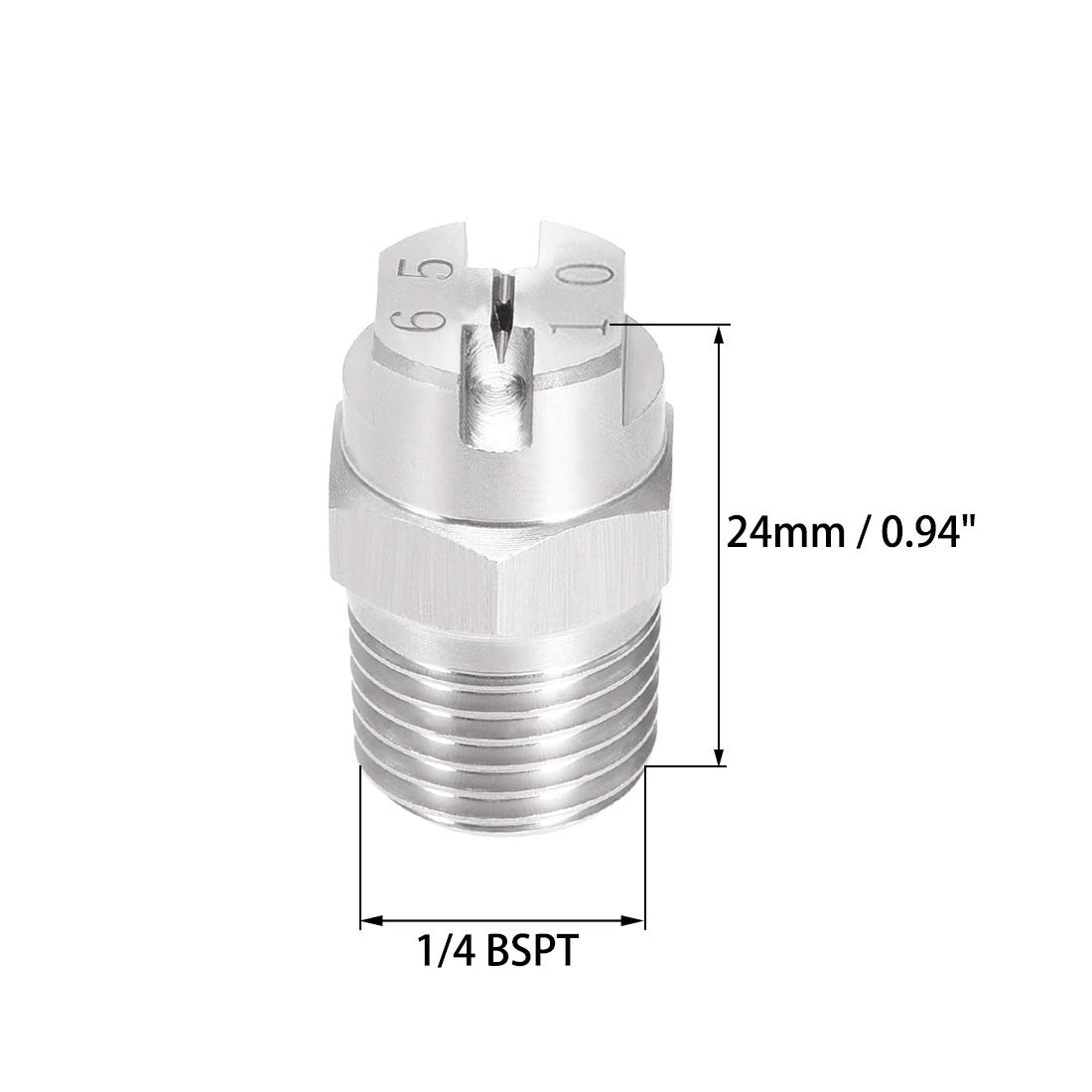

• [TOTAL SIZE] - 0.55" (14mm) hex width, 0.94" (24mm) long.
• [MATERIAL] - Made of 304 stainless steel, it is rust-resistant, corrosion-resistant and wear-resistant, with high hardness and long service life.
• [FEATURE] - Flat fan spray pattern with even spray distribution and medium droplet size.
• [WIDE APPLICATION] - Suitable for cleaning, watering, lubrication, cooling, humidification, etc. Widely used in electronics, chemical, steel, machinery, painting, paper, washing and other industries.

Made of stainless steel 304, strong and corrosion resistant. 1/4 BSPT male thread, you can screw this spray tip directly onto a pipe. These nozzles produce an even flat fan spray pattern and feature 65 degree spray angles. The pre-orifice design of the Nozzles provide larger droplets that result in less drift, while providing a more precise flow and distribution pattern. Fan nozzle under the action of high pressure, the ejected liquid has great impact. In the role of this impact, dirt can be thoroughly cleaned. The Flat Fan Spray Tip is commonly found in agricultural and landscaping applications, but they can also be used for industrial and washing applications. Specification: Material: 304 Stainless Steel Thread Size: 1/4 BSPT Spray angle: 65 Degree Orifice Diameter: 2mm / 0.08" Total Size: 14mm x 24mm / 0.55" x 0.94" (Hex.Width*L) Package Content: 1 x Nozzle
