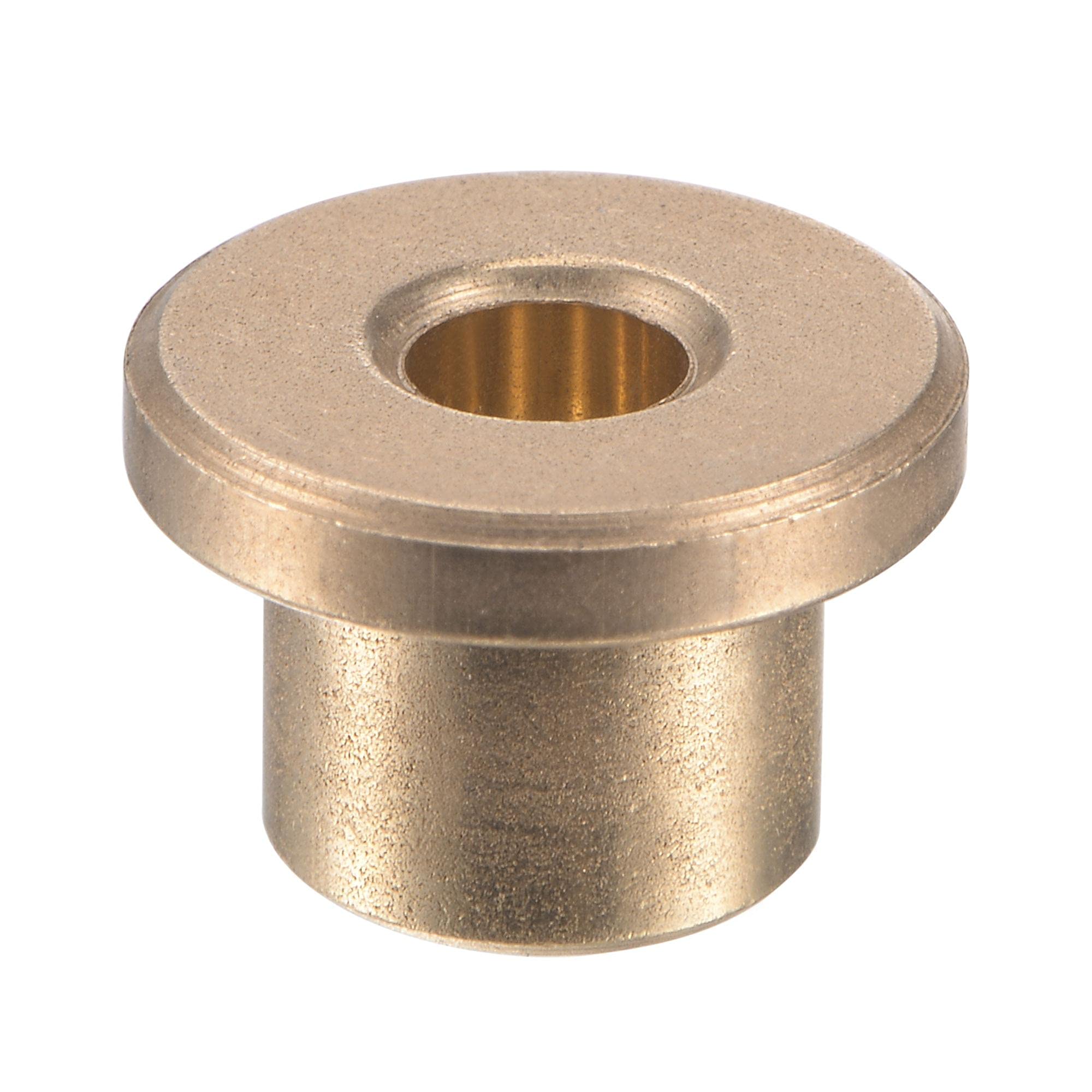

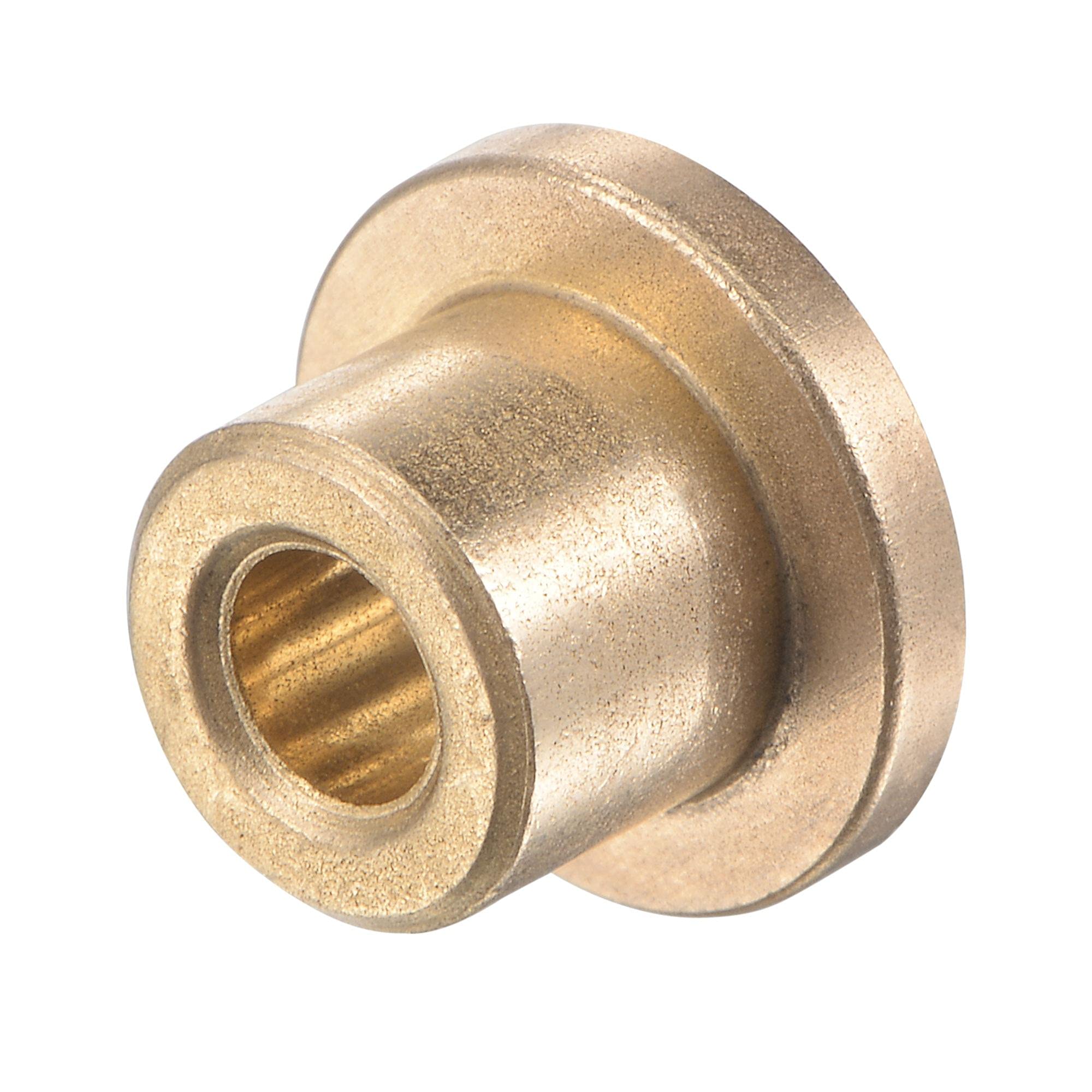

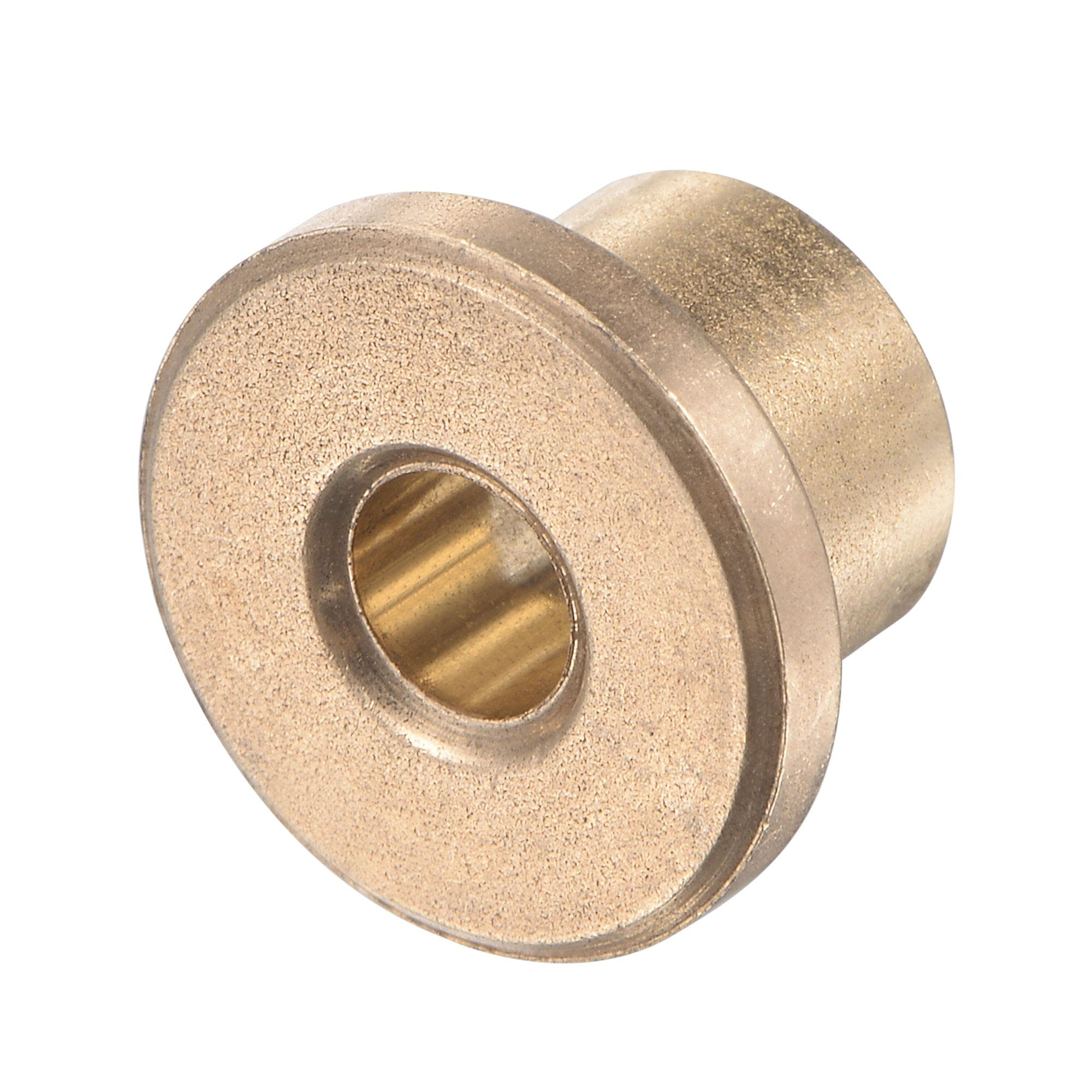

sourcing map Flange Sleeve Bearings 4mm Bore 8mm OD 8mm Length 12mm Flange Dia 2mm Flange Thickness Sintered Bronze Self-Lubricating Bushing 4pcs

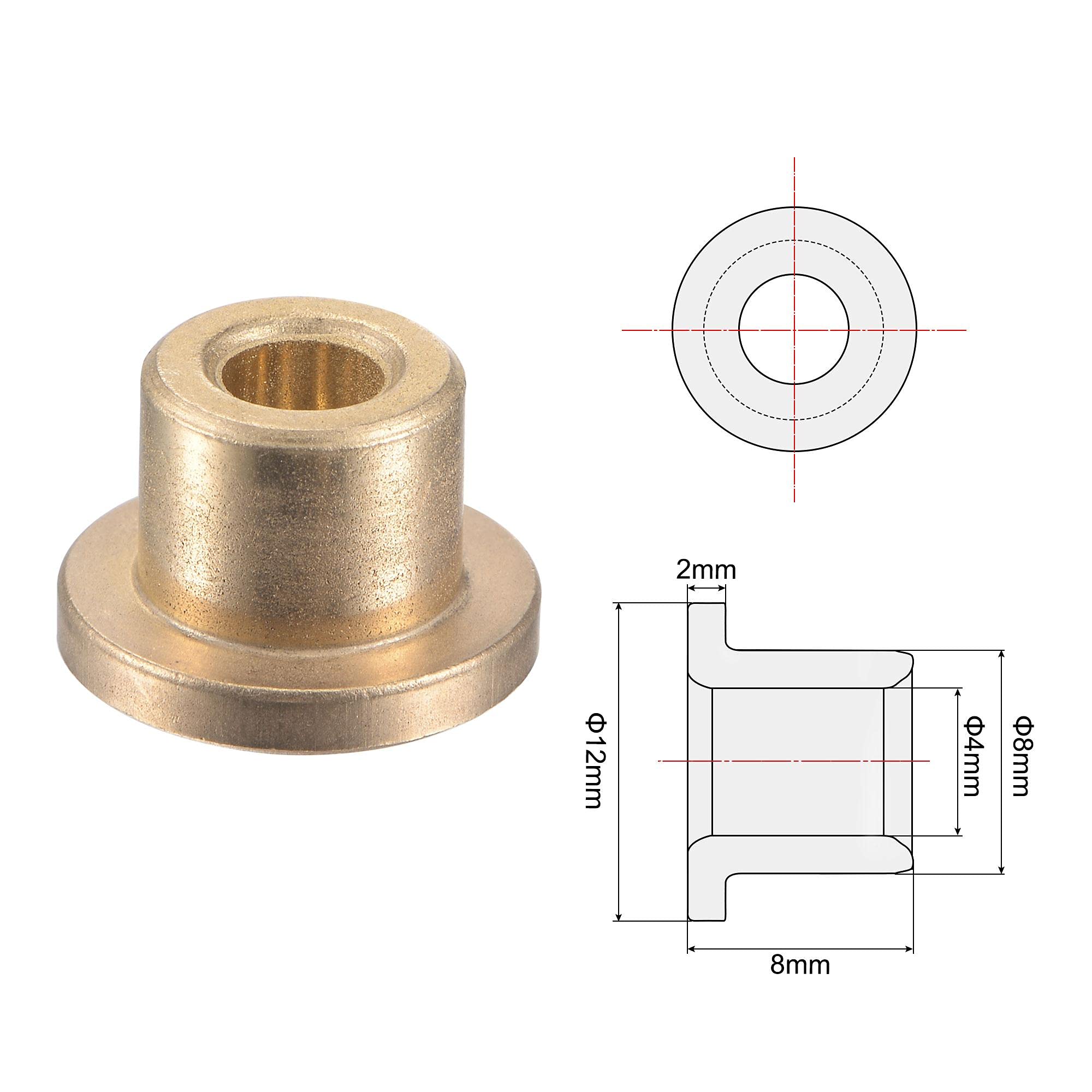

• Size - Bore Diameter: 4mm, Outside Diameter: 8mm, Total Length: 8mm, Flange Diameter: 12mm, Flange Thickness: 2mm
• Material - Sintered Bronze (copper-tin alloy). They are self-lubricating, making them maintenance-free. High wear-resistant and corrosion-resistant.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
• Application - Bronze bushings are most for general-purpose where moderate speeds and loads are present. Sleeve bearings are used in a vast variety of industrial equipment.
• More - They also can be used for reducing bore diameter or replacing worn-out original bushings on wheels.

Specifications: Material: Sintered Bronze Bore Diameter: 4mm Outer Diameter: 8mm Total Length: 8mm Flange Diameter: 12mm Flange Thickness: 2mm Package Contents: 4 x Flange Sleeve Bearings Description:Sleeve bearings are also known as plain bearings or bushings, mostly for guiding or reducing friction in linear applications. Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18. They are made of powder-metallurgical metal, which has a large working temperature range from -80 degrees Celsius to 120 degrees Celsius. Bushings provide strong housing for a shaft or fastener. They also help to reduce bores' diameter or to replace worn-out original bushings on wheels. Sintered bronze bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material. Suitable for a vast variety of industrial equipment such as electrical equipment, household equipment, printing machinery, and machine tools.
