sourcing map Fader Variable Resistors Mixer 45mm Straight Slide Potentiometer B10K Ohm Dual Channel Potentiometers with Knobs 2pcs

• Model: B type Linear Potentiometers, Can be used in Dimming Tuning

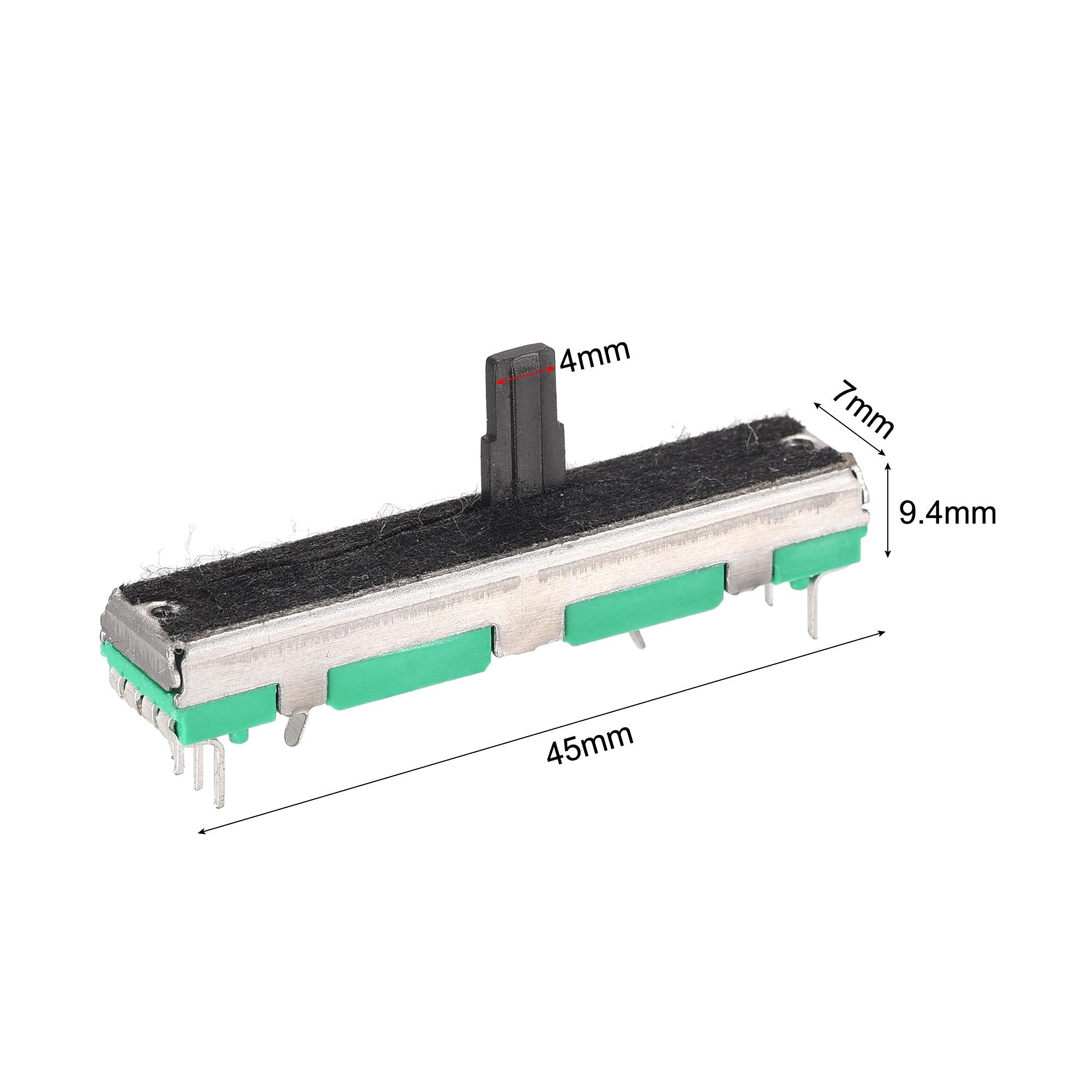

• Double Connection, Two-channel, Body Size:45mm*9.4mm*7mm (+/-2mm) (L*W * H)；Shaft Size: 10*4mm (L* W)
• Feature: Linear potentiometer, the resistance has been changing linearly during the pushing process
• Resistance Value: 10K ohm, Tolerance: +/-10%, Knob size : 23.7mm*11.5mm*11mm (L*W * H)
• Suitable for mixer, electronic guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.

Description: 1.Double Connection, Two channel 2. Linear potentiometer, the resistance has been changing linearly during the pushing process Specifications: Product Name: Potentiometer with Knobs Knobs Color: Grey Black Model: B type Linear Potentiometers Resistance Value: 10K ohm Channel： Double Channel Tolerance: +/-10% Terminals Number: 6+2 Body Size:45mm*9.4mm*7mm (+/-2mm) (L*W * H) Shaft Size: 10*4mm (L* W) Knob size : 23.7mm*11.5mm*11mm (L*W * H) Package Content : 2pcs x Straight Slide Potentiometer / 2pcs x knob
