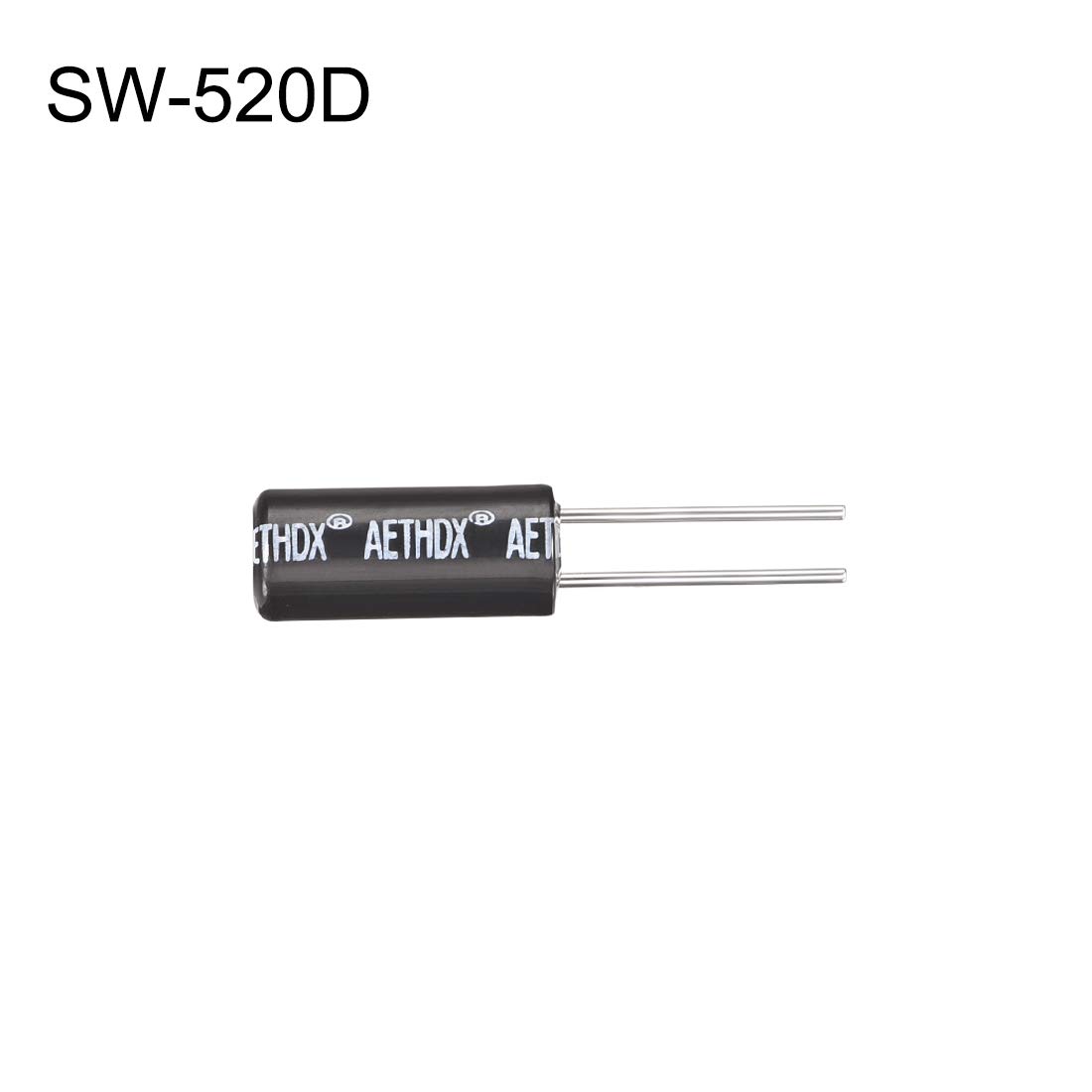

sourcing map Electronic Vibration Sensor SW-520D Tilt Shaking Trigger Switch Nickel Plating 10Pcs

• Model Number: SW-520D; Max.Voltage: 12V; Rated Thermal Current: 20mA
• Insulation Resistance: 10M ohm; Conduction Time: 10MS; Max.Temperature Resisting: 100℃
• 【CHARACTERISTICS】SW-520D is a ball type tilting vibration sensing unidirectional trigger switch. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture.
• 【ADVANTAGE】Made of metal, the electrical characteristics are similar to the mercury switch, but it is not as dangerous as the mercury switch and has environmental problems. It has a single-passing characteristic when shaking, and it is more convenient and safe to assemble.
• 【APPLICATION】This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic toys, small household appliance, sports equipmens and anti-theft devices.

Description: 1.SW-520D is a ball type tilting vibration sensing unidirectional trigger switch. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture. 2.This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic toys, small household appliance, sports equipmens and anti-theft devices. 3.Made of metal, the electrical characteristics are similar to the mercury switch, but it is not as dangerous as the mercury switch and has environmental problems. It has a single-passing characteristic when shaking, and it is more convenient and safe to assemble. Working Characteristics: When the product tilt to Conductive terminal more than 15℃, is open circuit OFF-state,when trigger end (gold-plated pin end ) below the horizontal gradient greater than 15℃ angle, is closed circuit ON-state. In horizontal position, shaking easy to trigger, while the golden feet up, shaking is not easy to trigger. Specification: Product Name: Vibration Switch Model Number: SW-520D Conduction Time: 20MS Max.Voltage: 12V Rated Thermal Current: 20mA Insulation Resistance: 10M ohm Max.Temperature Resisting: 100℃ Pin Size: 11.5mm x 0.6mm(L*D) Body Dimension: 12mm x 5mm(L*D) Package Content: 10 x Vibration Switch
