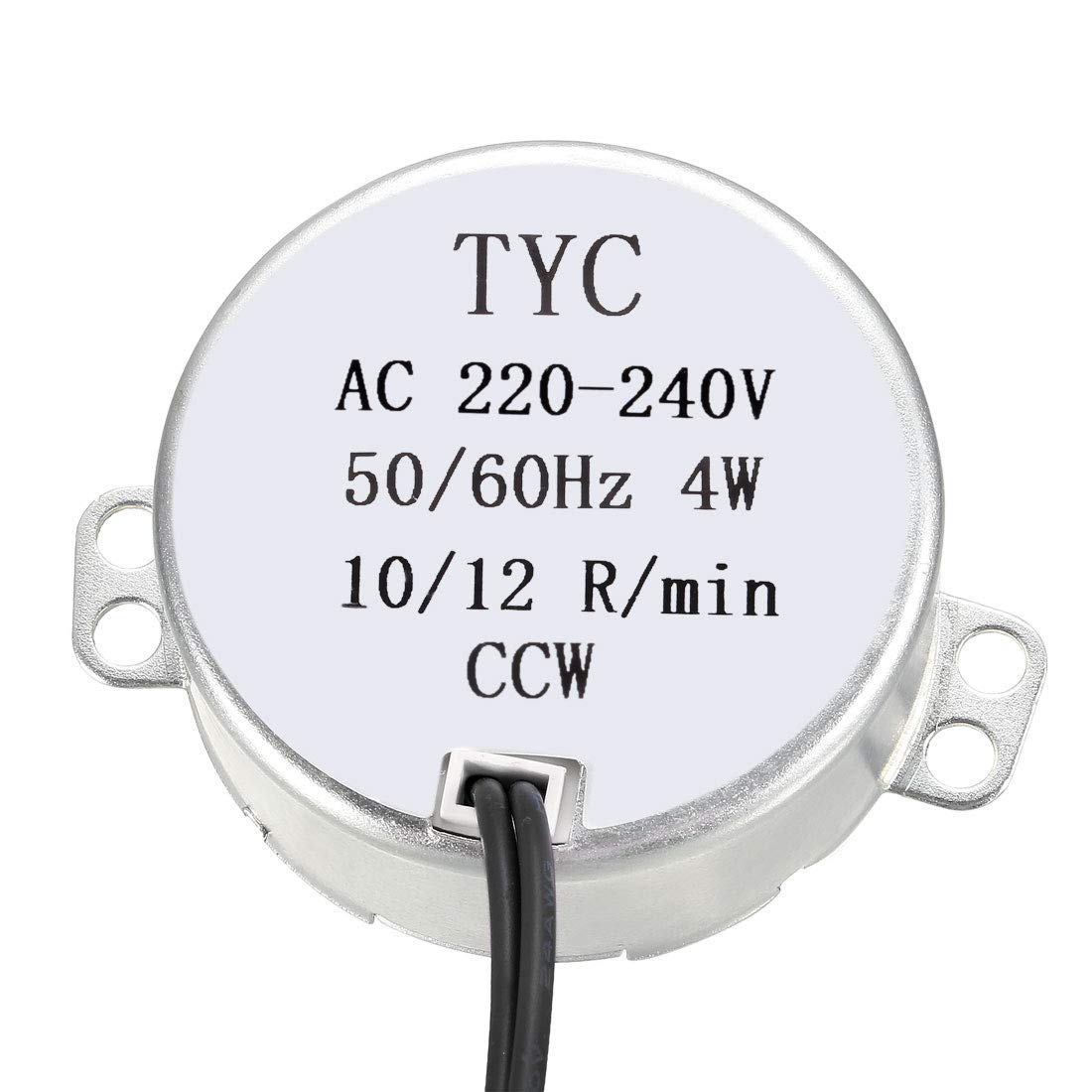

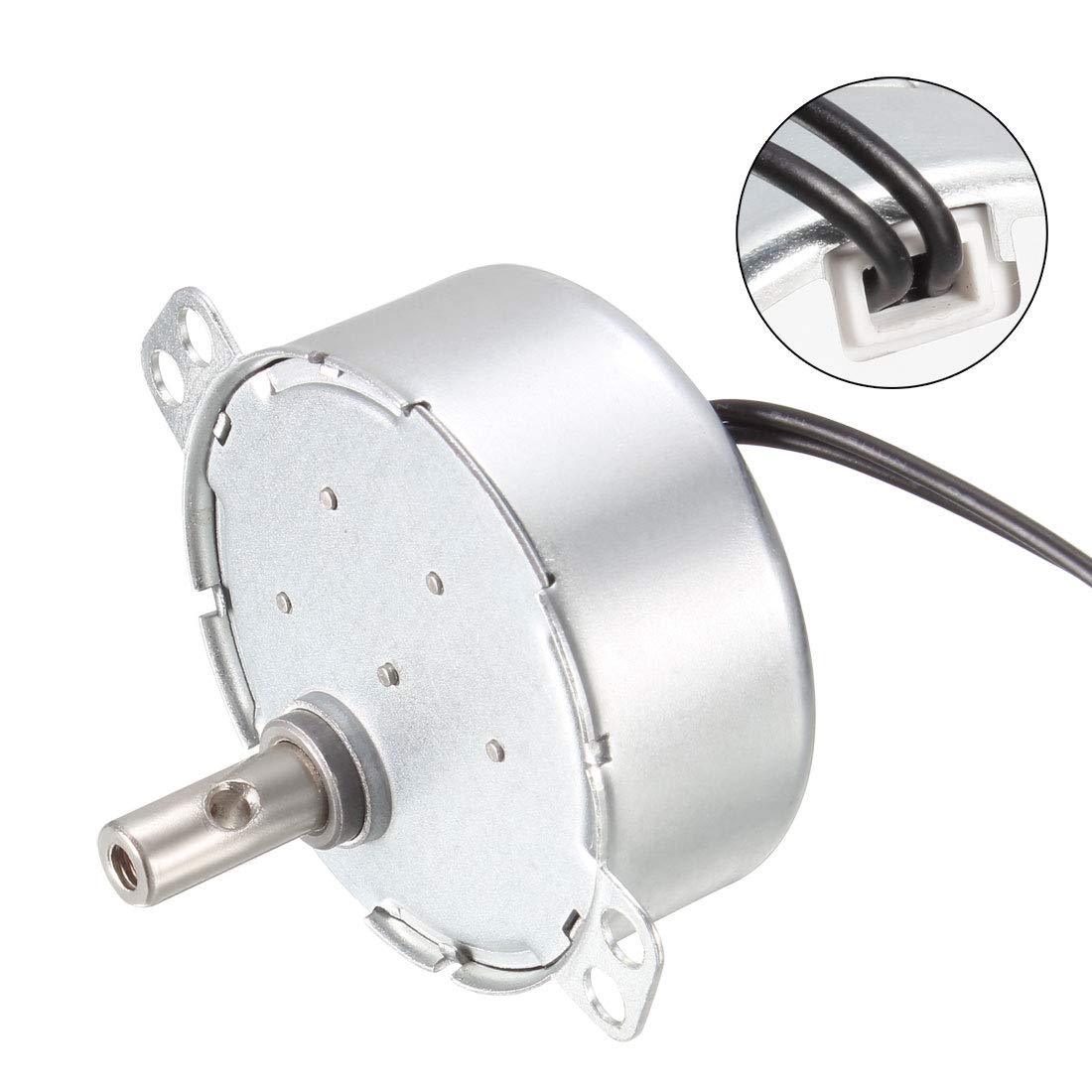

sourcing map Electric Synchron Motor Turntable Synchronous Motor 220-240 VAC 10-12RPM 50-60 Hz 4W CCW Direction for Hand-Made, Model or Guide Motor

• Package includes: 1pcs silver tone turntable synchron motor.
• Detailed parameters: the power is 4 watts; Frequency is 50-60 Hz; Manner of working is CCW; AC voltage range is 220-240V; Rotating speed is 10-12R per minute.
• Practical to use: the synchron motor has small power consumption and large torque which is convenient to use; Low noise and easy to install.
• Size: the turntable synchron motor is 1.96 inch/ 50mm in diameter, 0.78 inch/ 20min height; The blue cable is 0.08 inch/ 2 mm in diameter, 16.14 inch/ 410mm in length.
• Applications: the synchronous motors are good tool for hand-made, DIY project; Suitable for home appliance, heater machine, electric fan, Christmas tree, air conditioner, massagers, dynamic visualizer, arts and crafts lighting, popcorn machine, etc.

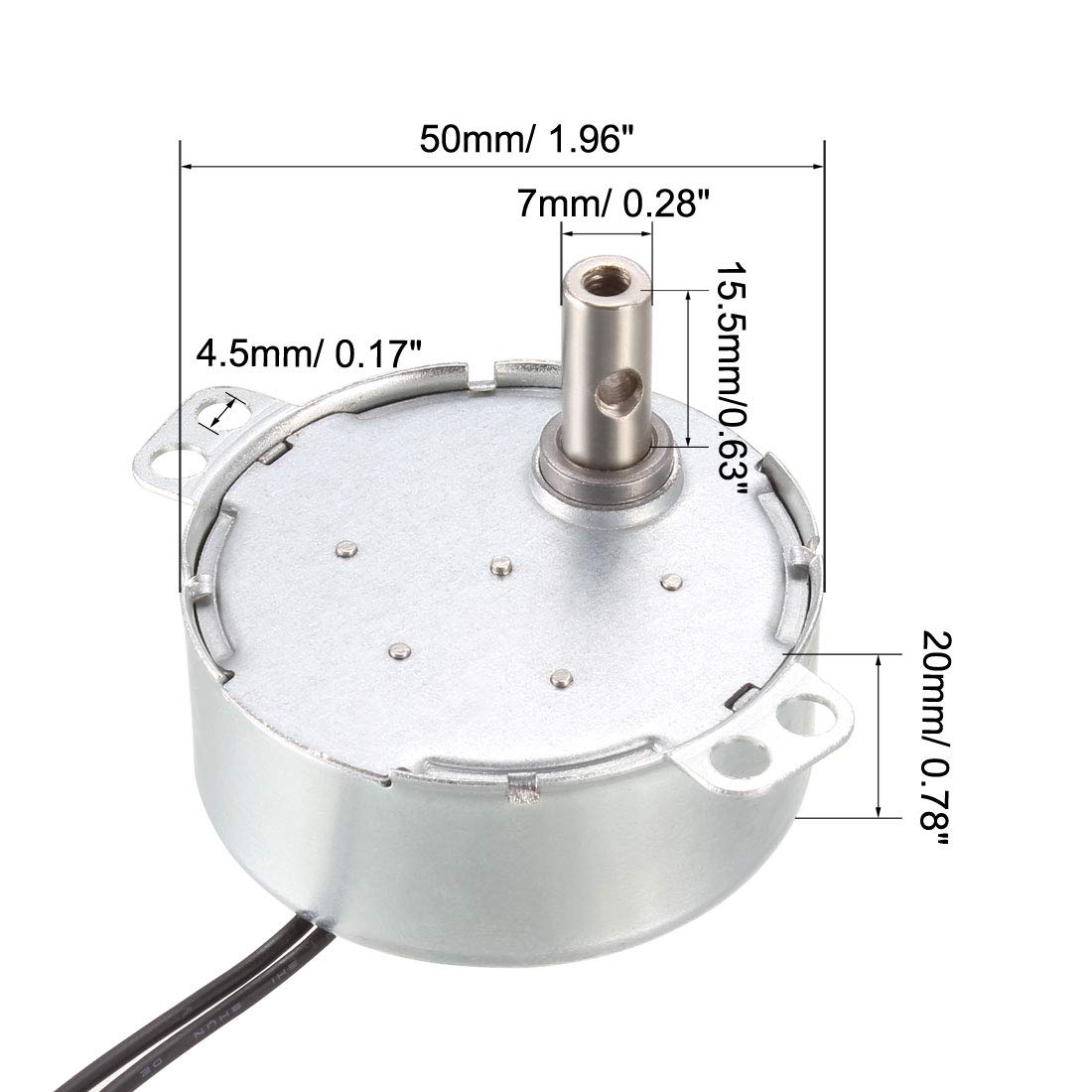

Description: 1. Synchronous motor is a kind of common AC motor. 2. Exciting winding use the DC excitation current, the establishment of magnetic field. 3. The armature winding of three-phase symmetrical action use as the power winding. 4. The armature winding and the main magnetic field is doing the cutting movement. Widely Use It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments. Specification: Voltage: AC 220-240V Frequency: 50-60Hz Speed: 10-12RPM/Min Color: Silver Tone Rated Power: 4W Manner of Working: CCW Gear Material: plastic Shaft Diameter: 7mm/ 0.28 inch Shaft Length: 15.5mm/ 0.63inch Shaft Hole diameter: 3mm/0.11 inch Internal Thread Size: M4 Body Diameter: 50mm/ 1.96 inch Body Height: 20mm/ 0.78 inch Mounting Hole Diameter: 4.5mm/ 0.17 inch Wire Length: 410mm/ 16.14 inch Package: 1 x Synchronous Motor
