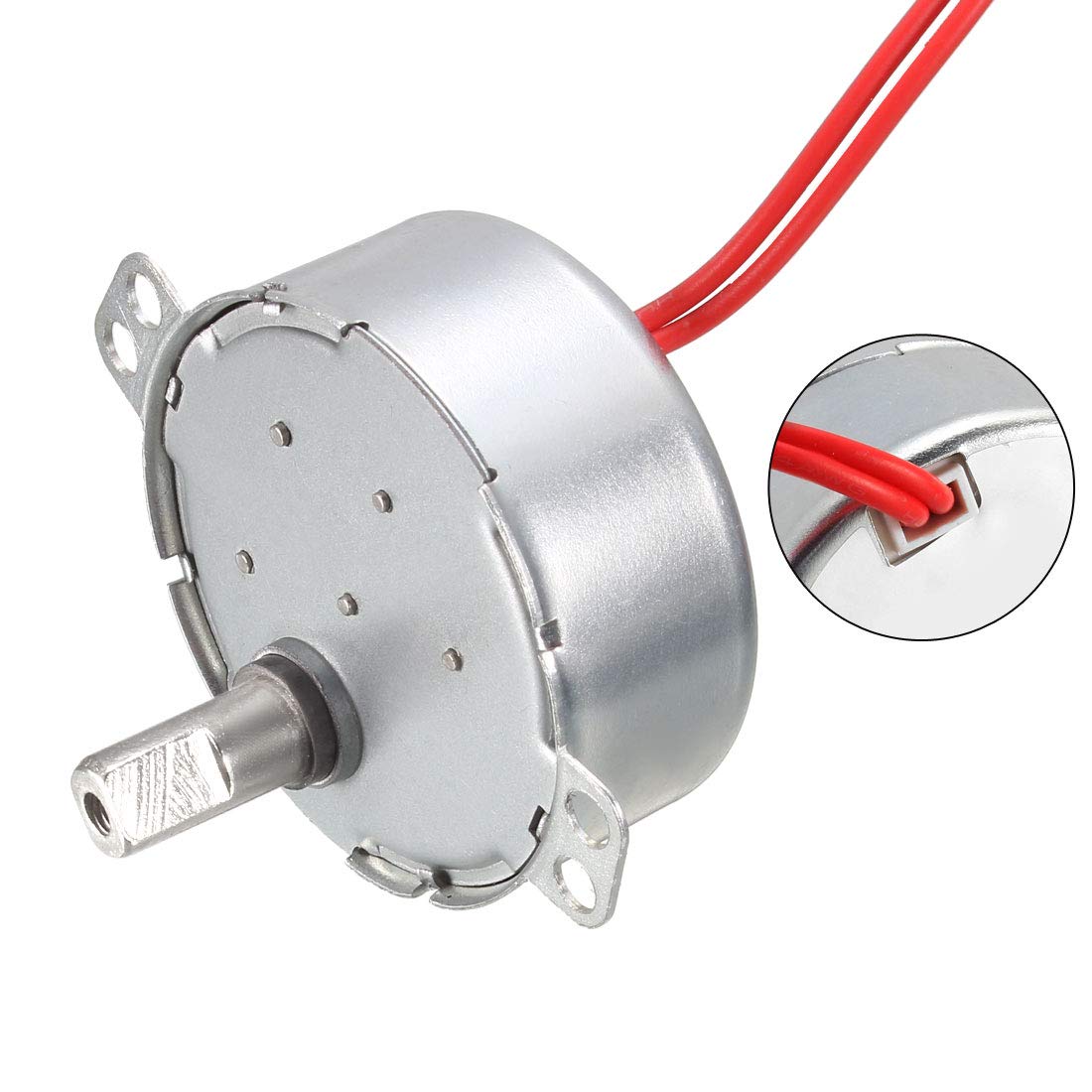

sourcing map Electric Motor Synchronous Motor Turntable Synchron Motor AC 12V 50/60Hz 4W 9-11RPM CCW/CW Direction

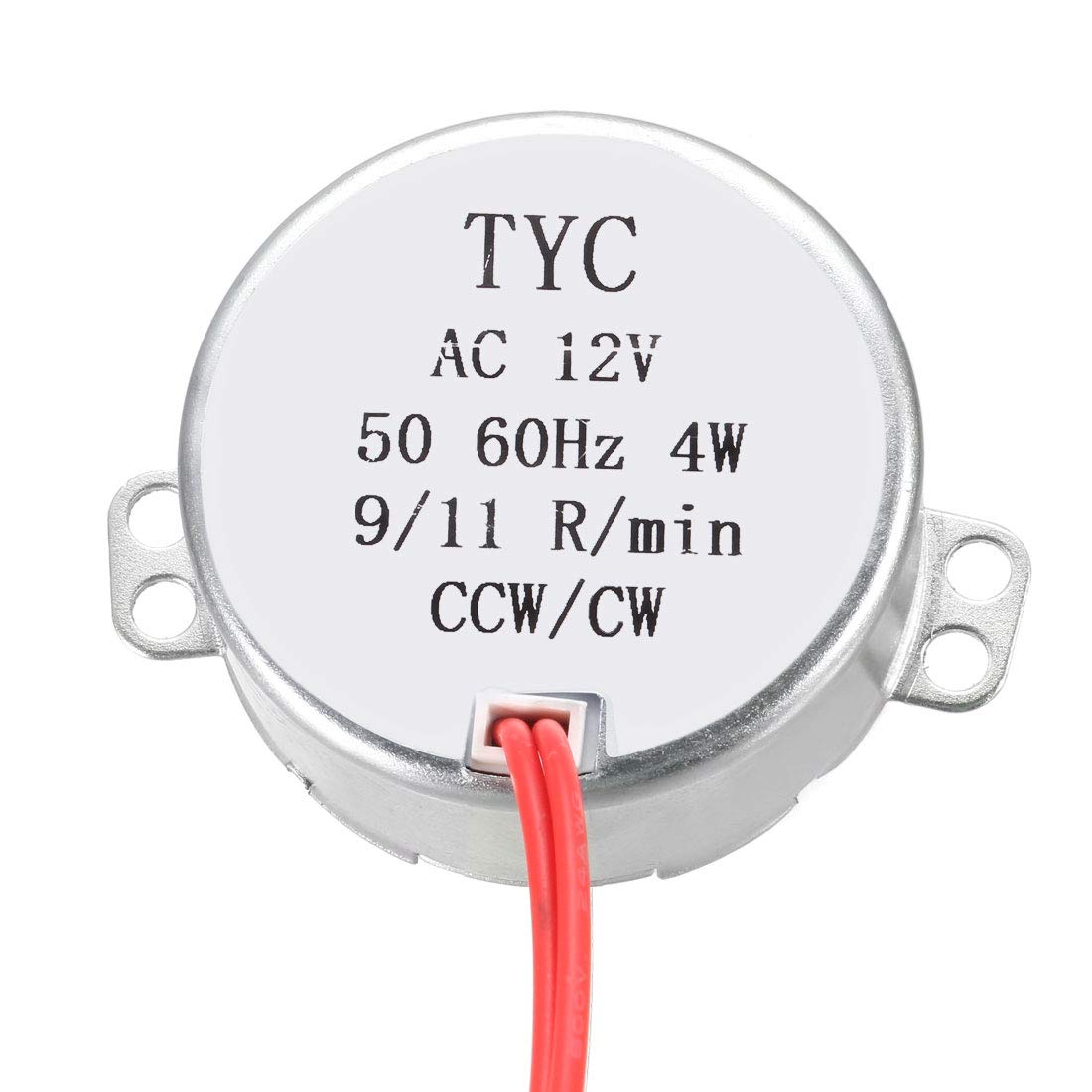

• [Specification] - Voltage: AC 12V; Speed:9-11RPM; Frequency: 50-60Hz; Power: 4W; Direction: CCW/CW; Torque: 2.5kgf.cm; Wire Length: 40cm/ 15.7 inch.
• [Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.
• [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
• [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
• [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.

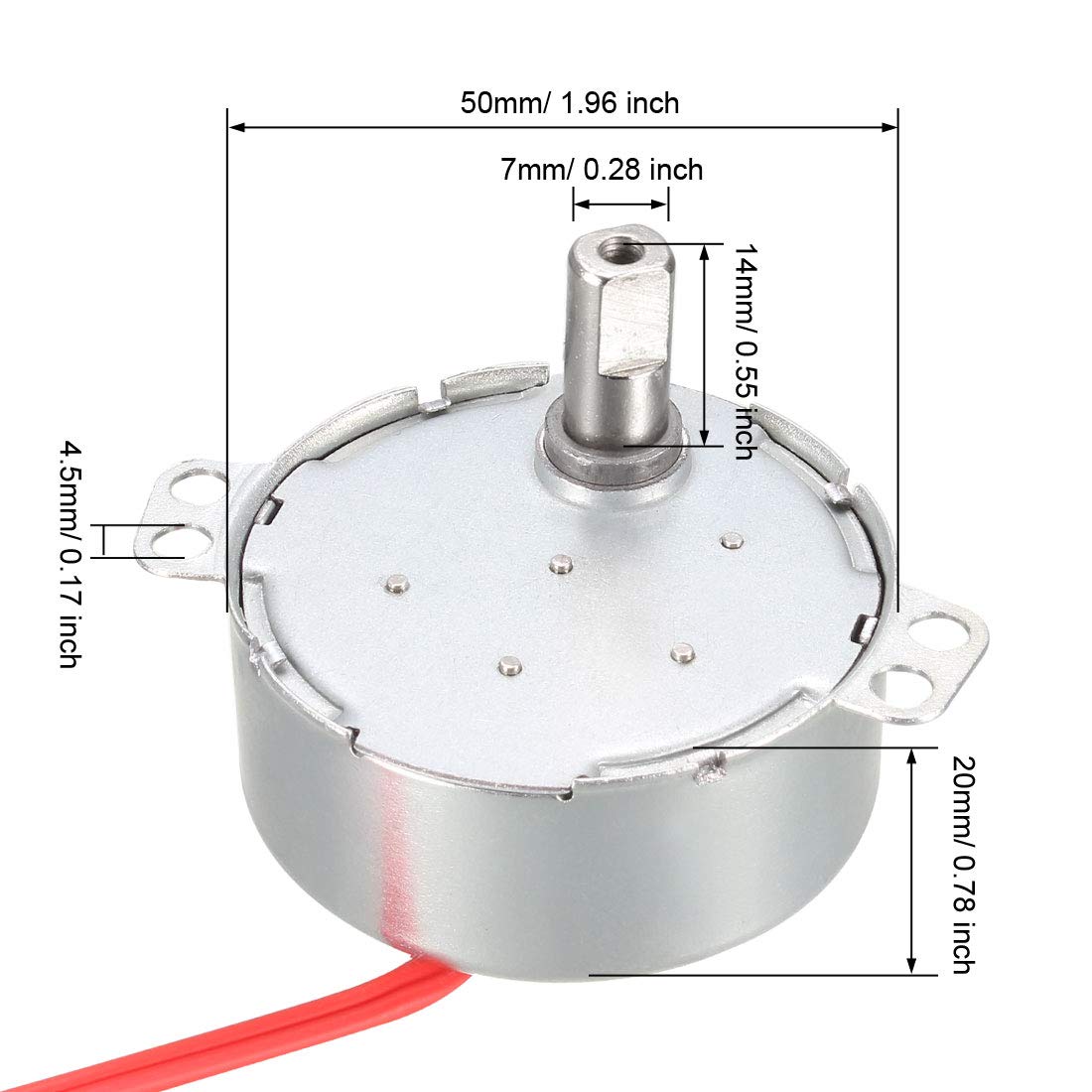

Description It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments. Information About Synchronous Motors Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor. A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field. Specification Rated Voltage: AC 12V Power: 4W Manner of Working: CCW/CW Rated Frequency: 50-60Hz Rated Speed: 9-11RPMRPM Torque: 2.5kgf.cm Body Diameter: 50mm/ 1.96 inch Body Height: 20mm/ 0.78 inch Total Length: 65mm/ 2.55 inch Mounting Hole Diameter: 4.5mm/ 0.17 inch Shaft Diameter: 7mm/ 0.28 inch Shaft Length: 14mm/ 0.55 inch Internal Thread Size: M3 Wire Length: 40cm/ 15.7 inch Package: 1 x Turntable Synchronous Motor
