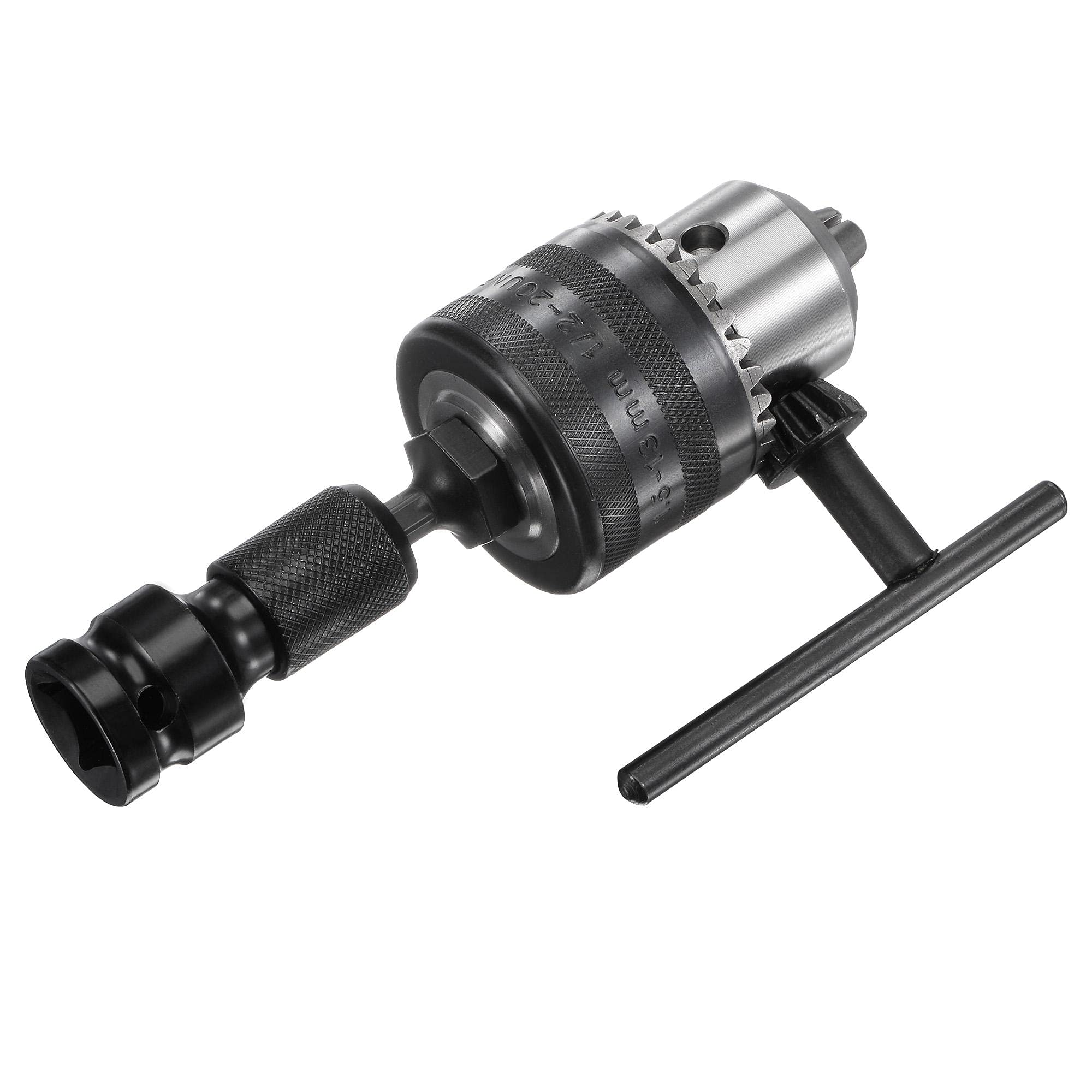

sourcing map Drill Chuck 1.5-13mm Capacity 1/2-20UNF Thread with Adapter, Chuck Key, 1/2" Square Quick Release Socket Converter for Electric Impact Drill

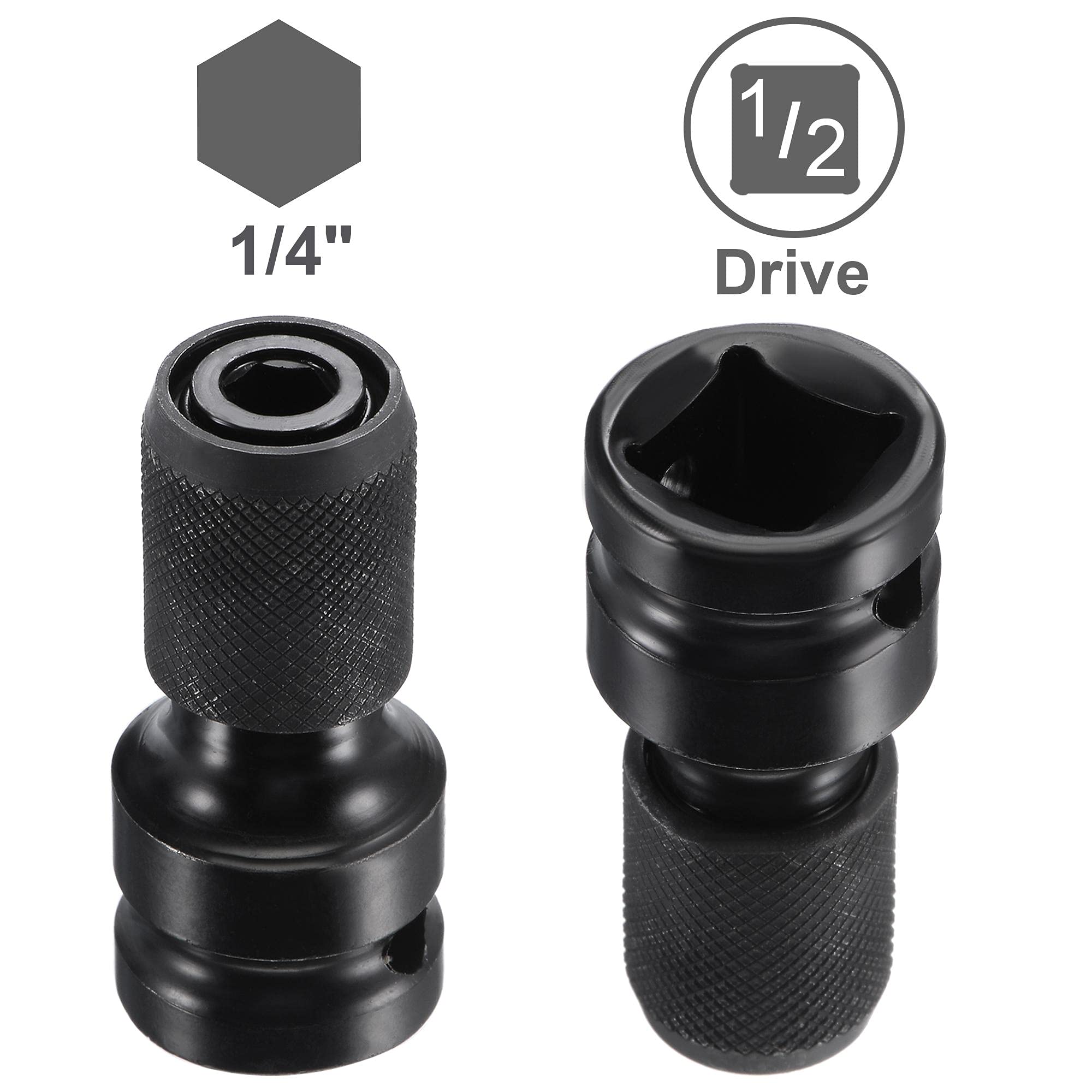

• [SIZE] - Clamping Range: 1/16"-1/2"(1.5-13mm), Mounting Thread: 1/2"-20UNF, 1/4" Hex Shank Adapter, 1/2" Square Socket Adapter
• [CHUCK TYPE] - Keyed Drill Chuck, can be quick and easily replaced drill bits with chuck key(chuck key is included in the package), also comes with 2 adapters which can easily connect to impact driver and convert to drilling

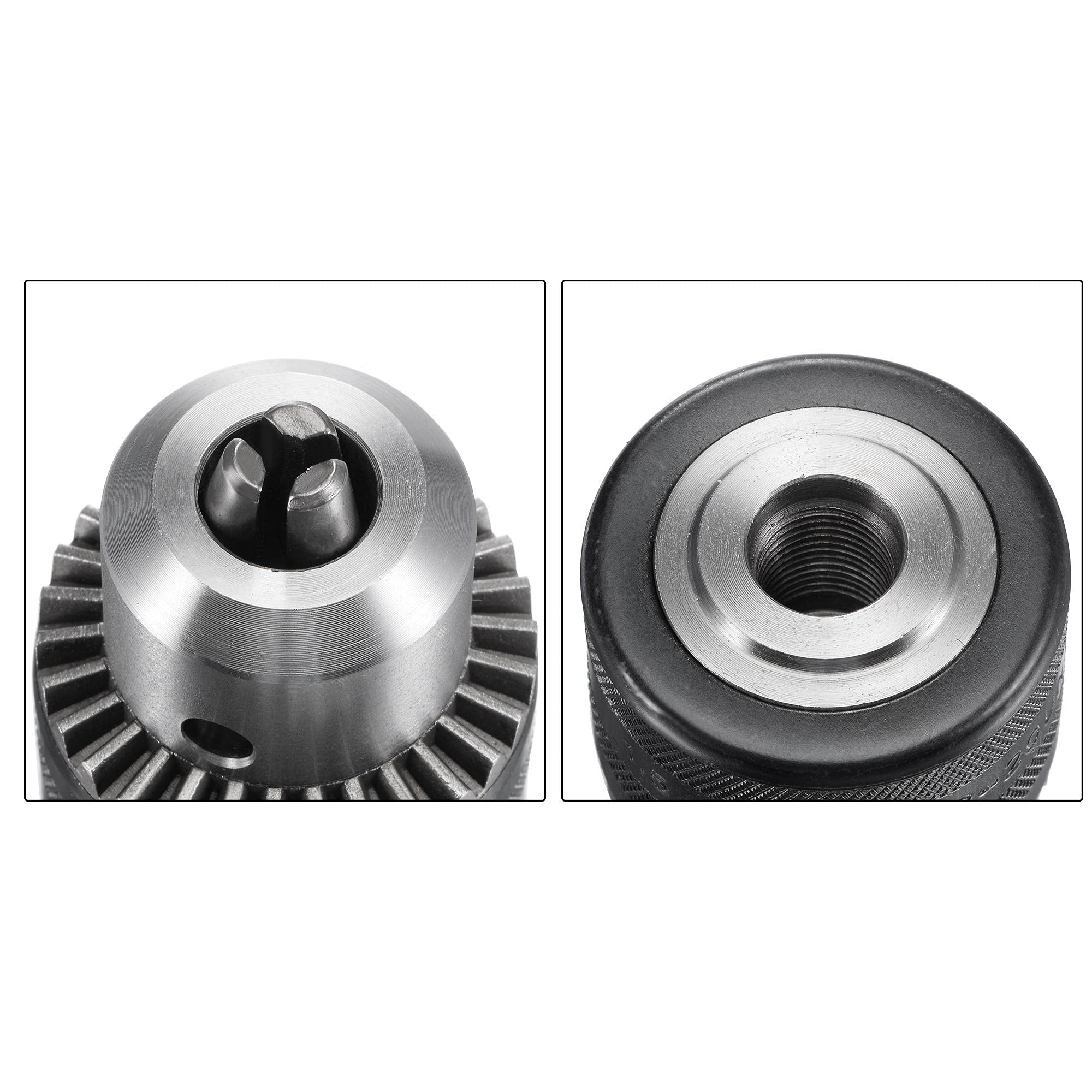

• [3-JAW] - Classic 3 jaws design drill chuck with excellent clamping capability. Quenching hardening and precision grinding to assure good wear-resistant
• [APPLICATIONS] - Suitable for drilling equipment such as portable drilling machine, bench drilling machines, milling machines, lathes, etc. It is for many different types of drilling machines
• [MAINTENANCE] - Clean up the mechanical waste and foreign matter left in the drill chuck in time after using it. Use the appropriate chuck key for disassembly. Improper installation or disassembly of the drill chuck will increase the accuracy and run-out value

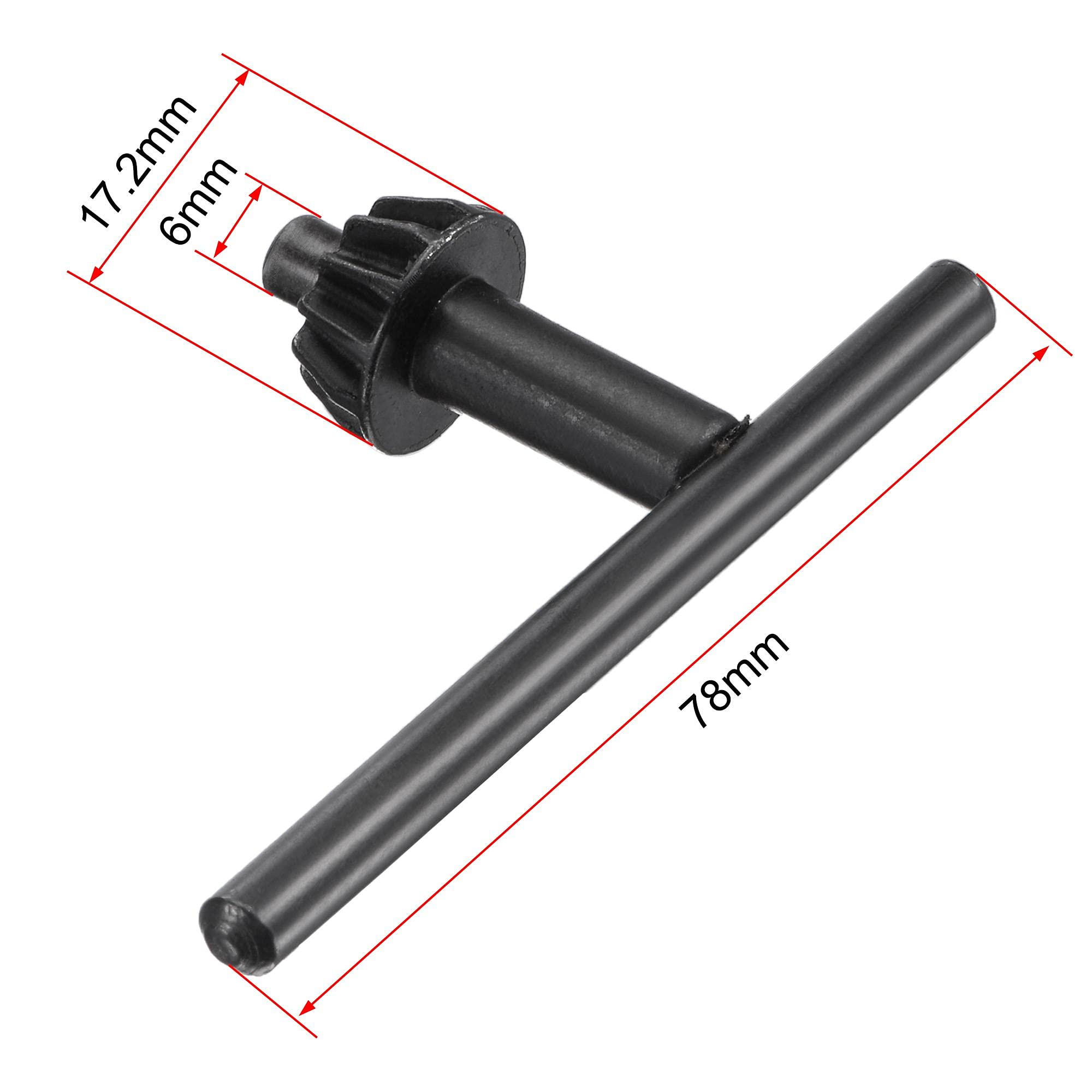

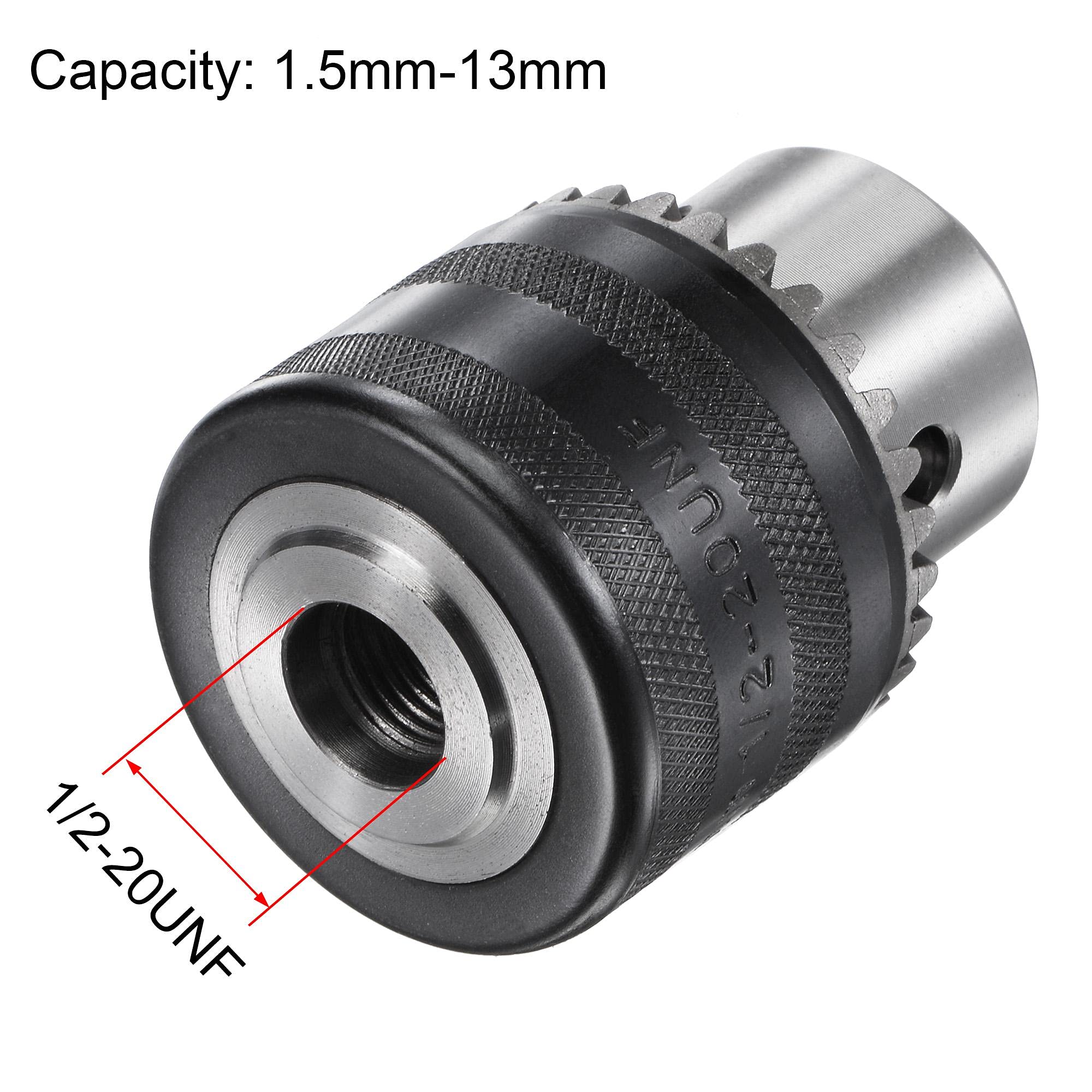

Specification: Material: Carbon Steel Drill Chuck: Capacity: 1.5mm-13mm Thread Mount: 1/2-20UNF Overall Size: 58.2 x 42mm (L*D) Hex Shank Adapter: Shank Type : Blackening Hex Shank Shank Diameter: 6.3mm Screw Size: M6 (Left Hand Thread) Male Thread Size: 12 x 12.5mm(L*D) Socket Adapter: Hex Size: 1/4" Square Socket Size: 1/2" Overall Size: 50.8 x 22.8mm(L*D) Chuck Key: Pilot Diameter: 6mm Gear Diameter: 17.2mm Overall Size : 78 x 40mm (L*W) Package Contents: 1 x Drill Chuck 1 x Hex Shank Adapter 1 x Chuck Key 1 x Socket Adapter Description: 1/2-inch Drill Chuck - Hold and Turn to Tighten or Loosen Chuck. Fits Many Drill Models with1/2inch-20UNF Thread Shaft Chuck Mount. Chuck can tighten on drill bits from 1.5mm-13mm. Compatible with thousands of model corded and cordless drills.
