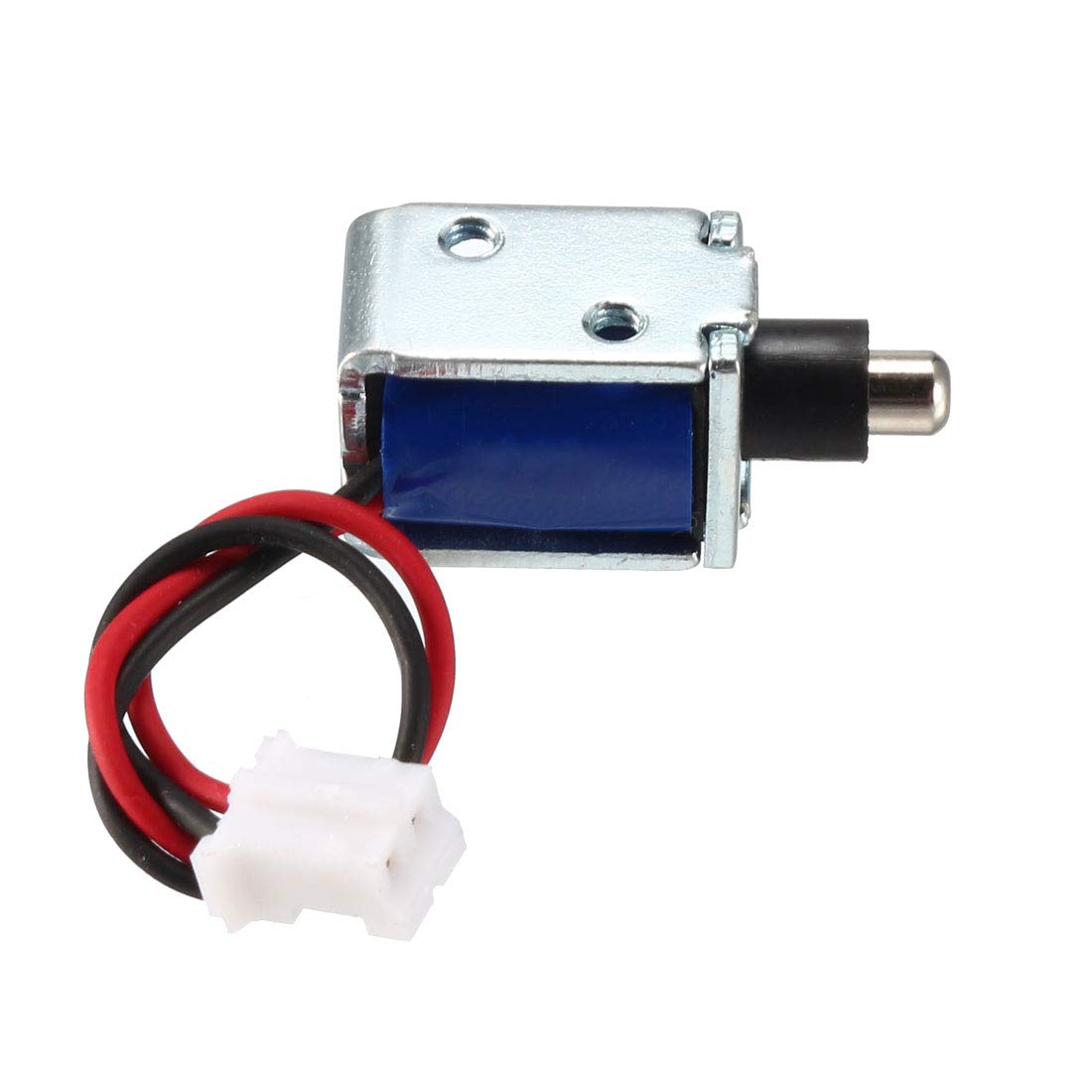

sourcing map DC 5V 1A 30g 3mm Mini Electromagnetic Solenoid Lock Pull Type for Electric Lock Cabinet Door Lock

• Voltage & Current : DC5V 1A; Stroke & Force : 3mm, 30g
• Action Type: Pull; Energized Forms: Intermittent
• Easy to Install - It's with simple structure,and it can save the energy and the time during the installation for you.
• Sturdy and Durable - It can well and safely protect your valuable objects, and serve you for a long time.
• Small Size and Light Weight - It just takes up a small space which is perfect lock to be used for the small box or small cabinets, such as deposit box, cabinets, safes etc.

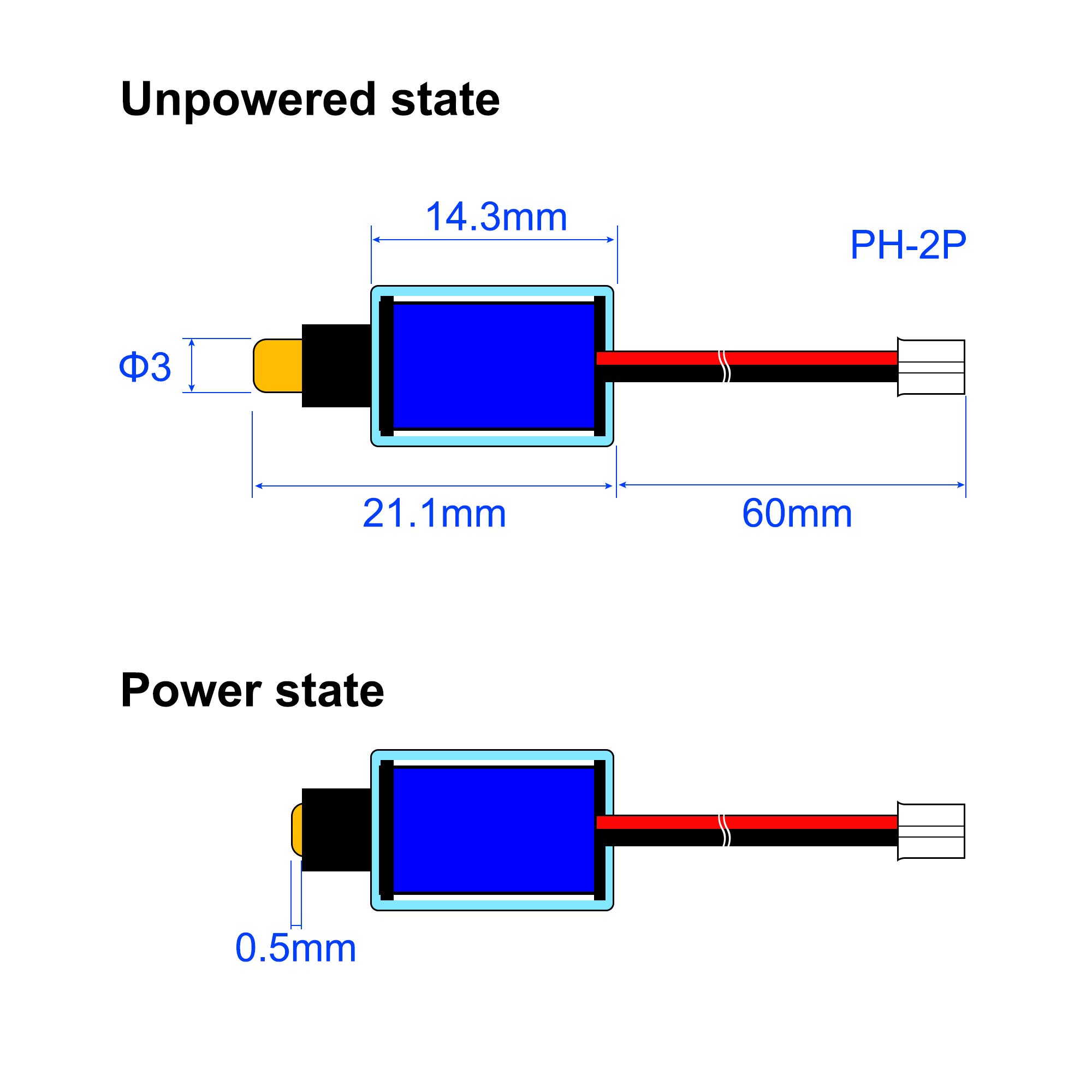

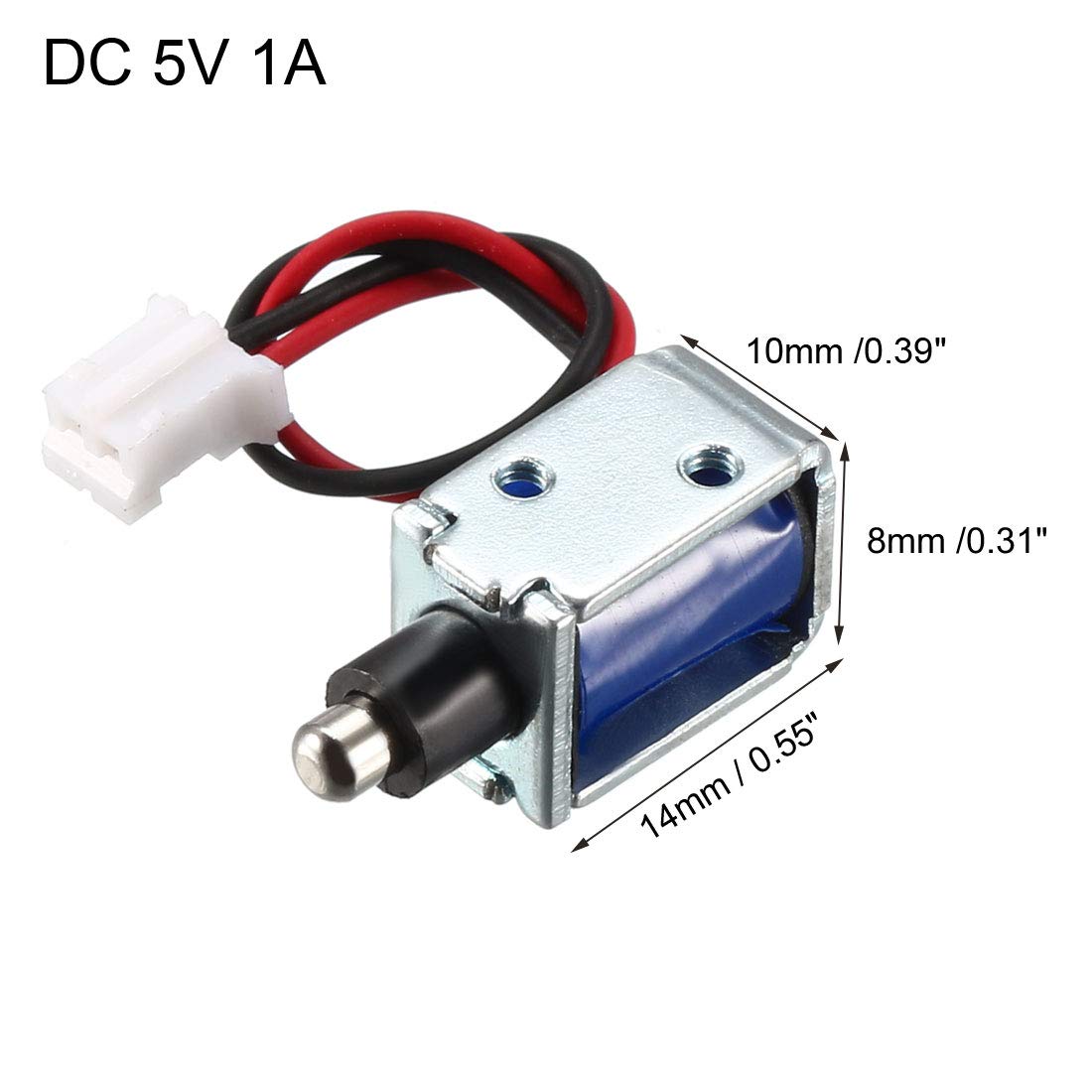

Specification: - Voltage & Current : DC5V 1A - Stroke & Force : 3mm, 30g - Action Type: Pull - Energized Forms: Intermittent - Body Size: 14 x 10 x 8mm / 0.55x 0.39 x 0.31inch (L*W*H) - Plunger Bar Dia: 3mm / 0.12 inch - Package Content : 1 x Electromagnet Solenoid Lock Instructions for Use: - The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished. - When the switch is turned on, the exposed length of the locking tongue is 3MM retracted and the cabinet door is opened. When power is not supplied, the locking tongue extends 3MM by the internal spring force, and the cabinet door is locked.
