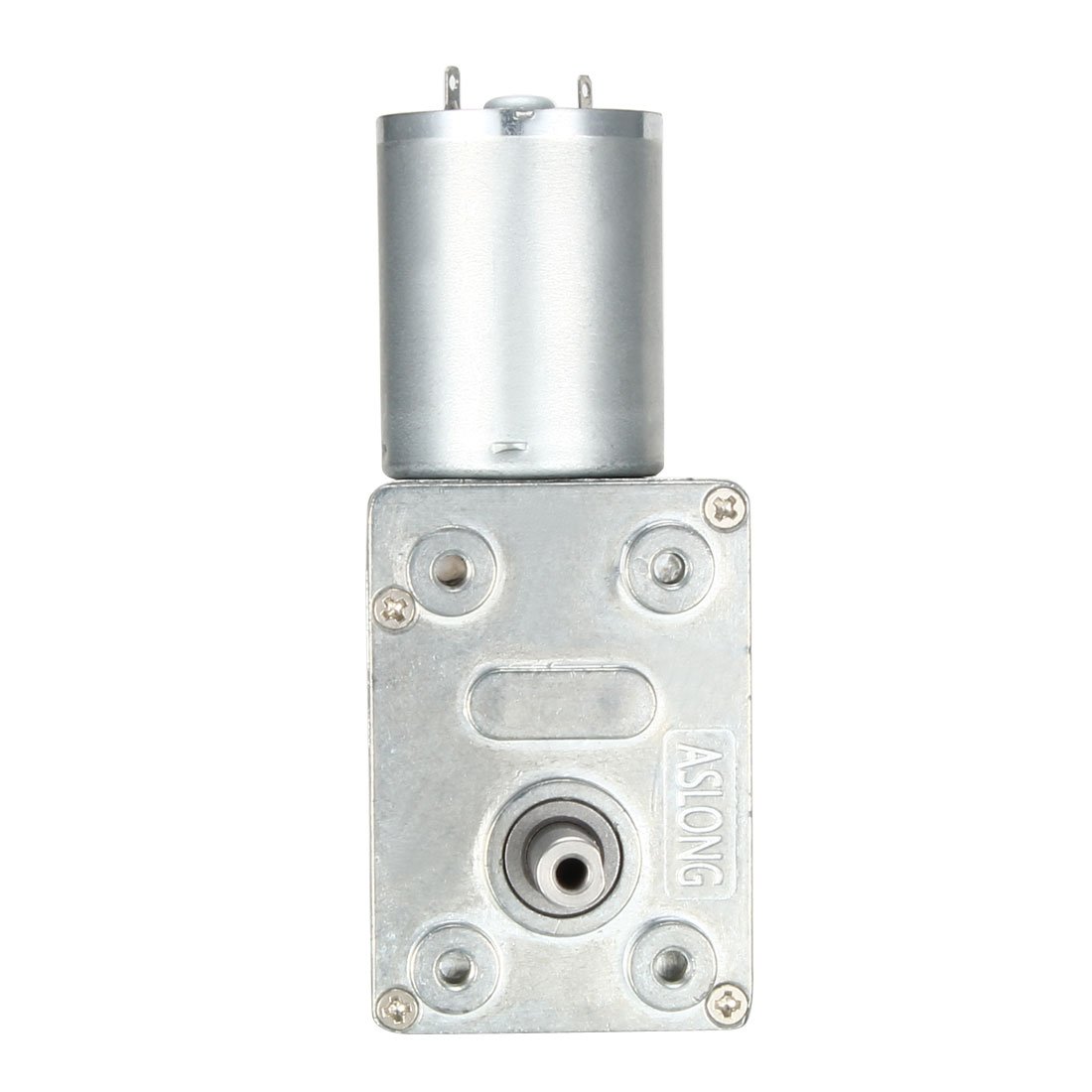

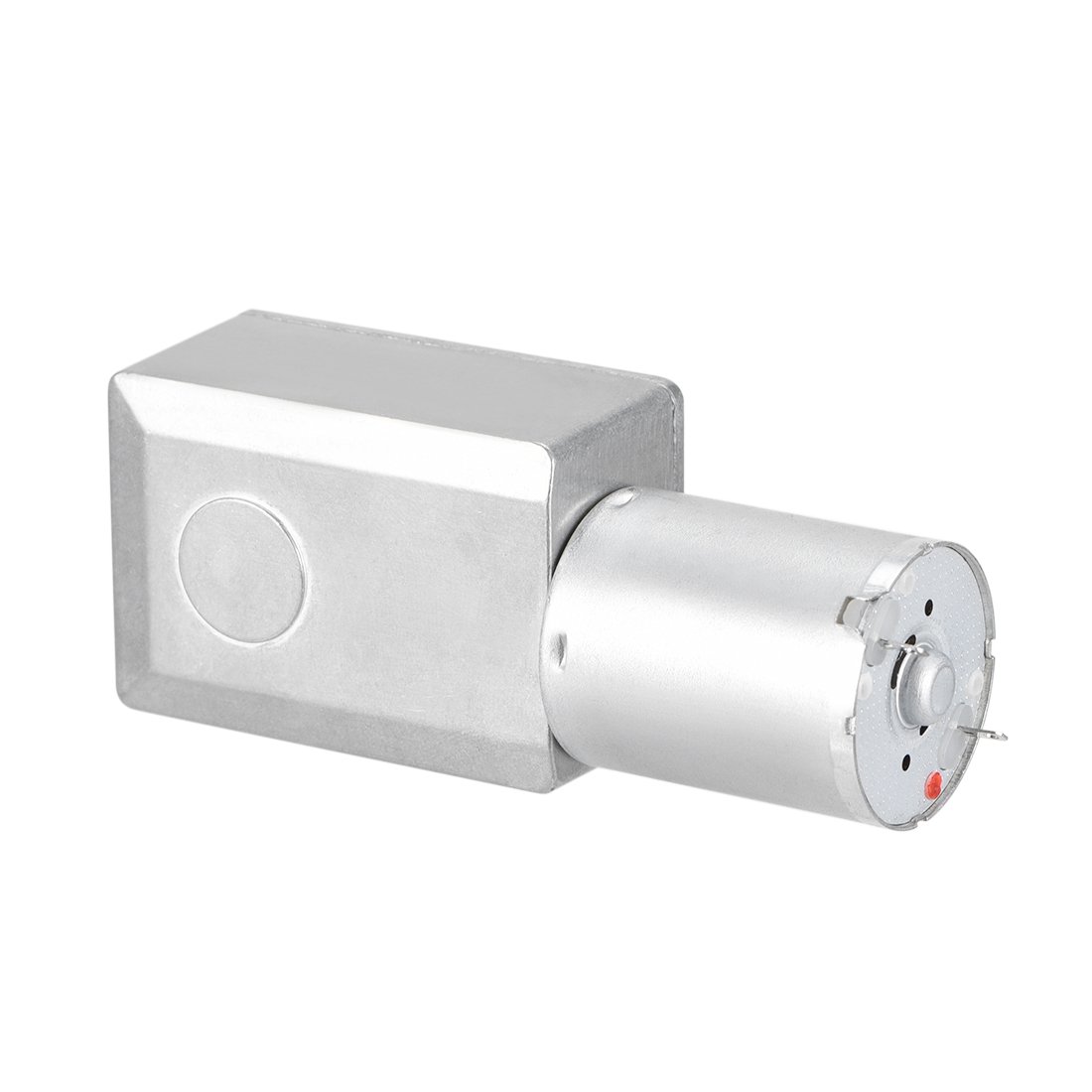

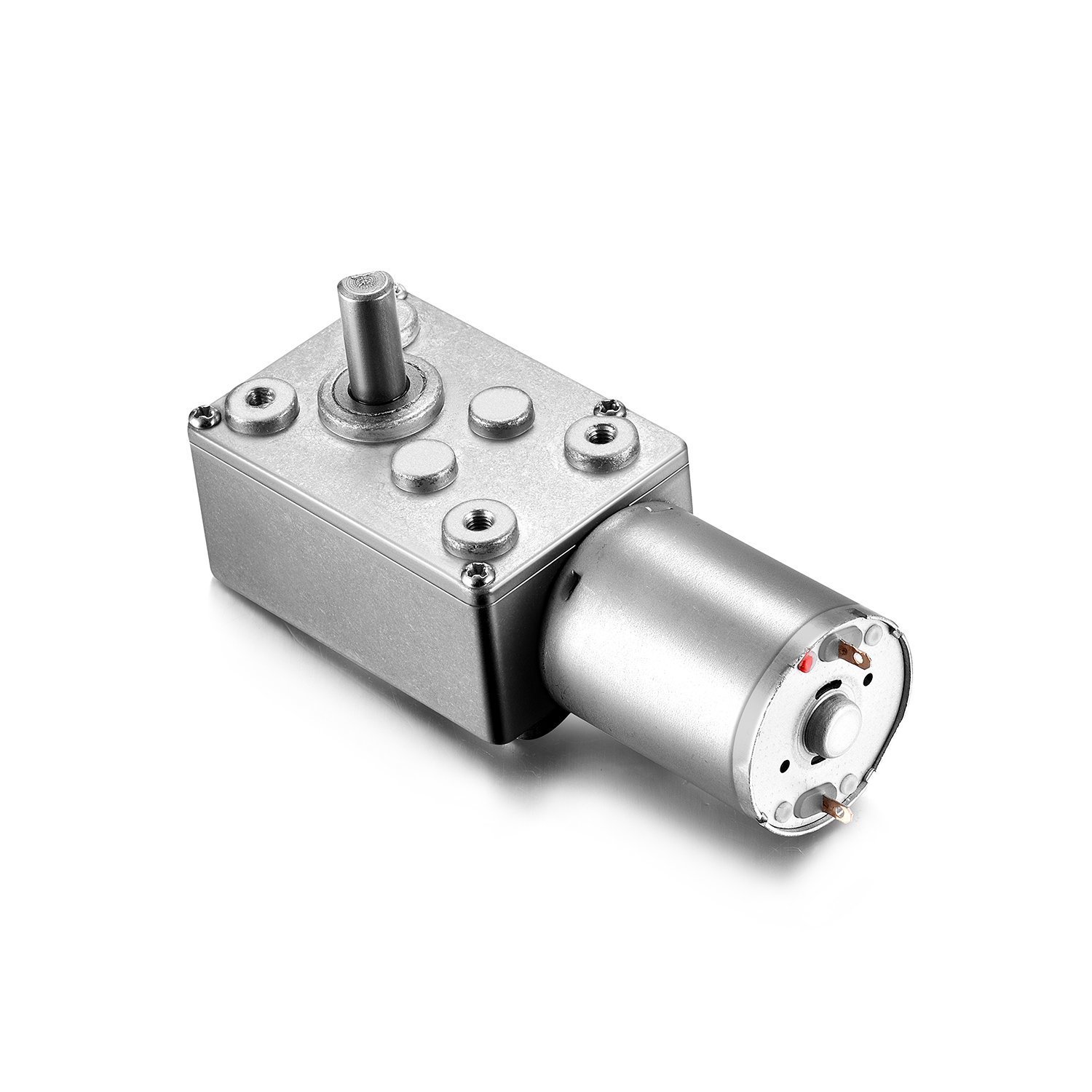

sourcing map DC 12V 100RPM Worm Gear Motor 6mm Female Shaft High Torque Turbine Reducer

• Technical Specification: Rated Voltage: DC 12V; Output Speed: 100RPM; Rated Torque: 0.375kg-cm(0.33lb-in).

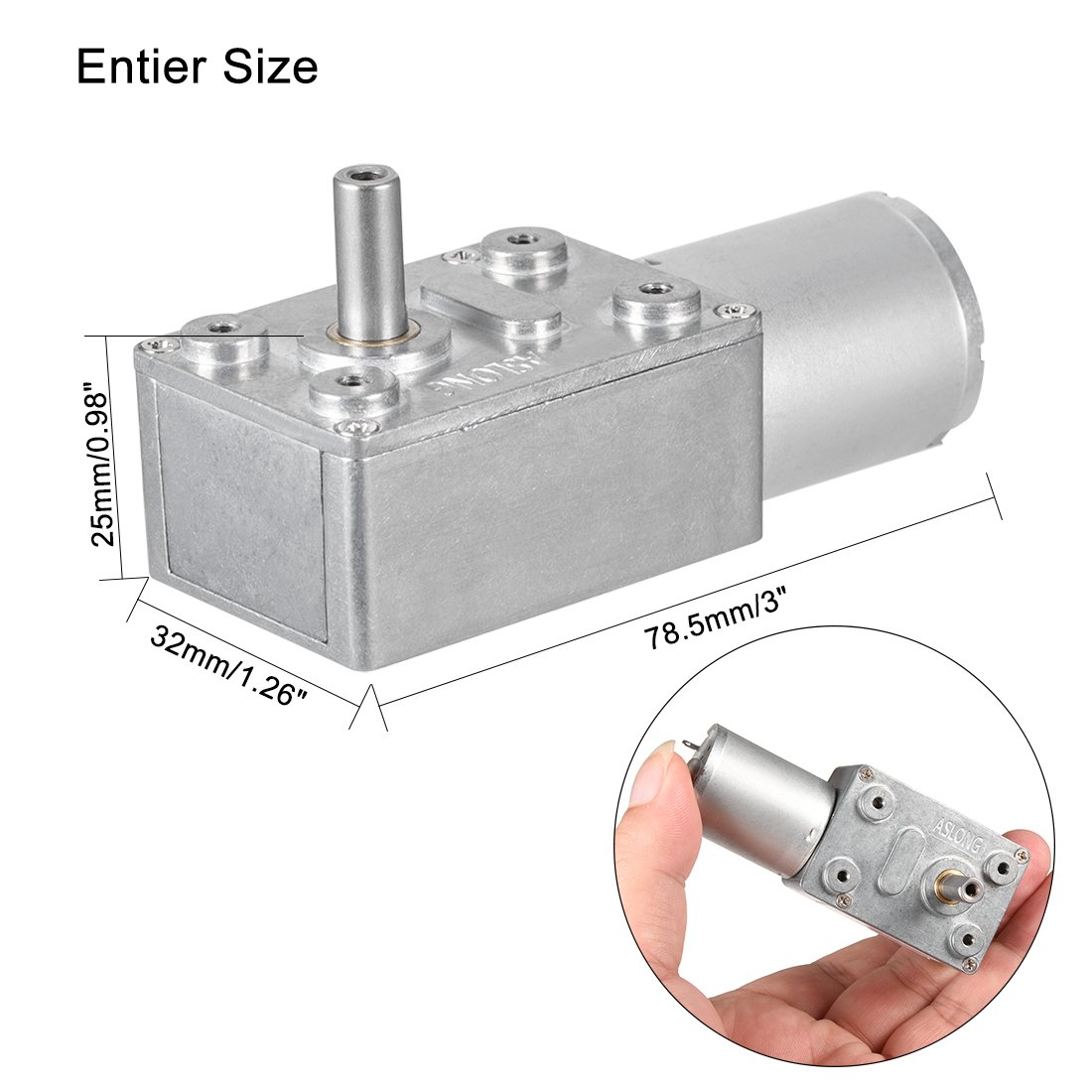

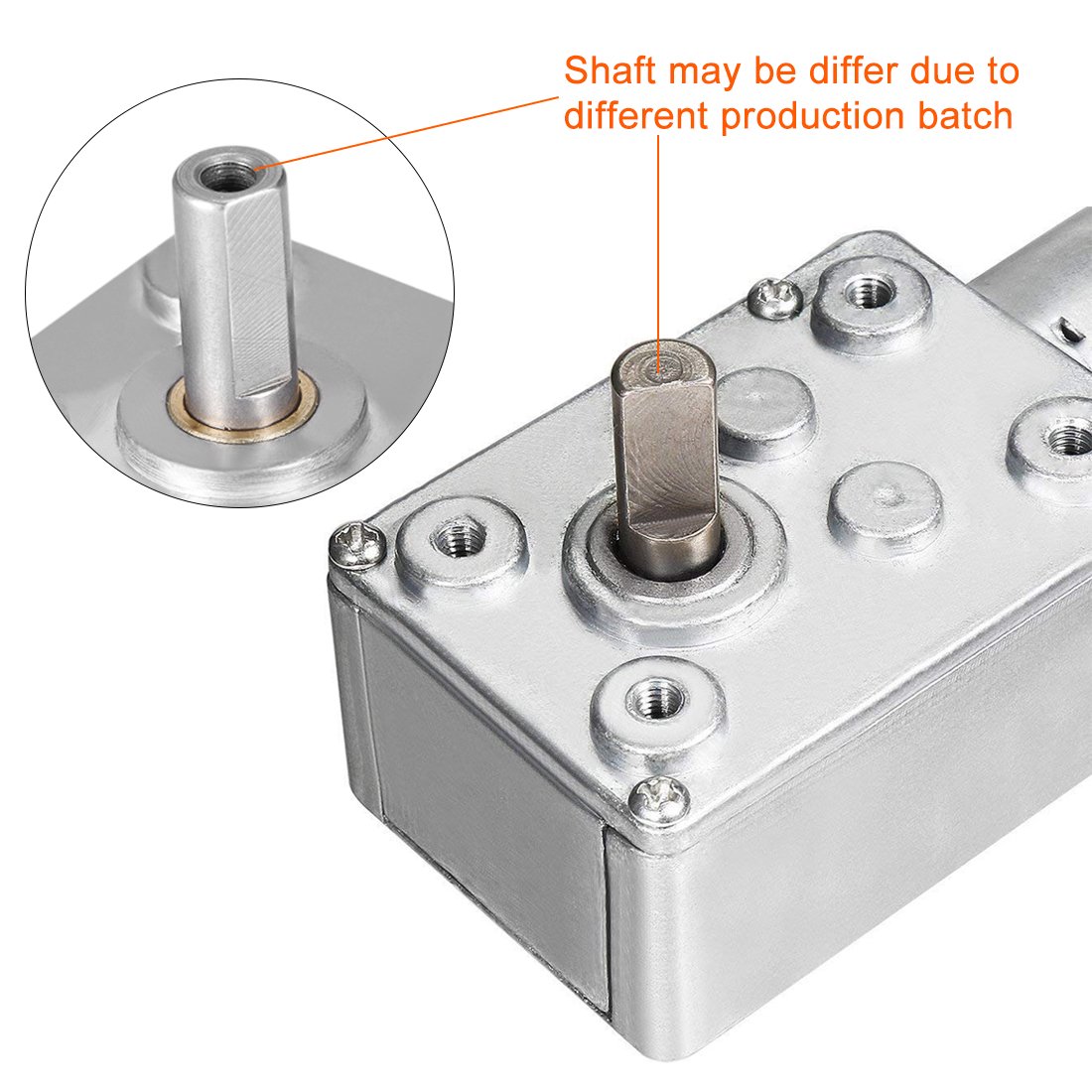

• Size: Female Shaft: 6 x 14mm/ 0.24inch x 0.55inch(D*L); Female Thread Diameter: 2.5mm/ 0.1inch; Motor Body: 30 x 25mm/ 1.2inch x 1inch(L*Max.D); Gear Box: 45 x 30 x 25mm/ 1.8inch x 1.2inch x 1inch(L*W*T)
• Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
• Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
• Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.

Description: Our products will enhance your experience to unparalleled inspiration. -Application: bank equipment, safe box, paper feeder, intelligent gas meter, machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine. -Used in electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner. Specifications:Product Name: DC Gear Motor Rated Voltage: DC 12V Rated Current: 200mA Output Speed: 100RPM Motor Pins Numbe: 2 Gear Box Shaft Speed: 100RPM Female Shaft Size: 6 x 14mm / 0.24inch x 0.55inch(D*L) Female Thread Diameter: 2.5mm / 0.1inch Motor Body Size: 30 x 24mm / 1.2inch x 1inch(L*Max.D) Gear Box Size: 45 x 32 x 26mm / 1.8inch x 1.2inch x 1inch(L*W*T) Main Color: Silver Gray Main Material: Metal Weight: 144g Package:1 x DC Gear Motor
