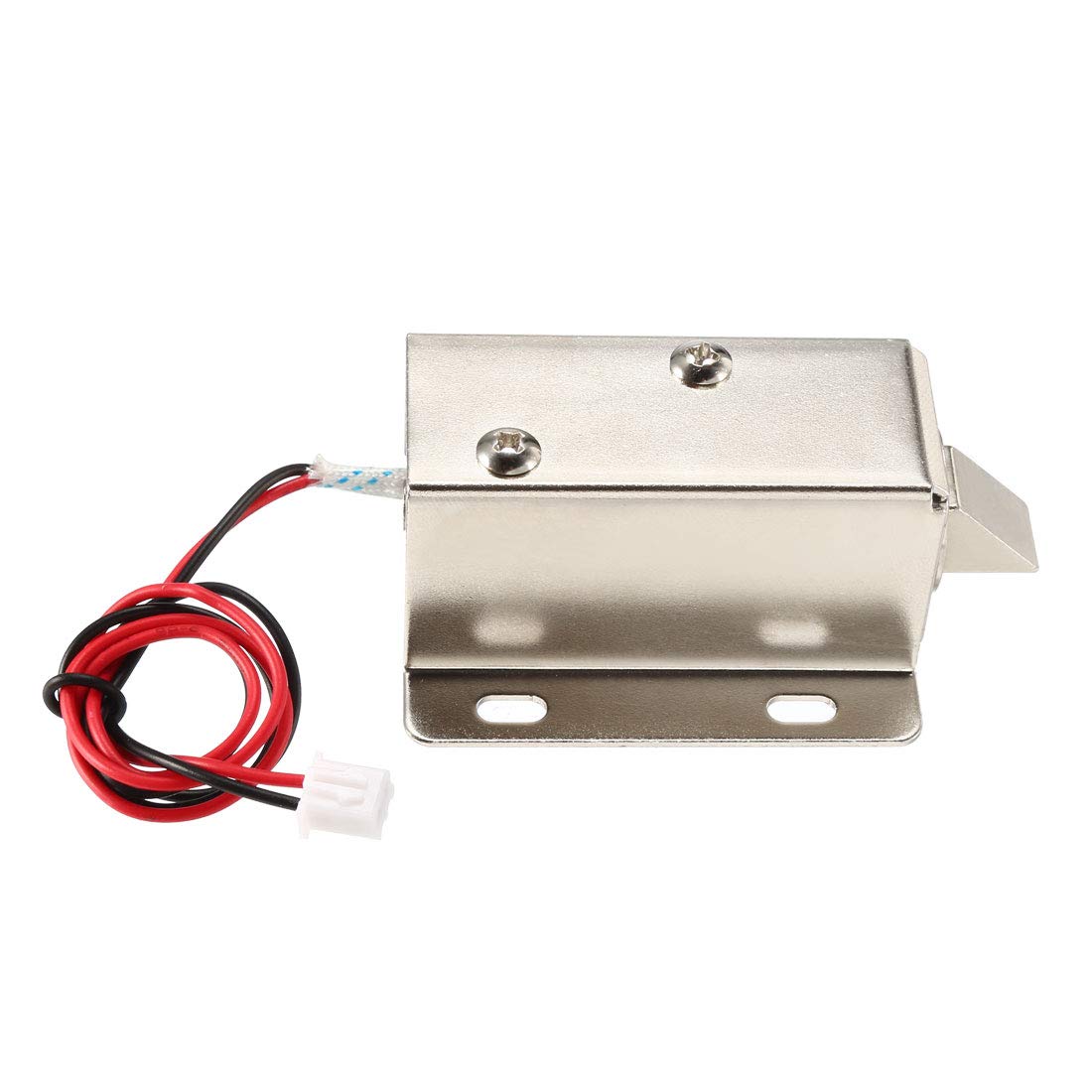

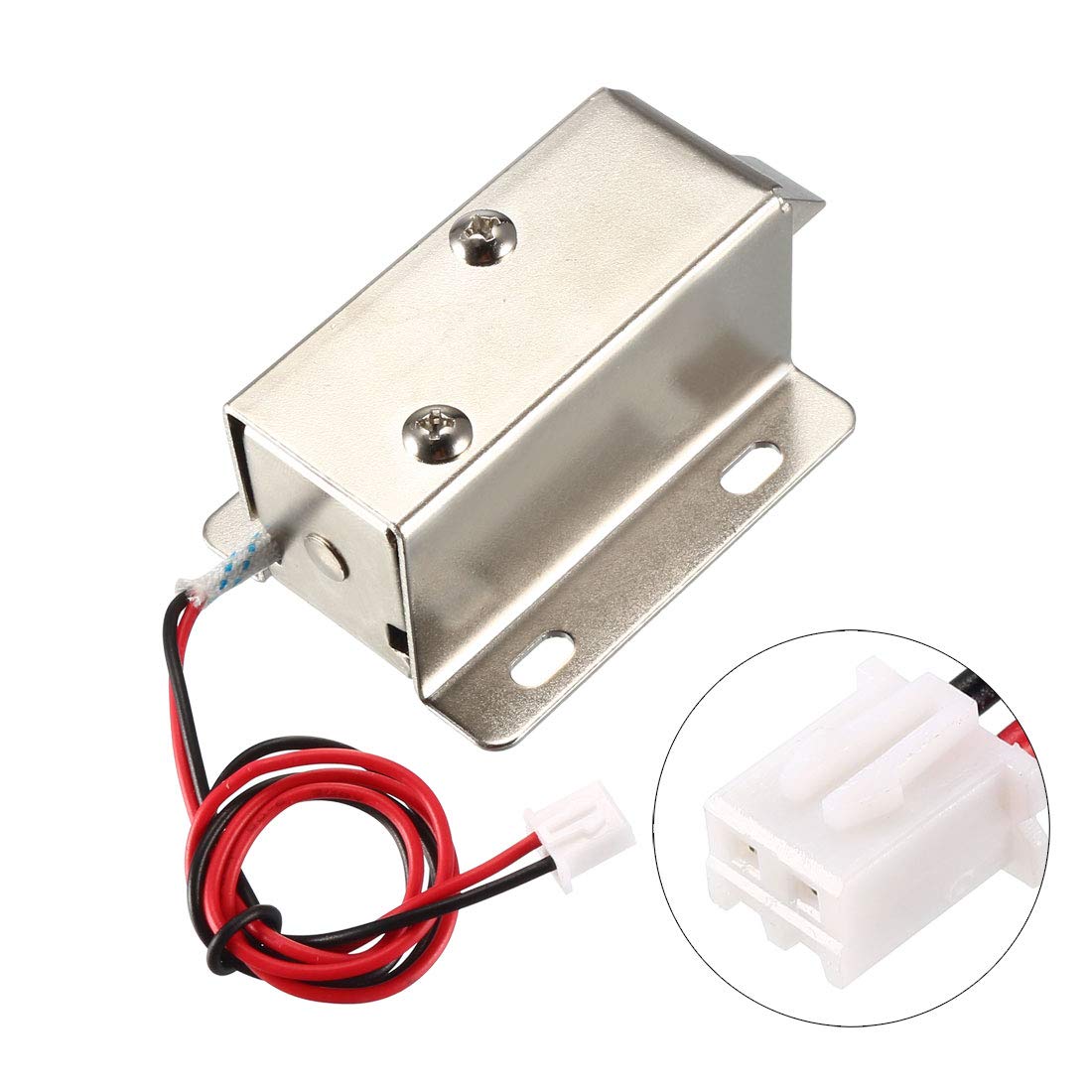

sourcing map DC 12V 1.1A 11.4mm Electromagnetic Solenoid Lock Assembly for Electirc Lock Cabinet Door Lock

• Voltage & Current : DC12V 1.1A; Stroke & Force : 11.4mm, 300g
• Action Type: Push Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
• Easy to Install - It's with simple structure,and it can save the energy and the time during the installation for you.
• With Low Use Cost - This electric lock use instantaneous power, can save power for you. So it can save money for you.
• Small Size and Light Weight - It just takes up a small space which is perfect lock to be used for the small box or small cabinets, such as deposit box, cabinets, safes etc.

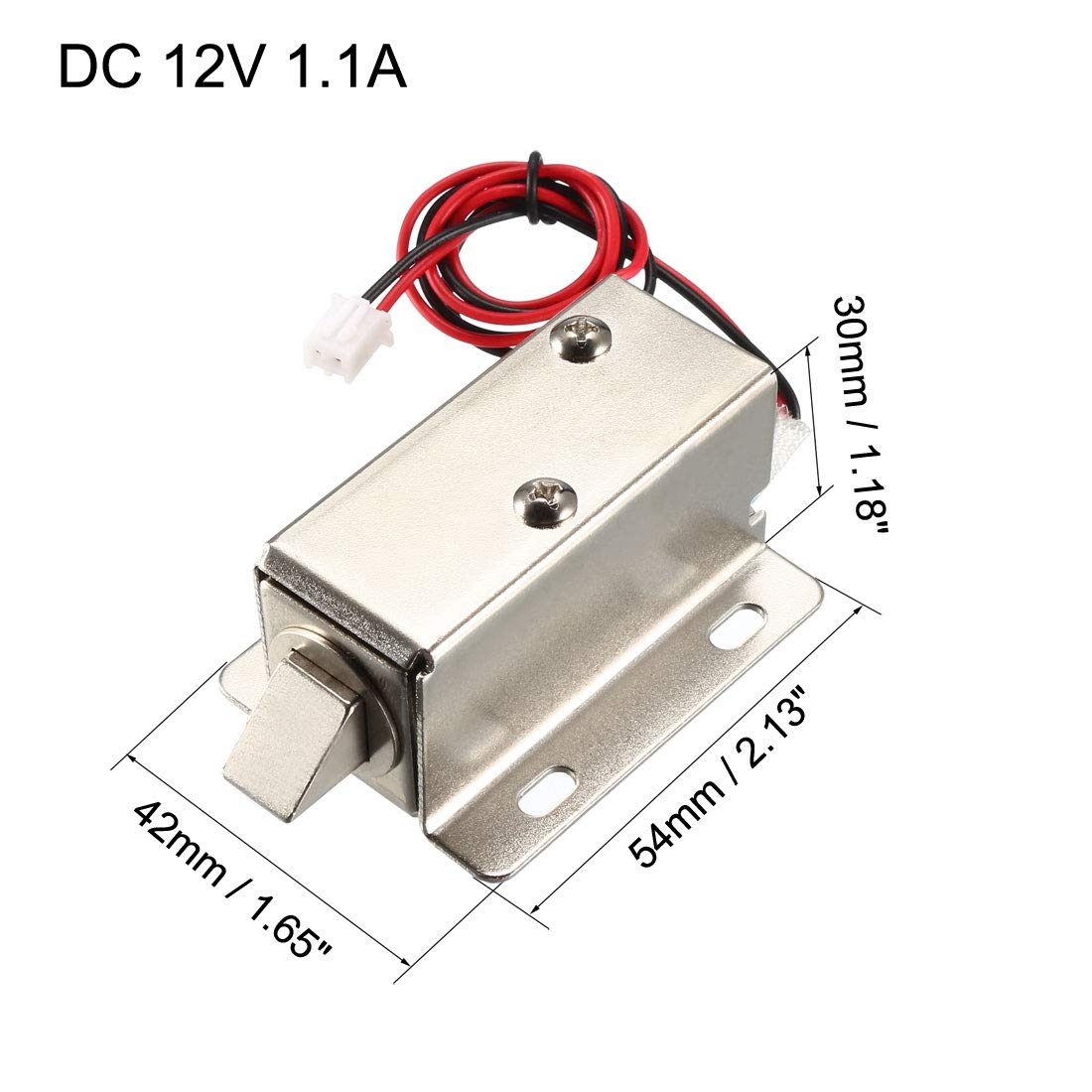

Description: - Easy to install for the electric door lock or other automatic door lock systems with the mounting board. - Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic. Specification: - Voltage & Current : DC12V 1.1A - Stroke & Force : 11.4mm, 300g - Action Type: Push Pull - Energized Forms: Intermittent - Lock Tongue Size: 11.4 x 10 x 10mm / 0.45 x 0.39 x 0.39inch (L*W*H) - Body Size: 54 x 42 x 30mm / 2.13 x 1.65 x 1.18inch (L*W*H) - Mounting Hole Size: 7 x 3.5mm / 0.28 x 0.14 inch (L*W) - Mounting Hole Distance: 30 x 32mm / 1.18 x 1.26 inch (L*W) - Package Content : 1 x Electromagnet Solenoid Lock Instructions for Use: - When the circuits is charged, the lock tongue will pull back by 11.4mm and the door will be unlocked. - After the circuits is powered off, the lock tongue will extend to lock the door. - The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished. - When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
