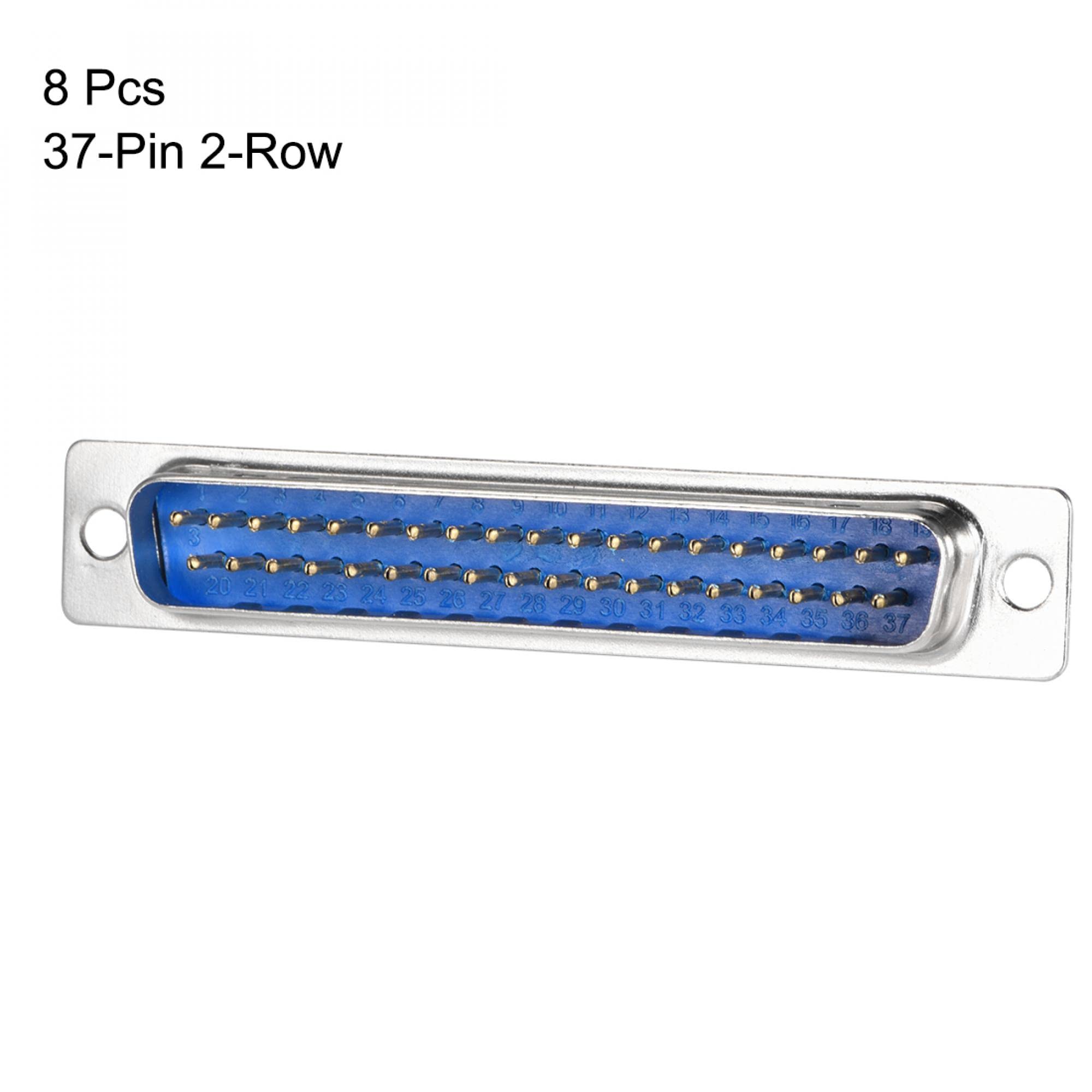

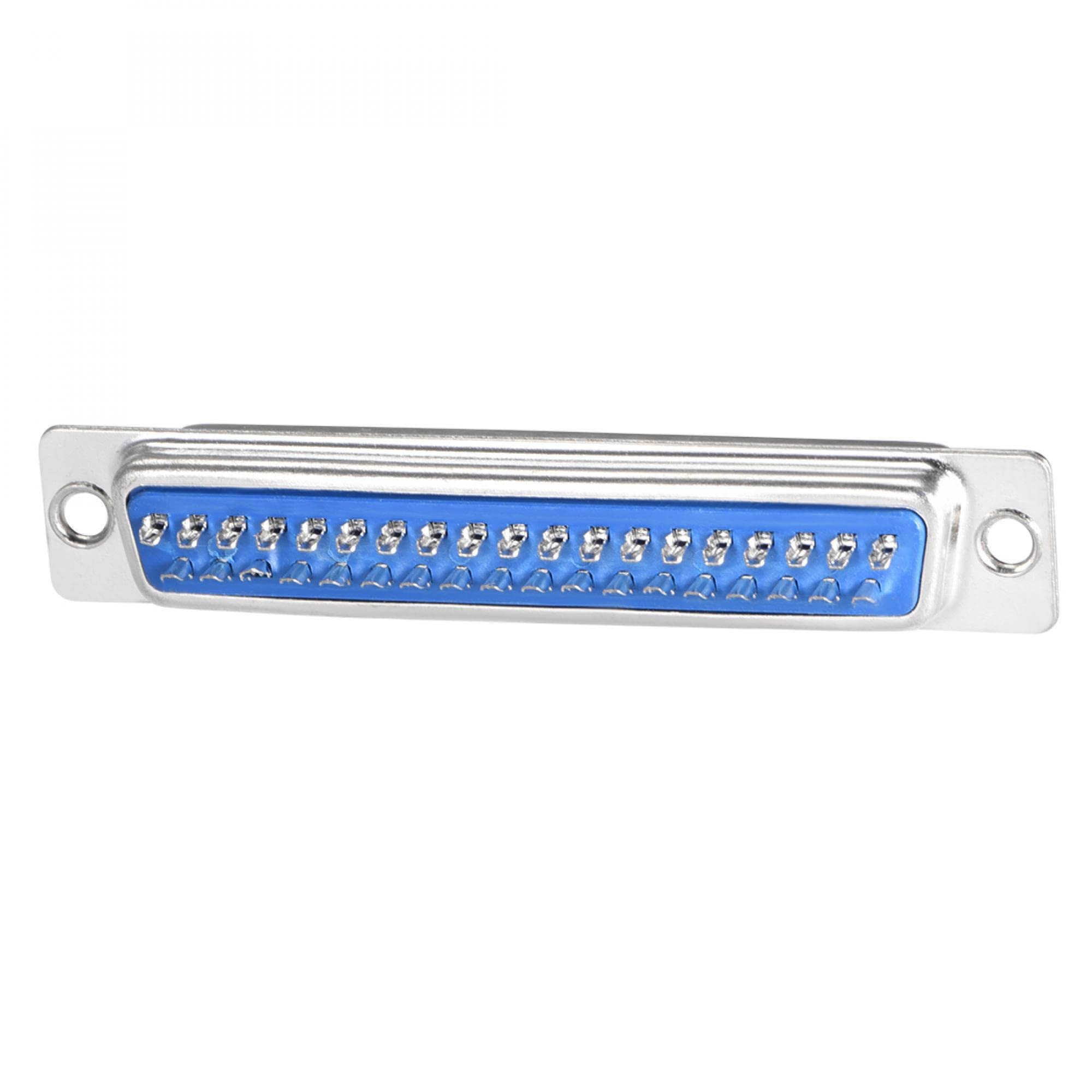

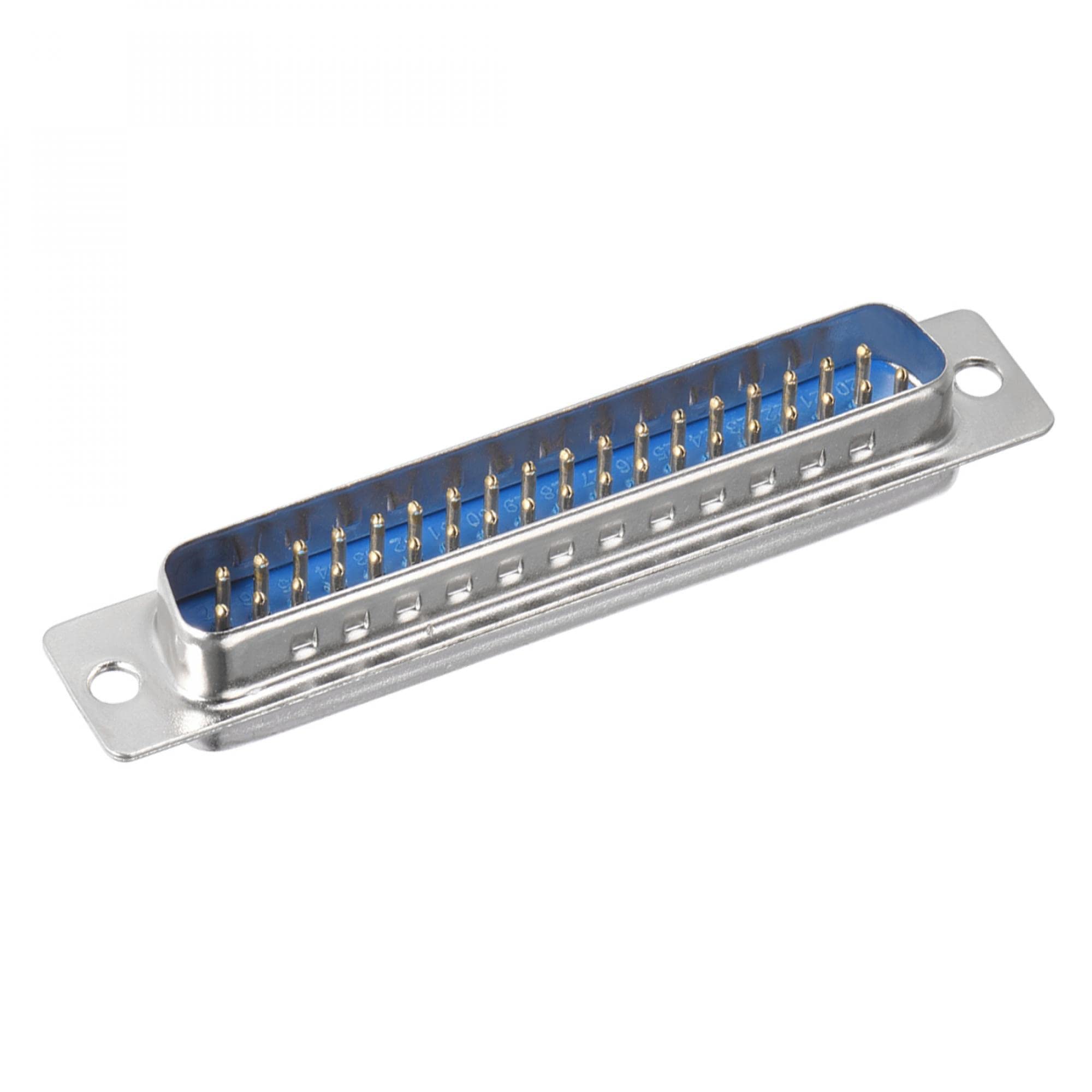

sourcing map D-sub Connector Male Plug 37-pin 2-row Port Terminal Breakout Solder Type for Mechanical Equipment CNC Computers Blue Pack of 8

• Connector Type: Plug(Male); Rating Current: 5A
• Number of Positions: 37; Number of Rows: 2;
• Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 70*12.5*14.5mm(L*W*H)
• This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
• Package Includes: 8 X Male D-sub Connectors

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data. Specifications: Product Name: Male D-sub Connector Connector Type: Plug(Male) Contact Material: H65 Number of Positions: 37 Number of Rows: 2 Rating Current: 5A Mounting Type: Panel Mount Termination Style: Solder Cup Mounting Angle: Straight Pin Distance: 2.84mm Mounting Diameter: 3.05mm Mounting Distance: 63mm Overall Size: 70*12.5*14.5mm(L*W*H) Features: Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector. This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports. Package Includes: 8 X D-sub Connectors
