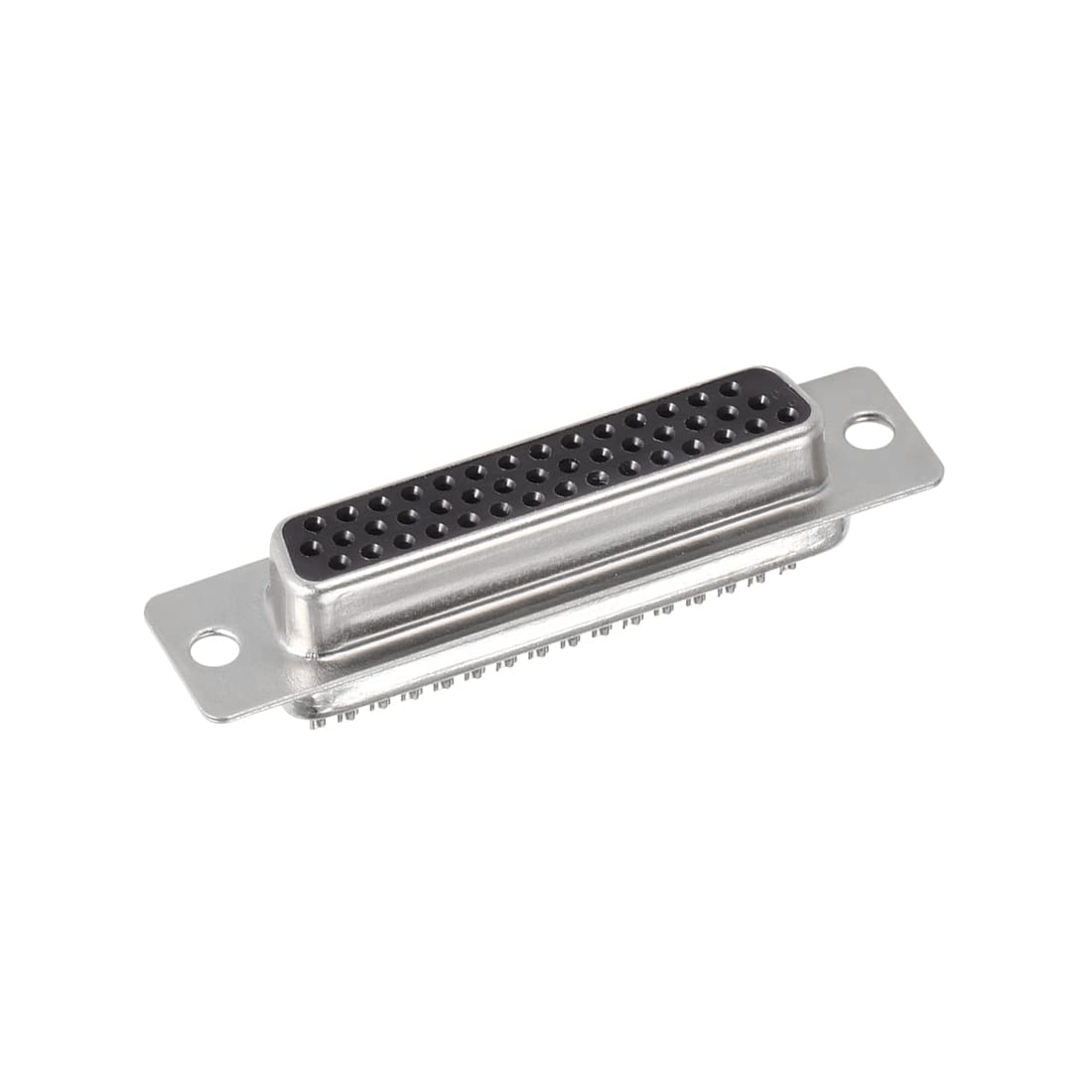

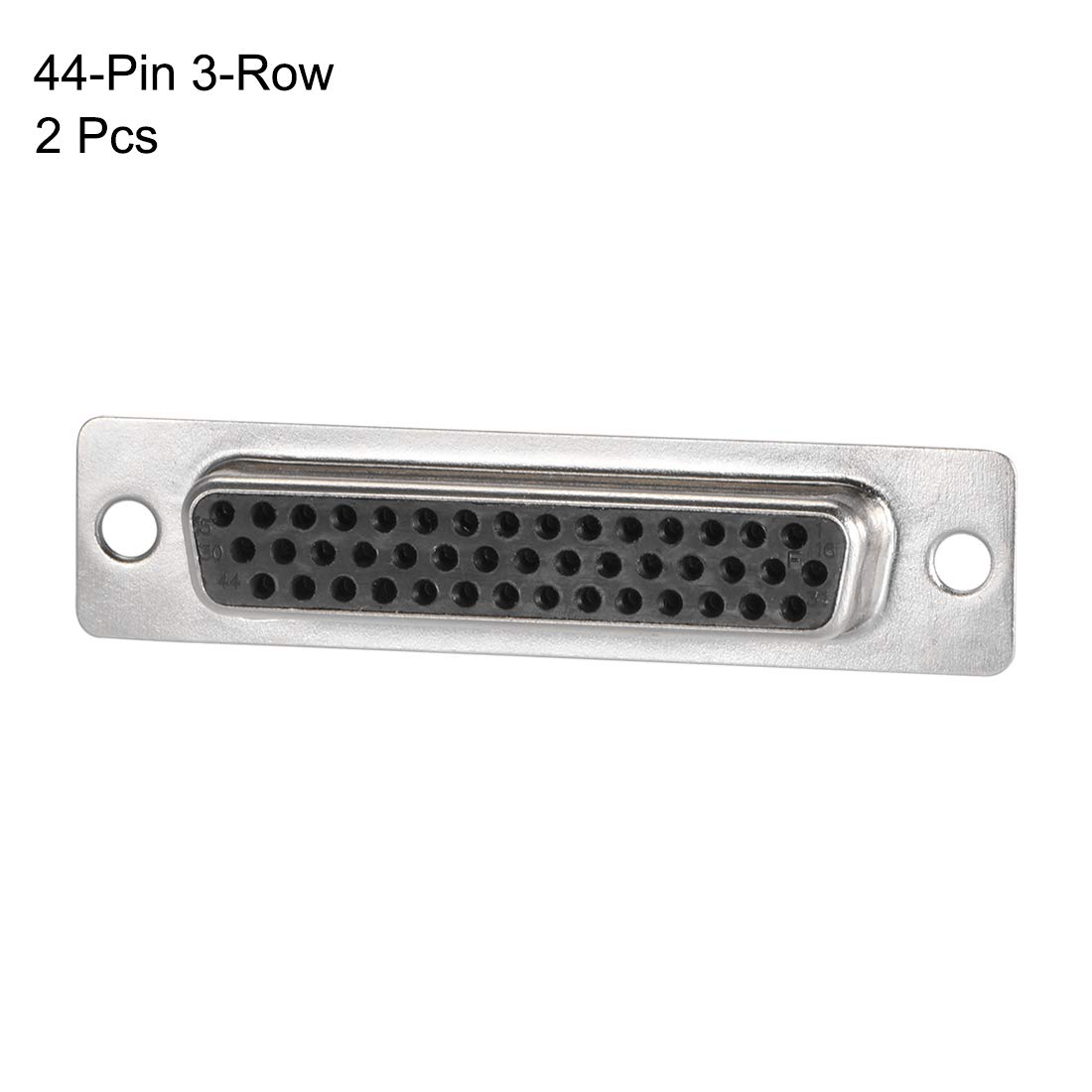

sourcing map D-sub Connector DB44 Female Socket 44-pin 3-row High Density Port Terminal Breakout for Mechanical Equipment CNC Computers Pack of 2

• Connector Type: Socket(Female); Rating Current: 3A
• Number of Positions: 44; Number of Rows: 3;
• Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 53.05*12.5*16.7mm(L*W*H)
• This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
• Package Includes: 2 X Female D-sub Connectors

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data. Specifications: Product Name: Female D-sub Connector Connector Type: Socket(Female) Contact Material: C2680 Number of Positions: 44 Number of Rows: 3 Rating Current: 3A Mounting Type: Panel Mount Termination Style: Solder Cup Mounting Angle: Straight Pin Distance: 2.29mm Mounting Diameter: 3.05mm Mounting Distance: 47.05mm Overall Size: 53.05*12.5*16.7mm(L*W*H) Features: Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector. This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports. Package Includes: 2 X D-sub Connectors
