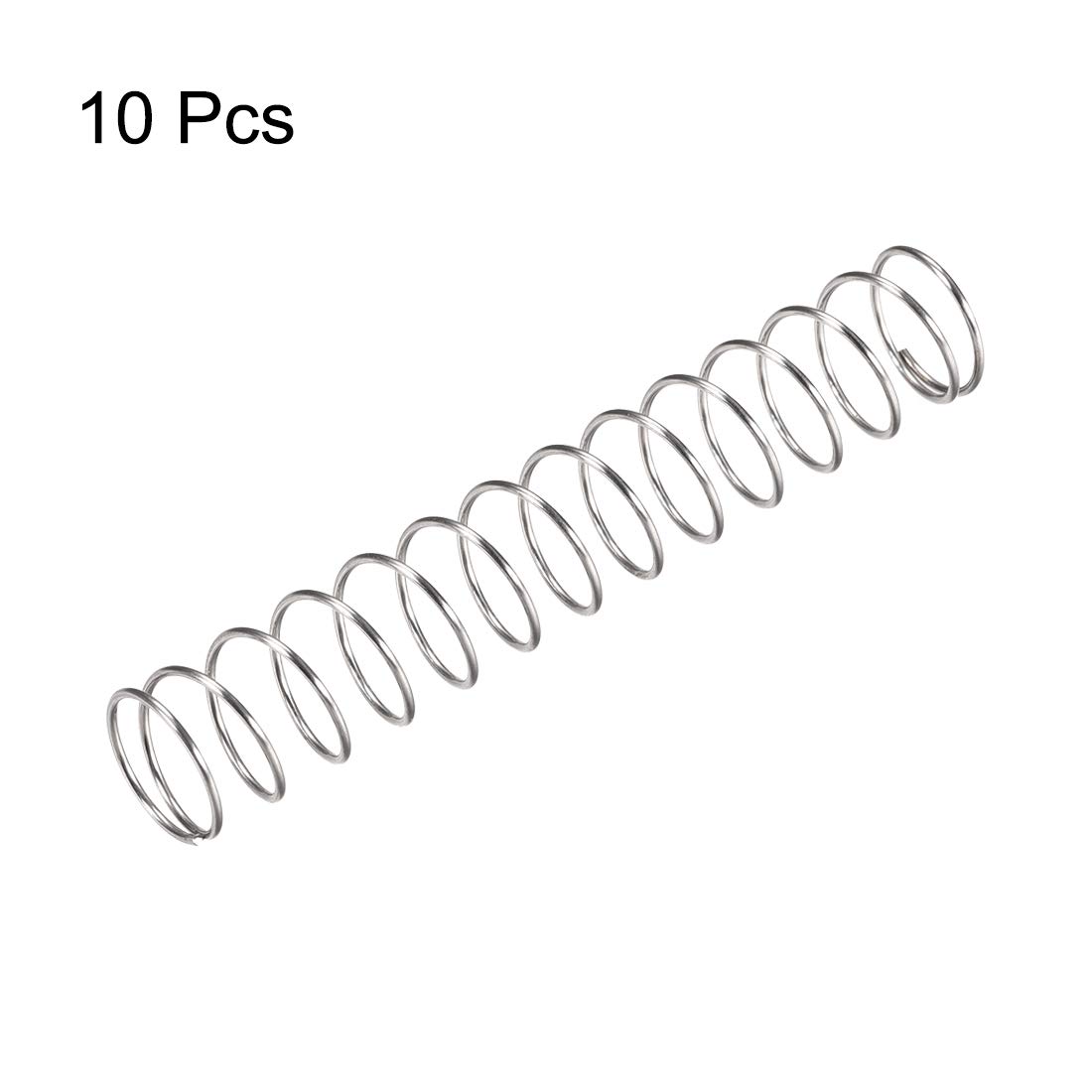

sourcing map Compression Spring,304 Stainless Steel,15mm OD,1mm Wire Size,45mm Compressed Length,90mm Free Length,35N Load Capacity,Silver Tone,10pcs

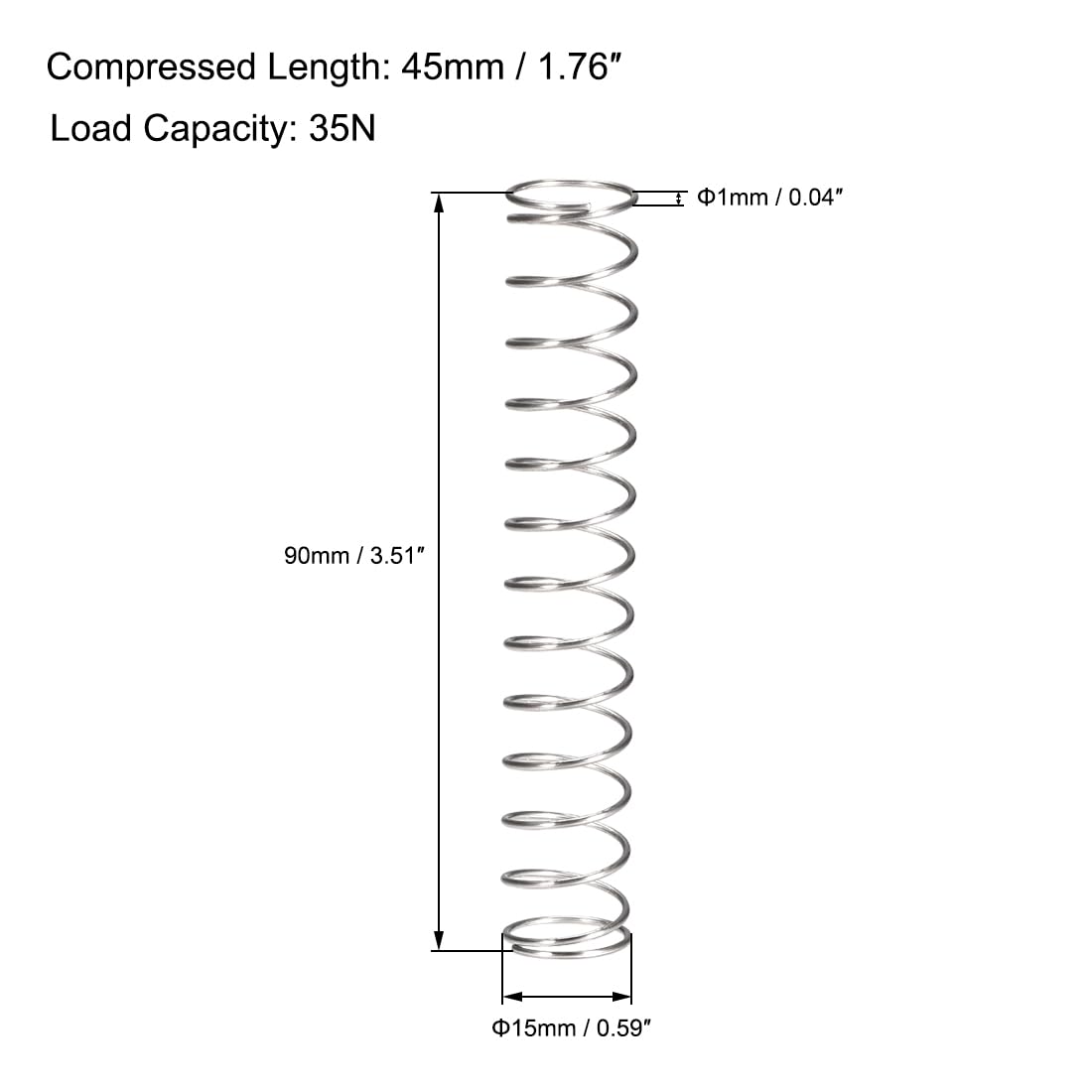

• Product: 15mm/0.59inch OD, 1mm/0.04inch Wire Diameter,90mm/3.51inch Total Height.
• Specifications: 45mm/1.76inch Compressed Length,35N Load Capacity, 0.88 N/mm Spring Rate.
• Material: 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.

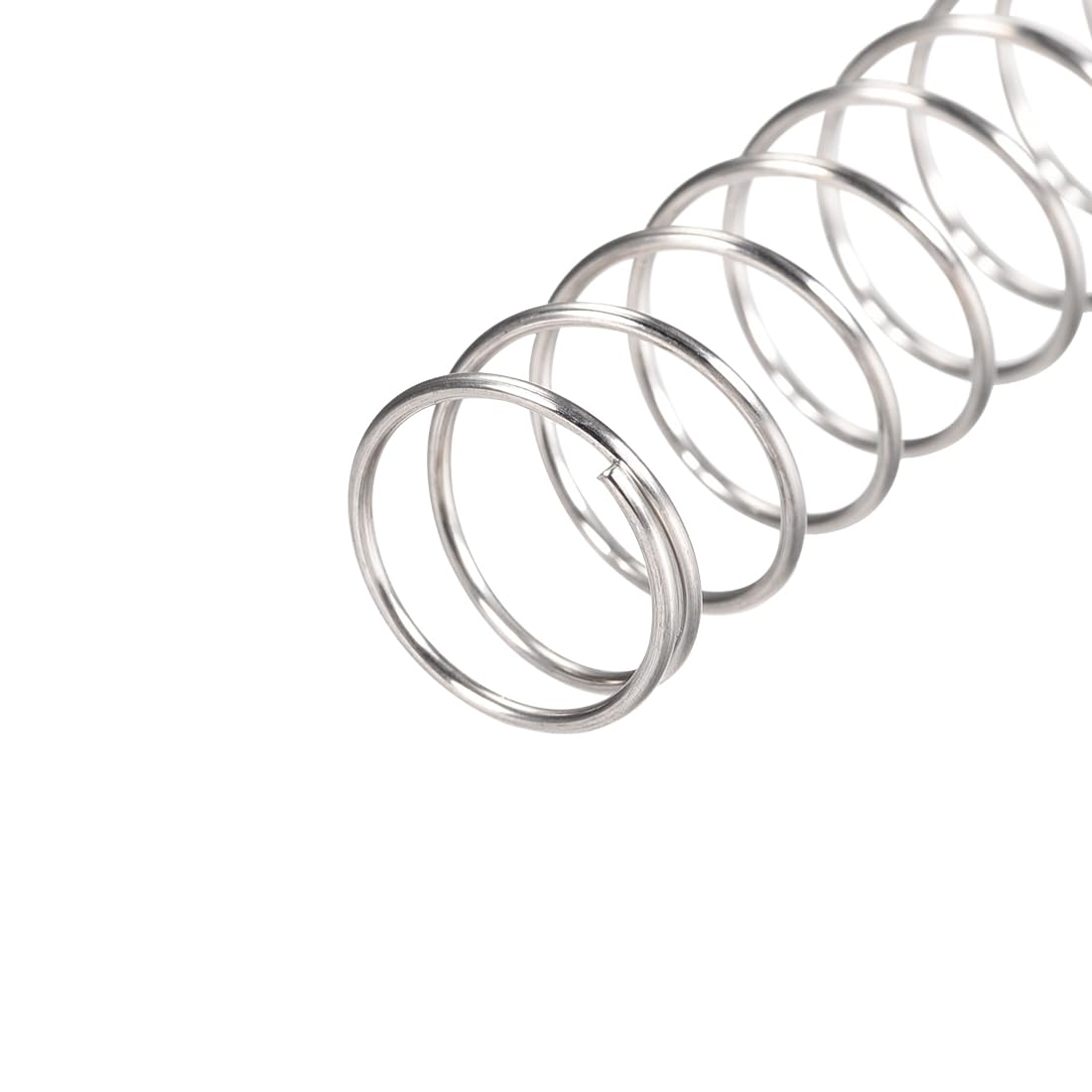

• Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
• Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Description: Compression springs are open-coil helical springs that are used to save space and absorb shock in a variety of applications. They absorb the energy of a force acting upon them by becoming shorter, store that energy while compacted, and expand as they release the energy. These springs are either placed over a rod, or fitted inside a hole, and are found in a wide variety of applications ranging from the engine and large stamping presses to major appliances and lawn mowers, electronics. Feature: 1. Spring appearance are no black spots, round smooth. 2. Even spacing, highlight curve, stable force, high plasticity, full elasticity. 3. 304 stainless steel material, high hardness. 4. Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.By the load acting on them or their ends being compressed, the compression spring is compressed by the wire design trying to return the spring back to its original shape, thus the load is pushed back. Specifications: Product Name: Compression Spring Outer Diameter: 15mm/0.59inch; Wire Diameter: 1mm/0.04inch; Total Height: 90mm/3.51inch; Compressed Length: 45mm/1.76inch; Load Capacity: 35N Spring Rate :0.88 N/mm Material: 304 Stainless Steel Color: Silver Tone Package Include: 10pcs x Compression Spring
