sourcing map ER16-A(M22) Type Collet Clamping Nuts for CNC Milling Chuck Holder Lathe

• Package : 1 x Collet Nuts,Model : ER16-A ; Material : Cast Steel
• ER16-A Type Collet Clamping Nut For CNC Milling Collet Chuck Holder Lathe

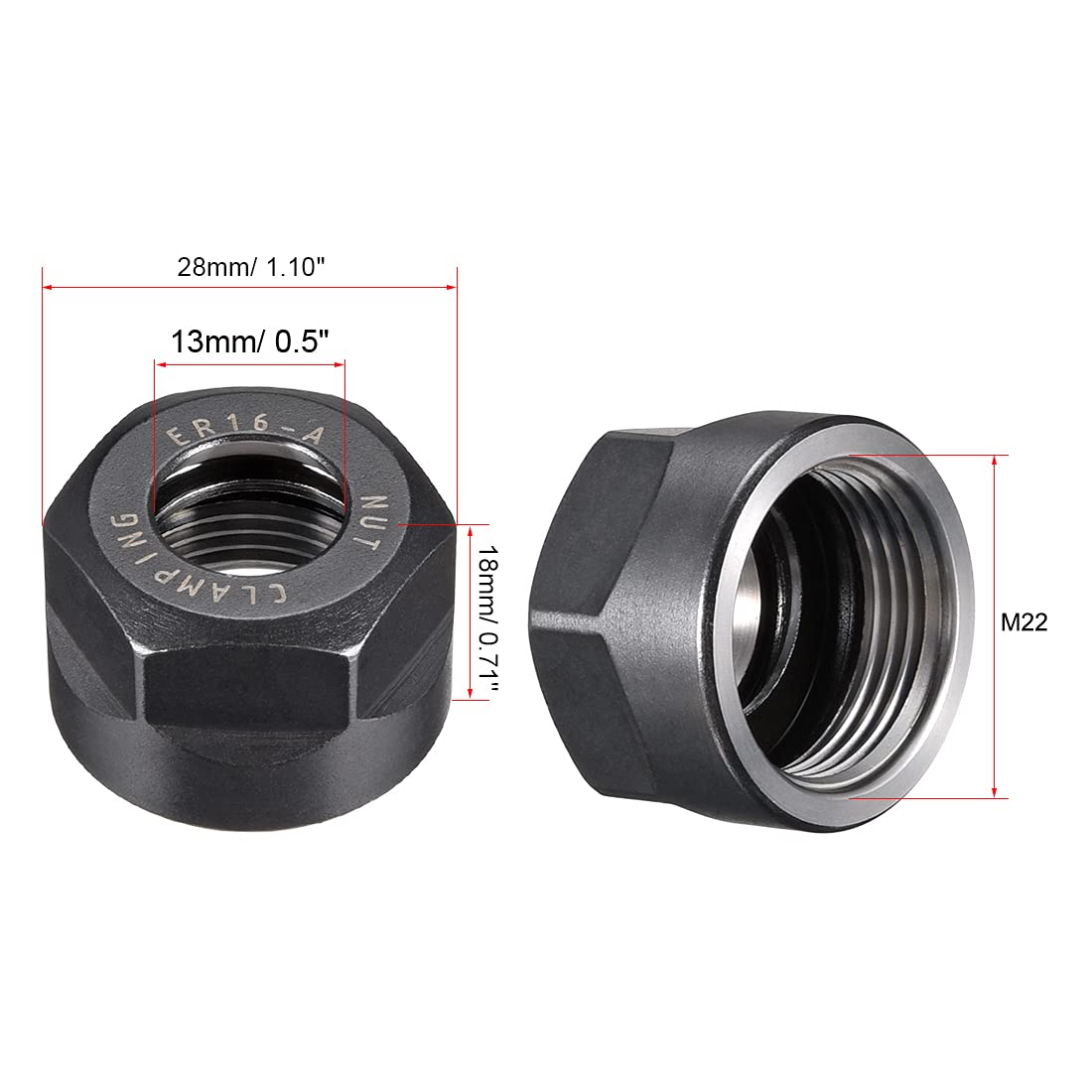

• Hole Diameter : 13 mm/ 0.5";Overall Size(Approx.) : 28 x 18 mm/ 1.10" x 0.71" (D*H)
• This collet nut is a great replacement for the broken part; Fit most tool holders.
• Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1cm.

Precision ground and hardened. This collet nut is a great replacement for the broken part. Fit most tool holders. Specification: Product Name : Collet Nuts Model : ER16-A Overall Size : 28 x 18 mm/ 1.10" x 0.71" (D*H) Thread Size: M22； Thread Pitch: 1.5 mm; Hex Width: 25 mm / 0.98" Hole Diameter: 13 mm/ 0.5" Material : Cast Steel Package Content: 1 x Collet Nut
