sourcing map Brass Hex Socket Pipe Fitting, G1/4 Male Thread Hose Adapter Connector, for Garden Pipe Pneumatic Solenoid Valve, 18Pcs

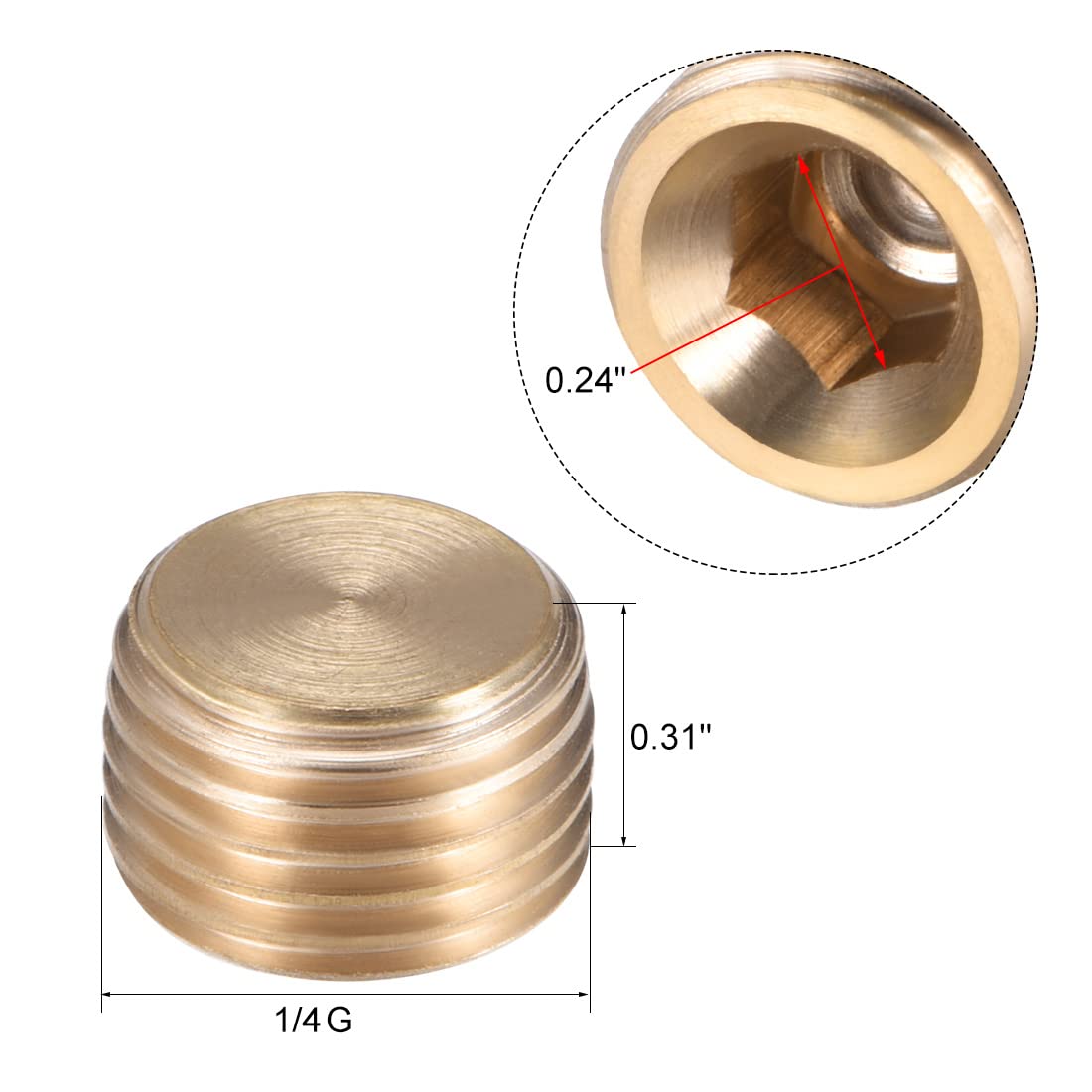

• Thread Size: G1/4(Approx OD 13.2mm); Thread Length: 8mm/0.31"; Internal Hex Width: 6mm/0.24".
• Material: This pipe cap is mainly made of brass, with high strength, corrosion resistance and high temperature resistance.
• Installation: Wind approx 5-8 turns clockwise of sealing tape on the male thread, insert the pipe and tighten with a hex wrench.
• Applications: This is mainly used for sealing joints and pipes. Widely used in outdoor gardens, washing machines, air conditioners, water heaters, storage rooms, etc.
• Note: We suggest wearing gloves to prevent burrs or screws from hurting your fingers. Shut down the fluid source of the pipe or joint and fully release the pressure before installing the product to prevent liquid or gas jet.

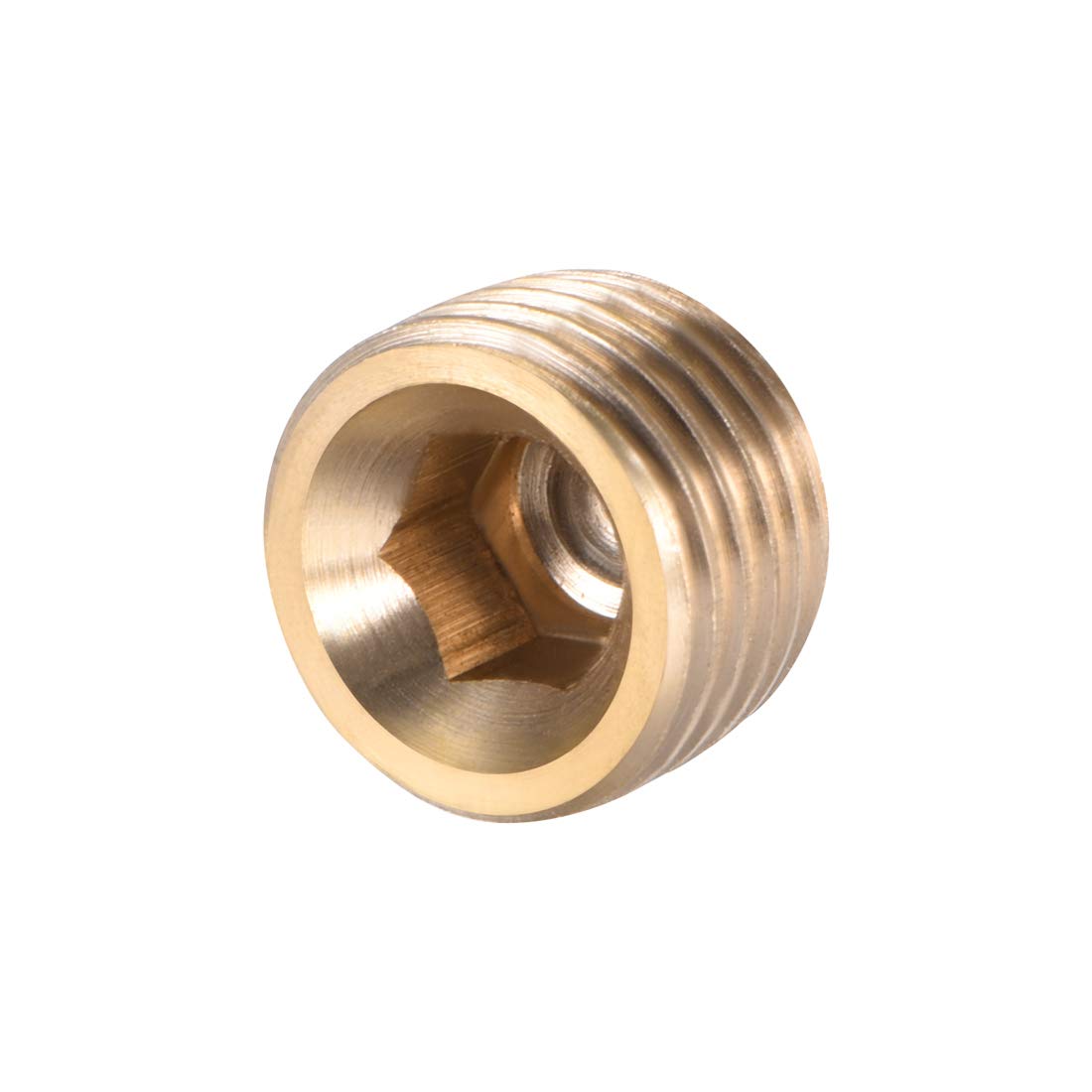

Specification: Product Name: Brass Pipe Fitting Material: Brass Color: Gold Tone Weight: 97g Thread Size: 1/4" G Thread Length : 0.31 -inch =8mm Internal Hex Width : 0.24-inch =6mm Total Size: 12.5mm x 8mm / 0.49-inch x 0.31-inch (Max.D*H) Operating temperature：-50 - 120 Degree Celsius Package Content : 18pcs x Threaded Pipe Fitting Description: 1.This hex drive countersunk plug is a brass pipe fitting with 1/4" male G threads. 2.The countersunk plug with a hex drive inserts into a pipe or fitting to close and terminate its end and has a recessed hex head for increased bearing load. 3.It has male National Pipe Taper (G) threads for connecting to female threaded pipes, creating a tighter seal than straight threads. 4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. 5.The hex drive countersunk plug has fair vibration resistance and is suitable in low to medium pressure applications. 6.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
