sourcing map Brass Compression Tube Fitting Connector Adapter 20mm Tube OD X 1/2 G Male Gold Tone

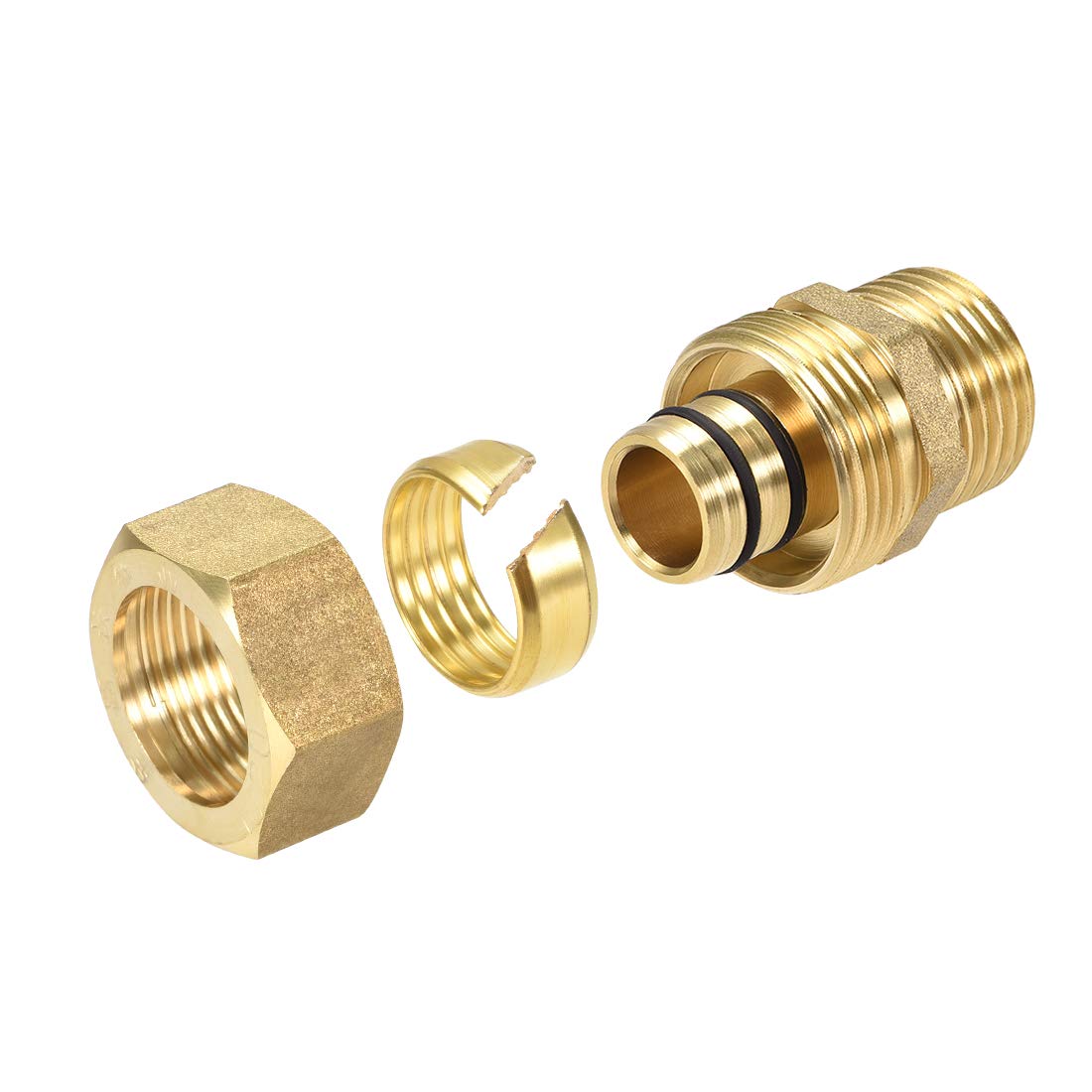

• Three piece construction - nut, ferrules and body with attached insert.
• Fitting connects to tubing 16mm(ID), 20mm(OD) on one end and connect to a 1/2 G female connector on the other.
• Multi-purpose. Sleeve pipe joints do not need welding, pressing or bonding, just push in and tighten nuts to form a waterproof seal.
• Strong connection, strong pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation.
• Suitable for aluminum-plastic composite pipes, PEX, copper pipes, CPVC, HDPE, PE-RT and CTS pipes, and connect them in any combination.

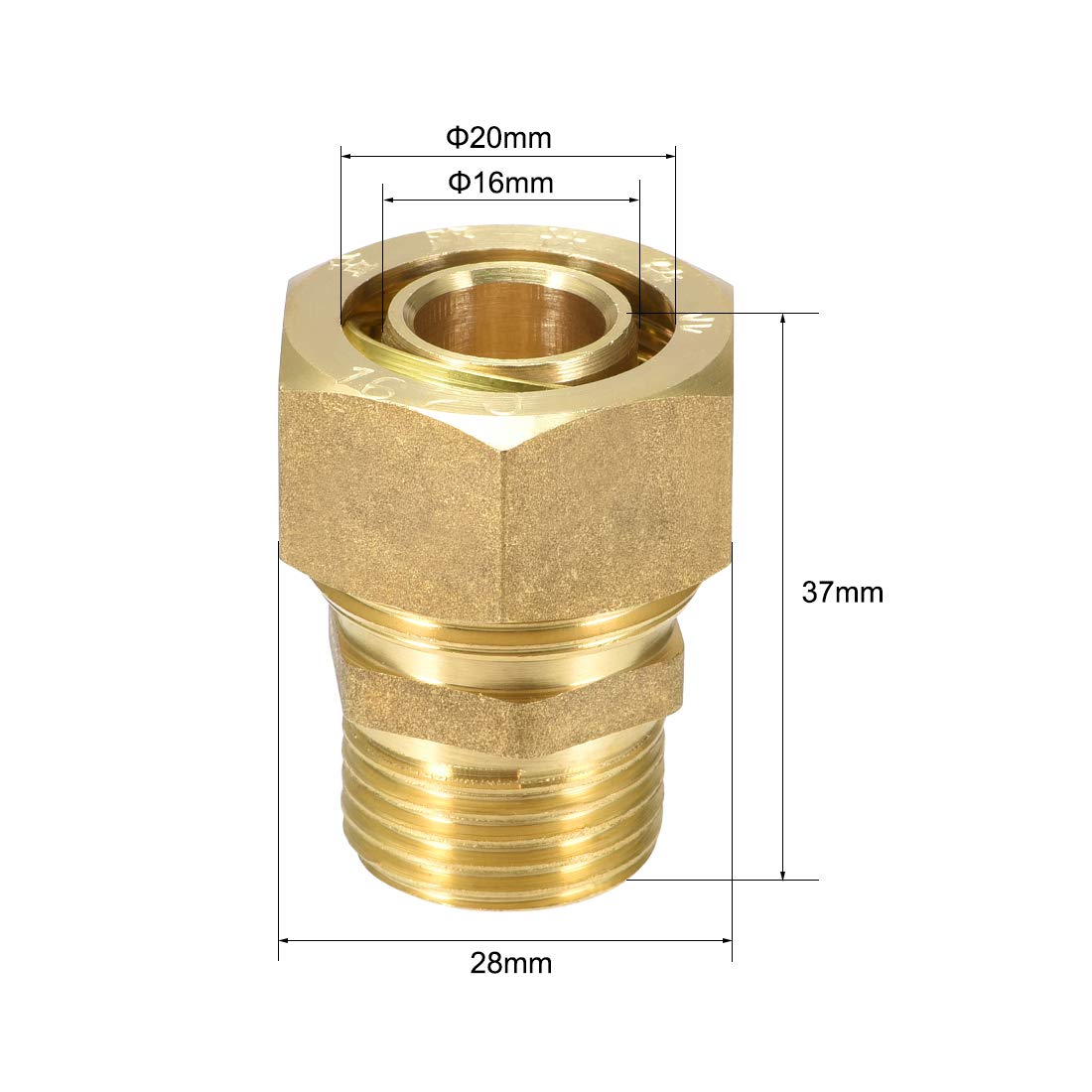

Description: 1.Three piece construction - nut, ferrules and body with attached insert. 2.Fitting connects to tubing on one end and connect to a G female connector on the other. 3.Multi-purpose. Sleeve pipe joints do not need welding, pressing or bonding, just push in and tighten nuts to form a waterproof seal. 4.Strong connection, strong pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation. 5.Suitable for aluminum-plastic composite pipes, PEX, copper pipes, CPVC, HDPE, PE-RT and CTS pipes, and connect them in any combination. 6.Widely used for oil & gas industries, petro chemicals, power plant, steel industries, hydraulic & pneumatic, marine & any process Industry. Specification： Product Name: Compression Tube Fitting Material: Brass Color: Gold Tone Surface Treatment: Passivation Small Hex Width: 22mm / 0.87" Large Hex Width: 28mm / 1.1" Male Dia: G1/2 Fit for Pipe Dia: 16mm(ID), 20mm(OD) Total Size: 37mm x 32mm / 1.46" x 1.26"(L*OD) Package Content: 1pcs x Compression Tube Fitting
