sourcing map Brass Barb Hose Fitting Connector Adapter 6mm Barbed x G1/4 Female Pipe

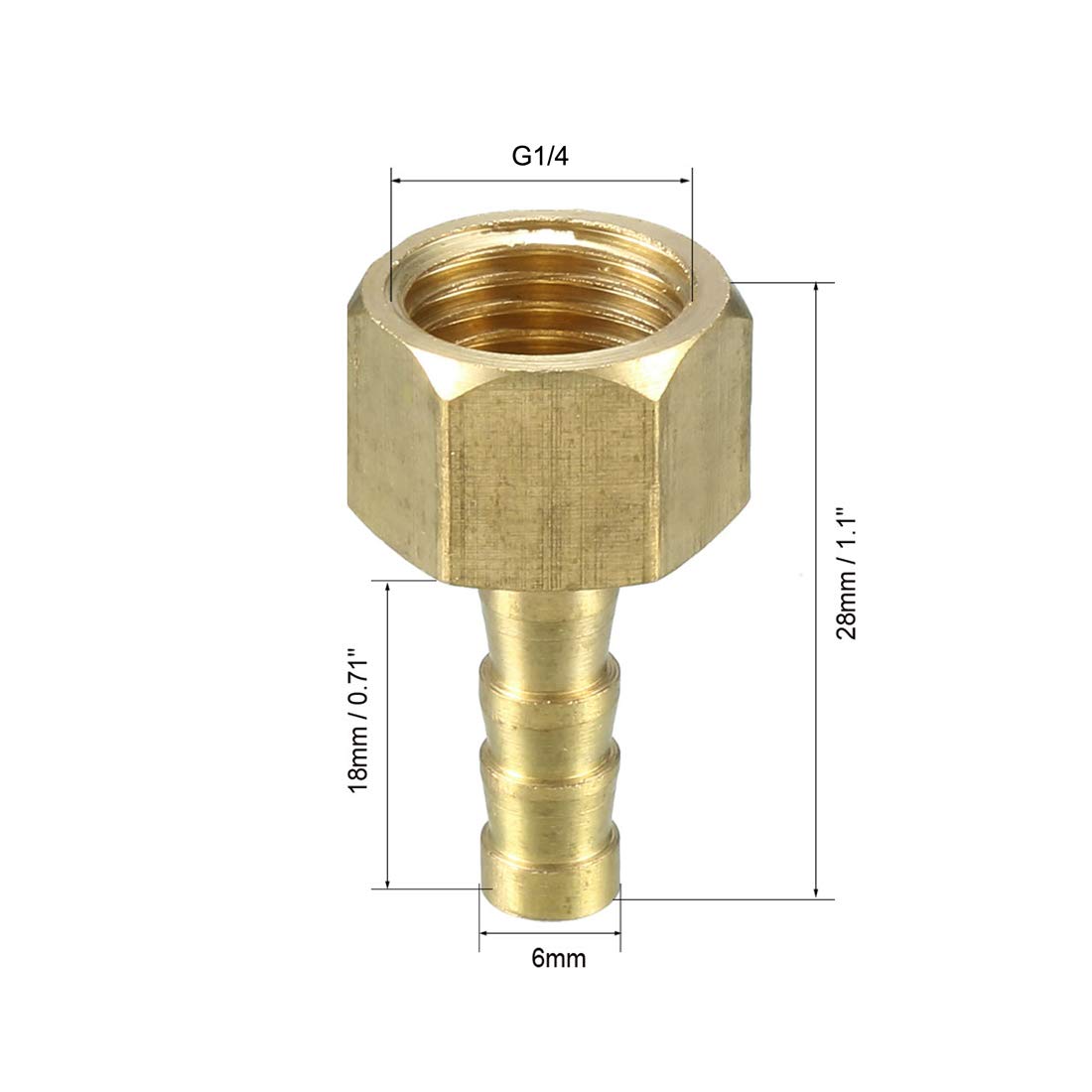

• Size: 6mm Barb x G1/4 Female; Total Size: 28mm x 15mm /1.1" x 0.59" (L*D); Thread Length: 9mm / 0.35"; Barb Length: 18mm / 0.71"
• One side is used to connect hoses while the other side is used to connect to G female pipes.
• This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
• The barbed stems create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).
• Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.

Description: 1.One piece construction. Barbed edges provide positive connection. 2.32 degree to 200 degree F temperature range. 3.Barb size is hose inner diameter. 4.The barbed stems create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included). 5.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. 6.Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way. Specification: Product Name: Barb Hose Fitting Material: Brass Size: 6mm Barb x G1/4 Female Total Size: 28mm x 15mm /1.1-inch x 0.59-inch (L*D) Thread Length: 9mm / 0.35-inch Barb Length: 18mm / 0.71-inch Color: Gold Tone Weight: 9g Package Content : 1 x Barb Hose Fitting Note: Before ordering, please confirm the right size!
