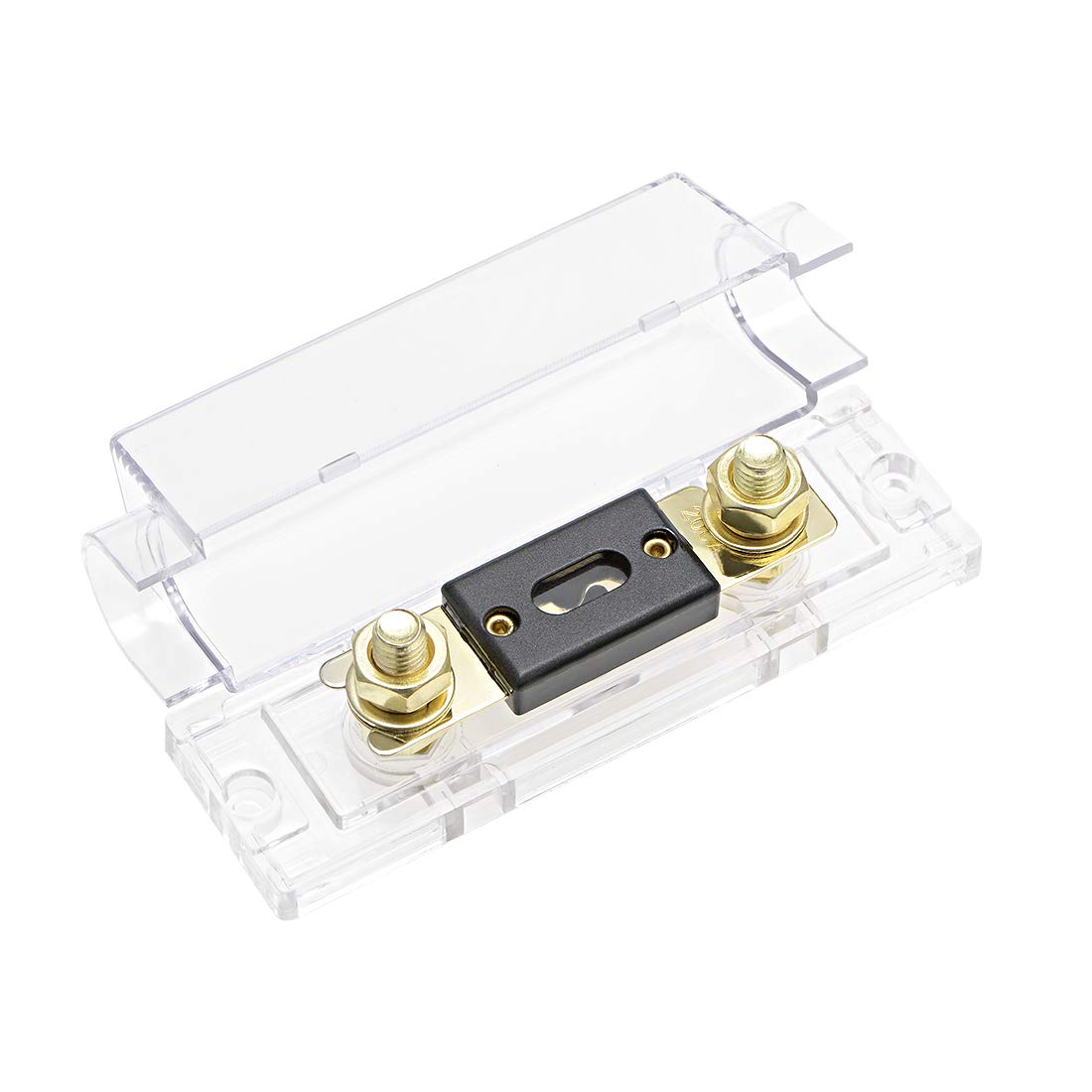

sourcing map ANL Fuse Holder with 200 Amp Fuse DC 32 Volt for Audio Amplifier Inverter Replacement with Clear Insulated Cover

• Rated Voltage: DC 32V; Rated Current: 200A; Screw Bolt Diameter: 8mm/0.3"
• Screw Center Distance: 60mm/2.4"; Mounting Hole Diameter: 4.5mm/0.2"; Mounting Hole Distance: 113mm/4.4"
• Cover breakouts allow wire access in any direction. Swing out design allows replacement of the fuse without removing fastener.
• The fuse should be sized at approx. 1.3 times the rated power of the object being protected. ANL fuse holder is widely applied to inverter, audio amplifier and other high current applications.
• Note: Please shut down power before your replacement. Check your original size of fuse block before buying: body diameter, body length, rated current, rated voltage.

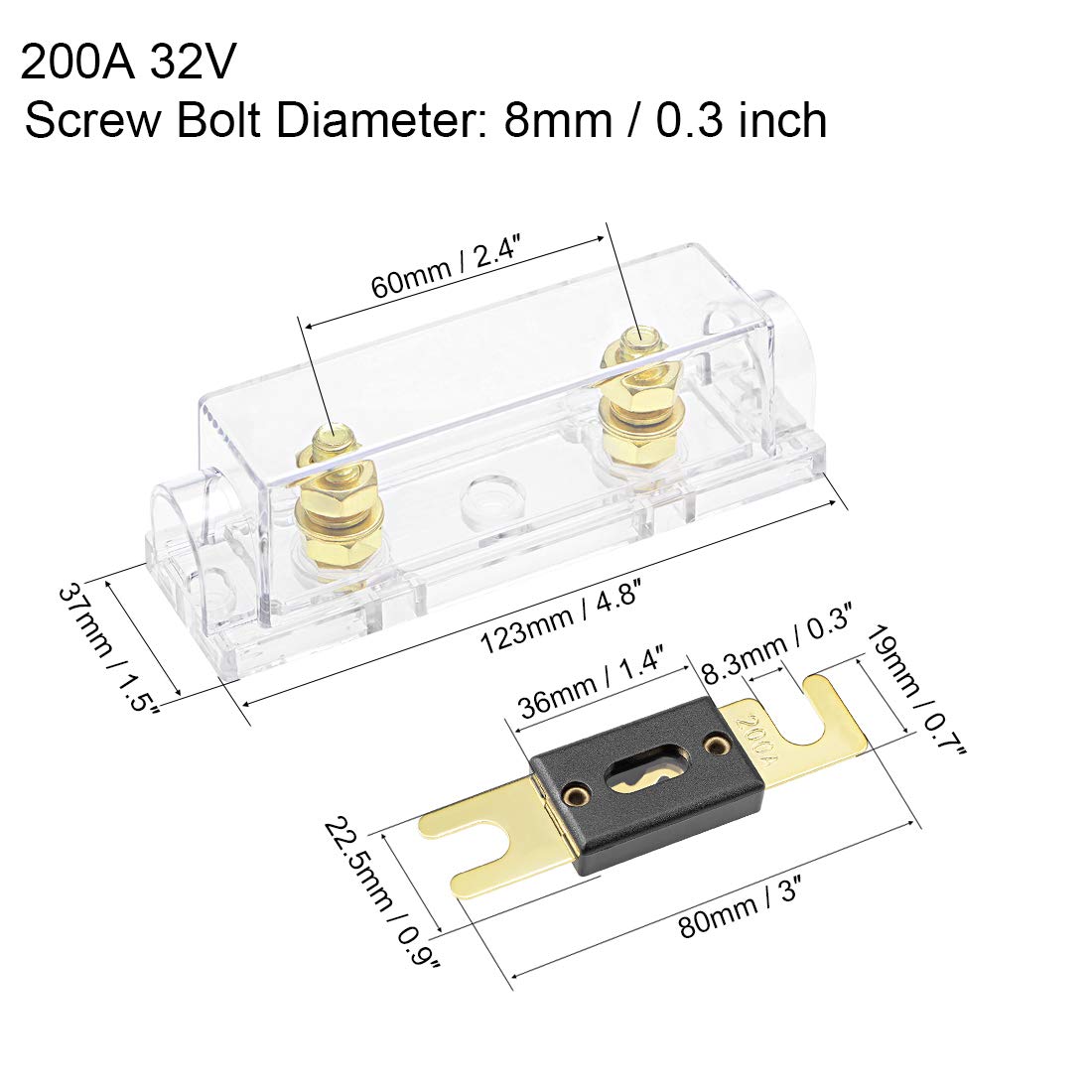

Features: Golden tone plated metal sheet construction fuse, durable finish and conductivity. Cover breakouts allow wire access in any direction. Swing out design allows replacement of the fuse without removing fastener. For most applications, the fuse should be sized at approximately 1.3 times the rated power of the object being protected. ANL fuse holder is widely applied to inverter, audio amplifier and other high current applications. NOTE: 1. Shut down power before your replacement. 2. Check your original size of fuse block before buying: body diameter, body length, rated current, rated voltage. Specifications: Fuse: Rated Voltage: DC 32V Rated Current: 200A Fork Width: 19mm / 0.7 inch U-shape Width: 8.3mm / 0.3 inch Body Length: 36mm / 1.4 inch Overall Size: 80x22.5x9mm/ 3x0.9x0.4 inch (L*W*T) Fuse Holder: Screw Bolt Diameter: 8mm / 0.3 inch Screw Center Distance: 60mm / 2.4 inch Mounting Hole Diameter: 4.5mm / 0.2 inch Mounting Hole Distance: 113mm / 4.4 inch Holder Panel Size: 123x37x38mm / 4.8x1.5x1.5 inch (L*W*H) Package Contents: 1 x ANL Holder 1 x Blade Fuse
