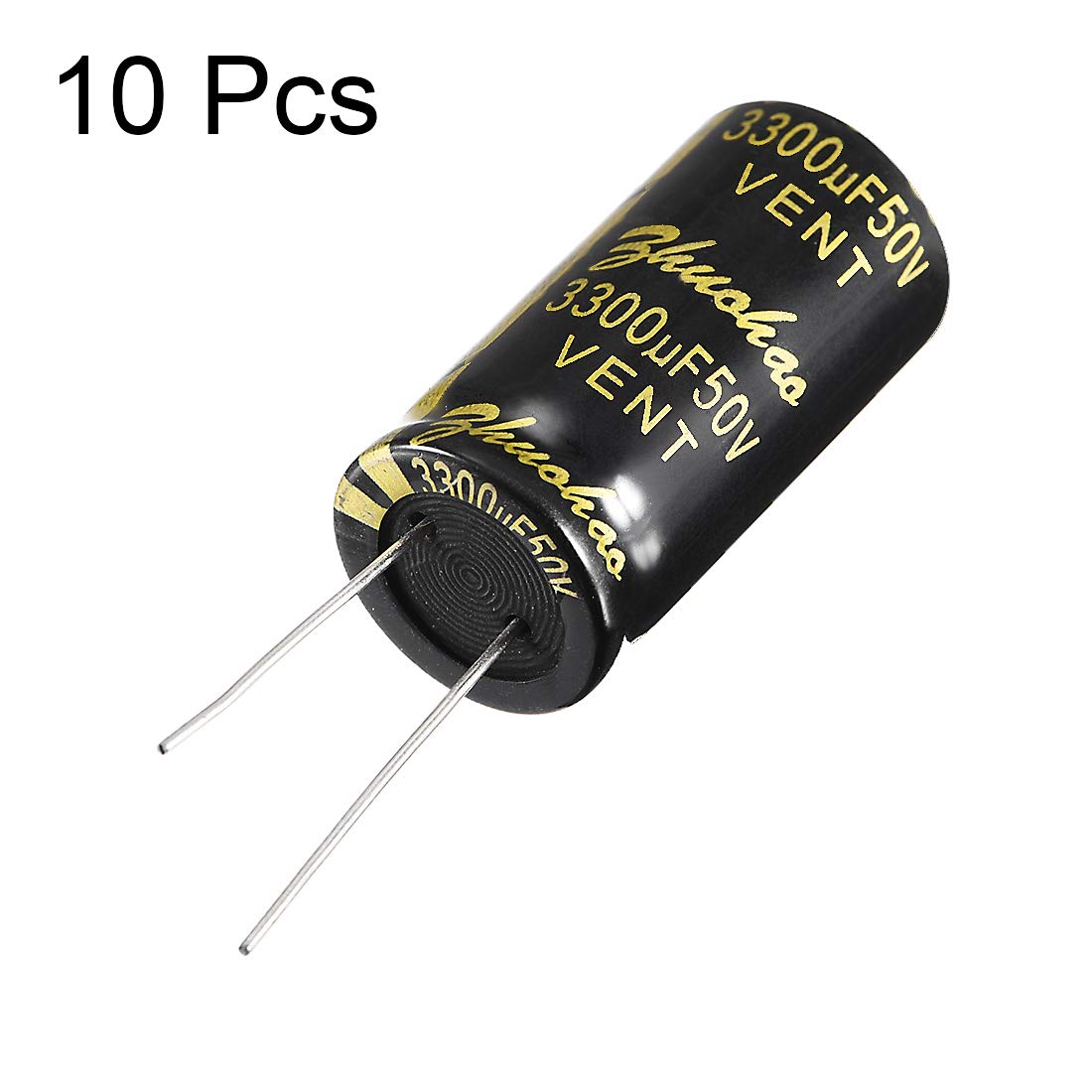

sourcing map Aluminum Radial Electrolytic Capacitor with 3300uF 50V 105 Celsius Life 2000H 18 x 36 mm Black 10pcs

• Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
• Rated Voltage: 50V ; Capacitance: 3300uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 2000hrs

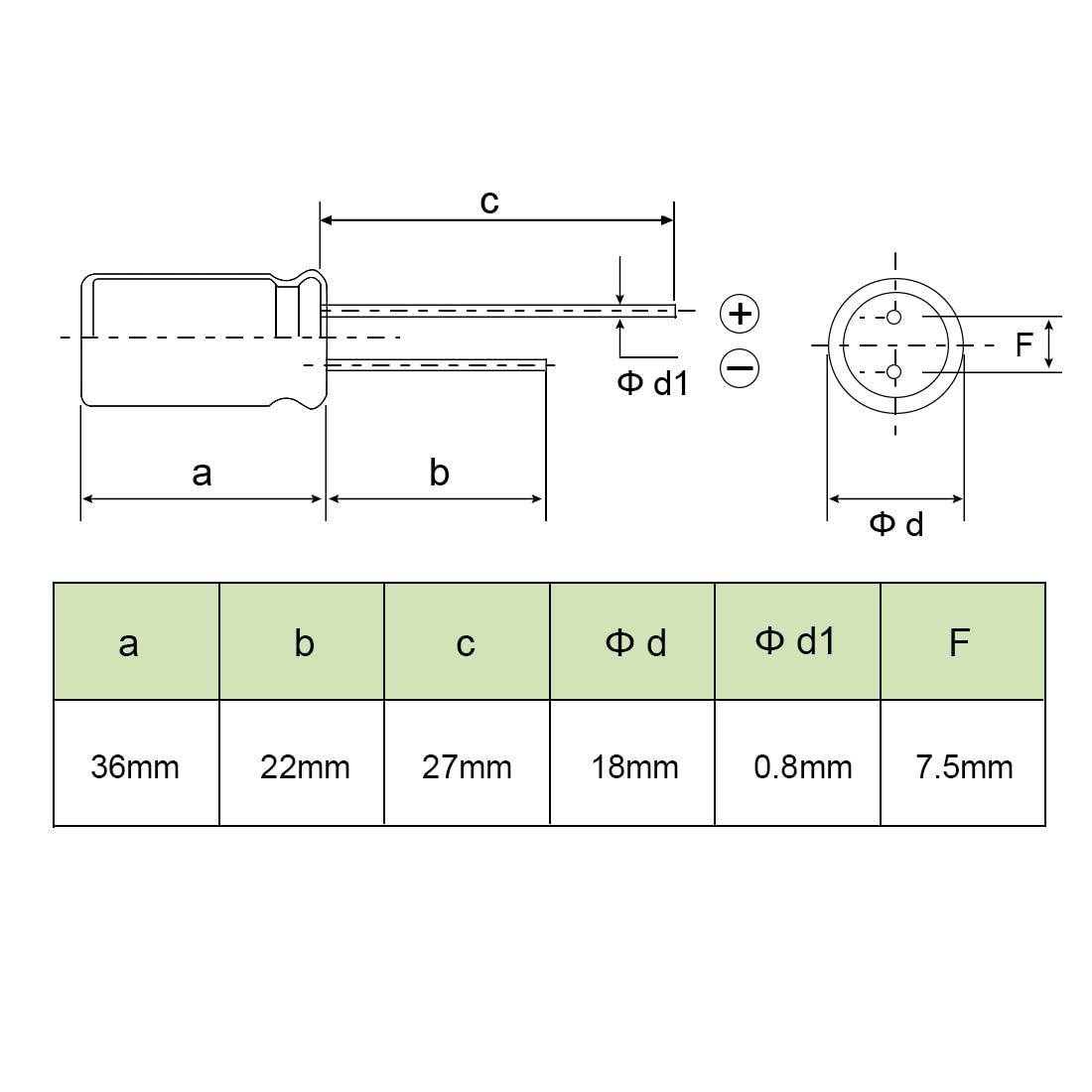

• Body Size: 18 x 36mm/0.71" x1.42"(D*L); Lead Length: 27mm/1.06", 22mm/0.87"; Lead Pitch : 7.5mm/0.3"
• Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content :10 x Electrolytic Capacitors

Features: Standard General Purpose. Radial lead, aluminum electrolytic capacitor. The longer lead is positive electrode and the shorter one is negative electrode. Notice: 1.Capacitance: Don't change the capacitance. 2.Voltage: You can go higher, but don't go lower. 3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic Capacitor Type: Radial Lead Feature: For Standard Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V) Rated Voltage: 50V ; Capacitance: 3300uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 2000hrs Body Size: 18 x 36mm/0.71" x1.42"(D*L); Lead Length: 27mm/1.06", 22mm/0.87"; Lead Pitch : 7.5mm/0.3" Lead Diameter :0.8mm Size: 10pcs 3300uF 50V 10x13mm Package Content :10 x Electrolytic Capacitors
