sourcing map Aluminum Radial Electrolytic Capacitor with 2.2uF 400V 105 Celsius Life 2000H 6 x 12 mm Black 100pcs

• Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
• Rated Voltage: 400V; Capacitance: 2.2uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 2000hrs

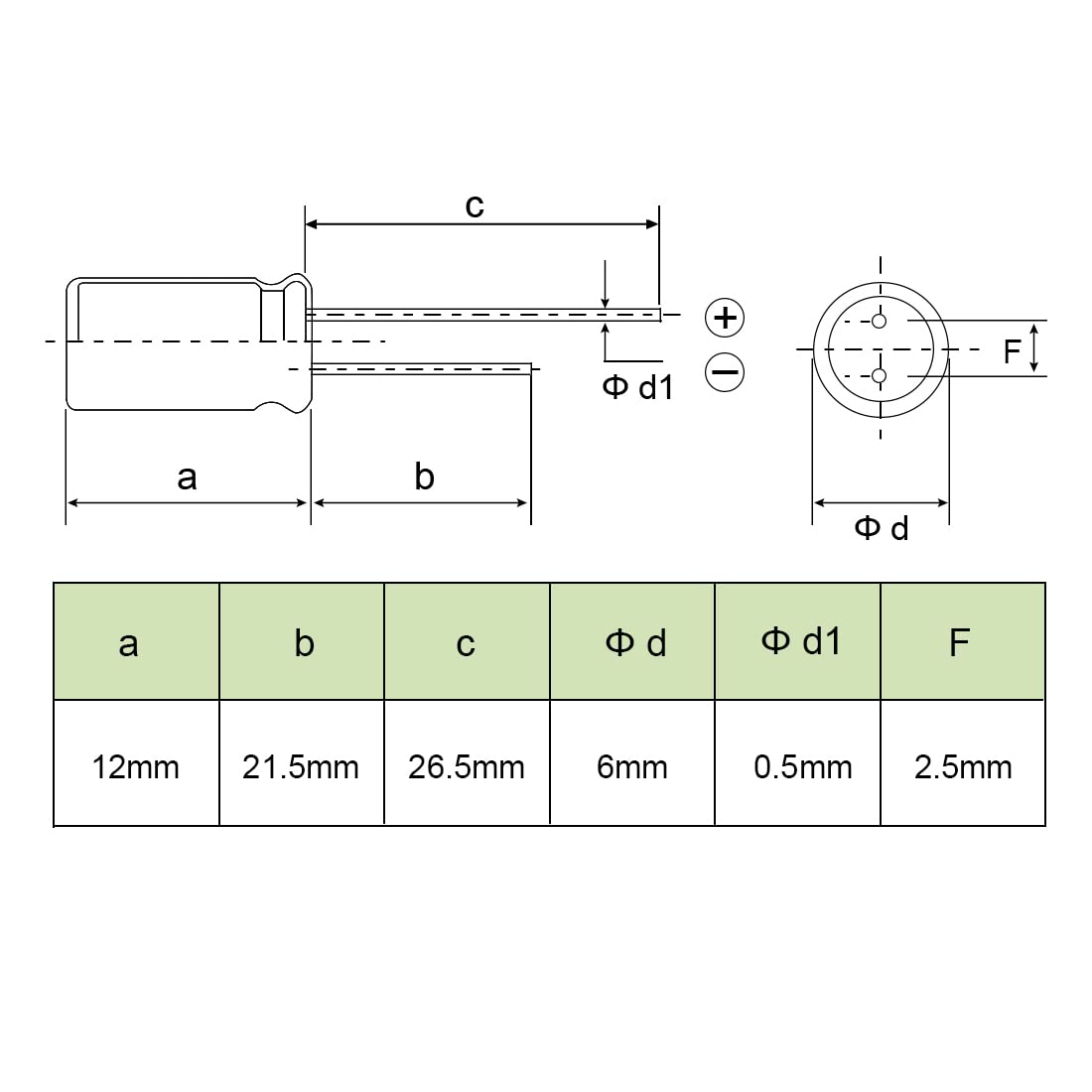

• Body Size: 6 x 12mm/0.24" x 0.47"(D*L); Lead Length: 26.5mm/1.04", 21.5mm/0.85"; Lead Pitch : 2.5mm/0.098"
• Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content : 100(+/-2%) x Electrolytic Capacitors

Features: Standard General Purpose. Radial lead, aluminum electrolytic capacitor. The longer lead is positive electrode and the shorter one is negative electrode. Notice: 1.Capacitance: Don't change the capacitance. 2.Voltage: You can go higher, but don't go lower. 3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic Capacitor Type: Radial Lead Feature: For Standard Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V) Rated Voltage: 400V; Capacitance: 2.2uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 2000hrs Body Size: 6 x 12mm/0.24" x 0.47"(D*L); Lead Length: 26.5mm/1.04", 21.5mm/0.85"; Lead Pitch : 2.5mm/0.098" Lead Diameter :0.5mm Size : 100pcs 2.2UF 400V 8x14mm Package Content : 100(+/-2%) x Electrolytic Capacitors
